Optimal synchronization control of multiple euler-lagrange systems via event-triggered reinforcement learning

Yuan Xu; Xin Jin; Saiwei Wang; Yang Tang

doi:10.3934/dcdss.2020377

Article Contents

2021, Volume 14, Issue 4: 1495-1518. Doi: 10.3934/dcdss.2020377

This issue Previous Article A simple digital spiking neural network: Synchronization and spike-train approximation Next Article Observability of switched Boolean control networks using algebraic forms

Optimal synchronization control of multiple euler-lagrange systems via event-triggered reinforcement learning

The Key Laboratory of Advanced Control and Optimization for Chemical Processes, Ministry of Education, East China University of Science and Technology, Shanghai 200237, China

^* Corresponding author: Yang Tang
^* Corresponding author: Yang Tang

Received: January 2020

Revised: January 2020

Early access: May 2020

Published: April 2021

Abstract / Introduction Full Text(HTML) Figure(8) / Table(1) Related Papers Cited by

Abstract

In this paper, an event-triggered reinforcement learning-based met-hod is developed for model-based optimal synchronization control of multiple Euler-Lagrange systems (MELSs) under a directed graph. The strategy of event-triggered optimal control is deduced through the establishment of Hamilton-Jacobi-Bellman (HJB) equation and the triggering condition is then proposed. Event-triggered policy iteration (PI) algorithm is then borrowed from reinforcement learning algorithms to find the optimal solution. One neural network is used to represent the value function to find the analytical solution of the event-triggered HJB equation, weights of which are updated aperiodically. It is proved that both the synchronization error and the weight estimation error are uniformly ultimately bounded (UUB). The Zeno behavior is also excluded in this research. Finally, an example of multiple 2-DOF prototype manipulators is shown to validate the effectiveness of our method.

Keywords:

Mathematics Subject Classification: Primary: 93A16, 49L20; Secondary: 35F21.

Citation:

Full Text(HTML)

Figure 1. Communication graph of MELSs

Download: Full-size image PowerPoint slide

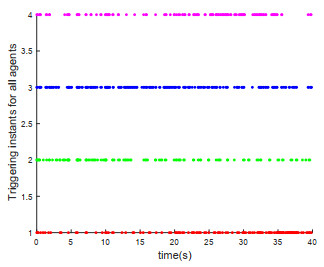

Figure 2. Triggering instants for all agents

Download: Full-size image PowerPoint slide

Figure 3. Position trajectories of the first and second component of each EL agent

Download: Full-size image PowerPoint slide

Figure 4. Velocity trajectories of the first and second component of each EL agent

Download: Full-size image PowerPoint slide

Figure 5. Synchronization errors of the first and second component of each EL agent

Download: Full-size image PowerPoint slide

Figure 6. Control policies of the first and second component of each EL agent under event-triggered mechanism

Download: Full-size image PowerPoint slide

Figure 7. Norm of estimated weights of the critic neural network

Download: Full-size image PowerPoint slide

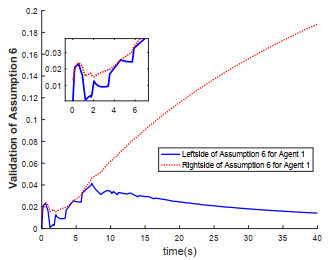

Figure 8. Validation of Assumption 6 for agent 1

Download: Full-size image PowerPoint slide

Table 1. Notations, values and units of the according physical parameters

Notations	Values	Units
$ m_a $	1.2	$ kg $
$ m_b $	1	$ kg $
$ l_{ca} $	0.75	$ m $
$ l_{cb} $	0.75	$ m $
$ l_a $	0.26	$ m $
$ l_b $	0.5	$ m $
$ I_{ca} $	0.125	$ kg\cdot m^2 $
$ I_{cb} $	0.188	$ kg\cdot m^2 $
$ g $	9.81	$ m/s^2 $

| Show Table

DownLoad: CSV
