Gaussian mixture models for clustering and calibration of ensemble weather forecasts

Gabriel Jouan; Anne Cuzol; Valérie Monbet; Goulven Monnier

doi:10.3934/dcdss.2022037

Article Contents

2023, Volume 16, Issue 2: 309-328. Doi: 10.3934/dcdss.2022037

This issue Previous Article Harmonic analysis of network systems via kernels and their boundary realizations Next Article Improving sampling accuracy of stochastic gradient MCMC methods via non-uniform subsampling of gradients

Gaussian mixture models for clustering and calibration of ensemble weather forecasts

1.
Scalian & Univ Rennes, CNRS, IRMAR - UMR 6625, Rennes, France
2.
Université Bretagne-Sud, UMR 6205, LMBA, F-56000 Vannes, France, INRIA/SIMSMART & Univ Rennes, CNRS, IRMAR - UMR 6625, Rennes, France, Scalian, Rennes, France

Received: August 2021

Revised: January 2022

Early access: February 2022

Published: February 2023

Abstract / Introduction Full Text(HTML) Figure(9) / Table(3) Related Papers Cited by

Abstract

Nowadays, most weather forecasting centers produce ensemble forecasts. Ensemble forecasts provide information about probability distribution of the weather variables. They give a more complete description of the atmosphere than a unique run of the meteorological model. However, they may suffer from bias and under/over dispersion errors that need to be corrected. These distribution errors may depend on weather regimes. In this paper, we propose various extensions of the Gaussian mixture model and its associated inference tools for ensemble data sets. The proposed models are then used to identify clusters which correspond to different types of distribution errors. Finally, a standard calibration method known as Non homogeneous Gaussian Regression (NGR) is applied cluster by cluster in order to correct ensemble forecast distributions. It is shown that the proposed methodology is effective, interpretable and easy to use. The clustering algorithms are illustrated on simulated and real data. The calibration method is applied to real data of temperature and wind medium range forecast for 3 stations in France.

Keywords:

Mathematics Subject Classification: Primary: 62P12, 62H30.

Citation:

Full Text(HTML)

Figure 1. Daily mean temperature at 2m, Millau January 2015 at 6 pm ECMWF. The plain line represents the observed time series. Boxplots represent the distribution of the ensemble forecasts at horizon 3 days

Download: Full-size image PowerPoint slide

Figure 2. Selection of the number of clusters based on BIC criterion for the difficult case and various number of ensemble members. The true number of classes was set to $ K = 4 $. The sample size is fixed to $ n = 200 $

Download: Full-size image PowerPoint slide

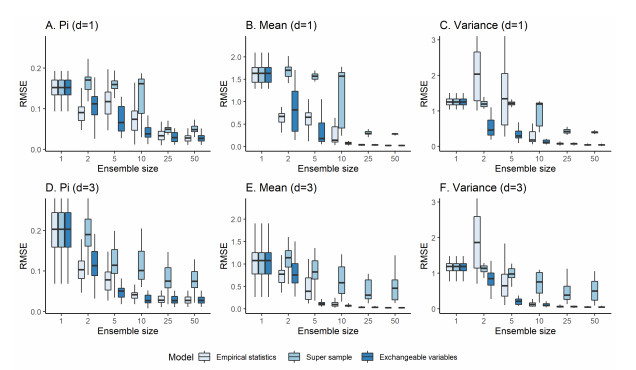

Figure 3. Root mean square errors with respect to the sample size for the regular case and ensemble size $ M = 50 $

Download: Full-size image PowerPoint slide

Figure 4. Root mean square errors with respect to the ensemble size for the difficult case and sample size $ n = 200 $

Download: Full-size image PowerPoint slide

Figure 5. Accuracy scores, with respect to the ensemble size, for the difficult case and sample size $ n = 200 $

Download: Full-size image PowerPoint slide

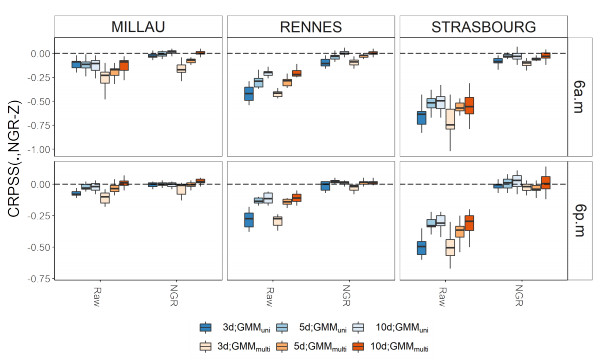

Figure 6. Temperature variable - Predictive performance score (CRPSS) of proposed $ NGR_Z $ with respect to $ Raw $ and $ NGR $ for each station, hour, forecasting horizon, and for two clustering inputs: $ GMM_{uni} $ (clustering obtained from temperature ensembles) and $ GMM_{multi} $ (clustering obtained from temperature and wind components). Dashed line is the threshold to reach to outperform the model $ NGR_Z $

Download: Full-size image PowerPoint slide

Figure 7. Wind variable (U component) - Predictive performance score (CRPSS) of proposed $ NGR_Z $ with respect to $ Raw $ and $ NGR $ for each station, hour, forecasting horizon, and for two clustering inputs: $ GMM_{uni} $ (clustering obtained from temperature ensembles) and $ GMM_{multi} $ (clustering obtained from temperature and wind components). Dashed line is the threshold to reach to outperform the model $ NGR_Z $

Download: Full-size image PowerPoint slide

Figure 8. Rank histograms for 3 days temperature ensemble forecasts at Millau station (January, 6pm). First column: raw ensembles grouped by univariate clusters; Second column: raw ensembles grouped by multivariate clusters; Third column: calibrated ensembles with the proposed $ NGR_Z $ method, using multivariate clusters. Dashed line is the density threshold to reach to form a uniform rank histogram

Download: Full-size image PowerPoint slide

Figure 9. Temperature at Millau, January 2015, 6 pm. First row: raw ECMWF ensemble forecasts (3 days horizon); Second row: calibrated ensemble forecasts with the proposed $ NGR_Z $ method; Black line: observations. Background colors highlight the different clusters infered by $ GMM_{multi} $ method

Download: Full-size image PowerPoint slide

Table 1. Parameters of the Gaussian mixture models for the simulation study

		Cluster parameters
$ d $	Case	$ \mu_1 $, $ \sigma_1 $	$ \mu_2 $, $ \sigma_2 $	$ \mu_3 $, $ \sigma_3 $	$ \mu_4 $, $ \sigma_4 $
1	Regular	0, 1	2, 0.3	7, 1	10, 1
	Difficult	2, 2	3, 0.3	3, 1	4, 4
3	Regular	(0, 0, 0), 1	(2, 0, 0), 0.3	(7, 7, 7), 1	(10, 10, 10), 1
	Difficult	(2, 2, 2), 2	(3, 3, 3), 0.3	(3, 3, 3), 1	(4, 4, 4), 4

| Show Table

DownLoad: CSV

Table 2. Estimated marginal parameters of GMM for Millau 6 pm, 3 days forecasting. $ GMM_{uni} $ clusters are obtained from temperature ensembles only; $ GMM_{multi} $ clusters are obtained from temperature and wind components

		Models
		$ GMM_{uni} $ clusters			$ GMM_{multi} $ clusters
Variables	Parameters	1	2	3	1	2	3
TMP	$ \mu_k $	$ -2.21 $	$ \phantom{-}1.68 $	$ \phantom{-}5.51 $	$ -1.30 $	$ \phantom{-}3.19 $	$ \phantom{-}3.39 $
	$ \sigma^2_k $	$ \phantom{-}3.33 $	$ \phantom{-}2.42 $	$ \phantom{-}3.47 $	$ \phantom{-}4.38 $	$ \phantom{-}5.05 $	$ \phantom{-}4.42 $
	$ \pi_k $	$ \phantom{-}0.25 $	$ \phantom{-}0.39 $	$ \phantom{-}0.36 $	$ \phantom{-}0.32 $	$ \phantom{-}0.33 $	$ \phantom{-}0.35 $
U10	$ \mu_k $				$ 2.39 $	$ -0.40 $	$ \phantom{-}2.56 $
	$ \sigma^2_k $				$ \phantom{-}2.70 $	$ \phantom{-}6.80 $	$ \phantom{-}6.70 $
V10	$ \mu_k $				$ -1.26 $	$ \phantom{-}0.51 $	$ -0.98 $
	$ \sigma^2_k $				$ \phantom{-}3.29 $	$ \phantom{-}2.42 $	$ \phantom{-}2.63 $

| Show Table

DownLoad: CSV

Table 3. Millau January 2015 at 6 pm, fitted temperature NGR-Z coefficients for each cluster

	Mean		Var
Clusters	intercept	slope	intercept	slope
1	$ 1.28 $	$ 1.03 $	$ 1.00 $	$ 1.00 $
2	$ 0.55 $	$ 0.87 $	$ 0.21 $	$ 1.04 $
3	$ 1.52 $	$ 0.72 $	$ 0.42 $	$ 0.81 $

| Show Table

DownLoad: CSV
