Permutations based model for business performance

Arthur Fétiveau; Gilles Durrieu; Emmanuel Frénod; Claude-Henri Meledo; Benoît Prat

doi:10.3934/dcdss.2024033

Article Contents

2025, Volume 18, Issue 7: 1699-1722. Doi: 10.3934/dcdss.2024033

This issue Previous Article Next Article Solving HJB equation by using least square machine learning method

Permutations based model for business performance

1.
Univ Bretagne Sud, CNRS UMR 6205, LMBA, F-56000 Vannes, France
2.
Aldecis, Paris, France

^*Corresponding author: Arthur Fétiveau
^*Corresponding author: Arthur Fétiveau

Received: July 2023

Early access: March 19, 2024

Published online: March 19, 2024

Abstract / Introduction Full Text(HTML) Figure(7) / Table(10) Related Papers Cited by

Abstract

This article is devoted to the development of a machine learning statistical framework to drive company's objectives. To this end, their sales data was used to target efficiently the issues or opportunities by a ranking. We implemented a permutation based model using generalized Mallows models dealing with quantitative values, considering that a ranking is a permutation. The advantage of the generalized version is the possibility to differentiated the cost to move each element in the permutation. In our model, we differentiate the cost of an inversion in the permutation by using the gap value between the two elements. We proposed model parameters estimators and illustrated our estimation procedure on simulated data and a real application.

Keywords:

Mathematics Subject Classification: Primary: 65C20, 62F10; Secondary: 62P05.

Citation:

Full Text(HTML)

Figure 1. Permutohedron of order $ 4 $ for the Kendall distance

Download: Full-size image PowerPoint slide

Figure 2. Permutohedron of order $ 4 $ for the Kendall distance

Download: Full-size image PowerPoint slide

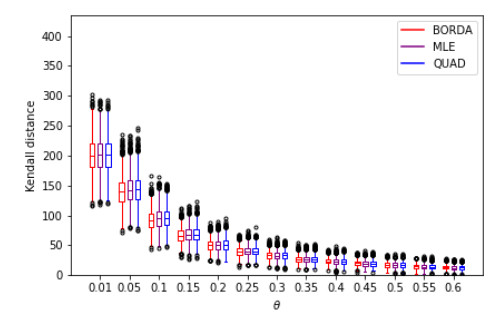

Figure 3. Boxplot of the Kendall distances between $ \hat{\pi} $ and $ \pi $ for $ 5 $ $ \sigma_j $, permutations of $ n = 30 $ items, with the same $ \theta $ and the same $ \pi $ over $ 3000 $ realizations

Download: Full-size image PowerPoint slide

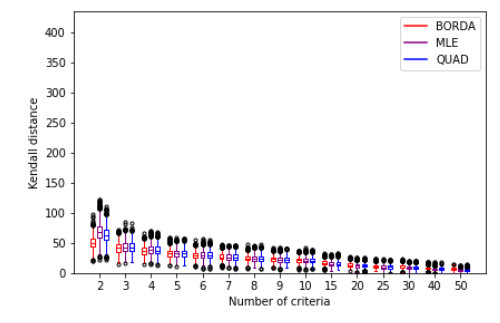

Figure 4. Kendall distance between $ \hat{\pi} $ and $ \pi $ for different numbers of $ \sigma_j $, permutations of $ n = 30 $ items, with the same $ \theta = 0.3 $ and the same $ \pi $ over $ 3000 $ realizations

Download: Full-size image PowerPoint slide

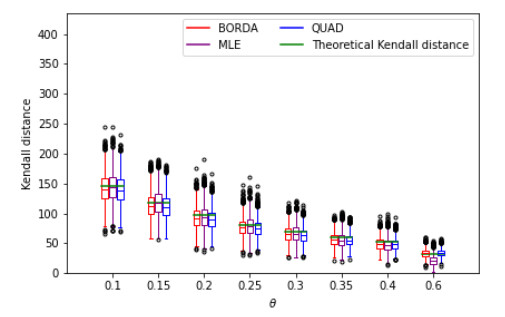

Figure 5. Boxplot of the Kendall distance between $ \hat{\pi} $ and $ \sigma $ for $ n = 30 $, in the set of parameters $ P_4 $

Download: Full-size image PowerPoint slide

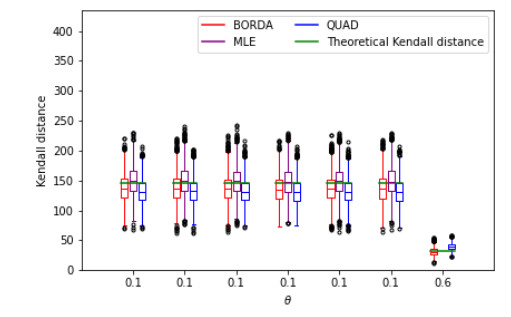

Figure 6. Boxplot of the Kendall distance between $ \hat{\pi} $ and $ \sigma $ for $ n = 30 $, in the set of parameters $ P_8 $

Download: Full-size image PowerPoint slide

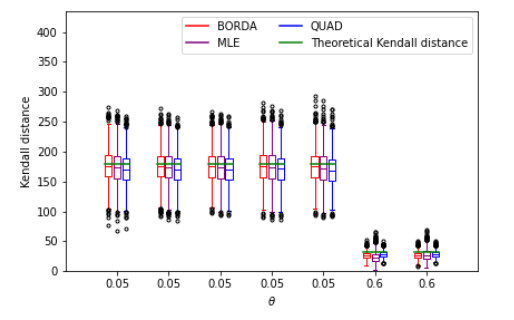

Figure 7. Boxplot of the Kendall distance between $ \hat{\pi} $ and $ \sigma $ for $ n = 30 $, in the set of parameters $ P_9 $

Download: Full-size image PowerPoint slide

Table 1. Means $ \pm $ standard deviations of Kendall distances between $ \pi $ and $ \hat{\pi} $ for $ 50 $ $ \sigma_j $, permutations with $ n = 30 $ items, with the same $ \theta $ and the same $ \pi $ over $ 3000 $ realizations

Choice of $ \theta $	BORDA	MLE	QUAD
$ 0.01 $	$ 166.19 \pm 26.269 $	$ 168.03 \pm 26.491 $	$ 168.447 \pm 26.287 $
$ 0.05 $	$ 63.08 \pm 10.843 $	$ 64.61 \pm 11.530 $	$ 65.09 \pm 11.590 $
$ 0.1 $	$ 31.13 \pm 6.050 $	$ 30.65 \pm 6.456 $	$ 31.05 \pm 6.525 $
$ 0.15 $	$ 19.43 \pm 4.298 $	$ 18.10 \pm 4.505 $	$ 18.41 \pm 4.610 $
$ 0.2 $	$ 13.36 \pm 3.410 $	$ 11.55 \pm 3.439 $	$ 11.80 \pm 3.538 $
$ 0.25 $	$ 9.53 \pm 2.769 $	$ 7.77 \pm 2.722 $	$ 8.02 \pm 2.739 $
$ 0.3 $	$ 7.16 \pm 2.351 $	$ 5.30 \pm 2.234 $	$ 5.52 \pm 2.281 $
$ 0.35 $	$ 5.35 \pm 2.054 $	$ 3.70 \pm 1.851 $	$ 3.80 \pm 1.879 $
$ 0.4 $	$ 4.025 \pm 1.785 $	$ 2.54 \pm 1.557 $	$ 2.70 \pm 1.608 $
$ 0.45 $	$ 3.08 \pm 1.569 $	$ 1.79 \pm 1.269 $	$ 1.89 \pm 1.295 $
$ 0.5 $	$ 2.22 \pm 1.367 $	$ 1.18 \pm 1.045 $	$ 1.30 \pm 1.089 $
$ 0.55 $	$ 1.65 \pm 1.189 $	$ 0.79 \pm 0.876 $	$ 0.87 \pm 0.898 $
$ 0.6 $	$ 1.23 \pm 1.060 $	$ 0.54 \pm 0.712 $	$ 0.62 \pm 0.779 $

| Show Table

DownLoad: CSV

Table 2. Mean $ \pm $ standard deviation of the standard deviation of the Kendall distances between $ \sigma $ and $ \hat{\pi} $ for $ 50 $ $ \sigma_j $, permutations of $ n = 30 $ items, with the same $ \theta $ and the same $ \pi $ over $ 3000 $ realizations

Choice of $ \theta $	BORDA	MLE	QUAD
$ 0.01 $	$ 27.40 \pm 2.785 $	$ 27.86 \pm 2.801 $	$ 25.21 \pm 2.571 $
$ 0.05 $	$ 26.17 \pm 2.616 $	$ 26.64 \pm 2.646 $	$ 25.13 \pm 2.492 $
$ 0.1 $	$ 23.95 \pm 2.449 $	$ 24.38 \pm 2.491 $	$ 23.46 \pm 2.388 $
$ 0.15 $	$ 21.15 \pm 2.180 $	$ 21.55 \pm 2.210 $	$ 20.90 \pm 2.158 $
$ 0.2 $	$ 18.46 \pm 1.929 $	$ 18.79 \pm 1.972 $	$ 18.31 \pm 1.918 $
$ 0.25 $	$ 16.17 \pm 1.686 $	$ 16.42 \pm 1.707 $	$ 16.07 \pm 1.668 $
$ 0.3 $	$ 14.21 \pm 1.509 $	$ 14.41 \pm 1.532 $	$ 14.15 \pm 1.505 $
$ 0.35 $	$ 12.67 \pm 1.331 $	$ 12.83 \pm 1.350 $	$ 12.63 \pm 1.329 $
$ 0.4 $	$ 11.38 \pm 1.196 $	$ 11.51 \pm 1.210 $	$ 11.35 \pm 1.195 $
$ 0.45 $	$ 10.31 \pm 1.116 $	$ 10.42 \pm 1.118 $	$ 10.30 \pm 1.108 $
$ 0.5 $	$ 9.43 \pm 0.999 $	$ 9.52 \pm 1.005 $	$ 9.42 \pm 0.994 $
$ 0.55 $	$ 8.65 \pm 0.920 $	$ 8.72 \pm 0.927 $	$ 8.65 \pm 0.920 $
$ 0.6 $	$ 8.02 \pm 0.847 $	$ 8.07 \pm 0.848 $	$ 8.02 \pm 0.844 $

| Show Table

DownLoad: CSV

Table 3. Mean $ \pm $ standard deviation of the standard deviation of the Kendall distances between $ \sigma $ and $ \hat{\pi} $ for $ 5 $ $ \sigma_j $, permutations of $ n = 30 $ items, with the same $ \theta $ and the same $ \pi $ over $ 3000 $ realizations

Choice of $ \theta $	BORDA	MLE	QUAD
$ 0.01 $	$ 21.43 \pm 7.759 $	$ 27.08 \pm 9.761 $	$ 16.76 \pm 6.101 $
$ 0.05 $	$ 20.07 \pm 7.318 $	$ 25.20 \pm 8.963 $	$ 16.32 \pm 6.013 $
$ 0.1 $	$ 17.42 \pm 6.425 $	$ 22.04 \pm 8.096 $	$ 15.05 \pm 5.618 $
$ 0.15 $	$ 15.23 \pm 5.623 $	$ 19.43 \pm 7.126 $	$ 13.79 \pm 5.096 $
$ 0.2 $	$ 13.00 \pm 4.823 $	$ 16.75 \pm 6.070 $	$ 12.30 \pm 4.554 $
$ 0.25 $	$ 11.38 \pm 4.322 $	$ 14.47 \pm 5.468 $	$ 10.92 \pm 4.170 $
$ 0.3 $	$ 9.89 \pm 3.721 $	$ 12.57 \pm 4.702 $	$ 9.57 \pm 3.674 $
$ 0.35 $	$ 8.86 \pm 3.315 $	$ 11.12 \pm 4.144 $	$ 8.63 \pm 3.226 $
$ 0.4 $	$ 8.00 \pm 2.924 $	$ 9.98 \pm 3.616 $	$ 7.91 \pm 2.909 $
$ 0.45 $	$ 7.29 \pm 2.745 $	$ 9.04 \pm 3.338 $	$ 7.25 \pm 2.647 $
$ 0.5 $	$ 6.63 \pm 2.417 $	$ 8.13 \pm 3.009 $	$ 6.61 \pm 2.403 $
$ 0.55 $	$ 6.21 \pm 2.281 $	$ 7.58 \pm 2.762 $	$ 6.23 \pm 2.175 $
$ 0.6 $	$ 5.77 \pm 2.117 $	$ 7.00 \pm 2.573 $	$ 5.79 \pm 2.011 $

| Show Table

DownLoad: CSV

Table 4. Means $ \pm $ standard deviations of Kendall distances between $ \pi $ and $ \hat{\pi} $ for $ 2 $ to $ 50 $ $ \sigma_j $, permutations of $ n = 30 $ items, with the same $ \theta = 0.3 $ and the same $ \pi $ over $ 3000 $ realizations

Choice of $ J $	BORDA	MLE	QUAD
$ 2 $	$ 51.52 \pm 10.300 $	$ 69.13 \pm 14.736 $	$ 63.59 \pm 12.554 $
$ 3 $	$ 42.51 \pm 8.530 $	$ 43.76 \pm 9.118 $	$ 43.83 \pm 9.074 $
$ 4 $	$ 37.00 \pm 7.409 $	$ 39.49 \pm 8.238 $	$ 38.81 \pm 7.908 $
$ 5 $	$ 32.73 \pm 6.766 $	$ 32.91 \pm 7.222 $	$ 33.10 \pm 7.117 $
$ 6 $	$ 29.97 \pm 6.166 $	$ 30.65 \pm 6.768 $	$ 30.40 \pm 6.661 $
$ 7 $	$ 27.42 \pm 5.642 $	$ 26.66 \pm 5.921 $	$ 26.94 \pm 5.929 $
$ 8 $	$ 25.37 \pm 5.320 $	$ 25.20 \pm 5.752 $	$ 25.27 \pm 5.797 $
$ 9 $	$ 23.77 \pm 5.037 $	$ 22.79 \pm 5.371 $	$ 23.12 \pm 5.307 $
$ 10 $	$ 22.07 \pm 4.728 $	$ 21.45 \pm 5.157 $	$ 21.53 \pm 5.137 $
$ 15 $	$ 17.33 \pm 3.992 $	$ 15.79 \pm 4.178 $	$ 16.25 \pm 4.244 $
$ 20 $	$ 14.29 \pm 3.588 $	$ 12.78 \pm 3.635 $	$ 13.02 \pm 3.648 $
$ 25 $	$ 12.23 \pm 3.255 $	$ 10.46 \pm 3.398 $	$ 10.82 \pm 3.314 $
$ 30 $	$ 10.66 \pm 3.055 $	$ 8.95 \pm 2.976 $	$ 9.15 \pm 3.044 $
$ 40 $	$ 8.57 \pm 2.655 $	$ 6.82 \pm 2.504 $	$ 7.05 \pm 2.570 $
$ 50 $	$ 7.07 \pm 2.431 $	$ 5.29 \pm 2.204 $	$ 5.49 \pm 2.242 $

| Show Table

DownLoad: CSV

Table 5. Mean $ \pm $ standard deviations of the standard deviation of the Kendall distances between $ \sigma $ and $ \hat{\pi} $ for $ 2 $ to $ 50 $ $ \sigma_j $, permutations of $ n = 30 $ items, with the same $ \theta $ and the same $ \pi $ over $ 3000 $ realizations

Choice of $ J $	BORDA	MLE	QUAD
$ 2 $	$ 2.40 \pm 1.845 $	$ 50.24 \pm 8.921 $	$ 0.25 \pm 0.250 $
$ 3 $	$ 7.01 \pm 3.675 $	$ 11.74 \pm 6.181 $	$ 7.55 \pm 4.217 $
$ 4 $	$ 8.81 \pm 3.824 $	$ 13.38 \pm 5.848 $	$ 5.09 \pm 3.924 $
$ 5 $	$ 9.92 \pm 3.670 $	$ 12.63 \pm 4.659 $	$ 9.66 \pm 3.640 $
$ 6 $	$ 10.73 \pm 3.554 $	$ 13.64 \pm 4.446 $	$ 8.89 \pm 3.733 $
$ 7 $	$ 11.25 \pm 3.440 $	$ 13.10 \pm 3.899 $	$ 10.93 \pm 3.208 $
$ 8 $	$ 11.74 \pm 3.224 $	$ 13.47 \pm 3.670 $	$ 10.56 \pm 3.262 $
$ 9 $	$ 12.16 \pm 3.221 $	$ 13.57 \pm 3.581 $	$ 11.77 \pm 2.949 $
$ 10 $	$ 12.22 \pm 3.083 $	$ 13.57 \pm 3.408 $	$ 11.38 \pm 3.116 $
$ 15 $	$ 13.16 \pm 2.575 $	$ 13.95 \pm 2.724 $	$ 12.83 \pm 2.448 $
$ 20 $	$ 13.58 \pm 2.233 $	$ 14.16 \pm 2.331 $	$ 13.28 \pm 2.204 $
$ 25 $	$ 13.77 \pm 2.054 $	$ 14.23 \pm 2.127 $	$ 13.57 \pm 2.016 $
$ 30 $	$ 13.84 \pm 1.867 $	$ 14.21 \pm 1.930 $	$ 13.69 \pm 1.855 $
$ 40 $	$ 14.07 \pm 1.618 $	$ 14.33 \pm 1.658 $	$ 13.97 \pm 1.609 $
$ 50 $	$ 14.22 \pm 1.482 $	$ 14.41 \pm 1.498 $	$ 14.14 \pm 1.480 $

| Show Table

DownLoad: CSV

Table 6. Mean $ \pm $ standard deviations of Kendall distances between $ \pi $ and $ \hat{\pi} $ for a set of parameters $ \theta $ : $ P_1 $ : $ 50 $ parameters at $ 0.05 $; $ P_2 $ : $ 50 $ parameters at $ 0.6 $; $ P_3 $ : $ 2 $ parameters at $ 0.6 $; $ P_4 $ : $ 2 $ parameters at $ 0.6 $ and $ 5 $ parameters at $ 0.05 $; $ P_5 $ : $ 2 $ parameters at $ 0.6 $ and $ 48 $ parameters at $ 0.05 $; $ P_6 $ : $ 25 $ parameters at $ 0.6 $; $ P_7 $ : $ 25 $ parameters at $ 0.6 $ and $ 25 $ parameters at $ 0.05 $. The permutations are of $ n = 30 $ items

Choice of $ \theta $	BORDA	MLE	QUAD
$ P_1 $	$ 63.08 \pm 10.843 $	$ 64.61 \pm 11.530 $	$ 65.09 \pm 11.590 $
$ P_2 $	$ 1.23 \pm 1.060 $	$ 0.54 \pm 0.712 $	$ 0.62 \pm 0.779 $
$ P_3 $	$ 22.83 \pm 5.811 $	$ 32.67 \pm 8.107 $	$ 30.90 \pm 7.436 $
$ P_4 $	$ 25.20 \pm 5.661 $	$ 27.38 \pm 6.716 $	$ 29.76 \pm 6.395 $
$ P_5 $	$ 26.94 \pm 5.456 $	$ 22.74 \pm 5.631 $	$ 33.13 \pm 6.380 $
$ P_6 $	$ 3.32 \pm 1.625 $	$ 2.04 \pm 1.374 $	$ 2.25 \pm 1.437 $
$ P_7 $	$ 3.51 \pm 1.664 $	$ 2.06 \pm 1.372 $	$ 2.70 \pm 1.564 $

| Show Table

DownLoad: CSV

Table 7. Mean $ \pm $ standard deviations of the standard deviation of the Kendall distances between $ \sigma $ and $ \hat{\pi} $ for a set of parameters $ \theta $ : $ P_1 $ : $ 50 $ parameters at $ 0.05 $; $ P_2 $ : $ 50 $ parameters at $ 0.6 $; $ P_3 $ : $ 2 $ parameters at $ 0.6 $; $ P_4 $ : $ 2 $ parameters at $ 0.6 $ and $ 5 $ parameters at $ 0.05 $; $ P_5 $ : $ 2 $ parameters at $ 0.6 $ and $ 48 $ parameters at $ 0.05 $; $ P_6 $ : $ 25 $ parameters at $ 0.6 $; $ P_7 $ : $ 25 $ parameters at $ 0.6 $ and $ 25 $ parameters at $ 0.05 $. The permutations are of $ n = 30 $ items

Parameters $ \theta $	BORDA	MLE	QUAD
$ P_1 $	$ 26.17 \pm 2.616 $	$ 26.64 \pm 2.646 $	$ 25.13 \pm 2.492 $
$ P_2 $	$ 8.02 \pm 0.847 $	$ 8.07 \pm 0.848 $	$ 8.02 \pm 0.844 $
$ P_3 $	$ 1.73 \pm 1.344 $	$ 25.12 \pm 5.053 $	$ 0.25 \pm 0.25 $
$ P_4 $	$ 20.36 \pm 6.735 $	$ 20.97 \pm 6.689 $	$ 19.53 \pm 6.405 $
$ P_5 $	$ 25.99 \pm 2.639 $	$ 26.20 \pm 2.657 $	$ 25.45 \pm 2.570 $
$ P_6 $	$ 7.76 \pm 1.187 $	$ 7.91 \pm 1.209 $	$ 7.70 \pm 1.177 $
$ P_7 $	$ 19.62 \pm 2.511 $	$ 19.66 \pm 2.507 $	$ 19.58 \pm 2.505 $

| Show Table

DownLoad: CSV

Table 8. Mean $ \pm $ standard deviations of the standard deviation of the Kendall distances between $ \sigma $ and $ \hat{\pi} $ for a set of parameters $ \theta $ : $ P_8 $ : $ 8 $ different parameters, $ \theta_1 = 0.1 $, $ \theta_2 = 0.15 $, $ \theta_3 = 0.2 $, $ \theta_4 = 0.25 $, $ \theta_5 = 0.3 $, $ \theta_6 = 0.35 $, $ \theta_7 = 0.4 $ and $ \theta_8 = 0.6 $; $ P_9 $ : $ 1 $ parameters at $ 0.6 $ and $ 6 $ parameters at $ 0.1 $. The permutations are of $ n = 30 $ items

Choice of $ \theta $	BORDA	MLE	QUAD
$ P_8 $	$ 23.95 \pm 5.075 $	$ 21.78 \pm 5.368 $	$ 24.74 \pm 5.531 $
$ P_9 $	$ 38.01 \pm 7.309 $	$ 32.66 \pm 7.921 $	$ 45.98 \pm 8.356 $

| Show Table

DownLoad: CSV

Table 9. Kendall distance between $ \pi $ and $ \hat{\pi} $ when we rank only the $ 40 $ evaluated items

Month	MM + MLE	MM + QUAD	MINMAX + MLE	MINMAX + QUAD
$ 1 $	$ 160 $	$ 181 $	$ 189 $	$ 183 $
$ 2 $	$ 91 $	$ 147 $	$ 121 $	$ 137 $
$ 3 $	$ 128 $	$ 135 $	$ 168 $	$ 168 $
$ 4 $	$ 137 $	$ 173 $	$ 182 $	$ 198 $
Month	MED + MLE	MED + QUAD	MEAN + MLE	MEAN + QUAD
$ 1 $	$ 135 $	$ 136 $	$ 128 $	$ 133 $
$ 2 $	$ 106 $	$ 106 $	$ 97 $	$ 97 $
$ 3 $	$ 125 $	$ 132 $	$ 123 $	$ 125 $
$ 4 $	$ 132 $	$ 132 $	$ 135 $	$ 134 $

| Show Table

DownLoad: CSV

Table 10. Kendall distance between $ \hat{\pi} $ ranked over every items and $ \hat{\pi} $ ranked over the $ 40 $ evaluated items, on the $ 40 $ evaluated items

Month	MM + MLE	MM + QUAD	MEAN + MLE	MEAN + QUAD
$ 1 $	$ 0 $	$ 40 $	$ 0 $	$ 7 $
$ 2 $	$ 0 $	$ 111 $	$ 0 $	$ 0 $
$ 3 $	$ 0 $	$ 82 $	$ 0 $	$ 0 $
$ 4 $	$ 0 $	$ 108 $	$ 0 $	$ 13 $

| Show Table

DownLoad: CSV

Article Metrics

HTML views(3053) PDF downloads(1046) Cited by(0)

[1]	A. Ali and M. Meilă, Experiments with Kemeny ranking: What works when?, Math. Soc. Sci., 64 (2012), 28-40. doi: 10.1016/j.mathsocsci.2011.08.008.
[2]	G. Blin, M. Crochemore, S. Hamel and S. Vialette, Median of an odd number of permutations, Pure Math. Appl., 21 (2010), 161-175.
[3]	J. C. de Borda, Mémoire sur les élections au scrutin, Hist. Acad. Roy. Sci., 102 (1781), 657-665.
[4]	P. Diaconis, Group Representations in Probability and Statistics, IMS Lecture Notes Monogr. Ser., 11, Institute of Mathematical Statistics, Hayward, CA, 1988.
[5]	M. A. Fligner and J. S. Verducci, Distance based ranking models, J. R. Stat. Soc. Ser. B, 48 (1986), 359-369. doi: 10.1111/j.2517-6161.1986.tb01420.x.
[6]	M. G. Kendall, A new measure of rank correlation, Biometrika, 30 (1938), 81-93.
[7]	C. L. Mallows, Non-null ranking models. I, Biometrika, 44 (1957), 114-130. doi: 10.1093/biomet/44.1-2.114.
