The closed-form solutions for a model with technology diffusion via Lie symmetries

Azam Chaudhry; Rehana Naz

doi:10.3934/dcdss.2024133

Article Contents

2025, Volume 18, Issue 4: 1036-1053. Doi: 10.3934/dcdss.2024133

This issue Previous Article Symmetries, conservation laws, and line soliton solutions of a two-dimensional generalized KdV equation with $ p $-power Next Article Lie symmetries, modulation instability, conservation laws, and the dynamic waveform patterns of several invariant solutions to a (2+1)-dimensional Hirota bilinear equation

The closed-form solutions for a model with technology diffusion via Lie symmetries

Azam Chaudhry^1, , and
Rehana Naz^2,

1.
Department of Economics, Lahore School of Economics, Lahore, 53200, Pakistan
2.
Department of Mathematics, Lahore School of Economics, Lahore, 53200, Pakistan

^*Corresponding author: Azam Chaudhry
^*Corresponding author: Azam Chaudhry

Received: February 2024

Revised: July 2024

Early access: August 2024

Published online: August 2024

Abstract / Introduction Full Text(HTML) Figure(6) Related Papers Cited by

Abstract

A critical component of economic growth is growth in productivity which is dependent on technology adoption. While most technologies are created in developed economies, they diffuse to developing economies through various channels such as trade, migration and knowledge spillovers. In this paper, we develop the first model that integrates compartmental models with diffusion to analyze technology adoption within a framework of a system of second-order non-linear partial differential equations. We employ Lie point symmetries to derive reductions and closed-form solutions for a model of technology diffusion. A three-dimensional Lie algebra is established for the model. We utilize the combinations of Lie symmetries to obtain reductions and establish closed-form solution for the technology diffusion model. Additionally, we utilise the closed-form solution to provide graphical representations of the technology diffusion process over effective distance and over time and find the commonly observed S-curve path of technology diffusion. Furthermore, we conduct a sensitivity analysis to develop policy insights into the factors influencing the diffusion of technology.

Keywords:

Mathematics Subject Classification: Primary: 35B06, 35C05, 58D19, 91-10; Secondary: 35Q91, 91B02.

Citation:

Full Text(HTML)

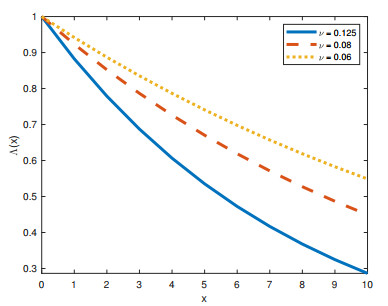

Figure 1. The graph of initial distribution of technology-receptor and technology-adopter countries across the domain for different values of $ \nu $ when $ 0\leq x\leq 10 $

Download: Full-size image PowerPoint slide

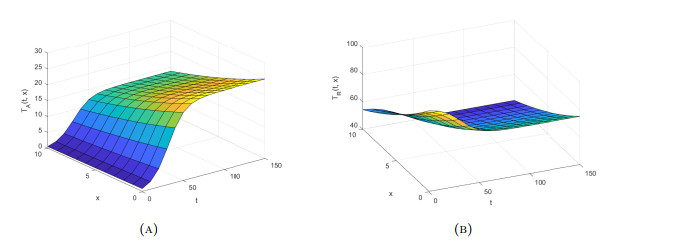

Figure 2. Surface plots of $ T_R(t, x) $ and $ T_A(t, x) $ with parameters $ \nu = 0.06 $, $ \beta = 0.4 $, $ \tau = 0.3 $, $ d_R = 0.002 $, $ d_A = 0.003 $, $ R_0 = 99 $, $ A_0 = 1 $ over time interval $ 0\leq t\leq 150 $ and spatial range $ 0\leq x\leq 10 $

Download: Full-size image PowerPoint slide

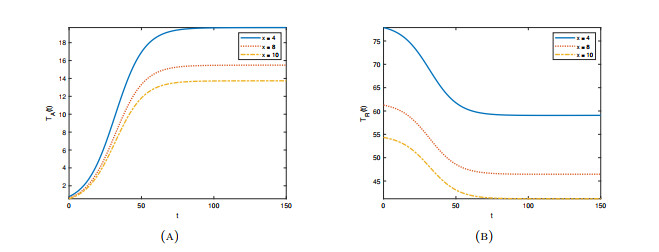

Figure 3. Graphs of $ T_R(t) $ and $ T_A(t) $ with parameters $ \nu = 0.06 $, $ \beta = 0.4 $, $ \tau = 0.3 $, $ d_R = 0.002 $, $ d_A = 0.003 $, $ R_0 = 99 $, $ A_0 = 1 $ over time interval $ 0\leq t\leq 150 $ for fixed values of $ x $

Download: Full-size image PowerPoint slide

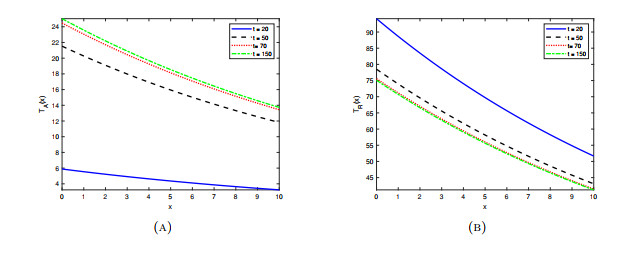

Figure 4. Graphs of $ T_R(x) $ and $ T_A(x) $ with parameters $ \nu = 0.06 $, $ \beta = 0.4 $, $ \tau = 0.3 $, $ d_R = 0.002 $, $ d_A = 0.003 $, $ R_0 = 99 $, $ A_0 = 1 $ over the spatial range $ 0\leq x\leq 10 $ for fixed values of $ t $

Download: Full-size image PowerPoint slide

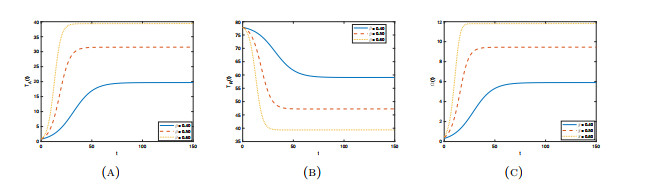

Figure 5. Effect of change of $ \beta $ on $ T_R(t) $, $ T_A(t) $ and $ \Omega(t) $ with other parameters as $ \nu = 0.06 $, $ \tau = 0.3 $, $ d_R = 0.002 $, $ d_A = 0.003 $, $ R_0 = 99 $, $ A_0 = 1 $ over time interval $ 0\leq t\leq 150 $ for fixed value of $ x = 4 $

Download: Full-size image PowerPoint slide

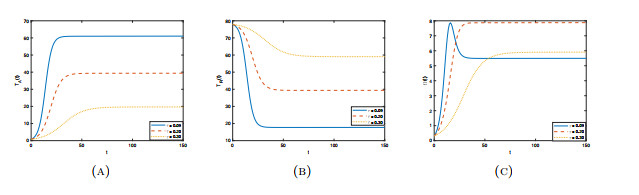

Figure 6. Effect of change of $ \tau $ on $ T_R(t) $, $ T_A(t) $ and $ \Omega(t) $ with other parameters as $ \nu = 0.06 $, $ \beta = 0.4 $, $ d_R = 0.002 $, $ d_A = 0.003 $, $ R_0 = 99 $, $ A_0 = 1 $ over time interval $ 0\leq t\leq 150 $ for fixed value of $ x = 4 $

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	D. Acemoglu and P. Restrepo, Automation and new tasks: How technology displaces and reinstates labor, Journal of Economic Perspectives, 33 (2019), 3-30. doi: 10.1257/jep.33.2.3.
[2]	K. J. Arrow, The economic implications of learning by doing, Rev. Econ. Stud., 29 (1962), 155-173. doi: 10.2307/2295952.
[3]	M. Artzrouni and F. Tramontana, The debt trap: A two-compartment train wreck? and how to avoid it, J. Policy Model., 36 (2014), 241-256. doi: 10.1016/j.jpolmod.2014.01.012.
[4]	F. M. Bass, A new product growth for model consumer durables, Manag. Sci., 15 (1969), 215-227. doi: 10.1287/mnsc.15.5.215.
[5]	J. Benhabib and M. M. Spiegel, Human capital and technology diffusion, Handbook of Economic Growth, 1 (2005), 935-966. doi: 10.1016/S1574-0684(05)01013-0.
[6]	N. Bloom, J. Van Reenen and H. Williams, A toolkit of policies to promote innovation, J. Econ. Persp., 33 (2019), 163-184. doi: 10.1257/jep.33.3.163.
[7]	J. C. Brancheau and J. C. Wetherbe, The adoption of spreadsheet software: testing innovation diffusion theory in the context of end-user computing, Inf. Syst. Res., 1 (1990), 115-143. doi: 10.1287/isre.1.2.115.
[8]	B. Champagne, W. Hereman and P. Winternitz, The computer calculation of Lie point symmetries of large systems of differential equations, Comput. Phys. Commun., 66 (1991), 319-340. doi: 10.1016/0010-4655(91)90080-5.
[9]	A. Chaudhry and R. Naz, Closed-form solutions for the Lucas-Uzawa growth model with logarithmic utility preferences via the partial Hamiltonian approach, Discrete Contin. Dyn. Syst.-Series S, 11 (2018), 643-654. doi: 10.3934/dcdss.2018039.
[10]	A. F. Cheviakov and P. Zhao, Analytical properties of nonlinear partial differential equations: With applications to shallow water models, Springer Nature, 10 (2024). doi: 10.1007/978-3-031-53074-6.
[11]	A. F. Cheviakov, GeM software package for computation of symmetries and conservation laws of differential equations, Comput. Phys. Commun., 176 (2007), 48-61. doi: 10.1016/j.cpc.2006.08.001.
[12]	D. Comin and B. Hobijn, An exploration of technology diffusion, Am. Econ. Rev., 100 (2010), 2031-2059. doi: 10.1257/aer.100.5.2031.
[13]	D. Comin and M. Mestieri, If technology has arrived everywhere, why has income diverged?, Am. Econ. J. Macroecon., 10 (2018), 137-178. doi: 10.1257/mac.20150175.
[14]	A. B. Dankyi, K. Yusheng, E. T. Ankomah-Asare, J. K. Dankyi and A. A. Addo, Acquisition of human capital for organizational sustainability: A BASS-SIR forecasting approach, Int. J. Eng. Bus. Manag., 12 (2020). doi: 10.1177/1847979020935330.
[15]	K. W. Deutsch and W. Isard, A note on a generalized concept of effective distance, Behav. Sci., 6 (1961), 308-311. doi: 10.1002/bs.3830060406.
[16]	W. Ding, W. Huang and S. Kansakar, Traveling wave solutions for a diffusive SIS epidemic model, Discrete Contin. Dyn. Syst.-B, 18 (2013), 1291-1304. doi: 10.3934/dcdsb.2013.18.1291.
[17]	P. A. Geroski, Models of technology diffusion, Res. Policy, 29 (2000), 603-625. doi: 10.1016/S0048-7333(99)00092-X.
[18]	Z. Griliches, Hybrid corn: An exploration in the economics of technological change, Econometrica, 25 (1957), 501-522. doi: 10.2307/1905380.
[19]	M. Guidolin and P. Manfredi, Innovation diffusion processes: Concepts, models, and predictions, Ann. Rev. Stat. Appl., 10 (2023), 451-473. doi: 10.1146/annurev-statistics-040220-091526.
[20]	T. Hagerstrand, Aspects of the spatial structure of social communication and the diffusion of information, Papers Reg. Sci., 16 (1966), 27-42. doi: 10.1111/j.1435-5597.1966.tb01326.x.
[21]	T. Hagerstrand, Innovation Diffusion as A Spatial Process, Innovation Diffusion as a Spatial Process, 1968.
[22]	W. Hereman, Review of symbolic software for Lie symmetry analysis, Math. Comput. Modelling, 25 (1997), 115-132. doi: 10.1016/S0895-7177(97)00063-0.
[23]	A. Hussain, H. Ali, F. Zaman and N. Abbas, New closed form solutions of some non-linear pseudo-parabolic models via a new extended direct algebraic method, Int. J. Math. Comput. Eng., 2 (2023), 35-58. doi: 10.2478/ijmce-2024-0004.
[24]	S. Irum and I. Naeem, Closed-form solutions of an economic growth model of tourism, Math. Methods Appl. Sci., 45 (2022), 2949-2963. doi: 10.1002/mma.7966.
[25]	J. Jacobs, The economy of cities, (1970).
[26]	A. G. Johnpillai and F. M. Mahomed, Closed-form solutions via the invariant approach for one-factor commodity models, Quaestiones Mathematicae, 45 (2022), 1545-1558. doi: 10.2989/16073606.2021.1952332.
[27]	K. Knez, Technology diffusion and uneven development, J. Evol. Econ., 33 (2023), 1171-1195. doi: 10.1007/s00191-023-00830-w.
[28]	A. Marshall, Principles of Economics, Vol. 1 (First ed.), London: Macmillan, 1890.
[29]	R. Naz, F. M. Mahomed and A. Chaudhry, A partial Hamiltonian approach for current value Hamiltonian systems, Commun. Nonlinear Sci. Numer. Simul., 19 (2014), 3600-3610. doi: 10.1016/j.cnsns.2014.03.023.
[30]	P. J. Olver, Applications of Lie Groups to Differential Equations, Graduate Texts in Mathematics, 107. Springer-Verlag, New York, 1993. doi: 10.1007/978-1-4612-4350-2.
[31]	G. G. Polat and T. Özer, On group analysis of optimal control problems in economic growth models, Discrete Contin. Dyn. Syst.-S, 13 (2020), 2853-2576. doi: 10.3934/dcdss.2020215.
[32]	M. E. Porter, The Competitive Advantage of Nations, Free Press, New York, NY, 1990.
[33]	T. M. Rocha Filho and A. Figueiredo, [SADE] a Maple package for the symmetry analysis of differential equations, Comput. Phys. Commun., 182 (2011), 467-476. doi: 10.1016/j.cpc.2010.09.021.
[34]	E. M. Rogers, Diffusion of innovations, 1st ed., New York: Free Press of Glencoe, 1962.
[35]	P. M. Romer, Endogenous technological change, J. Polit. Econ., 98 (1990), S71-S102. doi: 10.1086/261725.
[36]	P. M. Romer, Increasing returns and long-run growth, J. Polit. Econ., 94 (1986), 1002-1037. doi: 10.1086/261420.
[37]	F. Tramontana, Economics as a compartmental system: A simple macroeconomic example, Int. Rev. Econ., 57 (2010), 347-360. doi: 10.1007/s12232-010-0106-5.
[38]	B. ul Haq and I. Naeem, Closed-form solutions of two-sector Romer model of endogenous growth using partial Hamiltonian approach, Math. Methods Appl. Sci., 43 (2020), 5681-5691. doi: 10.1002/mma.6303.
[39]	Z. C. Wang, L. Zhang and X. Q. Zhao, Time periodic traveling waves for a periodic and diffusive SIR epidemic model, J. Dyn. Differ. Equ., 30 (2018), 379-403. doi: 10.1007/s10884-016-9546-2.
[40]	J. Zeira, Workers, machines, and economic growth, Quart. J. Econ., 113 (1998), 1091-1117. doi: 10.1162/003355398555847.
