A bang-bang optimal control for a nonlinear system modeling the Gate Control Theory of Pain

Gregorio Díaz; Jesús Ildefonso Díaz

doi:10.3934/dcdss.2025008

Article Contents

2025, Volume 18, Issue 12: 3776-3798. Doi: 10.3934/dcdss.2025008

This issue Previous Article Stability and bifurcation of a heterogeneous memory-based diffusive model Next Article An anisotropic Dirichlet system including unbounded coefficients

A bang-bang optimal control for a nonlinear system modeling the Gate Control Theory of Pain

Gregorio Díaz^2, and
Jesús Ildefonso Díaz^{1, 2, ,}

1.
Instituto Matemático Interdisciplinar (IMI), Univ. Complutenese de Madrid, Spain
2.
Análisis Matemático y Matemática Aplicada, Univ. Complutenese de Madrid, Spain

^*Corresponding author: Jesús Ildefonso Díaz
^*Corresponding author: Jesús Ildefonso Díaz

Received: July 2024

Revised: January 2025

Early access: February 8, 2025

Published online: February 8, 2025

The research of the authors was partially supported by the project PID2020-112517GB-I00 of the AEI (Spain). JID is also supported by the project PID2023-146754NB-I00, funded by MCIU/AEI/10.13039/501100011033 and FEDER, EU.

Abstract / Introduction Full Text(HTML) Figure(10) Related Papers Cited by

Abstract

We consider a nonlinear system of coupled ordinary differential equations (representing the excitatory, inhibitory, and T-cell potentials) based on the Gate Control Theory of Pain, initially proposed by R. Melzack and P.D. Wall in 1965, and later mathematically modeled by N.F. Britton and S.M. Skevington in 1988. Our main results focus on an optimal control problem associated with this model, where the short frequency, understood as a bounded time-dependent function, is treated as the control variable. The cost function accounts for a person's pain at a given final time and incorporates additional criteria. We demonstrate the uniqueness of the optimal control and establish the bang-bang nature of the control. In a previous section, we extend the mathematical analysis of the model developed by Britton and Skevington by presenting a series of mathematical inequalities. These inequalities strengthen the model's alignment with the principal requirements for reproducing the core structure of Pain Theory.

Keywords:

Mathematics Subject Classification: 34A34, 34C60, 34H05, 49J30, 49K15.

Citation:

Full Text(HTML)

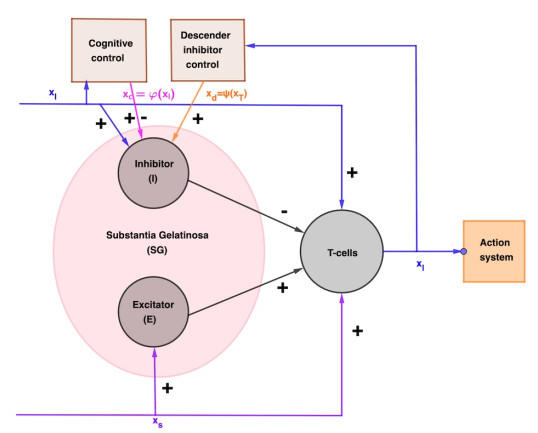

Figure 1. Basic design of the pain gate

Download: Full-size image PowerPoint slide

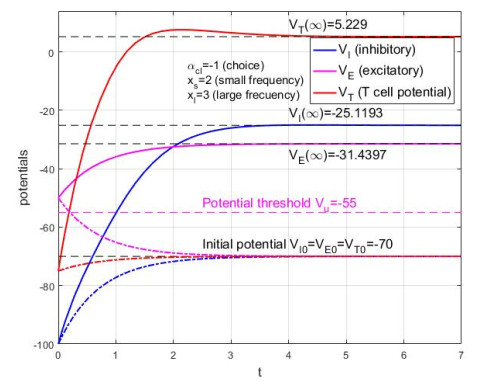

Figure 2. Qualitative representation of the potentials $ {{\rm{V}}}_{ {{\rm{I}}}}, {{\rm{V}}}_{ {{\rm{E}}}} $ y $ {{\rm{V}}}_{ {{\rm{T}}}} $

Download: Full-size image PowerPoint slide

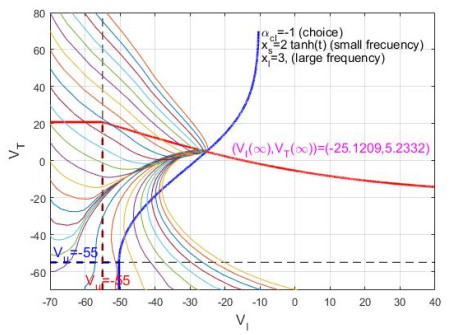

Figure 3. Phase plain for the potentials $ {{\rm{V}}}_{ {{\rm{I}}}} $ and $ {{\rm{V}}}_{ {{\rm{T}}}} $

Download: Full-size image PowerPoint slide

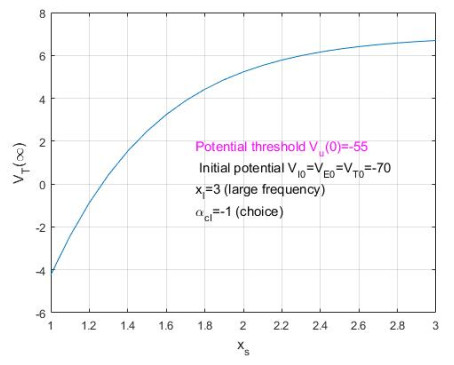

Figure 4. Monotone dependence of $ {{\rm{V}}}_{ {{\rm{T}}}} $ with respect to $ x_{s} $

Download: Full-size image PowerPoint slide

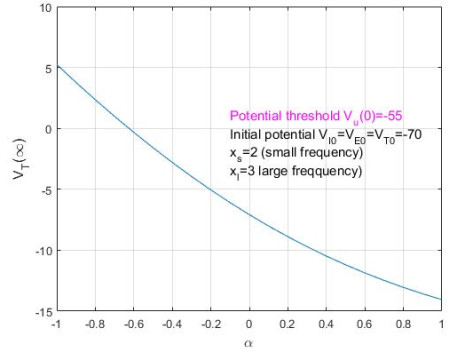

Figure 5. Monotone dependence of $ {{\rm{V}}}_{ {{\rm{T}}}} $ with respect to $ \alpha_{c {{\rm{I}}}} $

Download: Full-size image PowerPoint slide

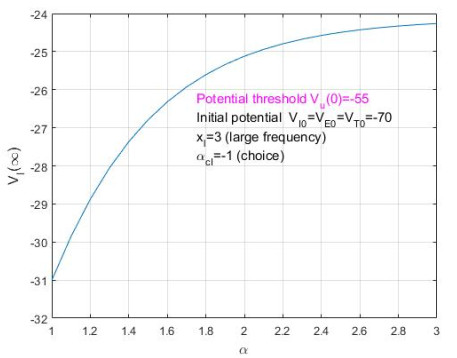

Figure 6. Dependence of $ {{\rm{V}}}_{ {{\rm{I}}}} $ with respect to $ x_{s} $

Download: Full-size image PowerPoint slide

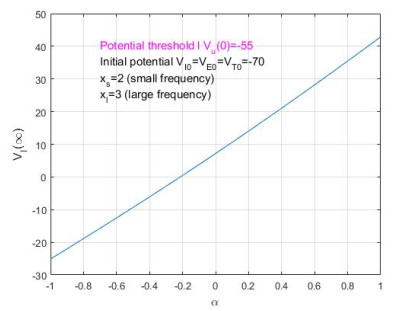

Figure 7. Dependence of $ {{\rm{V}}}_{ {{\rm{I}}}} $ with respect to $ \alpha_{c{\rm{I}}} $

Download: Full-size image PowerPoint slide

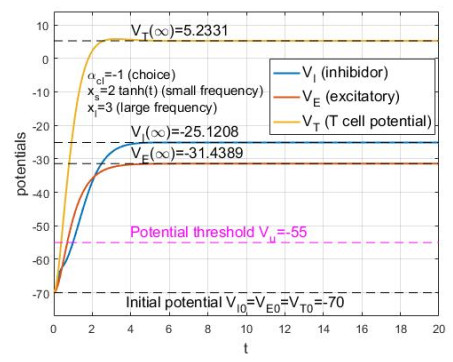

Figure 8. Representation of the potentials for time-depending frequencies

Download: Full-size image PowerPoint slide

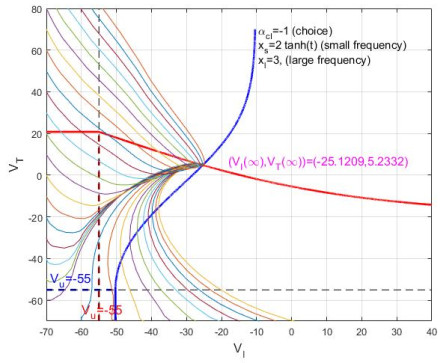

Figure 9. Phase plane for some variable frequencies

Download: Full-size image PowerPoint slide

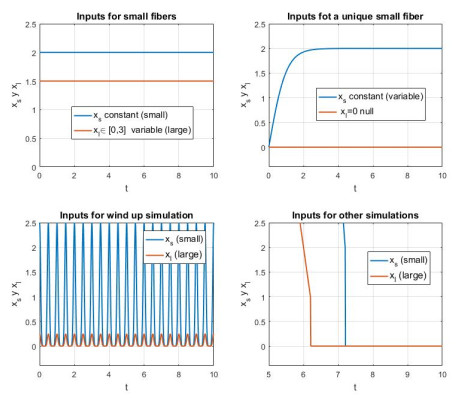

Figure 10. Other input types of frequencies

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	H. Amann, Ordinary Differential Equations: An Introduction to Nonlinear Analysis, Walter de Gruyter, Berlin, 1990.
[2]	U. An der Heiden, Analysis of Neural Networks, Lecture Notes in Biomath., 35 Springer-Verlag, Berlin-New York, 1980.
[3]	A. Bressan and B. Piccoli, Introduction to the Mathematical Theory of Control, American Institute of Mathematical Sciences, Springfield, USA. 2007.
[4]	N. F. Britton, M. A. J. Chaplain and S. M. Skevington, The role of N-methyl-D-aspartate (NMDA) receptors in wind-up: A mathematical model, J. Math. Appl. Med. Biol., 13 (1996), 193-205. doi: 10.1093/imammb/13.3.193.
[5]	N. F. Britton and S. M. Skevington, A mathematical model of the gate control theory of pain, J. Bio. Syst., 137 (1988), 91-105.
[6]	A. C. Casal and J. I. Díaz, On the principle of pseudo-linearized stability: Applications to some delayed nonlinear parabolic equations, Nonlinear Anal., 63 (2005), 997-1007. doi: 10.1016/j.na.2005.01.013.
[7]	W. Fleming and R. Rishel, Deterministic and Stochastic Optimal Control, Springer, New York, 1975.
[8]	R. Melzack and P. D. Wall, Pain mechanisms: A new theory, Science, 150 (1965), 971-979. doi: 10.1126/science.150.3699.971.
[9]	R. Melzack and P. D. Wall, The Challenge of Pain, Penguin, Harmondsworth, UK. 1982.
[10]	P. W. Nathan, The gate control theory of pain: A critical review, Brain, 99 (1976), 123-158.
[11]	P. W. Nathan and P. Rudge, Testing the gate control theory of pain in man, J. Neurol. Neurosurg. Psych., 37 (1974), 1366-1372. doi: 10.1136/jnnp.37.12.1366.
[12]	E. Trélat, Contrôle Optimal: Théory et Applications, Vuibert, Collection Mathématiques Concrètes, Paris, 2005.
[13]	H. R. Wilson and J. D. Cowan, Excitatory and inhibitory interactions in localized populations of model neurons, Biophys. J., 12 (1972), 1-24. doi: 10.1016/S0006-3495(72)86068-5.
