On explicit solutions for coupled reaction-diffusion and Burgers-type equations with variable coefficients through a Riccati system

José M. Escorcia; Erwin Suazo

doi:10.3934/dcdss.2025030

Article Contents

2025, Volume 18, Issue 12: 3818-3845. Doi: 10.3934/dcdss.2025030

This issue Previous Article An anisotropic Dirichlet system including unbounded coefficients Next Article The exact limits of all order derivatives of the global smooth solution of a general Korteweg-de Vries-Burgers equation

On explicit solutions for coupled reaction-diffusion and Burgers-type equations with variable coefficients through a Riccati system

José M. Escorcia^1, , and
Erwin Suazo^2,

1.
Escuela de Ciencias Aplicadas e Ingeniería, Universidad EAFIT, Carrera 49 No. 7 Sur-50, Medellín 050022, Colombia
2.
School of Mathematical and Statistical Sciences, University of Texas Rio Grande Valley, 1201 W. University Drive, Edinburg, TX, 78539-2999, USA

^*Corresponding author: José M. Escorcia
^*Corresponding author: José M. Escorcia

Received: August 2024

Revised: February 2025

Early access: March 17, 2025

Published online: March 17, 2025

Abstract / Introduction Full Text(HTML) Figure(9) Related Papers Cited by

Abstract

This work is concerned with the study of explicit solutions for generalized coupled reaction-diffusion and Burgers-type systems with variable coefficients. Including nonlinear models with variable coefficients such as the diffusive Lotka-Volterra model, the Gray-Scott model, the Burgers equations. The equations' integrability (via the explicit formulation of the solutions) is accomplished by using similarity transformations and requiring that the coefficients fulfill a Riccati system. We present traveling wave-type solutions as well as solutions with more complex dynamics and relevant features such as bending. A Mathematica file has been prepared as supplementary material, verifying the Riccati systems used in the construction of the solutions.

Keywords:

Mathematics Subject Classification: Primary: 58F15, 58F17; Secondary: 53C35.

Citation:

Full Text(HTML)

Figure 1. Solutions for the system (45)-(46) for the parameters $ a_1 = 1, $ $ b_1 = 100, $ and $ b_2 = 1 $. Here, (a) and (c) describe the profiles of the functions $ \psi $ and $ \varphi $, respectively. The corresponding contours of $ \psi $ and $ \varphi $ are shown in (b) and (d)

Download: Full-size image PowerPoint slide

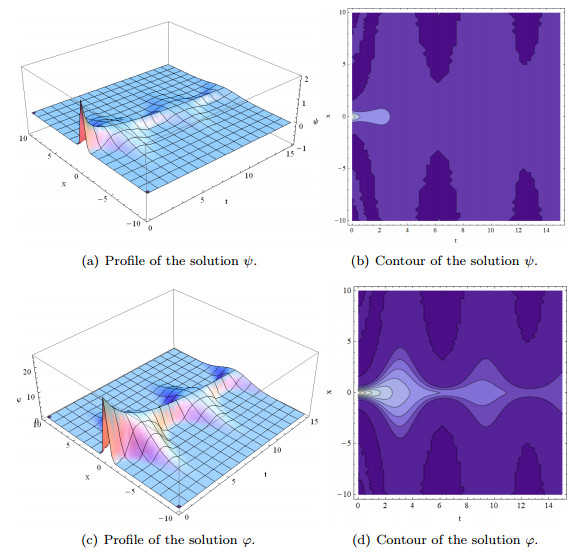

Figure 2. Solutions for the system (49)-(50) for the parameters $ a_1 = 1, $ $ b_1 = 25, $ and $ b_2 = 1 $. Here, (a) and (c) describe the profiles of the functions $ \psi $ and $ \varphi $, respectively. The corresponding contours of $ \psi $ and $ \varphi $ are shown in (b) and (d)

Download: Full-size image PowerPoint slide

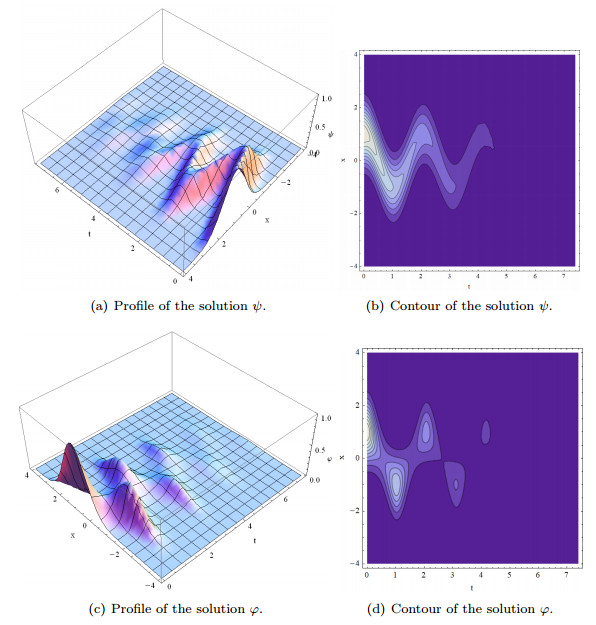

Figure 3. Solutions for the system (68)-(69). The profiles of the functions $ \psi $ and $ \varphi $ are shown in (a) and (c). In the contours of $ \psi $ and $ \varphi $, Figures (b) and (d), the bending dynamics are clearly observed

Download: Full-size image PowerPoint slide

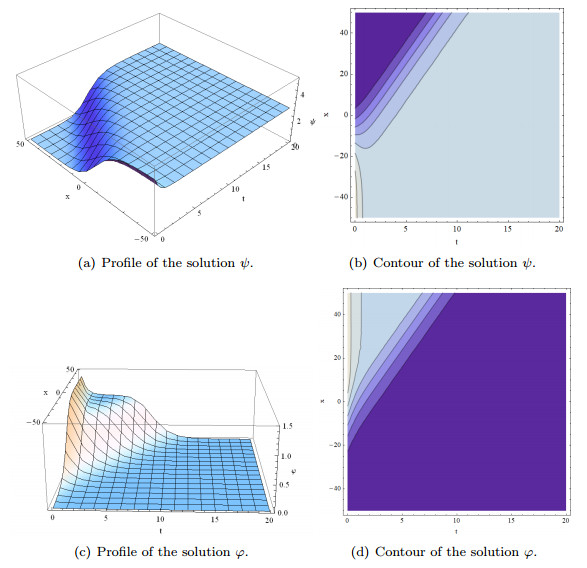

Figure 4. Figures (a) and (c) describe the traveling wave solutions for the system (84)-(85) with $ a_1 = c_2 = c_1 = 2, $ $ a_2 = 1, $ $ b_1 = b_2 = \sqrt{2} $, $ \nu_0 = \frac{1}{2}, $ $ \nu_1 = -\frac{\sqrt{2}}{4} $, $ A = 1, $ $ B = \frac{\sqrt{2}}{2} $, $ \kappa(0) = 1 $, and $ \varepsilon(0) = 2 $. The contours of these solutions are shown in (b) and (d)

Download: Full-size image PowerPoint slide

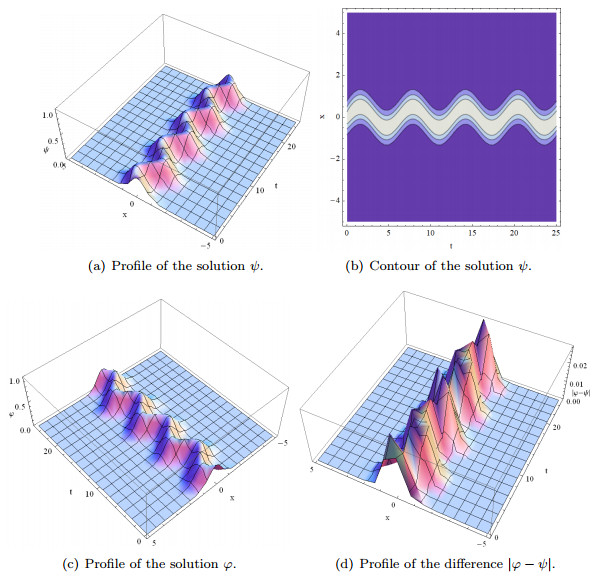

Figure 5. Solutions for the system (90)-(91) for the parameters $ a_1 = c_2 = c_1 = 2, $ $ a_2 = 1, $ $ b_1 = b_2 = \sqrt{2} $, $ \nu_0 = \frac{1}{2}, $ $ \nu_1 = -\frac{\sqrt{2}}{4} $, $ A = 1, $ $ B = \frac{\sqrt{2}}{2} $

Download: Full-size image PowerPoint slide

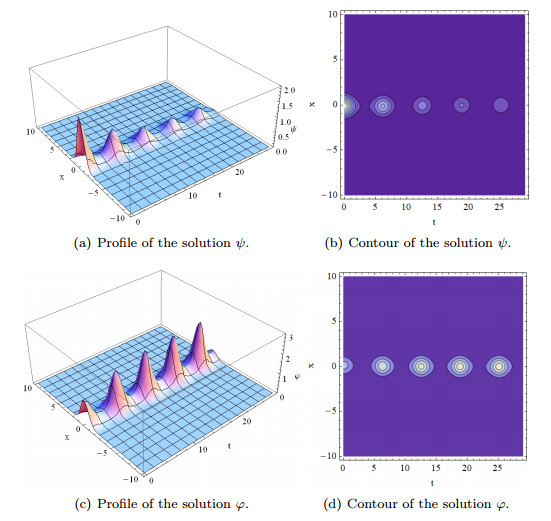

Figure 6. Solutions for the system (114)-(115) for the parameters $ b_1 = \frac{1}{8}, \ b_2 = 0 $. Here, (b) and (d) show the contours of $ \psi $ and $ \varphi $ functions, respectively

Download: Full-size image PowerPoint slide

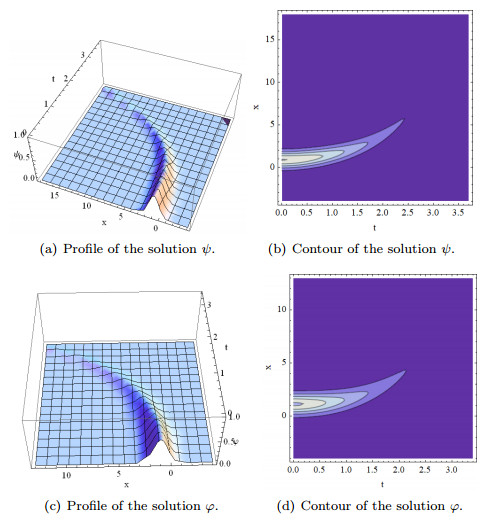

Figure 7. Solutions for the system (119)-(121) for the parameters $ b_1 = \frac{1}{8}, \ b_2 = 0 $. The profiles of the functions $ \psi $ and $ \varphi $ are shown in (a) and (c). Figures (b) and (d) show the contours of $ \psi $ and $ \varphi $

Download: Full-size image PowerPoint slide

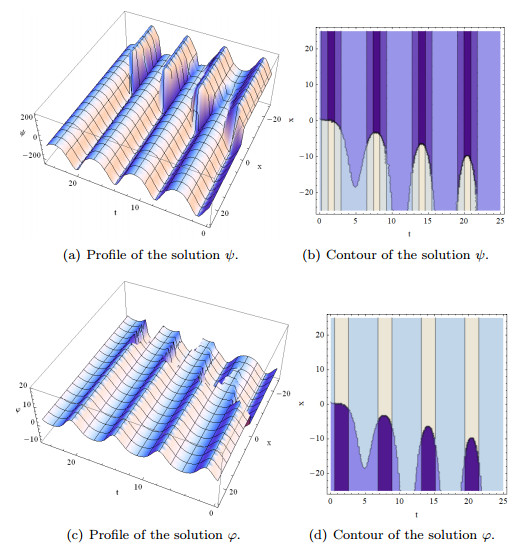

Figure 8. Solutions for the system (133)-(134) for the parameters $ b_1 = 2, \ b_2 = 1, \ c_1 = c_2 = 2 $, $ A = -\frac{111}{8}, $ $ B = -1, $ $ \beta(0) = 1, $ $ \gamma(0) = \varepsilon(0) = 0 $

Download: Full-size image PowerPoint slide

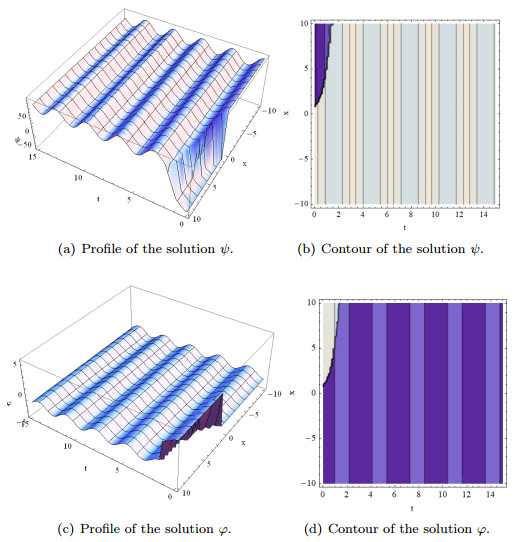

Figure 9. Solutions for the system (137)-(138) for the parameters $ b_1 = 2, \ b_2 = 1, \ c_1 = c_2 = 2 $, $ A = \frac{111}{8}, $ $ B = 1, $ $ \beta(0) = \gamma(0) = \varepsilon(0) = 1 $

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	R. Abazaria and A. Borhanifar, Numerical study of the solution of the Burgers and coupled Burgers equations by a differential transformation method, Computers and Mathematics with Applications, 59 (2010), 2711-2722. doi: 10.1016/j.camwa.2010.01.039.
[2]	P. Acosta-Humánez and E. Suazo, Liouvillian propagators, Riccati equation and differential Galois theory, J. Phys. A: Math. Theor., 46 (2013), 455203, 17pp.
[3]	M. O. Aibinua and S. Moyo, Constructing exact solutions to systems of reaction-diffusion equations, Int. J. Nonlinear Anal. Appl., 14 (2023), 585-595.
[4]	G. Amador, K. Colon, N. Luna, G. Mercado, E. Pereira and E. Suazo, On solutions for linear and nonlinear Schrödinger equations with variable coefficients: A computational approach, Symmetry, 8 (2016), Art. 38, 16 pp. doi: 10.3390/sym8060038.
[5]	A. H. Askar, Á. Nagy, I. F. Barna and E. Kovács, Analytical and numerical results for the diffusion-reaction equation when the reaction coefficient depends on simultaneously the space and time coordinates, Computation, 11 (2023), 127. doi: 10.3390/computation11070127.
[6]	N. F. Britton, Essential Mathematical Biology, Springer Undergrad. Math. Ser., Springer-Verlag London, Ltd., London, 2003.
[7]	J. F. Cariñena, J. Grabowski, J. de Lucas and C. Sardón, Dirac–Lie systems and Schwarzian equations, Journal of Differential Equations, 257 (2014), 2303-2340. doi: 10.1016/j.jde.2014.05.040.
[8]	M. A. J. Chaplain, Reaction–diffusion prepatterning and its potential role in tumour invasion, Journal of Biological Systems, 3 (1995), 929-936. doi: 10.1142/S0218339095000824.
[9]	R. Cherniha and V. Davydovych, Construction and application of exact solutions of the diffusive Lotka-Volterra system: A review and new results, Communication in Nonlinear Science and Numerical Simulation, 113 (2022), Paper No. 106579, 25 pp.
[10]	R. M. Cherniha and V. A. Dutka, Diffusive Lotka–Volterra system: Lie symmetries and exact and numerical solutions, Ukrainian Mathematical Journal, 56 (2004), 1665-1675.
[11]	C. Chou, Y. Zhang, R. Zhao and Q. Nie, Numerical methods for stiff reaction-diffusion systems, Discrete and continuous Dynamical system- Series B, 7 (2007), 515-525. doi: 10.3934/dcdsb.2007.7.515.
[12]	R. Cordero-Soto, R. M. Lopez, E. Suazo and S. K. Suslov, Propagator of a charged particle with a spin in uniform magnetic and perpendicular electric fields, Lett. Math. Phys., 84 (2008), 159-178. doi: 10.1007/s11005-008-0239-6.
[13]	M. Dehghan, A. Hamidia and M. Shakourifar, The solution of coupled Burgers' equations using Adomian–Pade technique, Applied Mathematics and Computation, 189 (2007), 1034-1047. doi: 10.1016/j.amc.2006.11.179.
[14]	A. J. Ellery, M. J. Simpson, S. W. McCue and R. E. Baker, Simplified approach for calculating moments of action for linear reaction-diffusion equations, Physical Review E, 88 (2013), 054102. doi: 10.1103/PhysRevE.88.054102.
[15]	J. Escorcia and E. Suazo, Blow-up results and soliton solutions for a generalized variable coefficient nonlinear Schrödinger equation, Applied Mathematics and Computation, 301 (2017), 155-176. doi: 10.1016/j.amc.2016.12.018.
[16]	J. M. Escorcia and E. Suazo, On blow-up and explicit soliton solutions for coupled variable coefficient nonlinear Schrödinger equations, Mathematics, 12 (2024), 2694. doi: 10.3390/math12172694.
[17]	R. Field and M. Burger, Oscillations and traveling waves in chemical systems, Wiley, New York, 1985.
[18]	M. Freidlin, Coupled reaction-diffusion equations, The Annals of Probability, 19 (1991), 29-57. doi: 10.1214/aop/1176990535.
[19]	A. Gaber and A. Wazwaz, Dynamic wave solutions for (2+1)-dimensional DJKM equation in plasma physics, AIMS Mathematics, 9 (2024), 6060-6072. doi: 10.3934/math.2024296.
[20]	A. Gaber, A. Wazwaz and M. Mousa, Similarity reductions and new exact solutions for (3+1)-dimensional B-B equation, Modern Physics Letter B, 38 (2024), Paper No. 2350243, 12 pp. doi: 10.1142/S0217984923502433.
[21]	C. M. Garcia-Lopez and J. I. Ramos, Linearized methods, part II: Reaction-diffusion equations', Comput. Methods Appl. Mech. Eng., 137 (1996), 357-378.
[22]	Z. Ghaemi, O. Nafiu and E. Tajkhorshid, et al., A computational spatial whole-cell model for hepatitis B viral infection and drug interactions, Sci Rep, 13 (2023), Article number: 21392. doi: 10.1038/s41598-023-45998-0.
[23]	P. Gray and S. K. Scott, Autocatalytic reactions in the isothermal continuous stirred tank reactor, Chemical Engineering Science, 39 (1984), 1087-1097. doi: 10.1016/0009-2509(84)87017-7.
[24]	S. Habib, C. Molina-París and T. S. Deisboeck, Complex dynamics of tumors: Modeling an emerging brain tumor system with coupled reaction-diffusion equations, Physica A, 327 (2003), 501-524.
[25]	L. Hung, Traveling wave solutions of competitive-cooperative Lotka–Volterra systems of three species, Nonlinear Analysis: Real World Applications, 12 (2011), 3691-3700. doi: 10.1016/j.nonrwa.2011.07.002.
[26]	H. M. Jaradat, Two-mode coupled Burgers equation: Multiple-kink solutions and other exact solutions, Alexandria Engineering Journal, 57 (2018), 2151-2155.
[27]	W. Jiang, Z. Lu and J. Wang, Uniform patterns formation based on Gray-Scott model for 3D printing, Computer Physics Communications, 295 (2024), 108974. doi: 10.1016/j.cpc.2023.108974.
[28]	N. Kaur and V. Joshi, Numerical solution to the Gray-Scott reaction-diffusion equation using hyperbolic B-spline, Journal of Physics: Conference Series, 2267 (2022), 012072. doi: 10.1088/1742-6596/2267/1/012072.
[29]	E. H. Kerner, Adynamical approach to chemical kinetics: Mass-action laws as generalized Riccati equations, Bulletin of Mathematical Biophysics, 34 (1972), 243-275.
[30]	C. Koutschan, E. Suazo and S. K. Suslov, Fundamental laser modes in paraxial optics: From computer algebra and simulations to experimental observation, Appl. Phys. B, 121 (2015), 315-336. doi: 10.1007/s00340-015-6231-9.
[31]	Y. Kuang, J. D. Nagy and S. E. Eikenberry, Introduction to Mathematical Oncology, Chapman & amp; Hall/CRC Math. Comput. Biol. Ser., CRC Press, Boca Raton, FL, 2016.
[32]	M. Kumar and S. Pandit, A composite numerical scheme for the numerical simulation of coupled Burgers' equation, Computer Physics Communications, 185 (2014), 809-817. doi: 10.1016/j.cpc.2013.11.012.
[33]	Y. Kuramoto, Chemical Oscillations, Waves and Turbulence, Springer Ser. Synergetics, 19, Springer-Verlag, Berlin, 1984.
[34]	R. T. Liu, S. S. Liaw and P. K. Maini, Two-stage Turing model for generating pigment patterns on the leopard and the jaguar, Physical Review E, 74 (2006), 011914. doi: 10.1103/PhysRevE.74.011914.
[35]	A. J. Lotka, Undamped oscillations derived from the law of mass action, J. Am. Chem. Soc., 42 (1920), 1595-1599. doi: 10.1021/ja01453a010.
[36]	W. Malfliet and W. Hereman, The tahn method: I. exact solutions of nonlinear evolution and wave equations, Phys. Scripta, 54 (1996), 563-568.
[37]	M. E. Marhic, Oscillating hermite-gaussian wave functions of the harmonic oscillator, Lett. Nuovo Cim., 22 (1978), 376-378. doi: 10.1007/BF02820587.
[38]	L. A. Markovich, R. Grimaudo, A. Messina and H. Nakazato, An example of interplay between physics and mathematics: Exact resolution of a new class of Riccati Equations, Annals of Physics, 385 (2017), 522-531.
[39]	M. Maroua and B. Nabila, Asymptotic behavior of solution for coupled reaction diffusion system by order m, Int. J. Anal. Appl., 21 (2023), 1-12. doi: 10.28924/2291-8639-21-2023-37.
[40]	B. T. Mbopda, S. Issa, R. Guiem, S. C. Oukouomi Noutchie and H. P. Ekobena, Travelling waves of a nonlinear reaction-diffusion model of the hepatitis B virus, Eur. Phys. J. Plus, 138 (2023), article number: 971. doi: 10.1140/epjp/s13360-023-04534-9.
[41]	R. C. Mittal and G. Arora, Numerical solution of the coupled viscous Burgers equation, Commun Nonlinear Sci Numer Simulat, 16 (2011), 1304-1313. doi: 10.1016/j.cnsns.2010.06.028.
[42]	R. C. Mittal and R. Rohila, Numerical simulation of reaction-diffusion systems by modified cubic B-spline differential quadrature method, Chaos, Solitons and Fractals, 92 (2016), 9-19. doi: 10.1016/j.chaos.2016.09.007.
[43]	J. Morgan and B. Q. Tang, Global well-posedness for volume-surface reaction-diffusion systems, Communications in Contemporary Mathematics, 25 (2023), Paper No. 2250002, 63 pp. doi: 10.1142/S021919972250002X.
[44]	Z. Navickas, R. Vilkas, T. Telksnys and M. Ragulskis, Direct and inverse relationships between Riccati systems coupled with multiplicative terms, Journal of Biological Dynamics, 10 (2016), 297-313. doi: 10.1080/17513758.2016.1181801.
[45]	G. Nicolis and I. Prigogine, Exploring Complexity, New York: Freeman, 1989.
[46]	A. Okubo and S. A. Levin, Diffusion and Ecological Problems: Modern Perspectives, Second edition, Interdiscip. Appl. Math., 14, Springer-Verlag, New York, 2001.
[47]	A. G. Osborne and M. R. Deinert, Stability instability and Hopf bifurcation in fission waves, Cell Reports Physical Science, 2 (2021), 100588.
[48]	C. V. Pao, Global asymptotic stability of Lotka–Volterra competition systems with diffusion and time delays, Nonlinear Analysis: Real World Applications, 5 (2004), 91-104. doi: 10.1016/S1468-1218(03)00018-X.
[49]	C. V. Pao and Y. Wang, Numerical solutions of a three-competition Lotka–Volterra system, Applied Mathematics and Computation, 204 (2008), 423-440. doi: 10.1016/j.amc.2008.06.057.
[50]	O. Pashaev and G. Tanoglu, Vector shock soliton and the Hirota bilinear method, Chaos, Solitons and Fractals, 26 (2005), 95-105. doi: 10.1016/j.chaos.2004.12.021.
[51]	E. Pereira, E. Suazo and J. Trespalacios, Riccati-Ermakov systems and explicit solutions for variable coefficient reaction-diffusion equations, Applied Mathematics and Computation, 329 (2018), 278-296. doi: 10.1016/j.amc.2018.01.047.
[52]	A. D. Polyanin, Construction of exact solutions in implicit form for pdes: New functional separable solutions of non-linear reaction–diffusion equations with variable coefficients, International Journal of Non-Linear Mechanics, 111 (2019), 95-105.
[53]	A. D. Polyanin, Functional separable solutions of nonlinear reaction–diffusion equations with variable coefficients, Applied Mathematics and Computation, 347 (2019), 282-292. doi: 10.1016/j.amc.2018.10.092.
[54]	A. D. Polyanin and A. I. Zhurov, Multi-parameter reaction–diffusion systems with quadratic nonlinearity and delays: New exact solutions in elementary functions, Mathematics, 10 (2022), 1529.
[55]	A. D. Polyanin and A. I. Zhurov, Separation of Variables and Exact Solutions to Nonlinear PDEs, Adv. Appl. Math., CRC Press, Boca Raton, FL, 2022.
[56]	A. R. P. Rau, Manipulating two-spin coherences and qubit pairs, Physical Review A, 61 (2000), 032301, 5 pp. doi: 10.1103/PhysRevA.61.032301.
[57]	W. T. Reid, Riccati Differential Equations, Math. Sci. Eng., Vol. 86, Academic Press, New York-London, 1972.
[58]	M. Rodrigo and M. Mimura, Exact solutions of a competition-diffusion system, Hirohima Math J, 30 (2000), 257-270. doi: 10.32917/hmj/1206124686.
[59]	M. Rodrigo and M. Mimura, Exact solutions of reaction-diffusion systems and nonlinear wave equations, Japan J. Indust. Appl. Math., 18 (2001), 657-696. doi: 10.1007/BF03167410.
[60]	H. Shoji, Y. Iwasa, A. Mochizuki and S. Kondo, Directionality of stripes formed by anisotropic reaction-diffusion models, J. theor. Biol., 214 (2006), 549-561. doi: 10.1006/jtbi.2001.2480.
[61]	M. J. Simpson and K. A. Landman, Analysis of split operator methods applied to reactive transport with monod kinetics, Advances in Water Resources, 30 (2007), 2026-2033. doi: 10.1016/j.advwatres.2007.04.005.
[62]	M. J. Simpson, J. A. Sharp, L. C. Morrow and R. E. Baker, Exact solutions of coupled multispecies linear reaction–diffusion equations on a uniformly growing domain, PLoS ONE, 10 (2015), e0138894. doi: 10.1371/journal.pone.0138894.
[63]	B. D. Sleeman and E. Tuma, Comparison principles for strongly coupled reaction-diffusion equations, Proceedings of the Royal Society of Edinburgh, 106 (1987), 209-219. doi: 10.1017/S0308210500018357.
[64]	L. W. Somathilake and J. M. J. J. Peiris, Global solutions of a strongly coupled reaction-diffusion system with different diffusion coefficients, Journal of Applied Mathematics, 1 (2005), 23-36. doi: 10.1155/JAM.2005.23.
[65]	E. Suazo and S. K. Suslov, Soliton-like solutions for the nonlinear Schrödinger equation with variable quadratic Hamiltonians, Journal of Russian Laser Research, 33 (2012), 63-83. doi: 10.1007/s10946-012-9261-3.
[66]	E. Suazo, S. K. Suslov and J. M. Vega-Guzmán, The Riccati system and a diffusion-type equation, Mathematics, 2 (2014), 96-118. doi: 10.3390/math2020096.
[67]	S. K. Suslov, On integrability of nonautonomous nonlinear Schrödinger equations, Am. Math. Soc., 140 (2012), 3067-3082. doi: 10.1090/S0002-9939-2011-11176-6.
[68]	L. Tang and S. Chen, Traveling wave solutions for the diffusive Lotka–Volterra equations with boundary problems, Applied Mathematics and Computation, 413 (2022), Paper No. 126599, 10 pp. doi: 10.1016/j.amc.2021.126599.
[69]	G. Tanoglu, Hirota method for solving reaction-diffusion equations with generalized nonlinearity, International Journal of Nonlinear Science, 1 (2006), 30-36.
[70]	A. M. Turing, The chemical basis of morphogenesis, Bull. Math. Biol., 52 (1990), 153-197.
[71]	V. Volterra, Variazioni e fluttuazioni del numero d'individui in specie animali conviventi, Mem. Acad. Lincei., 2 (1926), 31-113.
[72]	K. Wang and W. Wang, Propagation of HBV with spatial dependence, Math. Biosci., 210 (2007), 78-95. doi: 10.1016/j.mbs.2007.05.004.
[73]	A. Wazwaz, Multiple-front solutions for the Burgers equation and the coupled Burgers equations, Applied Mathematics and Computation, 190 (2007), 1198-1206. doi: 10.1016/j.amc.2007.02.003.
[74]	V. F. Zaitsev and A. D. Polyanin, Handbook of Exact Solutions for Ordinary Differential Equations, Second edition, Chapman & Hall/CRC, Boca Raton, FL, 2003.
[75]	Y. Zhanga, P. Liu and W. Hou, Modeling of glioma growth using modified reaction-diffusion equation on brain MR images, Computer Methods and Programs in Biomedicine, 227 (2022), 107233. doi: 10.1016/j.cmpb.2022.107233.
