Optimal quantization for a probability measure on a nonuniform stretched Sierpiński triangle

Megha Pandey; Mrinal Kanti Roychowdhury

doi:10.3934/dcdss.2025087

Article Contents

2025, Volume 18, Issue 12: 3964-3981. Doi: 10.3934/dcdss.2025087

This issue Previous Article Bifurcation analysis on immunotherapy of a tumor model without treatment Next Article Stochastic representations for parabolic equations with different drift and diffusion coefficients and space-time-dependent external forcing

Optimal quantization for a probability measure on a nonuniform stretched Sierpiński triangle

Megha Pandey^1, , and
Mrinal Kanti Roychowdhury^2,

1.
School of Mathematics Northwest University Xi'an, Shaanxi Province, 710069, China
2.
School of Mathematical and Statistical Sciences, University of Texas Rio Grande Valley, 1201 West University Drive, Edinburg, TX 78539-2999, USA

^*Corresponding author: Megha Pandey
^*Corresponding author: Megha Pandey

Received: March 2024

Revised: May 2025

Early access: June 3, 2025

Published online: June 3, 2025

Abstract / Introduction Full Text(HTML) Figure(5) / Table(1) Related Papers Cited by

Abstract

Quantization for a Borel probability measure refers to the idea of estimating a given probability by a discrete probability with support containing a finite number of elements. In this paper, we have considered a Borel probability measure $ P $ on $ \mathbb R^2 $, which has support a nonuniform stretched Sierpiński triangle generated by a set of three contractive similarity mappings on $ \mathbb R^2 $. For this probability measure, we investigate the optimal sets of $ n $-means and the $ n $th quantization errors for all positive integers $ n $.

Keywords:

Mathematics Subject Classification: 60E05, 28A80, 94A34.

Citation:

Full Text(HTML)

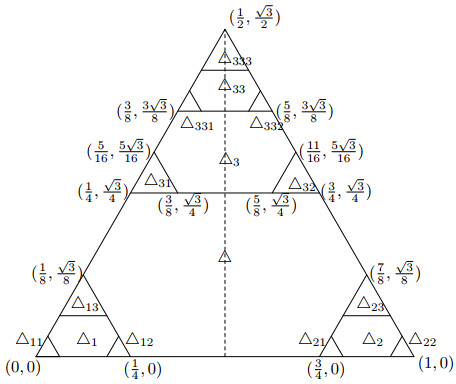

Figure 1. Some basic triangles with their vertices that construct the stretched Sierpiński triangle

Download: Full-size image PowerPoint slide

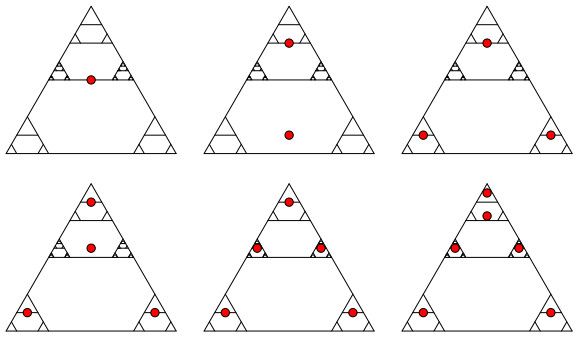

Figure 2. Optimal configuration of $ n $ points for $ 1\leq n\leq 6 $

Download: Full-size image PowerPoint slide

Figure 3. Optimal configuration of $ n $ points for $ n = 7 $

Download: Full-size image PowerPoint slide

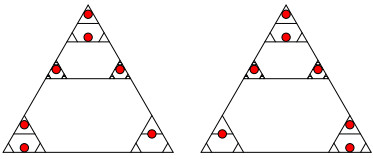

Figure 4. Optimal configuration of $ n $ points for $ n = 8 $

Download: Full-size image PowerPoint slide

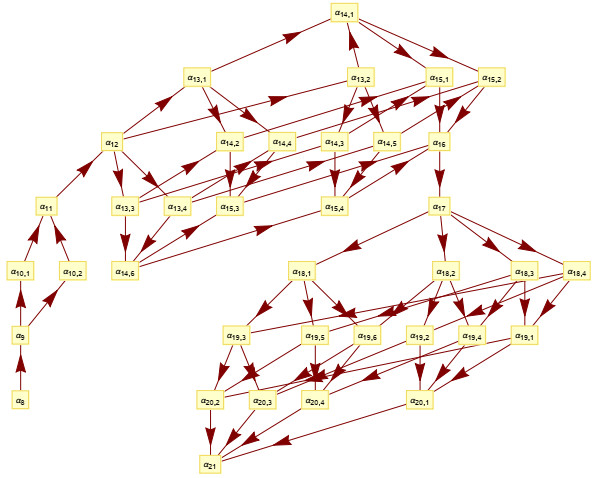

Figure 5. Tree diagram of the optimal sets from $ \alpha_8 $ to $ \alpha_{21} $

Download: Full-size image PowerPoint slide

Table 1. Number of $ \alpha_n $ in the range $ 5\leq n\leq 82 $

$ n $	$ \text{ card }(\mathcal{C}_n) $	$ n $	$ \text{ card }(\mathcal{C}_n) $	$ n $	$ \text{ card }(\mathcal{C}_n) $	$ n $	$ \text{ card }(\mathcal{C}_n) $	$ n $	$ \text{ card }(\mathcal{C}_n) $	$ n $	$ \text{ card }(\mathcal{C}_n) $
5	1	18	4	31	6	44	1	57	495	70	56
6	1	19	6	32	4	45	8	58	792	71	28
7	2	20	4	33	1	46	28	59	924	72	8
8	1	21	1	34	6	47	56	60	792	73	1
9	1	22	1	35	15	48	70	61	495	74	1
10	2	23	6	36	20	49	56	62	220	75	12
11	1	24	15	37	15	50	28	63	66	76	66
12	1	25	20	38	6	51	8	64	12	77	220
13	4	26	15	39	1	52	1	65	1	78	495
14	6	27	6	40	1	53	1	66	8	79	792
15	4	28	1	41	4	54	12	67	28	80	924
16	1	29	1	42	6	55	66	68	56	81	792
17	1	30	4	43	4	56	220	69	70	82	495

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	E. F. Abaya and G. L. Wise, Some remarks on the existence of optimal quantizers, Statistics & Probability Letters, 2 (1984), 349-351.
[2]	P. Biteng, M. Caguiat, D. Deb, M. K. Roychowdhury and B. Villanueva, Constrained quantization for a uniform distribution, Houston Journal of Mathematics, 50 (2024), 121-142.
[3]	P. Biteng, M. Caguiat, T. Dominguez and M. K. Roychowdhury, Conditional quantization for uniform distributions on line segments and regular polygons, Mathematics, 13 (2025), 1024. doi: 10.3390/math13071024.
[4]	D. Cömez and M. K. Roychowdhury, Quantization for uniform distributions on stretched Sierpiński triangles, Monatshefte für Mathematik, 190 (2019), 79-100. doi: 10.1007/s00605-019-01314-5.
[5]	D. Cömez and M. K. Roychowdhury, Quantization for uniform distributions of Cantor dusts on $\mathbb{R}^2$, Topology Proceedings, 56 (2020), 195-218.
[6]	C. P. Dettmann and M. K. Roychowdhury, Quantization for uniform distributions on equilateral triangles, Real Analysis Exchange, 42 (2017), 149-166. doi: 10.14321/realanalexch.42.1.0149.
[7]	Q. Du, V. Faber and M. Gunzburger, Centroidal Voronoi tessellations: Applications and algorithms, SIAM Review, 41 (1999), 637-676. doi: 10.1137/S0036144599352836.
[8]	A. Gersho and R. M. Gray, Vector Quantization and Signal Compression, volume 159. Springer Science & Business Media, 2012.
[9]	S. Graf and H. Luschgy, The quantization of the Cantor distribution, Mathematische Nachrichten, 183 (1997), 113-133. doi: 10.1002/mana.19971830108.
[10]	S. Graf and H. Luschgy, Quantization for probability measures with respect to the geometric mean error, Mathematical Proceedings of the Cambridge Philosophical Society, 136 (2004), 687-717. doi: 10.1017/S0305004103007229.
[11]	S. Graf and H. Luschgy, Foundations of Quantization for Probability Distributions, Lecture Notes in Math., 1730. Springer-Verlag, Berlin, 2000.
[12]	R. M. Gray, J. C. Kieffer and Y. Linde, Locally optimal block quantizer design, Information and Control, 45 (1980), 178-198. doi: 10.1016/S0019-9958(80)90313-7.
[13]	R. M. Gray and D. L. Neuhoff, Quantization, IEEE Transactions on Information Theory, 44 (1998), 2325-2383. doi: 10.1109/18.720541.
[14]	A. Gyorgy and T. Linder, On the structure of optimal entropy-constrained scalar quantizers, IEEE Transactions on Information Theory, 48 (2002), 416-427. doi: 10.1109/18.978755.
[15]	C. Hamilton, E. Nyanney, M. Pandey and M. K. Roychowdhury, Conditional constrained and unconstrained quantization for uniform distributions on regular polygons, Real Analysis Exchange., (2025), 1-45. doi: 10.14321/realanalexch.1725509532.
[16]	M. Kesseböhmer, A. Niemann and S. Zhu, Quantization dimensions of compactly supported probability measures via Rényi dimensions, Transactions of the American Mathematical Society, 376 (2023), 4661-4678. doi: 10.1090/tran/8863.
[17]	M. Pandey and M. K. Roychowdhury., Conditional constrained and unconstrained quantization for probability distributions, arXiv: 2312.02965.
[18]	M. Pandey and M. K. Roychowdhury, Constrained quantization for a uniform distribution with respect to a family of constraints, arXiv: 2309.11498.
[19]	M. Pandey and M. K. Roychowdhury, Constrained quantization for the Cantor distribution, Journal of Fractal Geometry, 11 (2024), 319-341. doi: 10.4171/jfg/147.
[20]	M. Pandey and M. K. Roychowdhury, Constrained quantization for the Cantor distribution with a family of constraints, arXiv preprint, arXiv: 2401.01958, (2024).
[21]	M. Pandey and M. K. Roychowdhury, Constrained quantization for probability distributions, Journal of Fractal Geometry, (2025).
[22]	D. Pollard, Quantization and the method of $k$-means, IEEE Transactions on Information Theory, 28 (1982), 199-205. doi: 10.1109/TIT.1982.1056481.
[23]	K. Pötzelberger, The quantization dimension of distributions, Mathematical Proceedings of the Cambridge Philosophical Society, 131 (2001), 507-519. doi: 10.1017/S0305004101005357.
[24]	L. Roychowdhury, Optimal quantization for nonuniform Cantor distributions, Journal of Interdisciplinary Mathematics, 22 (2019), 1325-1348. doi: 10.1080/09720502.2019.1698401.
[25]	M. K. Roychowdhury, Quantization and centroidal Voronoi tessellations for probability measures on dyadic Cantor sets, Journal of Fractal Geometry, 4 (2017), 127-146. doi: 10.4171/jfg/47.
[26]	M. K. Roychowdhury, Least upper bound of the exact formula for optimal quantization of some uniform Cantor distribution, Discrete & Continuous Dynamical Systems: Series A, 38 (2018).
[27]	M. K. Roychowdhury, Optimal quantization for the Cantor distribution generated by infinite similutudes, Israel Journal of Mathematics, 231 (2019), 437-466. doi: 10.1007/s11856-019-1859-5.
[28]	M. K. Roychowdhury, Optimal quantizers for a nonuniform distribution on a Sierpiński carpet, International Conference on Nonlinear Applied Analysis and Optimization, (2021), 43-62. doi: 10.1007/978-981-99-0597-3_5.
[29]	M. K. Roychowdhury and B. Selmi, Local dimensions and quantization dimensions in dynamical systems, The Journal of Geometric Analysis, 31 (2021), 6387-6409. doi: 10.1007/s12220-020-00537-5.
[30]	P. Zador, Asymptotic quantization error of continuous signals and the quantization dimension, IEEE Transactions on Information Theory, 28 (1982), 139-149. doi: 10.1109/TIT.1982.1056490.
[31]	R. Zamir, Lattice Coding for Signals and Networks: A Structured Coding Approach to Quantization, Modulation, and Multiuser Information Theory, Cambridge University Press, 2014.
