Approximate Bayesian inference for geostatistical generalised linear models

Evangelos Evangelou

doi:10.3934/fods.2019002

Article Contents

2019, Volume 1, Issue 1: 39-60. Doi: 10.3934/fods.2019002

This issue Previous Article Consistent manifold representation for topological data analysis Next Article Particle filters for inference of high-dimensional multivariate stochastic volatility models with cross-leverage effects

Approximate Bayesian inference for geostatistical generalised linear models

Evangelos Evangelou^,

Department of Mathematical Sciences, University of Bath, BA2 7AY, Bath, UK

^* Corresponding author: Evangelos Evangelou
^* Corresponding author: Evangelos Evangelou

Published: March 2019

Abstract Full Text(HTML) Figure(10) / Table(2) Related Papers Cited by

Abstract

The aim of this paper is to bring together recent developments in Bayesian generalised linear mixed models and geostatistics. We focus on approximate methods on both areas. A technique known as full-scale approximation, proposed by Sang and Huang (2012) for improving the computational drawbacks of large geostatistical data, is incorporated into the INLA methodology, used for approximate Bayesian inference. We also discuss how INLA can be used for approximating the posterior distribution of transformations of parameters, useful for practical applications. Issues regarding the choice of the parameters of the approximation such as the knots and taper range are also addressed. Emphasis is given in applications in the context of disease mapping by illustrating the methodology for modelling the loa loa prevalence in Cameroon and malaria in the Gambia.

Keywords:

Disease mapping,
full-scale approximation,
generalised linear spatial model,
geostatistics,
integrated nested Laplace approximation.

Mathematics Subject Classification: Primary: 62H11, 62F15; Secondary: 60G15.

Citation:

Full Text(HTML)

Figure 2. Scaled Frobenius norm ($\circ$) and computational time ($+$) against taper range $\gamma$

Download: Full-size image PowerPoint slide

Figure 1. Locations for the simulated example, indicated by $\cdot$, and grid for the full scale approximation, indicated by $\times$. Prediction is considered at a central site ($\circ$) and a far site ($\square$)

Download: Full-size image PowerPoint slide

Figure 3. Posterior densities for (a) logarithm of sill, (b) range, and (c) intercept. The histogram shows the MCMC sample. The approximation using INLA and exact covariance matrix is shown by a solid line, the INLA with the full scale approximation is shown by a dashed line, and the INLA with the predictive process approximation is shown by a dotted line. The true parameter value is indicated by a triangle on the horizontal axis

Download: Full-size image PowerPoint slide

Figure 4. Predictive distribution of the random field at a central site (left) and a far site (right). The histogram shows the MCMC sample. The approximation using INLA and exact covariance matrix is shown by a solid line, the INLA with the full scale approximation is shown by a dashed line, and the INLA with the predictive process approximation is shown by a dotted line

Download: Full-size image PowerPoint slide

Figure 7. Predicted prevalence of the loa loa parasite (top), and prediction standard deviation (bottom)

Download: Full-size image PowerPoint slide

Figure 5. Posterior plots for the variance parameters. (a) Joint posterior of $\log(\sigma^2)$ and $\rho$ using exact INLA, (b) Marginal posterior of $\log(\sigma^2)$, (c) Marginal posterior of $\rho$. The histogram is for the MCMC sample, the exact INLA is shown by a solid line and the full-scale INLA by a dadhed line

Download: Full-size image PowerPoint slide

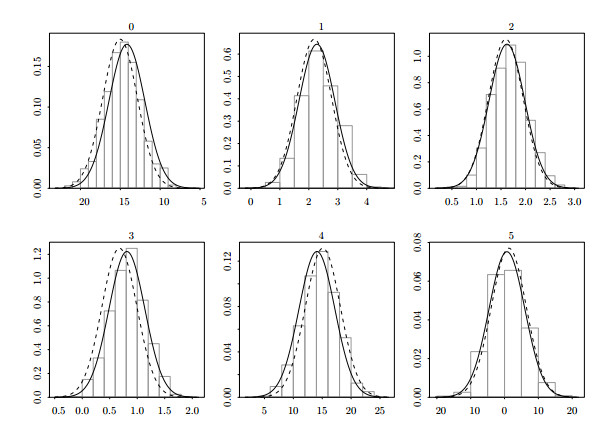

Figure 6. Posterior for the regressor coefficients. The histogram is for the MCMC sample, the exact INLA is shown by a solid line and the full-scale INLA by a dashed line

Download: Full-size image PowerPoint slide

Figure 8. Sampled locations for the Gambia data from [30]

Download: Full-size image PowerPoint slide

Figure 9. Posterior densities for the parameters (a) $\tau^2$, (b) $\sigma^2$, and (c) $\rho$ of the Gambia malaria data

Download: Full-size image PowerPoint slide

Figure 10. Prediction of spatial random field for the Gambia malaria data (top) and prediction standard deviation (bottom)

Download: Full-size image PowerPoint slide

Table 1. Parameter estimates for the loa loa prevalence in Cameroon using exact INLA, approximate INLA, and MCMC

Parameter	Exact INLA
Parameter	Estimate	95% interval
Intercept $ (\beta_0) $	$ -14.17 $	$ -18.58 $	$ -9.76 $
Elevation $ 0-.65 $Km $ (\beta_1) $	$ 2.28 $	$ 1.07 $	$ 3.49 $
Elevation $ .65 - 1 $Km $ (\beta_2) $	$ 1.62 $	$ 0.90 $	$ 2.34 $
Elevation $ 1 - 1.3 $Km $ (\beta_3) $	$ 0.81 $	$ 0.17 $	$ 1.45 $
Max(NDVI) $ (\beta_4) $	$ 14.09 $	$ 8.00 $	$ 20.17 $
Sd(NDVI) $ (\beta_5) $	$ 0.71 $	$ -9.68 $	$ 11.10 $
Sill $ (\sigma^2) $	$ 0.72 $	$ 0.50 $	$ 1.02 $
Range $ (\rho) $	$ 0.55 $	$ 0.25 $	$ 1.08 $

Parameter	Full-scale INLA
Parameter	Estimate	95% interval
Intercept $ (\beta_0) $	$ -15.03 $	$ -19.28 $	$ -10.77 $
Elevation $ 0-.65 $Km $ (\beta_1) $	$ 2.19 $	$ 1.02 $	$ 3.36 $
Elevation $ .65 - 1 $Km $ (\beta_2) $	$ 1.60 $	$ 0.91 $	$ 2.29 $
Elevation $ 1 - 1.3 $Km $ (\beta_3) $	$ 0.68 $	$ 0.05 $	$ 1.30 $
Max(NDVI) $ (\beta_4) $	$ 15.11 $	$ 9.16 $	$ 21.06 $
Sd(NDVI) $ (\beta_5) $	$ 1.27 $	$ -8.87 $	$ 11.42 $
Sill $ (\sigma^2) $	$ 0.66 $	$ 0.45 $	$ 0.94 $
Range $ (\rho) $	$ 0.64 $	$ 0.36 $	$ 1.08 $

Parameter	MCMC
Parameter	Estimate	95% interval
Intercept $ (\beta_0) $	$ -14.67 $	$ -19.16 $	$ -9.90 $
Elevation $ 0-.65 $Km $ (\beta_1) $	$ 2.35 $	$ 1.15 $	$ 3.60 $
Elevation $ .65 - 1 $Km $ (\beta_2) $	$ 1.68 $	$ 1.00 $	$ 2.39 $
Elevation $ 1 - 1.3 $Km $ (\beta_3) $	$ 0.83 $	$ 0.18 $	$ 1.46 $
Max(NDVI) $ (\beta_4) $	$ 14.66 $	$ 8.19 $	$ 20.82 $
Sd(NDVI) $ (\beta_5) $	$ 0.68 $	$ -9.04 $	$ 11.22 $
Sill $ (\sigma^2) $	$ 0.70 $	$ 0.51 $	$ 0.99 $
Range $ (\rho) $	$ 0.48 $	$ 0.28 $	$ 0.92 $

| Show Table

DownLoad: CSV

Table 2. Parameter estimates of the Gambia malaria data

Parameter	Estimate	95% interval
Intercept ($\beta_0$)	$-0.07309$	$-2.95100$	$ 2.80483$
Age ($\beta_1$)	$ 0.00066$	$ 0.00042$	$ 0.00090$
Untreated bed net ($\beta_2$)	$-0.36216$	$-0.67639$	$-0.04793$
Treated bed net ($\beta_3$)	$-0.68297$	$-1.07497$	$-0.29097$
Greenness ($\beta_4$)	$-0.01334$	$-0.07507$	$ 0.04839$
PHC ($\beta_5$)	$-0.32790$	$-0.77921$	$ 0.12340$
Area 2 ($\beta_6$)	$-0.69385$	$-2.26728$	$ 0.87958$
Area 3 ($\beta_7$)	$-0.78240$	$-2.44258$	$ 0.87778$
Area 4 ($\beta_8$)	$ 0.65537$	$-1.12152$	$ 2.43226$
Area 5 ($\beta_9$)	$ 0.97627$	$-0.80963$	$ 2.76217$
Nugget ($\tau^2$)	$ 0.13209$	$ 0.00310$	$ 0.26136$
Sill ($\sigma^2$)	$ 0.98459$	$ 0.34501$	$ 1.82461$
Range ($\rho$)	$ 9.82025$	$ 0.54713$	$18.63800$

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	S. Banerjee, A. E. Gelfand, A. O. Finley and H. Sang, Gaussian predictive process models for large spatial data sets, Journal of the Royal Statistical Society: Series B (Statistical Methodology), 70 (2008), 825-848. doi: 10.1111/j.1467-9868.2008.00663.x.
[2]	O. E. Barndorff-Nielsen and D. R. Cox, Asymptotic Techniques for Use in Statistics, Chapman & Hall Ltd, 1989. doi: 10.1007/978-1-4899-3424-6.
[3]	N. Breslow and D. Clayton, Approximate inference in generalized linear mixed models, Journal of the American Statistical Association, 88 (1993), 9-25.
[4]	M. Cameletti, F. Lindgren, D. Simpson and H. Rue, Spatio-temporal modeling of particulate matter concentration through the SPDE approach, AStA Advances in Statistical Analysis, 97 (2013), 109-131. doi: 10.1007/s10182-012-0196-3.
[5]	O. F. Christensen, J. Møller and R. Waagepetersen, Analysis of Spatial Data Using Generalized Linear Mixed Models and Langevin-type Markov chain Monte Carlo, Technical report, Department of Mathematical Sciences, Aalborg University, 2000.
[6]	O. F. Christensen and R. Waagepetersen, Bayesian prediction of spatial count data using generalized linear mixed models, Biometrics, 58 (2002), 280-286. doi: 10.1111/j.0006-341X.2002.00280.x.
[7]	O. F. Christensen, Monte Carlo maximum likelihood in model-based geostatistics, Journal of Computational and Graphical Statistics, 13 (2004), 702-718. doi: 10.1198/106186004X2525.
[8]	O. F. Christensen and P. J. Ribeiro Jr, geoRglm: A package for generalised linear spatial models, R News, 2 (2002), 26-28.
[9]	P. Diggle, R. Moyeed, B. Rowlingson and M. Thomson, Childhood malaria in the Gambia: A case-study in model-based geostatistics, Journal of the Royal Statistical Society: Series C (Applied Statistics), 51 (2002), 493-506. doi: 10.1111/1467-9876.00283.
[10]	P. J. Diggle, J. A. Tawn and R. A. Moyeed, Model-based geostatistics, Journal of the Royal Statistical Society: Series C (Applied Statistics), 47 (1998), 299-350. doi: 10.1111/1467-9876.00113.
[11]	P. J. Diggle, M. C. Thomson, O. F. Christensen, B. Rowlingson, V. Obsomer, J. Gardon, S. Wanji, I. Takougang, P. Enyong, J. Kamgno, J. H. Remme, M. Boussinesq and D. H. Molyneux, Spatial modelling and the prediction of loa loa risk: decision making under uncertainty, Annals of Tropical Medicine and Parasitology, 101 (2007), 499-509.
[12]	J. Eidsvik, S. Martino and H. Rue, Approximate Bayesian inference in spatial generalized linear mixed models, Scandinavian Journal of Statistics, 36 (2009), 1-22. doi: 10.1111/j.1467-9469.2008.00621.x.
[13]	J. Eidsvik, A. O. Finley, S. Banerjee and H. Rue, Approximate bayesian inference for large spatial datasets using predictive process models, Computational Statistics & Data Analysis, 56 (2012), 1362-1380. doi: 10.1016/j.csda.2011.10.022.
[14]	E. Evangelou, Z. Zhu and R. L. Smith, Estimation and prediction for spatial generalized linear mixed models using high order laplace approximation, Journal of Statistical Planning and Inference, 141 (2011), 3564-3577. doi: 10.1016/j.jspi.2011.05.008.
[15]	E. Evangelou and V. Maroulas, Sequential empirical Bayes method for filtering dynamic spatiotemporal processes, Spatial Statistics, 21 (2017), 114-129. doi: 10.1016/j.spasta.2017.06.006.
[16]	E. Evangelou and Z. Zhu, Optimal predictive design augmentation for spatial generalised linear mixed models, Journal of Statistical Planning and Inference, 142 (2012), 3242-3253. doi: 10.1016/j.jspi.2012.05.008.
[17]	A. O. Finley, H. Sang, S. Banerjee and A. E. Gelfand, Improving the performance of predictive process modeling for large datasets, Data Analysis, 53 (2009), 2873-2884. doi: 10.1016/j.csda.2008.09.008.
[18]	R. Furrer, M. G. Genton and D. Nychka, Covariance tapering for interpolation of large spatial datasets, Journal of Computational and Graphical Statistics, 15 (2006), 502-523. doi: 10.1198/106186006X132178.
[19]	T. Gneiting, Compactly supported correlation functions, Journal of Multivariate Analysis, 83 (2002), 493-508. doi: 10.1006/jmva.2001.2056.
[20]	F. Hosseini, J. Eidsvik and M. Mohammadzadeh, Approximate bayesian inference in spatial glmm with skew normal latent variables, Data Analysis, 55 (2011), 1791-1806. doi: 10.1016/j.csda.2010.11.011.
[21]	J. B. Illian, S. H. Sørbye and H. Rue, A toolbox for fitting complex spatial point process models using integrated nested Laplace approximation (INLA), The Annals of Applied Statistics, 6 (2012), 1499-1530. doi: 10.1214/11-AOAS530.
[22]	C. G. Kaufman, M. J. Schervish and D. W. Nychka, Covariance tapering for likelihood-based estimation in large spatial data sets, Journal of the American Statistical Association, 103 (2008), 1545-1555. doi: 10.1198/016214508000000959.
[23]	R. Langrock, Some applications of nonlinear and non-Gaussian state–space modelling by means of hidden Markov models, Journal of Applied Statistics, 38 (2011), 2955-2970. doi: 10.1080/02664763.2011.573543.
[24]	F. Lindgren, H. Rue and J. Lindström, An explicit link between Gaussian fields and Gaussian Markov random fields: The stochastic partial differential equation approach, Journal of the Royal Statistical Society: Series B (Statistical Methodology), 73 (2011), 423-498. doi: 10.1111/j.1467-9868.2011.00777.x.
[25]	S. Martino, R. Akerkar and H. Rue, Approximate Bayesian inference for survival models, Scandinavian Journal of Statistics, 38 (2011), 514-528. doi: 10.1111/j.1467-9469.2010.00715.x.
[26]	P. McCullagh and J. A. Nelder, Generalized Linear Models, Chapman & Hall/CRC, 1999. doi: 10.1007/978-1-4899-3242-6.
[27]	W. Müller, Collecting Spatial Data: Optimum Design of Experiments for Random Fields, Springer Verlag, 2007.
[28]	M. Paul, A. Riebler, L. M. Bachmann, H. Rue and L. Held, Bayesian bivariate meta-analysis of diagnostic test studies using integrated nested Laplace approximations, Statistics in Medicine, 29 (2010), 1325-1339. doi: 10.1002/sim.3858.
[29]	R Core Team, R: A Language and Environment for Statistical Computing, R Foundation for Statistical Computing, Vienna, Austria, 2018, URL https://www.R-project.org/.
[30]	P. J. Ribeiro Jr and P. J. Diggle, geoR: A package for geostatistical analysis, R News, 1 (2001), 15-18.
[31]	H. Rue and L. Held, Gaussian Markov Random Fields: Theory and Applications, Monographs on statistics and applied probability, Chapman & Hall/CRC, 2005. doi: 10.1201/9780203492024.
[32]	H. Rue, S. Martino and N. Chopin, Approximate bayesian inference for latent gaussian models by using integrated nested laplace approximations, Journal of the Royal Statistical Society: Series B (Statistical Methodology), 71 (2009), 319-392. doi: 10.1111/j.1467-9868.2008.00700.x.
[33]	H. Sang and J. Z. Huang, A full scale approximation of covariance functions for large spatial data sets, Journal of the Royal Statistical Society: Series B (Statistical Methodology), 74 (2012), 111-132. doi: 10.1111/j.1467-9868.2011.01007.x.
[34]	H. Sang, M. Jun and J. Huang, Covariance approximation for large multivariate spatial data sets with an application to multiple climate model errors, The Annals of Applied Statistics, 5 (2011), 2519-2548. doi: 10.1214/11-AOAS478.
[35]	B. Schrödle and L. Held, A primer on disease mapping and ecological regression using INLA, Computational Statistics, 26 (2011), 241-258. doi: 10.1007/s00180-010-0208-2.
[36]	Z. Shun and P. McCullagh, Laplace approximation of high dimensional integrals, Journal of the Royal Statistical Society, Series B, Methodological, 57 (1995), 749-760. doi: 10.1111/j.2517-6161.1995.tb02060.x.
[37]	D. Simpson, F. Lindgren and H. Rue, In order to make spatial statistics computationally feasible, we need to forget about the covariance function, Environmetrics, 23 (2012), 65-74. doi: 10.1002/env.1137.
[38]	M. L. Stein, Interpolation of Spatial Data: Some Theory for Kriging, Springer-Verlag Inc, 1999. doi: 10.1007/978-1-4612-1494-6.
[39]	B. M. Taylor and P. J. Diggle, INLA or MCMC? A tutorial and comparative evaluation for spatial prediction in log-Gaussian Cox processes, Journal of Statistical Computation and Simulation, 84 (2014), 2266-2284. doi: 10.1080/00949655.2013.788653.
[40]	H. Zhang, On estimation and prediction for spatial generalized linear mixed models, Biometrics, 58 (2004), 129-136. doi: 10.1111/j.0006-341X.2002.00129.x.
