Hyper-differential sensitivity analysis with respect to model discrepancy: Posterior optimal solution sampling

Joseph Hart; Bart van Bloemen Waanders

doi:10.3934/fods.2024027

Article Contents

2025, Volume 7, Issue 1: 99-133. Doi: 10.3934/fods.2024027

This issue Previous Article A practical existence theorem for reduced order models based on convolutional autoencoders Next Article Stacked networks improve physics-informed training: Applications to neural networks and deep operator networks

Hyper-differential sensitivity analysis with respect to model discrepancy: Posterior optimal solution sampling

Joseph Hart^, and
Bart van Bloemen Waanders

Sandia National Laboratories, USA

^*Corresponding author: Joseph Hart
^*Corresponding author: Joseph Hart

Received: February 2024

Revised: May 2024

Early access: June 2024

Published: March 2025

Abstract / Introduction Full Text(HTML) Figure(10) / Table(5) Related Papers Cited by

Abstract

Optimization constrained by high-fidelity computational models has potential for transformative impact. However, such optimization is frequently unattainable in practice due to the complexity and computational intensity of the model. An alternative is to optimize a low-fidelity model and use limited evaluations of the high-fidelity model to assess the quality of the solution. This article develops a framework to use limited high-fidelity simulations to update the optimization solution computed using the low-fidelity model. Building off a previous article [25], which introduced hyper-differential sensitivity analysis with respect to model discrepancy, this article provides novel extensions of the algorithm to enable uncertainty quantification of the optimal solution update via a Bayesian framework. Specifically, we formulate a Bayesian inverse problem to estimate the model discrepancy and propagate the posterior model discrepancy distribution through the post-optimality sensitivity operator for the low-fidelity optimization problem. We provide a rigorous treatment of the Bayesian formulation, a computationally efficient algorithm to compute posterior samples, a guide to specify and interpret the algorithm hyper-parameters, and a demonstration of the approach on three examples which highlight various types of discrepancy between low and high-fidelity models.

Keywords:

Hyper-differential sensitivity analysis,
post-optimality sensitivity analysis,
PDE-constrained optimization,
model discrepancy,
Bayesian analysis.

Mathematics Subject Classification: Primary: 65K10, 65C-99; Secondary: 65K99.

Citation:

Full Text(HTML)

Figure 1. Low-fidelity optimization solution for the reaction diffusion example. Left: optimal source $ \tilde{{{{\boldsymbol{{z}}}}}} $; right: state target $ T $ alongside the low and high-fidelity state solutions evaluated at $ \tilde{{{{\boldsymbol{{z}}}}}} $, i.e. $ \tilde{S}(\tilde{{{{\boldsymbol{{z}}}}}}) $ and $ S(\tilde{{{{\boldsymbol{{z}}}}}}) $, respectively

Download: Full-size image PowerPoint slide

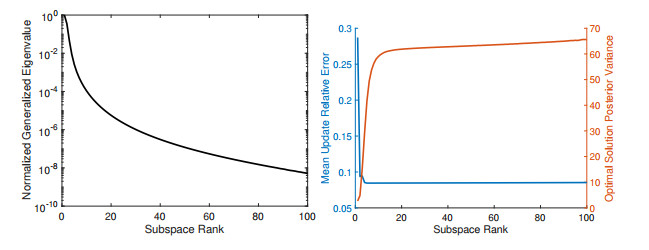

Figure 2. Left: generalized eigenvalues (21) for the reaction diffusion example; right: the posterior optimal solution mean relative error (in the left axis) and posterior optimal solution variance (in right axis) for various subspace ranks

Download: Full-size image PowerPoint slide

Figure 3. Left: the low and high-fidelity optimal sources $ \tilde{{{{\boldsymbol{{z}}}}}} $ and $ {{{\boldsymbol{{z}}}}}^\star $, respectively, alongside the posterior optimal solution mean $ \overline{{{{\boldsymbol{{z}}}}}} $ with posterior optimal solution samples (in grey); right: the high-fidelity objective function values for 500 optimal source posterior samples, the vertical lines from left to right indicates the value the high-fidelity objective $ J(S({{{\boldsymbol{{z}}}}}), {{{\boldsymbol{{z}}}}}) $ evaluated at the high-fidelity optimal source, the posterior optimal source mean, and the low-fidelity optimal source. The top and bottom rows correspond to a subspace projection ranks of 4 and 11, respectively

Download: Full-size image PowerPoint slide

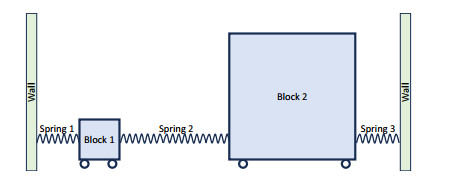

Figure 4. Diagram depicting the mass-spring system. We consider the coupled system for both blocks 1 and 2 as the high-fidelity model. A low-fidelity model is derived by assuming that block 2 is stationary

Download: Full-size image PowerPoint slide

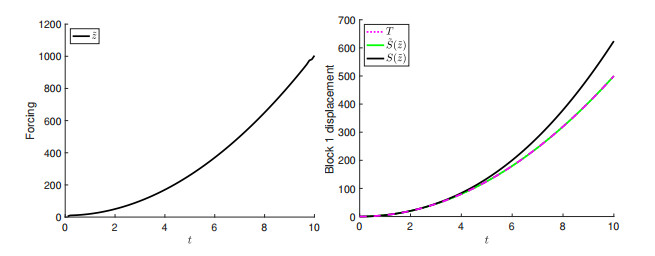

Figure 5. Low-fidelity optimization solution for the mass-spring system. Left: low-fidelity optimal forcing $ \tilde{{{{\boldsymbol{{z}}}}}} $; right: state trajectory $ T $ alongside the low and high-fidelity block 1 displacement solutions evaluated at $ \tilde{{{{\boldsymbol{{z}}}}}} $, i.e. $ \tilde{S}(\tilde{{{{\boldsymbol{{z}}}}}}) $ and $ S(\tilde{{{{\boldsymbol{{z}}}}}}) $, respectively

Download: Full-size image PowerPoint slide

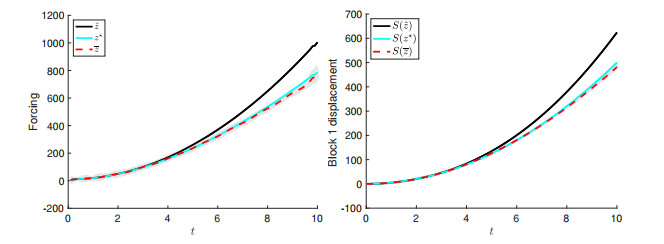

Figure 6. Left: the low and high-fidelity optimal forcings $ \tilde{{{{\boldsymbol{{z}}}}}} $ and $ {{{\boldsymbol{{z}}}}}^\star $, respectively, alongside the posterior optimal solution mean $ \overline{{{{\boldsymbol{{z}}}}}} $ with posterior optimal solution samples (in grey); right: block 1 trajectory under the forcings from the left panel

Download: Full-size image PowerPoint slide

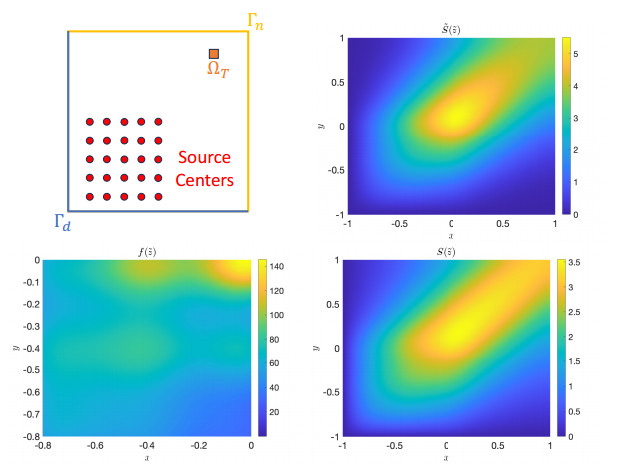

Figure 7. Left: schematic of the computational domain, source, and target locations (top), and low-fidelity optimal source $ \tilde{{{{\boldsymbol{{z}}}}}} $ (bottom); right: low-fidelity model prediction (top) and and high-fidelity model prediction (bottom) evaluated at $ {{{\boldsymbol{{z}}}}} = \tilde{{{{\boldsymbol{{z}}}}}} $

Download: Full-size image PowerPoint slide

Figure 8. Comparison of the posterior optimal solution using projection subspace ranks $ r = 1 $ (top) and $ r = 2 $ (bottom). Left: posterior optimal solution mean $ \overline{{{{\boldsymbol{{z}}}}}} $; center: posterior optimal solution pointwise standard deviation; right: histogram of the high-fidelity objective function values corresponding to the posterior optimal solution samples with the vertical lines indicating $ J(S(\overline{{{{\boldsymbol{{z}}}}}}), \overline{{{{\boldsymbol{{z}}}}}}) $ (red broken line) and $ J(S(\tilde{{{{\boldsymbol{{z}}}}}}), \tilde{{{{\boldsymbol{{z}}}}}}) $ (black solid line)

Download: Full-size image PowerPoint slide

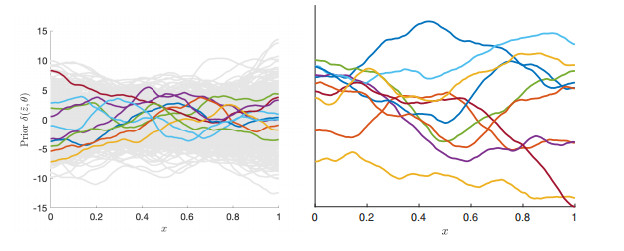

Figure 9. Left: samples of the prior discrepancy $ {{\delta}}({{{\boldsymbol{{z}}}}}, {{{\boldsymbol{{\theta}}}}}) $ evaluated at $ {{{\boldsymbol{{z}}}}} = \tilde{{{{\boldsymbol{{z}}}}}} $, i.e. a mean zero Gaussian distribution with covariance $ {{{\boldsymbol{{W}}}}}_{{{\boldsymbol{{u}}}}}^{-1} $; right: samples from a mean zero Gaussian distribution with covariance $ {{{\boldsymbol{{W}}}}}_{{{\boldsymbol{{z}}}}}^{-1} $

Download: Full-size image PowerPoint slide

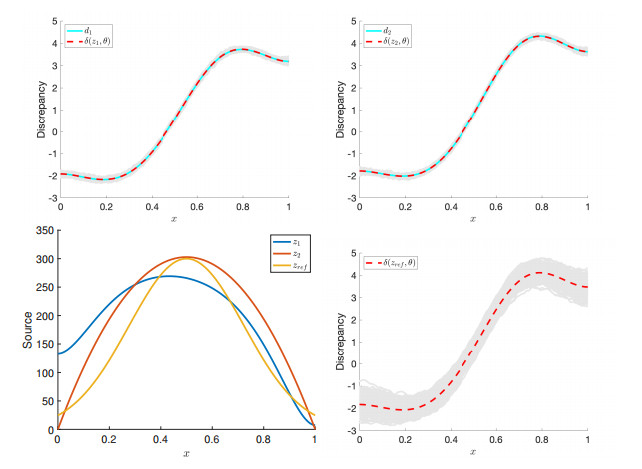

Figure 10. Top: discrepancy data $ {\boldsymbol{{d}}}_\ell = S({{{\boldsymbol{{z}}}}}_\ell)-\tilde{S}({{{\boldsymbol{{z}}}}}_\ell) $, the posterior discrepancy mean evaluated at $ {{{\boldsymbol{{z}}}}}_\ell $, and posterior discrepancy samples $ {{\delta}}({{{\boldsymbol{{z}}}}}, \overline{{{{\boldsymbol{{\theta}}}}}}+\hat{{{{\boldsymbol{{\theta}}}}}}+\breve{{{{\boldsymbol{{\theta}}}}}}) $ evaluated at $ {{{\boldsymbol{{z}}}}} = {{{\boldsymbol{{z}}}}}_\ell $, $ \ell = 1, 2 $. Bottom left: optimization variable data $ {{{\boldsymbol{{z}}}}}_1 $, $ {{{\boldsymbol{{z}}}}}_2 $, and a reference source $ {{{\boldsymbol{{z}}}}}_{ref} $; right: the posterior discrepancy $ {{\delta}}({{{\boldsymbol{{z}}}}}, \overline{{{{\boldsymbol{{\theta}}}}}}+\hat{{{{\boldsymbol{{\theta}}}}}}+\breve{{{{\boldsymbol{{\theta}}}}}}) $ evaluated at $ {{{\boldsymbol{{z}}}}} = {{{\boldsymbol{{z}}}}}_{ref} $

Download: Full-size image PowerPoint slide

Table 1. Hyper-parameters used in the diffusion-reaction example

$ \alpha_{{{\boldsymbol{{u}}}}} $	$ \beta_{{{\boldsymbol{{u}}}}} $	$ \alpha_{{{\boldsymbol{{z}}}}} $	$ \beta_{{{\boldsymbol{{z}}}}} $	$ \alpha_{{\boldsymbol{{d}}}} $
$ 4 $	$ 2 \times 10^{-2} $	$ 10^{-10} $	$ 3 \times 10^{-2} $	$ 10^{-4} $

| Show Table

DownLoad: CSV

Table 2. Hyper-parameters used in the mass-spring system

$ \alpha_{{{\boldsymbol{{u}}}}} $	$ \beta_{{{\boldsymbol{{u}}}}} $	$ \alpha_{{{\boldsymbol{{z}}}}} $	$ \beta_{{{\boldsymbol{{z}}}}} $	$ \alpha_{{\boldsymbol{{d}}}} $
$ 10^4 $	$ 5 \times 10^{-2} $	$ 10^{-10} $	$ 10^{-1} $	$ 10^{-1} $

| Show Table

DownLoad: CSV

Table 3. Hyper-parameters used in the advection diffusion example

$ \alpha_{{{\boldsymbol{{u}}}}} $	$ \beta_{{{\boldsymbol{{u}}}}} $	$ \alpha_{{{\boldsymbol{{z}}}}} $	$ \alpha_{{\boldsymbol{{d}}}} $
$ 4 $	$ 5 \times 10^{-1} $	$ 10^{-8} $	$ 10^{-2} $

| Show Table

DownLoad: CSV

Table 4. Cost values for illustrative computational cost comparison

$ f $	$ \tilde{f} $	$ \tilde{a} $	$ e_{{{\boldsymbol{{u}}}}} $	$ e_{{{\boldsymbol{{z}}}}} $
$ 100 $	$ 15 $	$ 3 $	$ 1 $	$ 1 $

| Show Table

DownLoad: CSV

Table 5. Algorithm parameters for illustrative computational cost comparison

$ N $	$ s $	$ q $	$ r $	$ \ell_E $	$ \ell_H $
$ 2 $	$ 100 $	$ 500 $	$ 50 $	$ 10 $	$ 10 $

| Show Table

DownLoad: CSV
