CAFLOW: Conditional autoregressive flows

Georgios Batzolis; Marcello Carioni; Christian Etmann; Soroosh Afyouni; Zoe Kourtzi; Carola-Bibiane Schönlieb

doi:10.3934/fods.2024028

Article Contents

2024, Volume 6, Issue 4: 553-583. Doi: 10.3934/fods.2024028

This issue Previous Article Sparse additive function decompositions facing basis transforms Next Article Persistent Mayer homology and persistent Mayer Laplacian

CAFLOW: Conditional autoregressive flows

1.
DAMTP, University of Cambridge, Cambridge CB3 0WA, UK
2.
Department of Applied Mathematics, University of Twente, P.O. Box 217, 7500 AE Enschede, The Netherlands
3.
Deep Render, 38-40 Commercial Rd, London E1 1LN, UK
4.
Department of Psychology, University of Cambridge, Cambridge CB2 3EB, UK
5.
DAMTP, University of Cambridge, Cambridge CB3 0WA, UK

^*Corresponding author: Georgios Batzolis
^*Corresponding author: Georgios Batzolis

Received: January 2023

Revised: May 2024

Early access: June 2024

Published: December 2024

The first author is supported by GSK.

Abstract / Introduction Full Text(HTML) Figure(16) / Table(3) Related Papers Cited by

Abstract

We introduce CAFLOW, a new diverse image-to-image translation model that simultaneously leverages the power of autoregressive modeling and the modeling efficiency of conditional normalizing flows. We transform the conditioning image into a sequence of latent encodings using a multiscale normalizing flow and repeat the process for the conditioned image. We model the conditional distribution of the latent encodings by modeling the autoregressive distributions with an efficient multi-scale normalizing flow, where each conditioning factor affects image synthesis at its respective resolution scale. Our proposed framework performs well on a range of image-to-image translation tasks. It outperforms former designs of conditional flows because of its expressive autoregressive structure.

Keywords:

Mathematics Subject Classification: Primary: 68T07; Secondary: 68U10.

Citation:

Full Text(HTML)

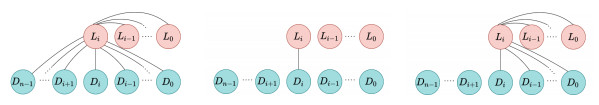

Figure 1. From left to right: ideal dependencies in the $ i^{th} $ autoregressive component. Dual-Glow modeling assumption [23]; information is exchanged only between latent spaces having the same dimension. Our modeling assumption; we retain the dependencies between $ L_i $ and the latent spaces of lower dimension

Download: Full-size image PowerPoint slide

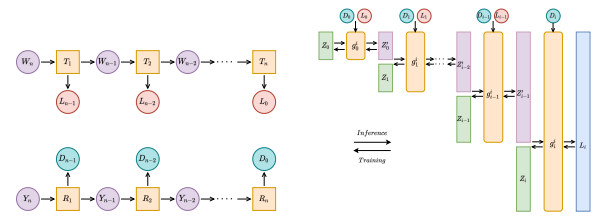

Figure 2. Left: unconditional normalizing flow architecture used to encode conditioning and conditioned images, denoted by $ Y_n = Y $ and $ W_n = W $ respectively, into a sequence of hierarchical latent variables. Right: design of the conditional transformation $ G_{i}^\theta $ that models the $ i^{th} $ autoregressive component. The index of the flow $ i $ is omitted in both the transformed latent variable $ Z_j $ and the intermediate latent variables $ Z_j^{\prime} $ for simplicity

Download: Full-size image PowerPoint slide

Figure 3. 10 super-resolved versions of the LR image in decreasing conditional log-likelihood order

Download: Full-size image PowerPoint slide

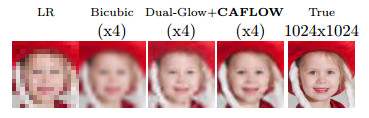

Figure 4. Qualitative comparison of Dual-Glow+ and CAFLOW

Download: Full-size image PowerPoint slide

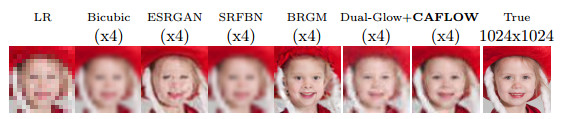

Figure 5. Qualitative evaluation on FFHQ 4x super-resolution of 16x16 resolution images

Download: Full-size image PowerPoint slide

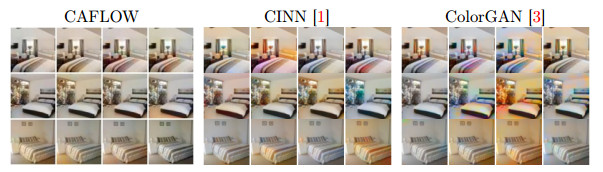

Figure 6. Qualitative evaluation: Four colorizations proposed by CAFLOW, CINN and ColorGAN for three test images. ColorGAN generates unrealistically diverse colorizations with significant color artifacts (for example a yellow region on a white wall). CINN generates more realistic less diverse colorizations with less pronounced color artifacts compared to ColorGAN, which is reflected in the improved FID score. Finally, CAFLOW generates even more realistic and less diverse colorizations than CINN with even rarer color artifacts, which is more representative of the data distribution according to the FID score

Download: Full-size image PowerPoint slide

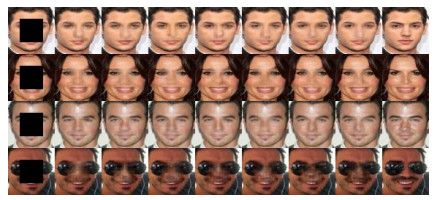

Figure 7. Different inpaintings proposed by CAFLOW with $ \tau = 0.5 $. Ground truth on the right

Download: Full-size image PowerPoint slide

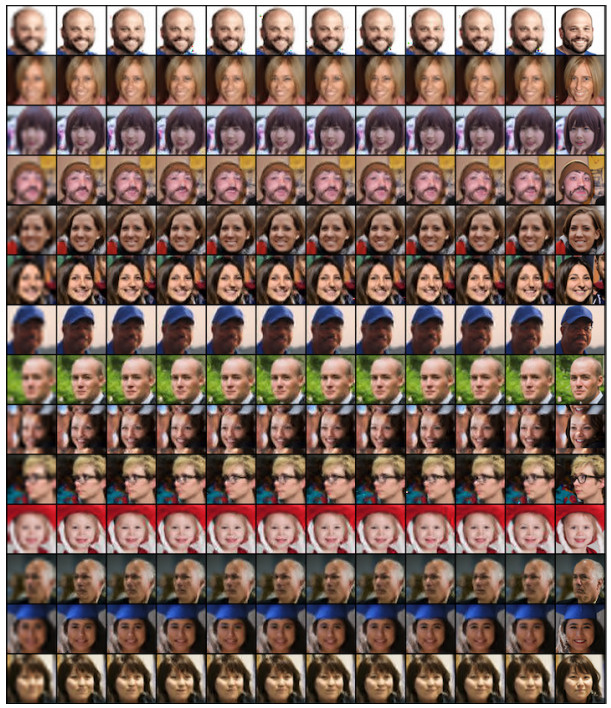

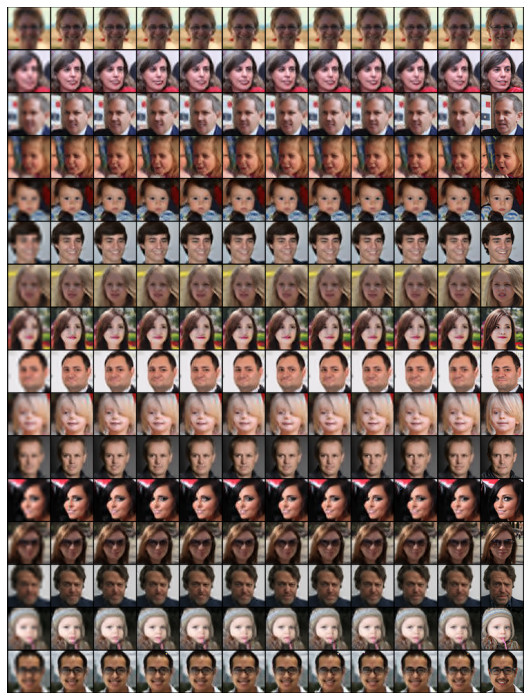

Figure 8. Image super-resolution on the FFHQ dataset. Left: LR bicubicly upsampled. Right: HR image. Middle: 10 super-resolved versions in decreasing conditional log-likelihood order from left to right. We sampled 20 super-resolved images for each LR image and we present the 10 images with the highest conditional log-likelihood. We used sampling temperature $ \tau = 0.5 $

Download: Full-size image PowerPoint slide

Figure 9. Image super-resolution on the FFHQ dataset. Left: LR bicubicly upsampled. Right: HR image. Middle: 10 super-resolved versions in decreasing conditional log-likelihood order from left to right. We sampled 20 super-resolved images for each LR image and we present the 10 images with the highest conditional log-likelihood. We used sampling temperature $ \tau = 0.55 $

Download: Full-size image PowerPoint slide

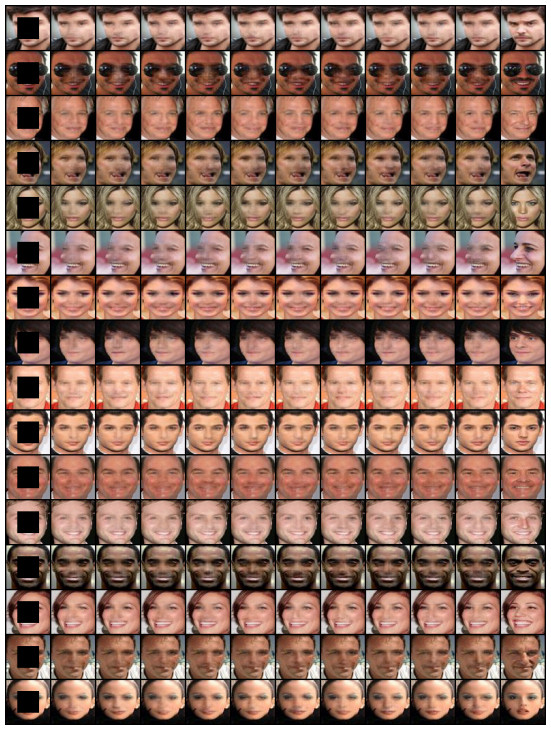

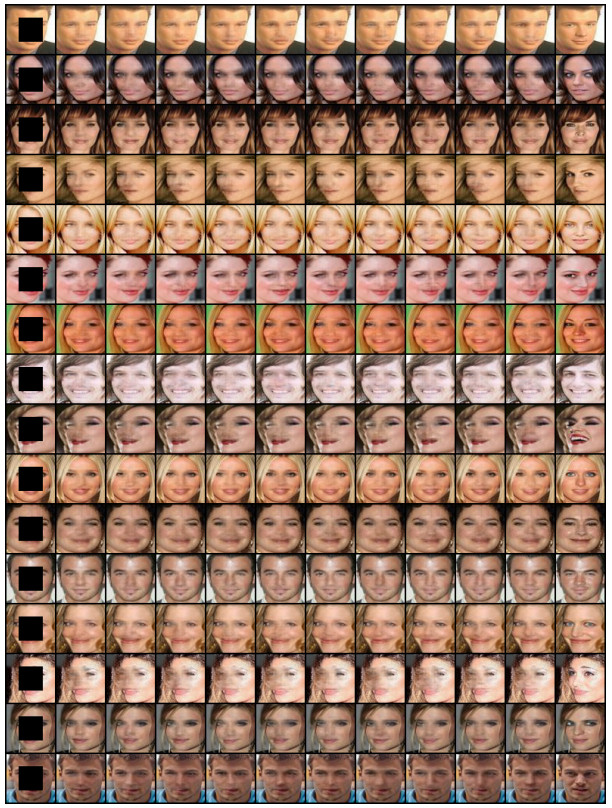

Figure 10. Image inpainting on the CelebA dataset. Left: Masked image. Right: Ground truth. Middle: 10 inpainted versions in decreasing conditional log-likelihood order from left to right. We sampled 30 inpainted images for each masked image and we present the 10 images with the highest conditional log-likelihood. We used sampling temperature $ \tau = 0.5 $

Download: Full-size image PowerPoint slide

Figure 11. Image inpainting on the CelebA dataset. Left: Masked image. Right: Ground truth. Middle: 10 inpainted versions in decreasing conditional log-likelihood order from left to right. We sampled 30 inpainted images for each masked image and we present the 10 images with the highest conditional log-likelihood. We used sampling temperature $ \tau = 0.5 $

Download: Full-size image PowerPoint slide

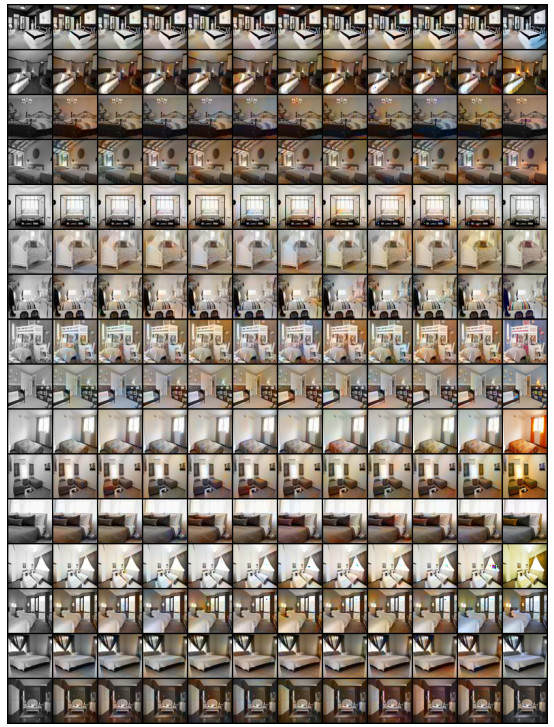

Figure 12. Image colorization on the LSUN BEDROOM dataset. Left: Grayscale image. Right: Ground truth. Middle: 10 colorized versions in decreasing conditional log-likelihood order from left to right. We sampled 25 colorized images for each greyscale image and we present the 10 images with the highest conditional log-likelihood. We used sampling temperature $ \tau = 0.85 $

Download: Full-size image PowerPoint slide

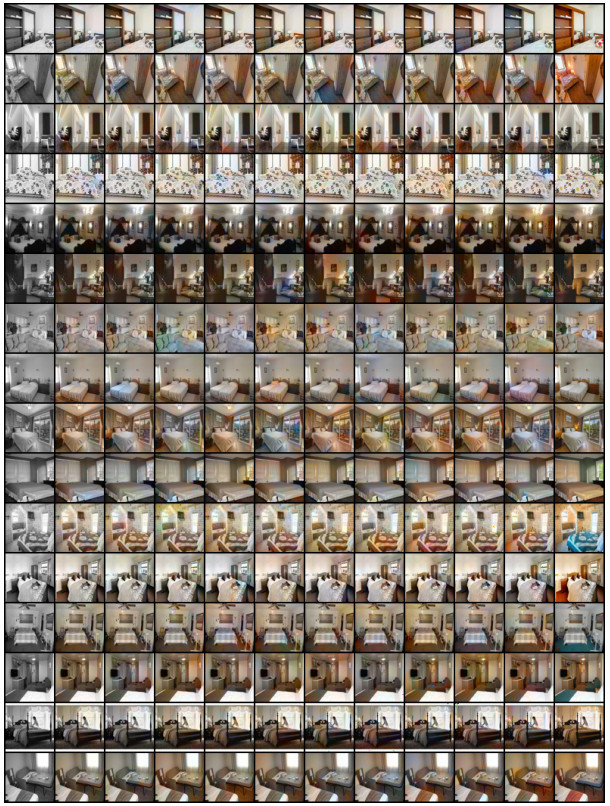

Figure 13. Image colorization on the LSUN BEDROOM dataset. Left: Grayscale image. Right: Ground truth. Middle: 10 colorized versions in decreasing conditional log-likelihood order from left to right. We sampled 25 colorized images for each greyscale image and we present the 10 images with the highest conditional log-likelihood. We used sampling temperature $ \tau = 0.85 $

Download: Full-size image PowerPoint slide

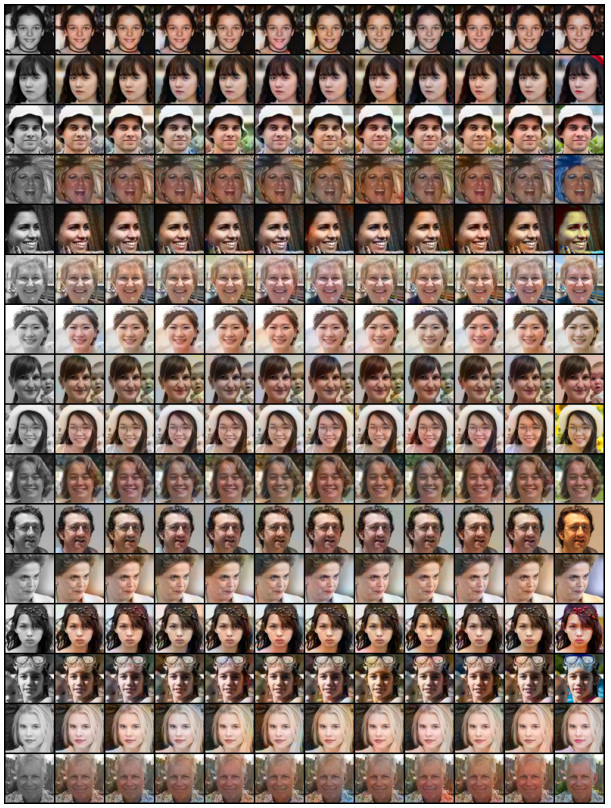

Figure 14. Image colorization on the FFHQ dataset. Left: Grayscale image. Right: Ground truth. Middle: 10 colorized versions in decreasing conditional log-likelihood order from left to right. We sampled 25 colorized images for each greyscale image and we present the 10 images with the highest conditional log-likelihood. We used sampling temperature $ \tau = 0.7 $

Download: Full-size image PowerPoint slide

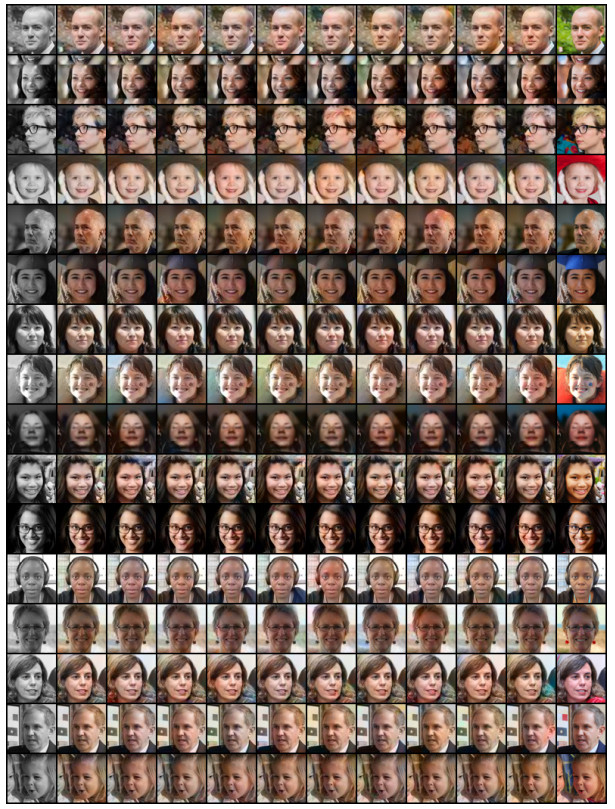

Figure 15. Image colorization on the FFHQ dataset. Left: Grayscale image. Right: Ground truth. Middle: 10 colorized versions in decreasing conditional log-likelihood order from left to right. We sampled 25 colorized images for each greyscale image and we present the 10 images with the highest conditional log-likelihood. We used sampling temperature $ \tau = 0.7 $

Download: Full-size image PowerPoint slide

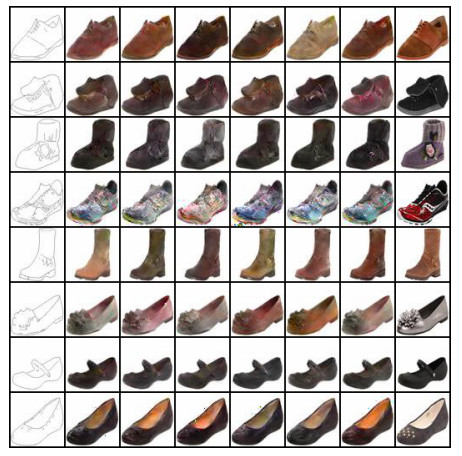

Figure 16. Sketch to image synthesis on the edges2shoes dataset [10]. Left: Sketch. Right: Ground truth. Middle: 6 samples taken with sampling temperature $ \tau = 0.8 $

Download: Full-size image PowerPoint slide

Table 1. Quantitative evaluation of (x4) super-resolution on FFHQ $ 16^2 $. We report LPIPS/RMSE scores for each method. Lower scores are better

Dataset	CAFLOW	Dual-Glow+	BRGM [18]	ESRGAN [26]	SRFBN [13]	BICUBIC
FFHQ $ 16^2 $	0.08/17.56	0.14/18.56	0.24/25.66	0.35/29.32	0.33/22.07	0.34/20.10

| Show Table

DownLoad: CSV

Table 2. Quantitative evaluation of colorization on LSUN BEDROOM $ 64\times 64 $ dataset. We report FID score for each method. Lower scores are better

Metric	CAFLOW	CINN [1]	ColorGAN [3]
FID	18.15	26.48	28.31

| Show Table

DownLoad: CSV

Table 3. Quantitative evaluation of inpainting on the CelebA dataset. We report PSNR and LPIPS scores for each method

Method	PSNR$ \uparrow $	LPIPS$ \downarrow $
CAFLOW	26.08	0.06
[16]	24.88	-

| Show Table

DownLoad: CSV
