Diffusion map particle systems for generative modeling

Fengyi Li; Youssef Marzouk

doi:10.3934/fods.2024054

Article Contents

2025, Volume 7, Issue 3: 814-837. Doi: 10.3934/fods.2024054

This issue Previous Article Deep learning with Gaussian continuation Next Article Measure transport via polynomial density surrogates

Diffusion map particle systems for generative modeling

Fengyi Li^, and
Youssef Marzouk

Massachusetts Institute of Technology, Cambridge, MA 02139 USA

^*Corresponding author: Fengyi Li
^*Corresponding author: Fengyi Li

Received: October 2023

Revised: August 2024

Early access: December 24, 2024

Published online: December 24, 2024

Abstract / Introduction Full Text(HTML) Figure(9) / Table(2) Related Papers Cited by

Abstract

We propose a novel diffusion map particle system (DMPS) for generative modeling, based on diffusion maps and Laplacian-adjusted Wasserstein gradient descent (LAWGD). Diffusion maps are used to approximate the generator of the corresponding Langevin diffusion process from samples, and hence to learn the underlying data-generating manifold. On the other hand, LAWGD enables efficient sampling from the target distribution given a suitable choice of kernel, which we construct here via a spectral approximation of the generator, computed with diffusion maps. Our method requires no offline training and minimal tuning, and can outperform other approaches on data sets of moderate dimension.

Keywords:

Mathematics Subject Classification: 65C35, 60J60, 47B34.

Citation:

Full Text(HTML)

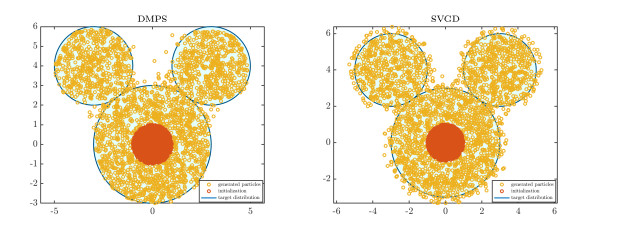

Figure 1. Mickey mouse: 2700 generated particles using DPMS and SVGD, with 2000 training samples

Download: Full-size image PowerPoint slide

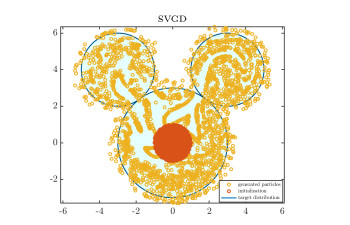

Figure 2. Mickey mouse: an instance of running the SVGD generative model shows strange non-uniform pattern with 1000 training samples and 2700 generated particles

Download: Full-size image PowerPoint slide

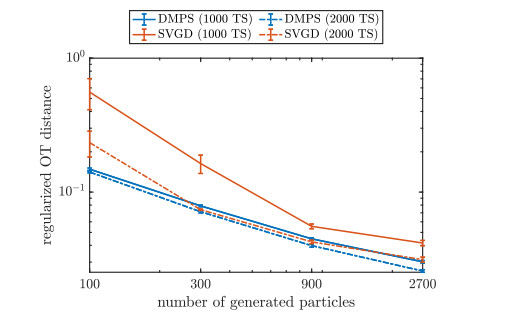

Figure 3. Mickey mouse: error comparison between DMPS, SVGD

Download: Full-size image PowerPoint slide

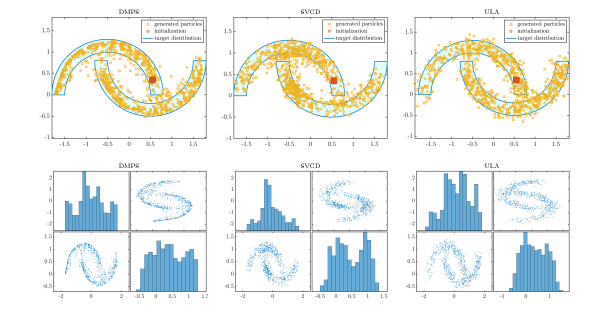

Figure 4. Two moons: 900 generated particles from DMPS, SVGD, and ULA with 500 training samples

Download: Full-size image PowerPoint slide

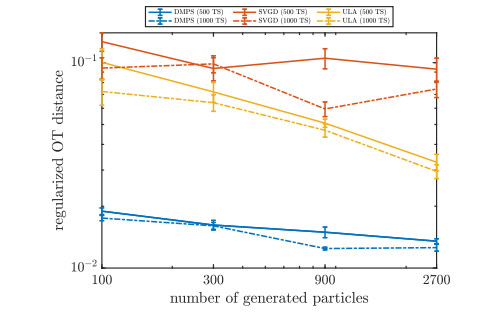

Figure 5. Two moons: error comparison between DMPS, SVGD, and ULA. Solid lines use 500 training samples, dashed lines use 1000

Download: Full-size image PowerPoint slide

Figure 6. The arc: 900 generated particles using DMPS, SVGD, ULA, and SGM with 1000 training samples

Download: Full-size image PowerPoint slide

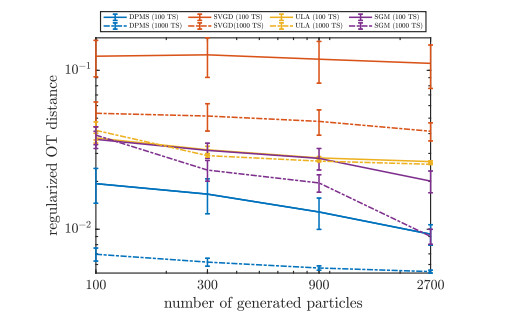

Figure 7. The arc: error comparison between DMPS, SVGD, ULA, and SGM. Solid lines use 100 training samples; dashed lines use 1000

Download: Full-size image PowerPoint slide

Figure 8. Hyper-semisphere: 300 generated samples using DMPS, SVGD, ULA, and SGM in three dimensions with 1000 training samples

Download: Full-size image PowerPoint slide

Figure 9. Gluon jet dataset: marginal distributions of the target samples and 2700 generated particles using DMPS, SVGD, ULA, and SGM with 1000 traning samples. Coordinates are $ \eta^{ \rm{rel}} $, $ \phi^{ \rm{rel}} $, and $ p_T^{ \rm{rel}} $, respectively

Download: Full-size image PowerPoint slide

Table 1. Hyper-semisphere: error comparison ($ \pm $ standard error) between DMPS, SVGD, ULA, and SGM

	DMPS	SVGD	ULA	SGM
$ d $ = 3	0.018 $ \pm $ 0.0003	0.146 $ \pm $ 0.0229	0.033 $ \pm $ 0.0006	0.032 $ \pm $ 0.0024
$ d $ = 6	0.142 $ \pm $ 0.0003	0.267 $ \pm $ 0.0171	0.185 $ \pm $ 0.0012	0.170 $ \pm $ 0.0022
$ d $ = 9	0.303 $ \pm $ 0.0003	0.361 $ \pm $ 0.0077	0.378 $ \pm $ 0.0011	0.348 $ \pm $ 0.0025
$ d $ = 12	0.441 $ \pm $ 0.0002	0.811 $ \pm $ 0.0783	0.555 $ \pm $ 0.0018	0.496 $ \pm $ 0.0041
$ d $ = 15	0.564 $ \pm $ 0.0009	0.986 $ \pm $ 0.0055	0.713 $ \pm $ 0.0025	0.608 $ \pm $ 0.0024

| Show Table

DownLoad: CSV

Table 2. Gluon jet dataset: error comparison ($\pm$ standard error) between DMPS, SVGD, ULA, and SGM, for different numbers of generated particles

# particles	DMPS	SVGD	ULA	SGM
100	$\mathit{\boldsymbol{0.0020}}$ ${\pm 5.03 \times 10^{-5}}$	$0.0062 \pm 4.00 \times 10^{-4}$	$0.0041 \pm 2.64 \times 10^{-4}$	$0.0029 \pm 1.21 \times 10^{-4}$
300	$\mathit{\boldsymbol{0.0014}}$ ${\pm 1.65 \times 10^{-5}}$	$0.0059 \pm 3.75 \times 10^{-4}$	$0.0032 \pm 1.73 \times 10^{-4}$	$0.0021 \pm 0.55 \times 10^{-4}$
900	$\mathit{\boldsymbol{0.0012}}$ ${\pm 1.61 \times 10^{-5}}$	$0.0058 \pm 3.65 \times 10^{-4}$	$0.0029 \pm 1.53 \times 10^{-4}$	$0.0018 \pm 0.46 \times 10^{-4}$
2700	$\mathit{\boldsymbol{0.0012}}$ ${\pm 1.59 \times 10^{-5}}$	$0.0057 \pm 3.61 \times 10^{-4}$	$0.0027 \pm 1.30 \times 10^{-4}$	$0.0018 \pm 0.44 \times 10^{-4}$

| Show Table

DownLoad: CSV
