HaCOO: Hashed coordinate sparse tensor Storage for rapid data insertion, access, and updates

1.
School of Technology, Engineering, and Mathematics, Pellissippi State Community College, 10915 Hardin Valley Rd, Knoxville, TN 37932, USA
2.
Department of Computer Science, University of Tennessee at Martin, 333 Latimer-Smith Building, 203 Hurt Street, Martin, TN 38238, USA
3.
EECS Department, University of Tennessee, 401 Min H. Kao Building, 1520 Middle Drive, Knoxville, TN 37996, USA

^*Corresponding author: Michael W. Berry
^*Corresponding author: Michael W. Berry

Received: October 5, 2023

Revised: September 20, 2025

Early access: April 7, 2026

Published online: April 7, 2026

Abstract / Introduction Full Text(HTML) Figure(7) / Table(1) Related Papers Cited by

Abstract

Tensors, or $ n $-way arrays, store data that can be indexed along an arbitrary number of dimensions. Tensor analysis using decomposition techniques can reveal latent factors and useful information about the underlying data. Tensors can grow extremely large, often containing millions of entries, and may be sparse, with the majority of the values equal to zero, making explicit storage impractical. Interest in tensor analysis using decomposition has expanded across diverse fields, including data mining, signal processing, computer vision, and machine learning. However, few sparse tensor formats provide an efficient method for locating arbitrary non-zero values.

A motivating example comes from Lowe's textual influence model (2018), which applied non-negative sparse tensor decomposition to measure authors' contributions. Building the tensor required counting n-grams in a sliding window, necessitating frequent updates and insertions. Lowe discovered the need for a sparse tensor format that allowed rapid updates and insertions without regenerating the entire structure. We recognized the potential for a new sparse tensor storage format for applications that require frequent and rapid tensor lookup and insertion. This observation motivated the proposal of Hashed Coordinate Storage (HaCOO) in 2021, a mode-agnostic sparse tensor format that stores indexes and values in a separate chaining hash table, allowing constant-time insertion and access to arbitrary entries. HaCOO also balances storage efficiency by adopting ALTO's adaptive encoding scheme, which encodes index metadata using the minimum number of bits while supporting rapid structural updates.

Keywords:

Mathematics Subject Classification: Primary: 68P20; Secondary: 68P05.

Citation:

FullText(HTML)

Figure 1. A third-order tensor

Download: Full-size image PowerPoint slide

Figure 2. CP Decomposition of a third-order tensor [7]

Download: Full-size image PowerPoint slide

Figure 3. A sparse tensor in COO format [10]

Download: Full-size image PowerPoint slide

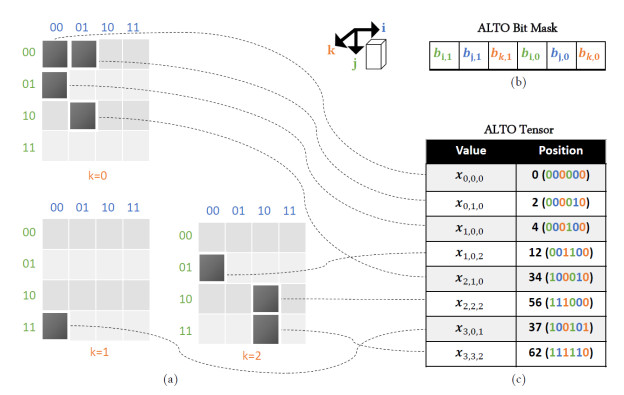

Figure 4. The process of converting a COO tensor to an ALTO tensor

Download: Full-size image PowerPoint slide

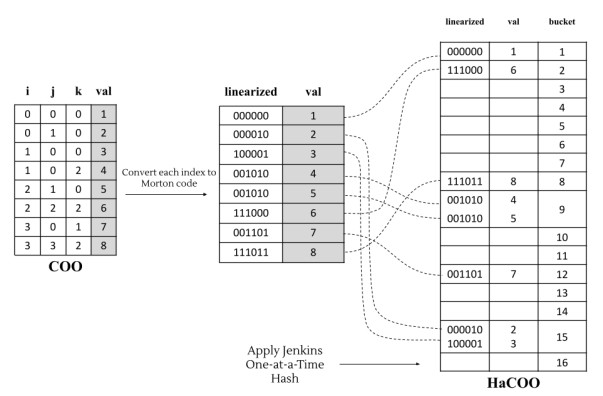

Figure 5. Converting a COO tensor to HaCOO format

Download: Full-size image PowerPoint slide

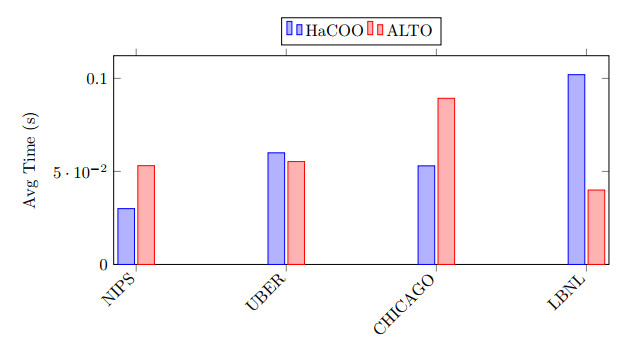

Figure 6. Execution times for HaCOO and ALTO across select tensors

Download: Full-size image PowerPoint slide

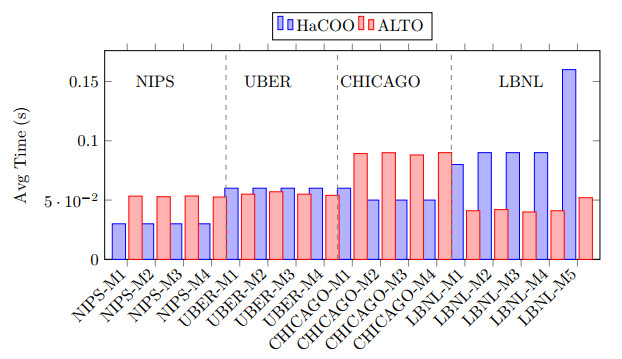

Figure 7. Execution time of parallel MTTKRP across individual modes for select tensors

Download: Full-size image PowerPoint slide

Table 1. Characteristics of FROSTT sparse tensors

Tensor	Dimensions	#NNZs	Density
LBNL	$ 1.6K \times 4.2K \times 1.6K \times 4.2K \times 868.1K $	$ 1.7M $	$ 4.2 \times 10^{-14} $
NIPS	$ 2.5K \times 2.9K \times 14K \times 17 $	$ 3.1M $	$ 1.8 \times 10^{-6} $
UBER	$ 183 \times 24 \times 1.1K \times 1.7K $	$ 3.3M $	$ 3.8 \times 10^{-4} $
CHICAGO	$ 6.2K \times 24 \times 77 \times 32 $	$ 5.3M $	$ 1.5 \times 10^{-2} $

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	B. W. Bader, M. W. Berry and M. Browne, Discussion tracking in enron email using parafac, Survey of Text Mining II, Springer, London, (2008), 147-163. doi: 10.1007/978-1-84800-046-9_8.
[2]	B. W. Bader, T. G. Kolda, et al., Matlab Tensor Toolbox Version 2.6, Available misc, 2015.
[3]	C. F. Beckmann and S. M. Smith, Tensorial extensions of independent component analysis for multisubject fmri analysis, NeuroImage, 25 (2005), 294-311. doi: 10.1016/j.neuroimage.2004.10.043.
[4]	A. E. Helal, J. Laukemann, F. Checconi, J. J. Tithi, T. Ranadive, F. Petrini and J. Choi, Alto: Adaptive linearized storage of sparse tensors, ICS '21: Proceedings of the ACM International Conference on Supercomputing (New York, NY, USA), Association for Computing Machinery, (2021), 404-416.
[5]	R. Henrion, N-way principal component analysis theory, algorithms and applications, Chemometrics and Intelligent Laboratory Systems, 25 (1994), 1-23. doi: 10.1016/0169-7439(93)E0086-J.
[6]	B. Jenkins, Hash functions, 1997.
[7]	T. G. Kolda and B. W. Bader, Tensor decompositions and applications, SIAM Review, 51 (2009), 455-500. doi: 10.1137/07070111X.
[8]	T. G. Kolda, B. W. Bader and J. P. Kenny, Higher-order web link analysis using multilinear algebra, Fifth IEEE International Conference on Data Mining (ICDM'05) (Piscataway, NJ), IEEE Press, (2005), 8 pp.
[9]	L. Lathauwer and B. Moor, From matrix to tensor: Multilinear algebra and signal processing, 2015.
[10]	J. Li, J. Sun and R. W. Vuduc, Hicoo: Hierarchical storage of sparse tensors, SC18: International Conference for High Performance Computing, Networking, Storage and Analysis, IEEE Press, Piscataway, NJ, (2018), 238-252.
[11]	R. Lowe, M. Charles and A. Singh, Hashed Coordinate Storage Of Sparse Tensors, SC21: International Conference for High Performance Computing, Networking, Storage, and Analysis (New York, NY, USA), Association for Computing Machinery, 2021, Poster.
[12]	S. Rabanser, O. Shchur and S. Günnemann, Introduction to tensor decompositions and their applications in machine learning, 2017.
[13]	S. Smith, J. W. Choi, J. Li, R. Vuduc, J. Park, X. Liu and G. Karypis, FROSTT: The formidable repository of open sparse tensors and tools, 2017.
[14]	S. Smith and G. Karypis, Tensor-matrix products with a compressed sparse tensor, Proceedings of the 5th Workshop on Irregular Applications: Architectures and Algorithms (New York, NY, USA), Association for Computing Machinery, (2015), 1-7.
[15]	TensorFlow, Working with sparse tensors, 2023.
[16]	M. A. O. Vasilescu and Demetri Terzopoulos, Multilinear analysis of image ensembles: Tensorfaces, Computer Vision — ECCV 2002 (Berlin), (2002), 447–460. doi: 10.1007/3-540-47969-4_30.
