Multiplicative noise removal with a sparsity-aware optimization model

Jian Lu; Lixin Shen; Chen Xu; Yuesheng Xu

doi:10.3934/ipi.2017044

Article Contents

2017, Volume 11, Issue 6: 949-974. Doi: 10.3934/ipi.2017044

This issue Previous Article Wavelet tight frame and prior image-based image reconstruction from limited-angle projection data Next Article A numerical study of a mean curvature denoising model using a novel augmented Lagrangian method

Multiplicative noise removal with a sparsity-aware optimization model

1.
College of Mathematics and Statistics, Shenzhen University, Shenzhen 518060, China
2.
Department of Mathematics, Syracuse University, Syracuse, NY 13244, USA
3.
School of Data and Computer Science, Guangdong Provincial Key Lab of Computational Science, Sun Yat-sen University, Guangzhou 510275, China
4.
Department of Mathematics and Statistics, Old Dominion University, Norfolk, VA 23529, USA

* Corresponding author: Lixin Shen
* Corresponding author: Lixin Shen

Received: March 31, 2016

Revised: July 31, 2017

Published: November 2017

Abstract Full Text(HTML) Figure(6) / Table(4) Related Papers Cited by

Abstract

Restoration of images contaminated by multiplicative noise (also known as speckle noise) is a key issue in coherent image processing. Notice that images under consideration are often highly compressible in certain suitably chosen transform domains. By exploring this intrinsic feature embedded in images, this paper introduces a variational restoration model for multiplicative noise reduction that consists of a term reflecting the observed image and multiplicative noise, a quadratic term measuring the closeness of the underlying image in a transform domain to a sparse vector, and a sparse regularizer for removing multiplicative noise. Being different from popular existing models which focus on pursuing convexity, the proposed sparsity-aware model may be nonconvex depending on the conditions of the parameters of the model for achieving the optimal denoising performance. An algorithm for finding a critical point of the objective function of the model is developed based on coupled fixed-point equations expressed in terms of the proximity operator of functions that appear in the objective function. Convergence analysis of the algorithm is provided. Experimental results are shown to demonstrate that the proposed iterative algorithm is sensitive to some initializations for obtaining the best restoration results. We observe that the proposed method with SAR-BM3D filtering images as initial estimates can remarkably outperform several state-of-art methods in terms of the quality of the restored images.

Keywords:

Mathematics Subject Classification: Primary: 94A08; Secondary: 49N45, 68U10.

Citation:

Full Text(HTML)

Figure 1. Five gray-level test images. (a) "Cameraman" ($512\times 512$). (b) "Lena" ($512\times 512$). (c) "Peppers" ($512\times 512$). (d) "Remote1" ($768\times 574$). (e) "Remote2" ($632\times 540$)

Download: Full-size image PowerPoint slide

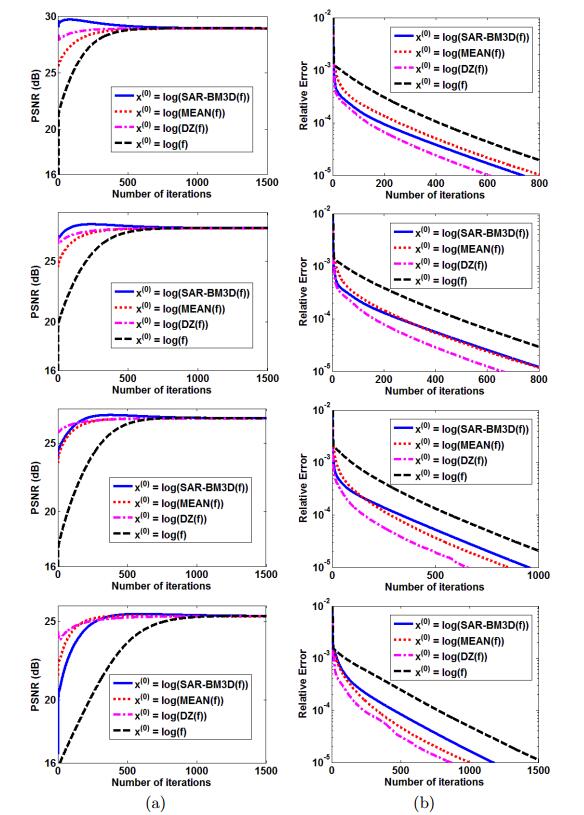

Figure 2. (a) PSNR versus number of iterations. (b) Relative error versus number of iterations. Here, various $x^{(0)}$s are used as initial estimates in Algorithm 1. From top to bottom: the test images are the degraded "Cameraman" with multiplicative noise at levels $L=10$, $6$, $4$, and $2$

Download: Full-size image PowerPoint slide

Figure 3. (a) PSNR versus number of iterations for $L=4$. (b) PSNR versus number of iterations for $L=2$. Here, various $x^{(0)}$s are used as initializations in Algorithm 1 for the degraded "Cameraman" with multiplicative noise

Download: Full-size image PowerPoint slide

Figure 4. (a) PSNR versus number of iterations. (b) Relative error versus number of iterations. Here, two different $x^{(0)}$s are used as initial estimates in Algorithm 1. The solid lines are plotted firstly by selecting the parameters of Algorithm 1 to obtain (nearly) optimal PSNR values (marked by '$\circ$') under the prescribed tolerance $\text{TOL}=3\times 10^{-4}$; then the dashed lines are plotted by using the same parameters as those of corresponding solid lines. The test images are the degraded "Cameraman" with multiplicative noise at various noise levels ($L=10$, $6$, $4$, and $2$)

Download: Full-size image PowerPoint slide

Figure 5. Results of various denoising methods on "Cameraman" image corrupted by multiplicative noise with $L=2$ (the first column) and $L=4$ (the second column). From top to bottom: Noisy images (8.63 dB, 11.64 dB), DZ (24.27 dB, 25.85 dB), TwL-4V (25.28 dB, 26.72dB), Ⅰ-DIV (24.98 dB, 26.52 dB), HMNZ (25.30 dB, 27.33 dB), and Ours (25.47 dB, 27.38 dB)

Download: Full-size image PowerPoint slide

Figure 6. Results of various denoising methods on "Remote1" image corrupted by multiplicative noise with $L=2$ (the first column) and $L=4$ (the second column). From top to bottom: Noisy images (9.28 dB, 12.28 dB), DZ (21.80 dB, 23.01 dB), TwL-4V (22.57 dB, 23.68 dB), Ⅰ-DIV (22.39 dB, 23.48 dB), HMNZ (22.63 dB, 24.03 dB), and Ours (22.76 dB, 23.98 dB)

Download: Full-size image PowerPoint slide

Algorithm 1 Fixed-point algorithm based on the proximity operators for model (3).
Input: noisy image $f>0$ in $\mathbb{R}^{n}$; parameters $\lambda>0$, $\mu$, $\beta>1$; $\alpha>0$,
Initialization: $x^{(0)}$ and $y^{(0)}=0$; positive numbers $\sigma$ and $\rho$ such $\mu<\sigma$ and $\frac{\rho}{\mu}>8\sin^2\frac{(\sqrt{n}-1)\pi}{2\sqrt{n}}$.
repeat
(a) $x^{(k+1)}\leftarrow\mathrm{prox}_{\frac{1}{\rho}\Phi}(x^{(k)}-\frac{\mu}{\rho}H^\top(Hx^{(k)}-y^{(k)}))$,
(b) $y^{(k+1)}\leftarrow\mathrm{prox}_{\frac{\lambda}{\sigma}\psi}(y^{(k)}+\frac{\mu}{\sigma}(Hx^{(k+1)}-y^{(k)}))$,
until converges or satisfies a stopping criteria.
Write the output of $x^{(k+1)}$ from the above iteration as $\overline{x}$.
The restored image is $u^\star=e^{\overline{x}}$.

| Show Table

DownLoad: CSV

Table 1. Parameter values in our algorithm (Algorithm 1) at various noise levels

	$\lambda$	$\alpha$	$\beta$	$\mu$	$\rho$	$\sigma$
$L=10$	0.306	0.0015	6.06	30	250	150
$L=6$	0.406	0.00085	15.02	30	250	150
$L=4$	0.506	0.000108	250	30	255.5	90.26
$L=2$	0.8	0.00001	1655.05	30	290	156.26

| Show Table

DownLoad: CSV

Table 2. Parameter values for all testing algorithms

$L$	Method	$\lambda$	$\alpha$	$\beta$	$\mu$	$\rho$	$\sigma$
10	Ours	0.569	1.0002	1.00053	20.1	425.5	20.140
	TwL-4V	3.6/$L$	1.0	$-$	$-$	0.3	$-$
	Ⅰ-DIV	0.31	378.0	$-$	$-$	$-$	$-$
	DZ	0.07	19	3.0	3.0	$-$	$-$
	HMNZ	0.1	$-$	10	17.5	$-$	$-$
6	Ours	0.555	0.3885	1.005	19.6	285.5	19.667
	TwL-4V	2.9/$L$	1.0	$-$	$-$	0.29	$-$
	Ⅰ-DIV	0.45	918.0	$-$	$-$	$-$	$-$
	DZ	0.06	$3.8$	$3.0$	$3.0$	$-$	$-$
	HMNZ	0.1	$-$	10	9	$-$	$-$
4	Ours	0.659	0.18515	1.0105	29.658	255.5	29.918
	TwL-4V	2.4/$L$	1.0	$-$	$-$	0.3
	Ⅰ-DIV	0.55	658.0	$-$	$-$	$-$	$-$
	DZ	0.05	$1.59$	$3.0$	$3.0$	$-$	$-$
	HMNZ	0.1	$-$	10	6	$-$	$-$
2	Ours	0.8	0.000001	115.0	21.0	168	26.26
	TwL-4V	1.8/$L$	1.0	$-$	$-$	0.3	$-$
	Ⅰ-DIV	0.84	1059.0	$-$	$-$	$-$	$-$
	DZ	0.065	$0.45$	$3.0$	$3.0$	$-$	$-$
	HMNZ	0.1	$-$	10	1.5	$-$	$-$

| Show Table

DownLoad: CSV

Table 3. PSNR (dB) and CPU time (s) for Ⅰ-DIV[29], DZ[11], TwL-4V[17], HMNZ[14], our algorithm (Algorithm 1 with $x^{(0)}=\log(\text{SAR-BM3D}(f))$), and SAR-BM3D[25] for test images of Fig. 1 corrupted by multiplicative noise with $L=10, 6, 4, 2$, respectively

Image	$L$		Noisy	Ⅰ-DIV	DZ	TwL-4V	HMNZ	Ours	SAR-BM3D
Camer.	10	PSNR	15.61	28.69	28.30	28.83	29.96	30.15	28.89
	10	Time	$-$	6.28	86.30	6.23	66.62	117.35+6.03	117.35
	6	PSNR	13.39	27.35	26.93	27.59	28.46	28.53	26.35
	6	Time	$-$	11.40	110.36	7.33	62.86	116.59+10.11	116.59
	4	PSNR	11.64	26.52	25.85	26.72	27.33	27.38	23.67
	4	Time	$-$	13.57	149.54	7.94	63.69	118.31+13.31	118.31
	2	PSNR	8.63	24.98	24.27	25.28	25.30	25.47	16.45
	2	Time	$-$	15.57	190.75	9.72	62.58	124.30+15.20	124.30
Lena	10	PSNR	15.64	28.47	27.51	28.60	29.41	29.65	28.48
	10	Time	$-$	6.57	85.90	6.85	65.15	118.64+6.33	118.64
	6	PSNR	13.42	27.34	26.24	27.48	28.07	28.14	25.92
	6	Time	$-$	12.06	106.87	7.29	63.69	116.62+10.42	116.62
	4	PSNR	11.68	26.64	25.45	26.72	27.01	27.37	23.63
	4	Time	$-$	13.78	144.34	8.48	63.03	118.32+13.14	118.32
	2	PSNR	8.71	25.07	24.01	25.17	25.21	25.50	16.46
	2	Time	$-$	17.16	181.92	10.73	62.88	124.56+15.71	124.56
Pepp.	10	PSNR	15.93	28.83	27.20	28.86	29.13	29.53	28.09
	10	Time	$-$	6.88	84.15	7.47	65.33	116.86+5.62	116.86
	6	PSNR	13.70	27.95	26.15	27.92	28.12	28.51	25.78
	6	Time	$-$	12.46	108.44	8.16	60.54	118.31+10.24	118.31
	4	PSNR	11.98	27.10	25.10	27.05	27.14	27.76	23.63
	4	Time	$-$	13.30	145.13	8.54	63.75	119.16+12.90	119.16
	2	PSNR	8.93	25.57	23.72	25.54	25.52	25.97	16.45
	2	Time	$-$	17.44	188.50	10.59	61.59	115.71+15.03	115.71
Rem.1	10	PSNR	16.27	25.22	25.15	25.33	26.16	26.21	25.43
	10	Time	$-$	12.94	190.94	12.78	108.13	210.80+11.14	210.80
	6	PSNR	14.00	24.17	24.01	24.41	25.02	25.07	23.64
	6	Time	$-$	23.09	222.15	13.63	102.92	211.02+23.01	211.02
	4	PSNR	12.28	23.48	23.01	23.68	24.03	23.98	22.20
	4	Time	$-$	27.56	286.88	14.95	105.97	211.00+26.75	211.00
	2	PSNR	9.28	22.39	21.80	22.57	22.63	22.76	16.45
	2	Time	$-$	32.09	347.21	17.75	99.72	211.89+28.51	211.89
Rem.2	10	PSNR	16.23	25.56	25.59	25.63	26.76	26.69	25.92
	10	Time	$-$	9.16	144.40	9.58	84.96	163.00+8.90	163.00
	6	PSNR	14.02	24.55	24.30	24.45	25.25	25.43	24.07
	6	Time	$-$	17.46	164.92	9.94	85.24	162.70+17.03	162.70
	4	PSNR	12.27	23.45	23.38	23.63	23.93	24.26	22.26
	4	Time	$-$	22.75	219.99	11.79	78.15	163.07+20.35	163.07
	2	PSNR	9.22	22.01	21.86	22.18	22.12	22.72	16.08
	2	Time	$-$	25.86	271.57	14.01	75.17	162.84+24.02	162.84

| Show Table

DownLoad: CSV
