On the transmission eigenvalue problem for the acoustic equation with a negative index of refraction and a practical numerical reconstruction method

Tiexiang Li; Tsung-Ming Huang; Wen-Wei Lin; Jenn-Nan Wang

doi:10.3934/ipi.2018043

Article Contents

2018, Volume 12, Issue 4: 1033-1054. Doi: 10.3934/ipi.2018043

This issue Previous Article Reconstruction of a compact manifold from the scattering data of internal sources Next Article

On the transmission eigenvalue problem for the acoustic equation with a negative index of refraction and a practical numerical reconstruction method

1.
School of Mathematics, Southeast University, Shing-Tung Yau Center of Southeast University, Nanjing 211189, China
2.
Department of Mathematics, National Taiwan Normal University, Taipei 116, Taiwan
3.
Department of Applied Mathematics, National Chiao Tung University, Hsinchu 300, Taiwan
4.
Institute of Applied Mathematical Sciences, NCTS, National Taiwan University, Taipei 106, Taiwan

* Corresponding author: Jenn-Nan Wang
* Corresponding author: Jenn-Nan Wang

Received: October 2017

Revised: February 2018

Published: August 2018

Li is supported in parts by the NSFC 11471074. Huang was partially supported by the Ministry of Science and Technology (MOST) 105-2115-M-003-009-MY3, National Center of Theoretical Sciences (NCTS) in Taiwan. Lin was partially supported by MOST, NCTS and ST Yau Center in Taiwan. Wang was partially supported by MOST 105-2115-M-002-014-MY3.

Abstract / Introduction Full Text(HTML) Figure(6) / Table(2) Related Papers Cited by

Abstract

In this paper, we consider the two-dimensional Maxwell's equations with the TM mode in pseudo-chiral media. The system can be reduced to the acoustic equation with a negative index of refraction. We first study the transmission eigenvalue problem (TEP) for this equation. By the continuous finite element method, we discretize the reduced equation and transform the study of TEP to a quadratic eigenvalue problem by deflating all nonphysical zeros. We then estimate half of the eigenvalues are negative with order of $O(1)$ and the other half of eigenvalues are positive with order of $O(10^2)$. In the second part of the paper, we present a practical numerical method to reconstruct the support of the inhomogeneity by the near-field measurements, i.e., Cauchy data. Based on the linear sampling method, we propose the truncated singular value decomposition to solve the ill-posed near-field integral equation, at one wave number which is not a transmission eigenvalue. By carefully chosen an indicator function, this method produce different jumps for the sampling points inside and outside the support. Numerical results show that our method is able to reconstruct the support reliably.

Keywords:

Two-dimensional transmission eigenvalue problem,
pseudo-chiral model,
transverse magnetic mode,
linear sampling method,
singular value decomposition.

Mathematics Subject Classification: Primary: 78A46, 35R30; Secondary: 78M10.

Citation:

Full Text(HTML)

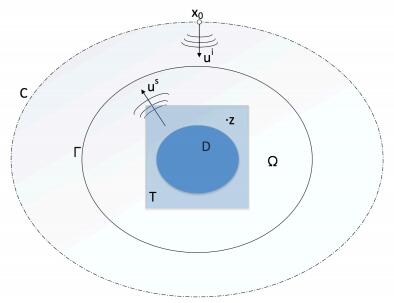

Figure 1. The target $D$ is inside some domain $\Omega$ ($\Gamma: = \partial \Omega$) which itself is surrounded by a curve $C$. The scattered field $u^s$ is due to the scattering of the incident field $u^i$ having a point source at ${\bf x}_0\in C$

Download: Full-size image PowerPoint slide

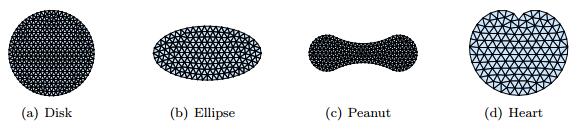

Figure 2. Four model domains that represent the region $D$

Download: Full-size image PowerPoint slide

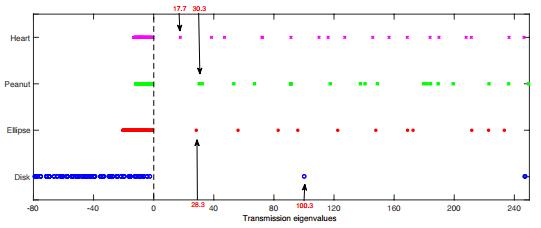

Figure 3. The eigenvalues $\lambda$ of the QEP (20) in the intervel $[-80,250]$ for the four domains in Figure 2 with $\varepsilon({\bf x}) = -100$. The arrows point to the first positive eigenvalue of the QEP corresponding to each domain

Download: Full-size image PowerPoint slide

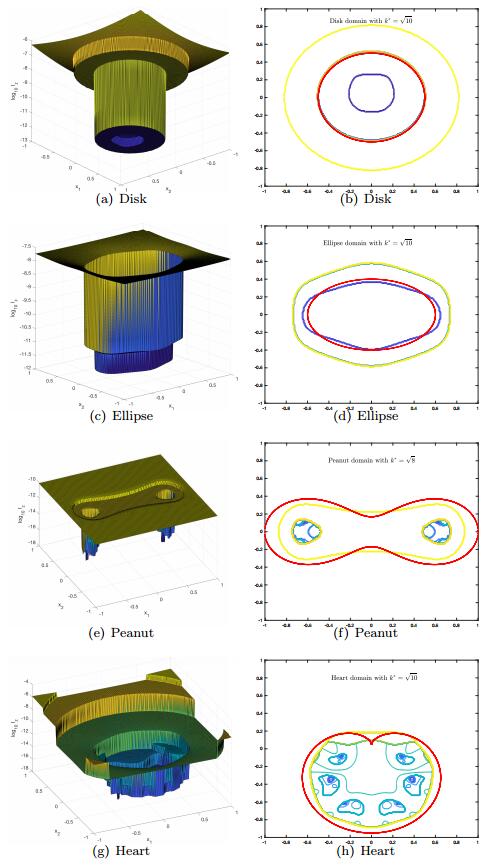

Figure 4. Reconstruction results of four targets in 3d surface figures and in 2d contour figures with $\varepsilon({\bf x}) = -100$ and $k^*\in (0, \sqrt{\beta^*})$. The domains enclosed by red curves are the exact targets $D$. The scattered fields used have $3\%$ noise

Download: Full-size image PowerPoint slide

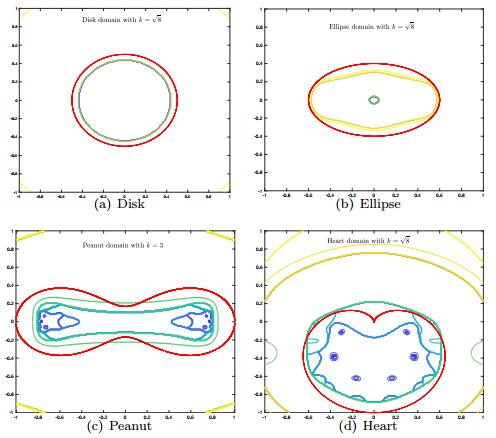

Figure 5. Reconstruction results of four targets in 2d contour figures with $\varepsilon({\bf x}) = -100$ and the different $k\in (0, \sqrt{\beta^*})$. The domains enclosed by red curves are the exact targets $D$. The scattered fields have $3\%$ noise

Download: Full-size image PowerPoint slide

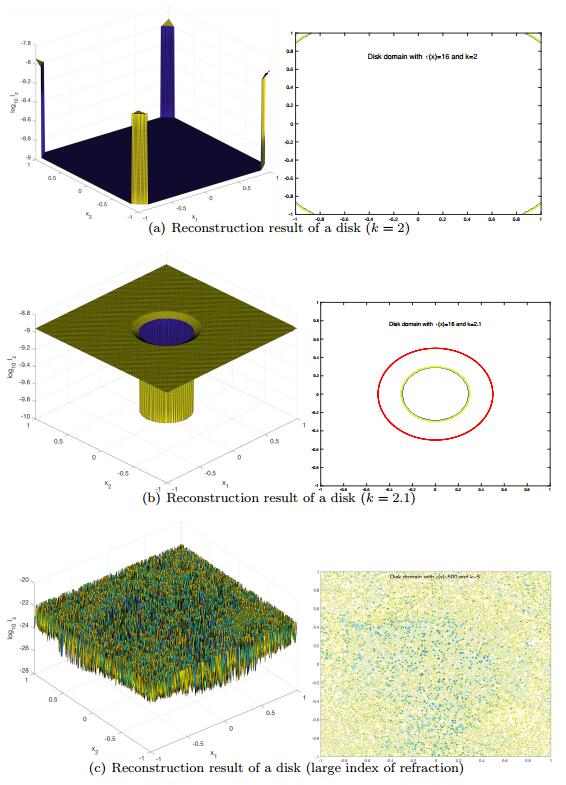

Figure 6. Numerical reconstruction results of a disk when $k^2$ is a transmission eigenvalue. The scattered fields have $3\%$ noise
