Regularization of inverse problems via box constrained minimization

Philipp Hungerländer; Barbara Kaltenbacher; Franz Rendl

doi:10.3934/ipi.2020021

Article Contents

2020, Volume 14, Issue 3: 437-461. Doi: 10.3934/ipi.2020021

This issue Previous Article On range condition of the tensor x-ray transform in

$ \mathbb R^n $

Next Article Uniqueness and stability for the recovery of a time-dependent source in elastodynamics

Regularization of inverse problems via box constrained minimization

Department of Mathematics, Alpen-Adria-Universität Klagenfurt, 9020 Klagenfurt, Austria

^* corresponding author
^* corresponding author

Received: May 2019

Revised: December 2019

Published: March 2020

This work was supported by the Austrian Science Fund FWF under the grants P28008, I2271, and P30054 as well as partially by the Karl Popper Kolleg "Modeling-Simulation-Optimization", funded by the Alpen-Adria-Universität Klagenfurt and by the Carinthian Economic Promotion Fund (KWF)

Abstract Full Text(HTML) Figure(8) / Table(5) Related Papers Cited by

Abstract

In the present paper we consider minimization based formulations of inverse problems $ (x, \Phi)\in \mbox{argmin}\left\{{ \mathcal{J}(x, \Phi;y)}:{(x, \Phi)\in M_{ad}(y)}\right\} $ for the specific but highly relevant case that the admissible set $ M_{ad}^\delta(y^\delta) $ is defined by pointwise bounds, which is the case, e.g., if $ L^\infty $ constraints on the parameter are imposed in the sense of Ivanov regularization, and the $ L^\infty $ noise level in the observations is prescribed in the sense of Morozov regularization. As application examples for this setting we consider three coefficient identification problems in elliptic boundary value problems.

Discretization of $ (x, \Phi) $ with piecewise constant and piecewise linear finite elements, respectively, leads to finite dimensional nonlinear box constrained minimization problems that can numerically be solved via Gauss-Newton type SQP methods. In our computational experiments we revisit the suggested application examples. In order to speed up the computations and obtain exact numerical solutions we use recently developed active set methods for solving strictly convex quadratic programs with box constraints as subroutines within our Gauss-Newton type SQP approach.

Keywords:

Mathematics Subject Classification: Primary: 65J22, 65M32; Secondary: 90C20.

Citation:

Full Text(HTML)

Figure 1. Left: exact coefficient $ {b_f}_{ex} = c_{ex} = a_{ex} $. Right: locations of spots for testing weak * $ L^\infty $ convergence

Download: Full-size image PowerPoint slide

Figure 2. Left: reconstructed coefficient $ c_k $; Middle: active set for lower bound; Right: active set for upper bound; For $ k = 1, 2, 3, 4 $ (top to bottom) and $ \delta = 0.1 $

Download: Full-size image PowerPoint slide

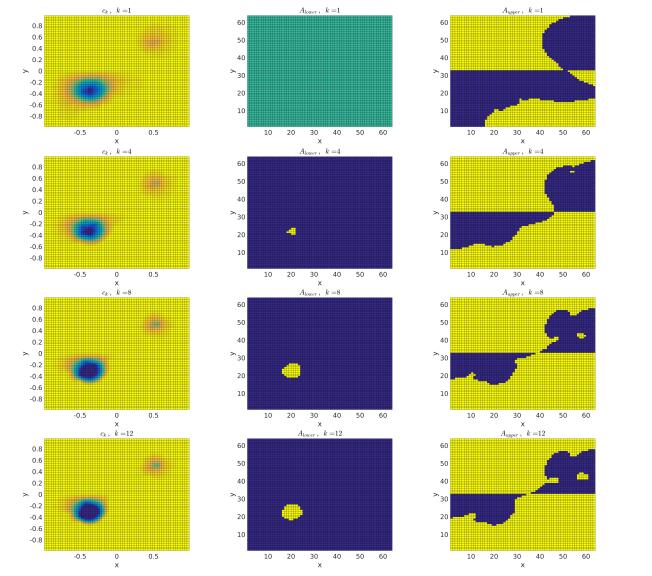

Figure 3. Left: reconstructed coefficient $ c_k $; Middle: active set for lower bound; Right: active set for upper bound; For $ k = 1, 4, 8, 12 $ (top to bottom) and $ \delta = 0.01 $

Download: Full-size image PowerPoint slide

Figure 4. Linear system solves (stars) and average size of linear systems (diamonds); Left: warm start; Right: cold start; Top: N = 32; Bottom: N = 64

Download: Full-size image PowerPoint slide

Figure 5. Test 2: left: exact coefficient $ c_{ex} $; $ \underline{{c}} = -9 $, $ \overline{{c}} = 6 $; right: locations of spots for testing weak * $ L^\infty $ convergence

Download: Full-size image PowerPoint slide

Figure 6. Test 2: Left: reconstructed coefficient $ c_k $; Middle: active set for lower bound; Right: active set for upper bound; For $ k = 1, 4, 8, 12 $ (top to bottom) and $ \delta = 0.01 $

Download: Full-size image PowerPoint slide

Figure 7. Test 3: left: exact coefficient $ c_{ex} $; $ \underline{{c}} = -10 $, $ \overline{{c}} = 0 $; right: locations of spots for testing weak * $ L^\infty $ convergence

Download: Full-size image PowerPoint slide

Figure 8. Test 3: Left: reconstructed coefficient $ c_k $; Middle: active set for lower bound; Right: active set for upper bound; For $ k = 1, 4, 8, 12 $ (top to bottom) and $ \delta = 0.01 $

Download: Full-size image PowerPoint slide

Table 1. Generation of a primal feasible pair $ (\mathcal B, \mathcal D) $

$ \mathcal B \leftarrow \mathcal B_s, \ \mathcal D \leftarrow \mathcal D_s $.
while $ (\mathcal B, \mathcal D) $ not primal feasible:
$ y= \text{KKT}(\mathcal B, \mathcal D), \ \mathcal B \leftarrow \mathcal B \cup \{i \in \mathcal N \setminus \mathcal B : y_{i} \geq u_{i} \}, \ \mathcal D \leftarrow \mathcal D \cup \{i \in \mathcal N \setminus \mathcal D : y_{i} \leq \ell_{i} \} $.

| Show Table

DownLoad: CSV

Table 2. Algorithmic description of the feasible active set method from [10]

Feasible active set method for solving (34)
Input: $ Q \succ 0 $, $ \ell, \ u, \ q \in \mathbb R^n, \ \ell< u $. $ \mathcal A, \ \mathcal C \subseteq \mathcal N, \ \mathcal A \cap \mathcal C = \emptyset $, $ (\mathcal A, \mathcal C) $ primal feasible.
Output: $ (\mathcal A, \mathcal C) $ optimal for (34).
$ [x, \alpha, \gamma] = $KKT$ (\mathcal A, \mathcal C) $
while $ (\mathcal A, \mathcal C) $ not optimal for (34)
$ \mathcal B_{s} \leftarrow \{i \in \mathcal A: \alpha_{i} \geq 0 \}; \mathcal B \leftarrow \mathcal B_{s} $.
$ \mathcal D_{s} \leftarrow \{i \in \mathcal C: \gamma_{i} \geq 0 \}; \mathcal D \leftarrow \mathcal D_{s} $.
$ y= $KKT$ (\mathcal B, \mathcal D) $.
while $ (\mathcal B, \mathcal D) $ not primal feasible
$ \mathcal B \leftarrow \mathcal B \cup \{ i \in \overline{\mathcal B}: y_{i} \geq u_{i} \} $.
$ \mathcal D \leftarrow \mathcal D \cup \{ i \in \overline{\mathcal D}: y_{i} \leq \ell_{i} \} $.
$ y= $KKT$ (\mathcal B, \mathcal D) $.
endwhile
Case 1: $ J(y)< J(x) $
$ \mathcal A \leftarrow \mathcal B, \ \mathcal C \leftarrow \mathcal D $.
Case 2: $ J(y) \geq J(x) $ and $ \|\mathcal A\|+\|\mathcal C\|=1 $.
Let $ (\mathcal A_{opt}, \mathcal C_{opt}) $ be the optimal pair for (34) with the upper respectively lower
bound on $ \mathcal A \cup \mathcal C =\{ j \} $ removed. $ (\mathcal A_{opt}, \mathcal C_{opt}) $ is optimal for (34), hence stop.
Case 3: $ J(y) \geq J(x) $ and $ \|\mathcal A\| + \|\mathcal C\|> 1 $
Choose $ \mathcal A_0 \subseteq \mathcal A $, $ \mathcal C_0 \subseteq \mathcal C $ with $ \mathcal A_0 \cup \mathcal C_0 \not = \emptyset $ such that $ x $ is feasible but not
optimal for (36), for details see [10].
Let $ (\mathcal B_{0}, \mathcal D_0) $ be the optimal pair for (36).
$ \mathcal A \leftarrow \mathcal A_0 \cup \mathcal B_{0}, \ \mathcal C \leftarrow \mathcal C_0 \cup \mathcal D_0 $.
$ [\alpha, \gamma]= $KKT$ (\mathcal A, \mathcal C) $
endwhile

| Show Table

DownLoad: CSV

Table 3. Algorithmic description of the infeasible active set method from [11].

Ineasible active set method for solving (34)
Input: $ Q \succ 0 $, $ \ell, \ u, \ q \in \mathbb R^n, \ \ell< u $. $ \mathcal A, \ \mathcal C \subseteq \mathcal N, \ \mathcal A \cap \mathcal C = \emptyset $, $ (x, \alpha, \gamma) $
Output: $ (\mathcal A, \mathcal C) $, $ (x, \alpha, \gamma) $ optimal for (34).
$ {w} =\max\{\min\{x, u\}, \ell\} $
while $ (\mathcal A, \mathcal C) $ not optimal for (34)
$ \mathcal B \leftarrow \{i \not\in \mathcal A: x_{i} \geq u_i \}\cup \{i \in \mathcal A: \alpha_{i} \geq 0 \} $.
$ \mathcal D \leftarrow \{i \not\in \mathcal C: x_{i} \leq l_i \}\cup\{i \in \mathcal C: \gamma_{i} \geq 0 \} $.
$ [y, \beta, \delta]= $KKT$ (\mathcal B, \mathcal D) $; $ v =\max\{\min\{y, u\}, \ell\} $.
Case 1: $ J(v)< J({w}) $
Continue with $ [Q, \ell, u, q, \mathcal{B}, \mathcal{D}, (y, \beta, \delta)] $.
Case 2: $ J(v) \geq J({w}) $.
Determine $ \mathcal{A}^+ $, $ \mathcal{C}^+ $:
If $ \ell_i<x_i<u_i $, $ i\not\in \mathcal{A} \cup \mathcal{C} $, then $ \mathcal{A}^+= \mathcal{A}\setminus \mbox{ arg min}_{i\in\mathcal{A}}\alpha_i $, $ \mathcal{C}^+= \mathcal{C}\setminus \mbox{ arg min}_{i\in\mathcal{C}}\gamma_i $,
else $ \mathcal{A}^+= \mathcal{A}\cup \{i\not\in\mathcal{A}:x_{i} \geq u_i \} $,$ \mathcal{C}^+= \mathcal{C}\cup \{i\not\in\mathcal{C}:x_{i} \leq \ell_i \} $.
$ [y, \beta, \delta]= $KKT$ (\mathcal{A}^+, \mathcal{C}^+) $.
If $ \ell\leq y\leq u $ then continue with $ [Q, \ell, u, q, \mathcal{A}^+, \mathcal{C}^+, (y, \beta, \delta)] $.
else determine $ \lambda^* $ by a combinatorial line seach:
$ \lambda^* = \mbox{arg min}_{j\in \{i:y_i>u_i\}\cup\{i:y_i<\ell_i\}} J(\max\{\min\{{z}(\lambda_j), u\}, \ell\}) $
where $\lambda_{j}:=\left\{\begin{array}{ll} \frac{y_{j}-u_{j}}{y_{j}-w_{j}} & \text { for } j \in\left\{i: y_{i}>u_{i}\right\} \\ \frac{\ell_{j}-y_{j}}{w_{j}-y_{j}} & \text { for } j \in\left\{i: y_{i} < \ell_{i}\right\} \end{array} ; \quad z(\lambda)=\lambda w+(1-\lambda) y\right. $;
$ x^+={z}(\lambda_*) $; $ -\alpha^+_{\tilde{\mathcal{A}}^+} = q_{\tilde{\mathcal{A}}^+} + Q_{\tilde{\mathcal{A}}^+, \mathcal N} x^+ $; $ \gamma^+_{\mathcal C^+} = q_{\mathcal C^+} + Q_{\mathcal C^+, \mathcal N} x^+ $,
where $ \tilde{\mathcal{A}}^+=\mathcal{A}^+\cup(\mathcal{N}\setminus\mathcal{C}^+) $;
continue with $ [Q, \ell, u, q, \mathcal{A}^+, \mathcal{C}^+, (x^+, \alpha^+, \gamma^+)] $.
endwhile

| Show Table

DownLoad: CSV

Table 4. Comparison of different solvers for QPs with box constraints

	source
	N=32 (n=2178)			N=64 (n=8450)
	$\mathtt{quadprog}$	$\mathtt{Infeas\_{AS}}$	$\mathtt{Feas\_AS}$	$\mathtt{quadprog}$	$\mathtt{Infeas\_{AS}}$	$\mathtt{Feas\_AS}$
$ k $	1	1	1	1	1	1
$ \frac{J(x_k^\delta, u_k^\delta)}{J(x_0, u_0)} $	6.6901e-06	6.6154e-06	6.6154e-06	3.2887e-05	3.2532e-05	3.2744e-05
$ \mbox{err}_{spot_1} $	2.4023e-06	0	0	6.7780e-07	0	0
$ \mbox{err}_{spot_2} $	7.3665e-06	0	0	0.0462	0	0
$ \mbox{err}_{spot_3} $	1.0890e-05	0	0	1.3992	1.3917	1.3917
$ \mbox{err}_{L^1(\Omega)} $	0.0462	0.0465	0.0465	0.0832	0.0834	0.0834
CPU	1.68	1.16	1.09	29.62	112.97	22.85
	potential
	N=32 (n=3137)			N=64 (n=12417)
	$\mathtt{quadprog}$	$\mathtt{Infeas\_{AS}}$	$\mathtt{Feas\_AS}$	$\mathtt{quadprog}$	$\mathtt{Infeas\_{AS}}$	$\mathtt{Feas\_AS}$
$ k $	4	4	6	3	3	3
$ \frac{J(x_k^\delta, u_k^\delta)}{J(x_0, u_0)} $	6.2155e-06	6.0569e-06	8.0316e-07	1.6318e-04	1.6286e-04	1.6286e-04
$ \mbox{err}_{spot_1} $	6.9611e-10	0	0	1.2184e-10	0	0
$ \mbox{err}_{spot_2} $	1.7502e-06	0	0	0.7183	0.7145	0.7145
$ \mbox{err}_{spot_3} $	1.5392	1.6093	1.4363	3.2625	3.2629	3.2629
$ \mbox{err}_{L^1(\Omega)} $	0.1051	0.1044	0.0938	0.1460	0.1444	0.1444
CPU	21.88	24.44	18.34	432.06	368.67	276.17
	diffusion
	N=32 (n=3137)			N=64 (n=12417)
	$\mathtt{quadprog}$	$\mathtt{Infeas\_{AS}}$	$\mathtt{Feas\_AS}$	$\mathtt{quadprog}$	$\mathtt{Infeas\_{AS}}$	$\mathtt{Feas\_AS}$
$ k $	4	4	4	8	8	8
$ \frac{J(x_k^\delta, u_k^\delta)}{J(x_0, u_0)} $	0.0931	0.0931	0.0931	0.0543	0.0543	0.0543
$ \mbox{err}_{spot_1} $	3.7303e-14	0	0	3.6415e-14	0	0
$ \mbox{err}_{spot_2} $	4.4418	4.4418	4.4418	7.8278e-05	0	0
$ \mbox{err}_{spot_3} $	0.3200	0.3199	0.3199	4.3077e-13	0	0
$ \mbox{err}_{L^1(\Omega)} $	0.3259	0.3259	0.3259	0.3799	0.3799	0.3799
CPU	32.01	6.30	5.25	1193.00	532.57	463.89

| Show Table

DownLoad: CSV

Table 5. Convergence as $ \delta\to0 $: averaged errors of five test runs with uniform noise

	source			potential			diffusion
$ \delta $	0.001	0.01	0.1	0.001	0.01	0.1	0.001	0.01	0.1
$ \mbox{err}_{spot_1} $	0	0.2000	0.2000	0	0	0	0	0	0
$ \mbox{err}_{spot_2} $	0	2.7488	4.0702	0	0.7960	4.8689	0	8.4141	9.8436
$ \mbox{err}_{spot_3} $	0	0.5678	1.9445	1.0840	2.1512	2.5862	0.6572	0	0
$ \mbox{err}_{L^1(\Omega)} $	0.0472	0.5288	0.5721	0.1472	0.2136	0.3671	0.7200	0.3783	0.3745

| Show Table

DownLoad: CSV
