Thermoacoustic Tomography with circular integrating detectors and variable wave speed

Department of Mathematics, Purdue University, 150 N University St., West Lafayette, IN 47907, USA

Received  July 2019 Revised  February 2020 Published  May 2020

Fund Project: Author partly supported by NSF Grant DMS-1600327

We explore Thermoacoustic Tomography with circular integrating detectors assuming variable, smooth wave speed. We show that the measurement operator in this case is a Fourier Integral Operator and examine how the singularities in initial data and measured data are related through the canonical relation of this operator. We prove which of those singularities in the initial data are visible from a fixed open subset of the set on which measurements are taken. In addition, numerical results are shown for both full and partial data.

Citation: Chase Mathison. Thermoacoustic Tomography with circular integrating detectors and variable wave speed. Inverse Problems & Imaging, 2020, 14 (4) : 665-682. doi: 10.3934/ipi.2020030
References:
[1]

M. J. Grote and I. Sim, Efficient PML for the wave equation, preprint, arXiv: 1001.0319. Google Scholar

[2]

M. HaltmeierO. ScherzerP. Burgholzer and G. Paltauf, Thermoacoustic computed tomography with large planar receivers, Inverse Problems, 20 (2004), 1663-1673.  doi: 10.1088/0266-5611/20/5/021.  Google Scholar

[3]

L. Hörmander, Fourier integral operators. Ⅰ., Acta Math., 127 (1971), 79-183.  doi: 10.1007/BF02392052.  Google Scholar

[4]

L. Hörmander, The Analysis of Linear Partial Differential Operators. IV. Fourier Integral Operators, Springer-Verlag, Berlin, 2009. doi: 10.1007/978-3-642-00136-9.  Google Scholar

[5]

F. John, Partial Differential Equations, Applied Mathematical Sciences, 1, 1$^st$ edition, Springer-Verlag, New York-Berlin, 1971.  Google Scholar

[6]

R. A. KrugerW. L. Kiser Jr.D. R. Reinecke and G. A. Kruger, Thermoacoustic computed tomography using a conventional linear transducer array, Med. Phys., 30 (2003), 856-860.  doi: 10.1118/1.1565340.  Google Scholar

[7]

P. Kuchment and L. Kunyansky, Mathematics of thermoacoustic tomography, European J. Appl. Math., 19 (2008), 191-224.  doi: 10.1137/1.9781611973297.  Google Scholar

[8]

A. A. Oraevsky, S. L. Jacques, R. O. Esenaliev and F. K. Tittel, Laser-based optoacoustic imaging in biological tissues, in Laser-Tissue Interaction V; and Ultraviolet Radiation Hazards, 2134, Proc. SPIE, 1994,122–129. doi: 10.1117/12.182927.  Google Scholar

[9]

E. Quinto, Radon transforms on curves in the plane, Lect. Appl. Math., 30 (1994), 231-244.   Google Scholar

[10]

P. Stefanov and G. Uhlmann, Thermoacoustic tomography with variable sound speed, Inverse Problems, 25 (2009), 075011, 16 pp. doi: 10.1088/0266-5611/25/7/075011.  Google Scholar

[11]

P. Stefanov and Y. Yang, Thermo- and photoacoustic tomography with variable speed and planar detectors, SIAM J. Math. Anal., 49 (2017), 297-310.  doi: 10.1137/16M1073716.  Google Scholar

[12]

M. E. Taylor, Pseudodifferential Operators, in Princeton Mathematical Series, 34, Princeton University Press, Princeton, NJ, 1981,146–191.  Google Scholar

[13]

M. E. Taylor, Partial differential equations. I. Basic theory, in Applied Mathematical Sciences, 115, Springer-Verlag, New York, 1996. doi: 10.1007/978-1-4419-7055-8.  Google Scholar

[14]

F. Trèves, Introduction to pseudodifferential and Fourier integral operators, in The University Series in Mathematics, 2, Plenum Press, New York-London, 1980.  Google Scholar

[15]

M. Xu and L. V. Wang, Photoacoustic imaging in biomedicine, Review of Scientific Instruments, 77 (2006), 041101. doi: 10.1063/1.2195024.  Google Scholar

[16]

G. ZangerlO. Scherzer and M. Haltmeier, Circular integrating detectors in photo and thermoacoustic tomography, Inverse Probl. Sci. Eng., 17 (2009), 133-142.  doi: 10.1080/17415970802166782.  Google Scholar

[17]

G. ZangerlO. Scherzer and M. Haltmeier, Exact series reconstruction in photoacoustic tomography with circular integrating detectors, Commun. Math. Sci., 7 (2009), 665-678.  doi: 10.4310/CMS.2009.v7.n3.a8.  Google Scholar

show all references

References:
[1]

M. J. Grote and I. Sim, Efficient PML for the wave equation, preprint, arXiv: 1001.0319. Google Scholar

[2]

M. HaltmeierO. ScherzerP. Burgholzer and G. Paltauf, Thermoacoustic computed tomography with large planar receivers, Inverse Problems, 20 (2004), 1663-1673.  doi: 10.1088/0266-5611/20/5/021.  Google Scholar

[3]

L. Hörmander, Fourier integral operators. Ⅰ., Acta Math., 127 (1971), 79-183.  doi: 10.1007/BF02392052.  Google Scholar

[4]

L. Hörmander, The Analysis of Linear Partial Differential Operators. IV. Fourier Integral Operators, Springer-Verlag, Berlin, 2009. doi: 10.1007/978-3-642-00136-9.  Google Scholar

[5]

F. John, Partial Differential Equations, Applied Mathematical Sciences, 1, 1$^st$ edition, Springer-Verlag, New York-Berlin, 1971.  Google Scholar

[6]

R. A. KrugerW. L. Kiser Jr.D. R. Reinecke and G. A. Kruger, Thermoacoustic computed tomography using a conventional linear transducer array, Med. Phys., 30 (2003), 856-860.  doi: 10.1118/1.1565340.  Google Scholar

[7]

P. Kuchment and L. Kunyansky, Mathematics of thermoacoustic tomography, European J. Appl. Math., 19 (2008), 191-224.  doi: 10.1137/1.9781611973297.  Google Scholar

[8]

A. A. Oraevsky, S. L. Jacques, R. O. Esenaliev and F. K. Tittel, Laser-based optoacoustic imaging in biological tissues, in Laser-Tissue Interaction V; and Ultraviolet Radiation Hazards, 2134, Proc. SPIE, 1994,122–129. doi: 10.1117/12.182927.  Google Scholar

[9]

E. Quinto, Radon transforms on curves in the plane, Lect. Appl. Math., 30 (1994), 231-244.   Google Scholar

[10]

P. Stefanov and G. Uhlmann, Thermoacoustic tomography with variable sound speed, Inverse Problems, 25 (2009), 075011, 16 pp. doi: 10.1088/0266-5611/25/7/075011.  Google Scholar

[11]

P. Stefanov and Y. Yang, Thermo- and photoacoustic tomography with variable speed and planar detectors, SIAM J. Math. Anal., 49 (2017), 297-310.  doi: 10.1137/16M1073716.  Google Scholar

[12]

M. E. Taylor, Pseudodifferential Operators, in Princeton Mathematical Series, 34, Princeton University Press, Princeton, NJ, 1981,146–191.  Google Scholar

[13]

M. E. Taylor, Partial differential equations. I. Basic theory, in Applied Mathematical Sciences, 115, Springer-Verlag, New York, 1996. doi: 10.1007/978-1-4419-7055-8.  Google Scholar

[14]

F. Trèves, Introduction to pseudodifferential and Fourier integral operators, in The University Series in Mathematics, 2, Plenum Press, New York-London, 1980.  Google Scholar

[15]

M. Xu and L. V. Wang, Photoacoustic imaging in biomedicine, Review of Scientific Instruments, 77 (2006), 041101. doi: 10.1063/1.2195024.  Google Scholar

[16]

G. ZangerlO. Scherzer and M. Haltmeier, Circular integrating detectors in photo and thermoacoustic tomography, Inverse Probl. Sci. Eng., 17 (2009), 133-142.  doi: 10.1080/17415970802166782.  Google Scholar

[17]

G. ZangerlO. Scherzer and M. Haltmeier, Exact series reconstruction in photoacoustic tomography with circular integrating detectors, Commun. Math. Sci., 7 (2009), 665-678.  doi: 10.4310/CMS.2009.v7.n3.a8.  Google Scholar

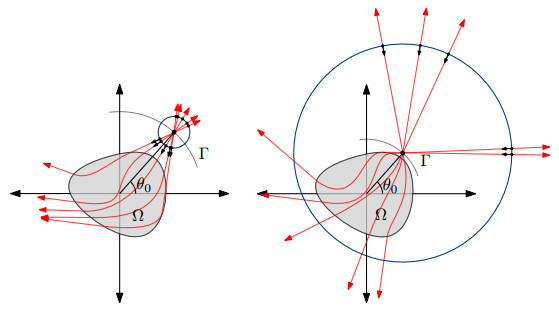

Figure 1.  Two different experimental setups shown depending on the radius of the integrating detector. On the left is the small radius case, and on the right is the large radius case
