On the identification of the nonlinearity parameter in the Westervelt equation from boundary measurements

Barbara Kaltenbacher^1, , and
William Rundell^2,

1.
Department of Mathematics, Alpen-Adria-Universität Klagenfurt, 9020 Klagenfurt, Austria
2.
Department of Mathematics, Texas A&M University, Texas 77843, USA

^* Corresponding author: Barbara Kaltenbacher
^* Corresponding author: Barbara Kaltenbacher

Received: August 2020

Revised: November 2020

Early access: February 2021

Published: October 2021

Supported by the Austrian Science Fund fwf under grant P30054 and the National Science Foundation through award dms-1620138.

Abstract / Introduction Full Text(HTML) Figure(8) Related Papers Cited by

Abstract

We consider an undetermined coefficient inverse problem for a nonlinear partial differential equation occurring in high intensity ultrasound propagation as used in acoustic tomography. In particular, we investigate the recovery of the nonlinearity coefficient commonly labeled as $ B/A $ in the literature which is part of a space dependent coefficient $ \kappa $ in the Westervelt equation governing nonlinear acoustics. Corresponding to the typical measurement setup, the overposed data consists of time trace measurements on some zero or one dimensional set $ \Sigma $ representing the receiving transducer array. After an analysis of the map from $ \kappa $ to the overposed data, we show injectivity of its linearisation and use this as motivation for several iterative schemes to recover $ \kappa $. Numerical simulations will also be shown to illustrate the efficiency of the methods.

Keywords:

Mathematics Subject Classification: Primary: 35R30, 35K58, 35L72; Secondary: 78A46.

Citation:

Full Text(HTML)

Figure 1. The surface Σ

Download: Full-size image PowerPoint slide

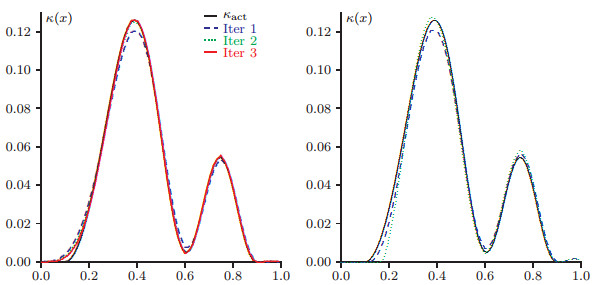

Figure 2. Reconstructions of a smooth $ \kappa(x) $ from time trace data at $ \,x = 1\, $ under 0.1% (left) and 1% (right) noise using Newton's method

Download: Full-size image PowerPoint slide

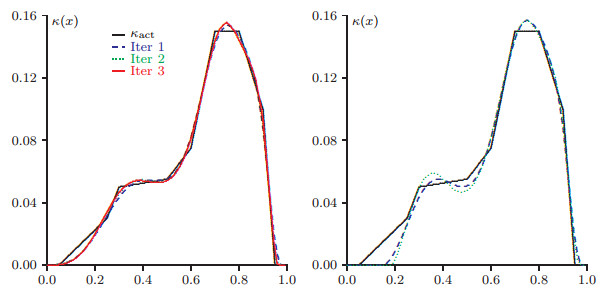

Figure 3. Reconstructions of piecewise linear $ \kappa(x) $ from time trace data at $ \,x = 1 $ under 0.1% (left) and 1% (right) noise using Newton's method

Download: Full-size image PowerPoint slide

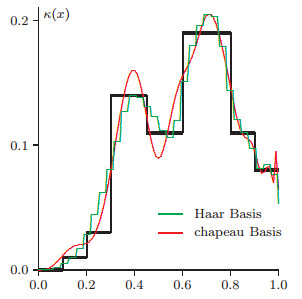

Figure 4. Reconstructions of a piecewise constant $ \kappa(x) $ from time trace data at $ x = 1 $ under $ 0.1\% $ noise using Newton iteration

Download: Full-size image PowerPoint slide

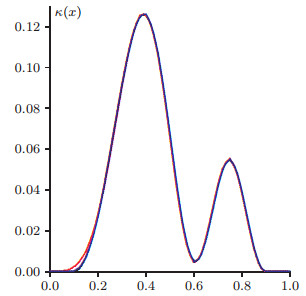

Figure 5. Comparison of Newton (in red) and Halley (in blue) final reconstructions under $ 0.1\% $ noise

Download: Full-size image PowerPoint slide

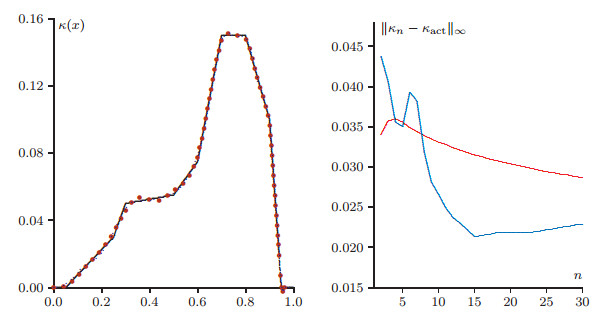

Figure 6. Comparison of Newton (in red) and Halley (in blue) final reconstructions and norm differences of the $ n^{\rm th} $ iterate $ \kappa_n $ and the actual $ \kappa $. Noise level was $ 1\% $

Download: Full-size image PowerPoint slide

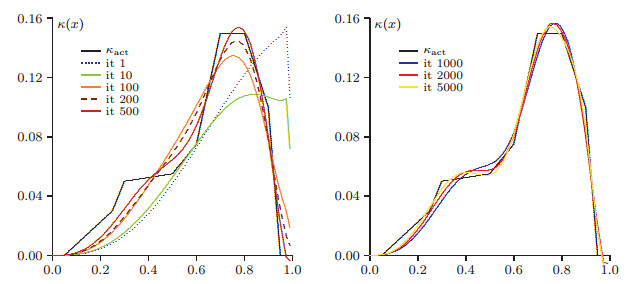

Figure 7. Reconstructions of a piecewise linear $ \kappa(x) $ from time trace data at $ x = 1 $ under $ 1\% $ noise using Landweber iteration

Download: Full-size image PowerPoint slide

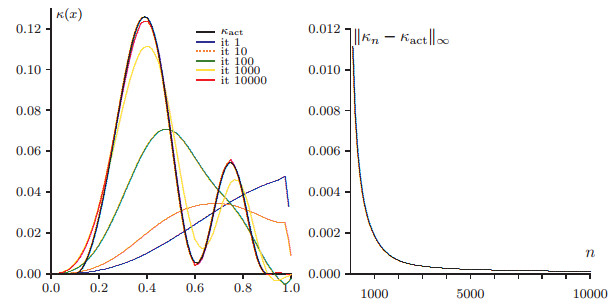

Figure 8. The leftmost figure shows reconstructions of $ \kappa(x) $ under $ 0.1\% $ noise using Landweber iteration. The rightmost figure shows the decay of the norm $ \kappa_n(x)-\kappa_{\rm act}(x) $
