PCA reduced Gaussian mixture models with applications in superresolution

Johannes Hertrich; Dang-Phuong-Lan Nguyen; Jean-Francois Aujol; Dominique Bernard; Yannick Berthoumieu; Abdellatif Saadaldin; Gabriele Steidl

doi:10.3934/ipi.2021053

Article Contents

2022, Volume 16, Issue 2: 341-366. Doi: 10.3934/ipi.2021053

This issue Previous Article Fourier method for reconstructing elastic body force from the coupled-wave field Next Article A fuzzy edge detector driven telegraph total variation model for image despeckling

PCA reduced Gaussian mixture models with applications in superresolution

1.
TU Berlin, Straße des 17. Juni 136, D-10623 Berlin, Germany
2.
Univ. Bordeaux, Bordeaux INP, CNRS, IMB, UMR 5251, F-33400 Talence, France
3.
Univ. Bordeaux, Bordeaux INP, CNRS, IMS, UMR 5218, F-33400 Talence, France
4.
CNRS, Univ. Bordeaux, Bordeaux INP, ICMCB, UMR 5026, F-33600 Pessac, France
5.
TU Berlin, Straße des 17. Juni 136, D-10623 Berlin, Germany

^* Corresponding author: Johannes Hertrich
^* Corresponding author: Johannes Hertrich

Received: September 2020

Revised: May 2021

Early access: September 2021

Published online: September 2021

Abstract / Introduction Full Text(HTML) Figure(3) / Table(4) Related Papers Cited by

Abstract

Despite the rapid development of computational hardware, the treatment of large and high dimensional data sets is still a challenging problem. The contribution of this paper to the topic is twofold. First, we propose a Gaussian mixture model in conjunction with a reduction of the dimensionality of the data in each component of the model by principal component analysis, which we call PCA-GMM. To learn the (low dimensional) parameters of the mixture model we propose an EM algorithm whose M-step requires the solution of constrained optimization problems. Fortunately, these constrained problems do not depend on the usually large number of samples and can be solved efficiently by an (inertial) proximal alternating linearized minimization algorithm. Second, we apply our PCA-GMM for the superresolution of 2D and 3D material images based on the approach of Sandeep and Jacob. Numerical results confirm the moderate influence of the dimensionality reduction on the overall superresolution result.

Keywords:

Mathematics Subject Classification: Primary: 62H12, 62H25, 62H35; Secondary: 65K05.

Citation:

Full Text(HTML)

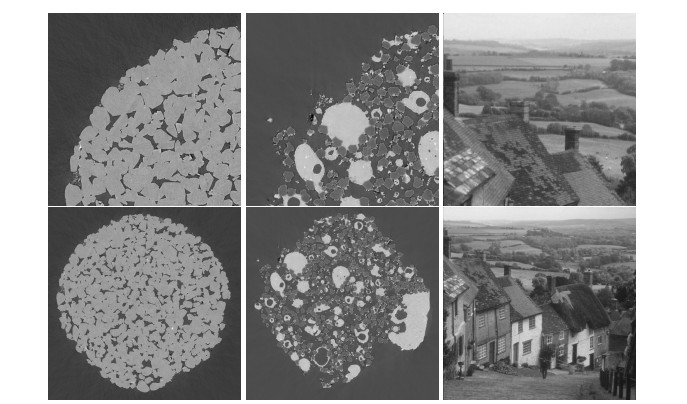

Figure 1. Top: Images for estimating the mixture models. Bottom: Ground truth for reconstruction. First column: Material "FS", second column: Material "SiC Diamonds", third column: $\texttt{goldhill}$ image

Download: Full-size image PowerPoint slide

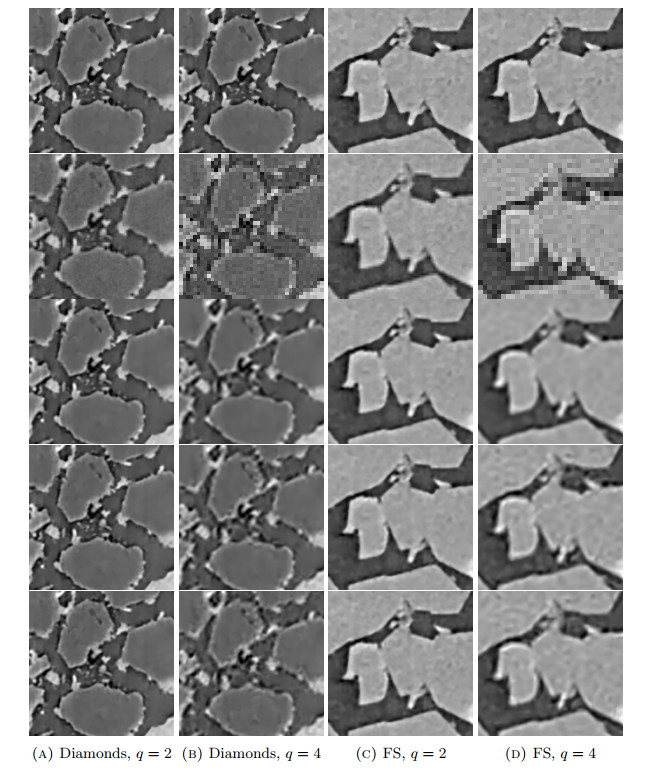

Figure 2. Reconstructions of 2D low resolution images. First row: ground truth, second row: low resolution, third row: reconstruction with GMM, fourth row: reconstruction with PCA-GMM and $ d = 20 $, fifth row: reconstruction with PCA-GMM and $ d = 12 $. The larger of $ d $, the closer is the result of PCA-GMM to GMM

Download: Full-size image PowerPoint slide

Figure 3. Histograms of the eigenvalues of $ \Sigma_k $, $ k = 1, ..., K $ for the PCA-GMM with fixed $ \sigma = 0.02 $ for $ d = 20 $

Download: Full-size image PowerPoint slide

Table 1. PSNRs of the reconstructions of artificially downsampled 2D images using either bicubic interpolation, a GMM, PCA-GMM for different choices of $ d $ or HDDC. The magnification factor is set to $ q\in\{2, 4\} $. PCA-GMM produces results almost as good as GMM, with a much lower dimensionality

		Magnification factor $ q=2 $			Magnification factor $ q=4 $
	$ d $	FS	Diamonds	Goldhill	FS	Diamonds	Goldhill
bicubic	-	$ 30.57 $	$ 30.67 $	$ 28.99 $	$ 25.27 $	$ 25.19 $	$ 24.66 $
GMM	-	$ 35.49 $	$ 37.21 $	$ 31.63 $	$ 30.69 $	$ 30.74 $	$ 27.80 $
PCA-GMM, $ \sigma=0.02 $	$ 20 $	$ 35.44 $	$ 37.24 $	$ 31.25 $	$ 30.75 $	$ 30.74 $	$ 27.64 $
	$ 16 $	$ 35.42 $	$ 37.22 $	$ 31.25 $	$ 30.74 $	$ 30.62 $	$ 27.59 $
	$ 12 $	$ 35.47 $	$ 37.13 $	$ 31.18 $	$ 30.67 $	$ 30.48 $	$ 27.55 $
	$ 8 $	$ 35.32 $	$ 36.69 $	$ 31.00 $	$ 30.46 $	$ 30.16 $	$ 27.38 $
	$ 4 $	$ 34.69 $	$ 35.23 $	$ 30.42 $	$ 29.78 $	$ 29.24 $	$ 26.89 $
PCA-GMM, learned $ \sigma $	$ 20 $	$ 35.22 $	$ 37.06 $	$ 31.27 $	$ 30.43 $	$ 30.51 $	$ 27.66 $
	$ 16 $	$ 35.14 $	$ 37.01 $	$ 31.14 $	$ 30.34 $	$ 30.31 $	$ 27.51 $
	$ 12 $	$ 34.95 $	$ 36.54 $	$ 30.94 $	$ 30.13 $	$ 29.84 $	$ 27.33 $
	$ 8 $	$ 34.43 $	$ 35.47 $	$ 30.54 $	$ 29.62 $	$ 29.08 $	$ 26.88 $
	$ 4 $	$ 32.74 $	$ 33.41 $	$ 29.69 $	$ 28.51 $	$ 27.75 $	$ 26.16 $
HDDC [3]	$ 20 $	$ 35.35 $	$ 37.12 $	$ 31.35 $	$ 30.54 $	$ 30.63 $	$ 27.73 $
	$ 16 $	$ 35.31 $	$ 37.10 $	$ 31.25 $	$ 30.47 $	$ 30.48 $	$ 27.62 $
	$ 12 $	$ 35.24 $	$ 36.64 $	$ 31.08 $	$ 30.27 $	$ 30.08 $	$ 27.40 $
	$ 8 $	$ 34.76 $	$ 35.66 $	$ 30.76 $	$ 29.80 $	$ 29.34 $	$ 27.00 $
	$ 4 $	$ 33.46 $	$ 33.86 $	$ 29.93 $	$ 28.61 $	$ 27.99 $	$ 26.37 $

| Show Table

DownLoad: CSV

Table 2. Average execution time (in seconds) for the E-step and M-step in the EM algorithm for estimating the parameters of the mixture models

		Magnification factor $q=2$, i.e. dimension $n=80$
		FS, $N=405769$		Diamonds, $N=405769$		Goldhill, $N=15625$
	$d$	E-step	M-step	E-step	M-step	E-step	M-step
GMM	-	$10.91$	$0.06$	$10.91$	$0.06$	$0.44$	$0.06$
PCA-GMM, $\sigma=0.02$	$20$	$7.25$	$0.74$	$7.42$	$0.57$	$0.28$	$0.54$
	$12$	$6.58$	$0.59$	$6.53$	$0.51$	$0.25$	$0.46$
	$4$	$6.18$	$0.56$	$6.17$	$0.52$	$0.24$	$0.48$
PCA-GMM, learned $\sigma$	$20$	$7.28$	$0.54$	$7.41$	$0.54$	$0.28$	$0.54$
	$12$	$6.59$	$0.47$	$6.53$	$0.45$	$0.25$	$0.47$
	$4$	$6.20$	$0.47$	$6.17$	$0.44$	$0.24$	$0.51$
HDDC[3]	$20$	$7.27$	$0.27$	$7.44$	$0.27$	$0.28$	$0.26$
	$12$	$6.64$	$0.26$	$6.64$	$0.26$	$0.25$	$0.26$
	$4$	$6.27$	$0.27$	$6.23$	$0.26$	$0.24$	$0.26$
		Magnification factor $q=4$, i.e. dimension $n=272$
		FS, $N=100489$		Diamonds, $N=100489$		Goldhill, $N=3721$
	$d$	E-step	M-step	E-step	M-step	E-step	M-step
GMM	-	$17.15$	$0.06$	$17.11$	$0.06$	$0.90$	$0.06$
PCA-GMM, $\sigma=0.02$	$20$	$8.65$	$3.54$	$8.68$	$2.03$	$0.44$	$1.83$
	$12$	$8.17$	$2.73$	$8.15$	$1.99$	$0.42$	$1.75$
	$4$	$7.95$	$2.10$	$7.94$	$2.49$	$0.41$	$1.91$
PCA-GMM, learned $\sigma$	$20$	$8.65$	$1.92$	$8.70$	$1.83$	$0.44$	$1.87$
	$12$	$8.17$	$1.99$	$8.17$	$1.74$	$0.42$	$1.74$
	$4$	$7.94$	$2.17$	$7.93$	$1.76$	$0.41$	$1.72$
HDDC [3]	$20$	$8.65$	$1.53$	$8.71$	$1.54$	$0.44$	$1.52$
	$12$	$8.16$	$1.54$	$8.14$	$1.53$	$0.42$	$1.52$
	$4$	$7.95$	$1.54$	$7.96$	$1.54$	$0.41$	$1.52$

| Show Table

DownLoad: CSV

Table 3. PSNRs of the reconstructions of artificially downsampled 3D images using either nearest neighbor interpolation, GMM or PCA-GMM for different choices of $ d $. The magnification factor is set to $ q = 2 $. As in the 2D case, PCA-GMM with small $ d $ produces results almost as good as GMM, but with a much lower dimensionality

	$ d $	FS	Diamonds
Nearest neighbor	-	$ 30.10 $	$ 26.25 $
GMM	-	$ 33.32 $	$ 30.71 $
PCA-GMM, $ \sigma=0.02 $	$ 60 $	$ 33.38 $	$ 30.83 $
	$ 40 $	$ 33.36 $	$ 30.75 $
	$ 20 $	$ 33.25 $	$ 30.17 $
HDDC [3]	$ 60 $	$ 33.23 $	$ 30.49 $
	$ 40 $	$ 33.24 $	$ 30.29 $
	$ 20 $	$ 33.02 $	$ 29.47 $

| Show Table

DownLoad: CSV

Table 4. Average execution time (in seconds) of the E-step and M-step in the EM algorithm for estimating the parameters of the mixture models

		FS		Diamonds
	$ d $	E-step	M-step	E-step	M-step
GMM	-	$ 717.91 $	$ \phantom{0}0.07 $	$ 718.13 $	$ \phantom{0}0.07 $
PCA-GMM, $ \sigma=0.02 $	$ 60 $	$ 338.22 $	$ 12.29 $	$ 337.44 $	$ 17.49 $
	$ 40 $	$ 327.34 $	$ \phantom{0}9.73 $	$ 324.93 $	$ 13.87 $
	$ 20 $	$ 320.00 $	$ \phantom{0}7.85 $	$ 319.46 $	$ \phantom{0}9.80 $
HDDC [3]	$ 60 $	$ 337.29 $	$ \phantom{0}4.15 $	$ 337.42 $	$ \phantom{0}4.16 $
	$ 40 $	$ 327.11 $	$ \phantom{0}4.19 $	$ 324.95 $	$ \phantom{0}4.15 $
	$ 20 $	$ 320.03 $	$ \phantom{0}4.20 $	$ 319.07 $	$ \phantom{0}4.15 $

| Show Table

DownLoad: CSV
