Data-consistent neural networks for solving nonlinear inverse problems

Yoeri E. Boink; Markus Haltmeier; Sean Holman; Johannes Schwab

doi:10.3934/ipi.2022037

Article Contents

2023, Volume 17, Issue 1: 203-229. Doi: 10.3934/ipi.2022037

This issue Previous Article The enclosure method for the detection of variable order in fractional diffusion equations Next Article A colorization-based anisotropic variational model for vector-valued image compression

Data-consistent neural networks for solving nonlinear inverse problems

1.
Department of Applied Mathematics, University of Twente, Netherlands
2.
Department of Mathematics, University of Innsbruck, Austria
3.
Department of Mathematics, University of Manchester, United Kingdom

^*Corresponding author: Johannes Schwab
^*Corresponding author: Johannes Schwab

Received: May 2021

Revised: May 2022

Early access: July 28, 2022

Published online: July 28, 2022

Abstract / Introduction Full Text(HTML) Figure(16) / Table(3) Related Papers Cited by

Abstract

Data assisted reconstruction algorithms, incorporating trained neural networks, are a novel paradigm for solving inverse problems. One approach is to first apply a classical reconstruction method and then apply a neural network to improve its solution. Empirical evidence shows that plain two-step methods provide high-quality reconstructions, but they lack a convergence analysis as known for classical regularization methods. In this paper we formalize the use of such two-step approaches in the context of classical regularization theory. We propose data-consistent neural networks that can be combined with classical regularization methods. This yields a data-driven regularization method for which we provide a convergence analysis with respect to noise. Numerical simulations show that compared to standard two-step deep learning methods, our approach provides better stability with respect to out of distribution examples in the test set, while performing similarly on test data drawn from the distribution of the training set. Our method provides a stable solution approach to inverse problems that beneficially combines the known nonlinear forward model with available information on the desired solution manifold in training data.

Keywords:

Mathematics Subject Classification: Primary: 65J20, 68T07, 65J22; Secondary: 45F05.

Citation:

Full Text(HTML)

Figure 1. On the left, a standard post-processing network. The red box illustrates that the output in general does not reproduce the data under the forward operation $ \mathcal{F} $. On the right a data-consistent network architecture. The green box illustrates that it does reproduce the data under the forward operation $ \mathcal{F} $

Download: Full-size image PowerPoint slide

Figure 2. The figure illustrates the solution set for given data $ y $ and the output of the network $ \mathbf{U} $ acting on the solution after applying a right inverse of $ \mathcal{F} $. The generalized projection operator approximated by some iterative scheme or closed form operator is shown in green and blue respectively

Download: Full-size image PowerPoint slide

Figure 3. Two-dimensional visualization of the data-consistent network for the 'projection on convex set' problem explained in Section 4.1. The blue region indicates the convex set $ C $, the green region (that extends infinitely to the right) indicates the affine normal cone to $ C $ at $ \mathcal{P}_C(z) $. The output of the data-consistent network is indicated by $ \Phi_0(z) $; it can be seen that it is obtained by taking the input $ z $, applying a Lipschitz continuous neural network $ \mathbf{U}(z) $ and projecting it to the normal cone $ \mathcal N_C $ at $ \mathcal{P}_C(z) $. This ensures that $ \mathcal{P}_C( \Phi_0(z)) = \mathcal{P}_C(z) $, as required by the definition of a data-consistent network

Download: Full-size image PowerPoint slide

Figure 7. Reconstructions of a typical sample from the modified test set. Top: reconstructed sinograms with all 8 angles in different colors. Bottom: reconstructed images (grayscale from 0 to 1)

Download: Full-size image PowerPoint slide

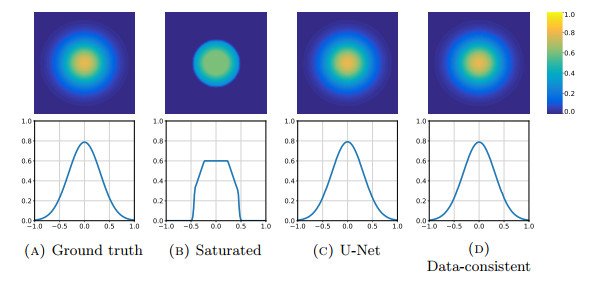

Figure 4. Reconstructions of a sample from the regular test set. In the bottom the horizontal central slice is shown. Both U-Net and data-consistent network provide an almost perfect reconstruction

Download: Full-size image PowerPoint slide

Figure 5. Reconstructions of a sample from the modified test set. In the bottom the horizontal central slice is shown. Data-consistency makes sure that intensity is only changed above the saturation level

Download: Full-size image PowerPoint slide

Figure 6. Reconstructions of a typical sample from the regular test set. Top: reconstructed sinograms with all 8 angles in different colors. Bottom: reconstructed images (grayscale from 0 to 1)

Download: Full-size image PowerPoint slide

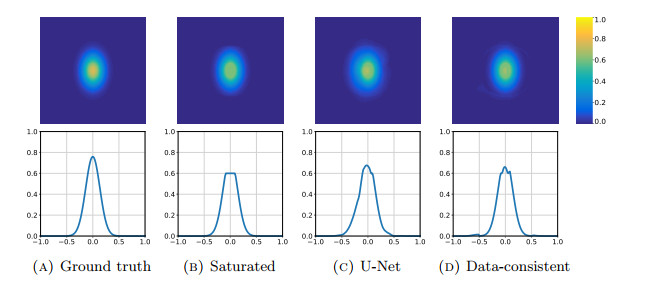

Figure 8.

Download: Full-size image PowerPoint slide

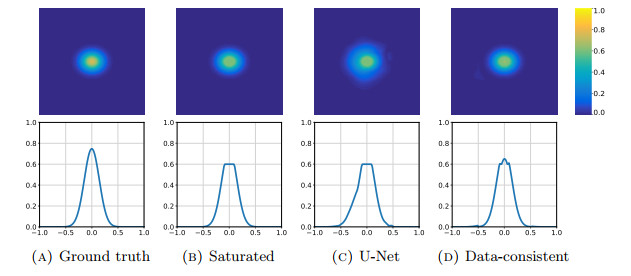

Figure 9.

Download: Full-size image PowerPoint slide

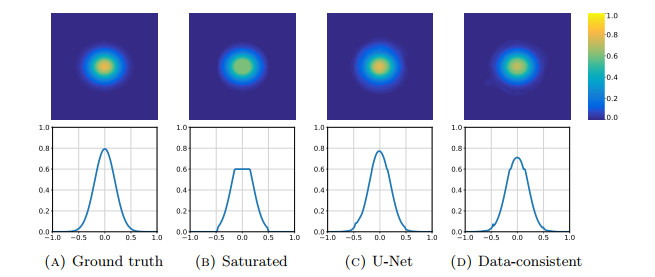

Figure 10.

Download: Full-size image PowerPoint slide

Figure 11. Sample for which the data-consistent PSNR value is relatively high compared to the U-Net PSNR values (grayscale from 0 to 1)

Download: Full-size image PowerPoint slide

Figure 12. Sample for which the data-consistent PSNR value is approximately the same as the U-Net PSNR values (grayscale from 0 to 1)

Download: Full-size image PowerPoint slide

Figure 13. Sample for which the data-invariant PSNR value is relatively low compared to the U-Net PSNR values (grayscale from 0 to 1)

Download: Full-size image PowerPoint slide

Figure 14. Sample for which the data-invariant PSNR value is relatively high compared to the U-Net PSNR values (grayscale from 0 to 1)

Download: Full-size image PowerPoint slide

Figure 15. Sample for which the data-invariant PSNR value is approximately the same as the U-Net PSNR values (grayscale from 0 to 1)

Download: Full-size image PowerPoint slide

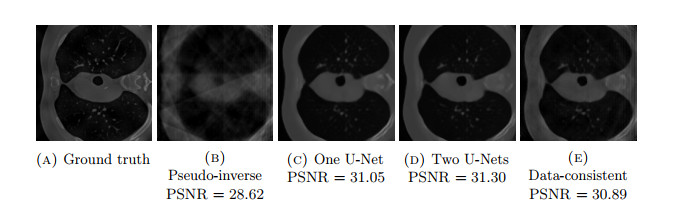

Figure 16. Sample for which the data-invariant PSNR value is relatively low compared to the U-Net PSNR values (grayscale from 0 to 1)

Download: Full-size image PowerPoint slide

Table 1. U-Net parameter details for all simulation experiments

	Exp. 1 $ ( \mathbf{U}/ {{\mathit{\boldsymbol{\Phi}}}}_0) $:	Exp. 2 $ ( \mathbf{U}_1/ {{\mathit{\boldsymbol{\Phi}}}}_0^{(1)}) $:	Exp. 2 $ ( \mathbf{U}_2/ {{\mathit{\boldsymbol{\Phi}}}}_0^{(2)}) $:
	image domain	image domain	sinogram domain
$ \# $training samples	1024	35584	35584
$ \# $validation samples	256	3522	3522
$ \# $test samples	1024	3553	3553
depth	4	4	4
width	2	2	2
$ \# $channels in top layer	8	16	16
convolution size	$ 3\times3 $	$ 3\times3 $	$ 3\times3 $
nonlinearity	ReLU	ReLU	ReLU
start learning rate	$ 10^{-3} $	$ 10^{-3} $	$ 10^{-3} $
final learning rate	$ 10^{-4} $	$ 2\cdot10^{-4} $	$ 2\cdot10^{-4} $
batch size	64	32	32
$ \# $epochs	1000	25	25

| Show Table

DownLoad: CSV

Table 2. Comparison of PSNR and SSIM for all reconstruction methods

	PSNR			SSIM
	Pseudo-inverse	U-Net	Data-consistent	Pseudo-inverse	U-Net	Data-consistent
Regular set	$ 24.2 \pm2.2 $	$ 60.6 \pm2.1 $	$ 66.7 \pm1.6 $	$ 0.56 \pm 0.08 $	$ 1.00 \pm0.00 $	$ 1.00 \pm0.00 $
Modified set	$ 48.0 \pm7.8 $	$ 36.9 \pm2.9 $	$ 48.0 \pm4.4 $	$ 0.99 \pm 0.01 $	$ 0.92 \pm0.03 $	$ 0.97 \pm0.01 $

| Show Table

DownLoad: CSV

Table 3. Comparison of PSNR, SSIM and data-fidelity $ \Vert{ \mathbf{F}(\tilde{ x})- \mathbf{F}( x)}\Vert_{\ell^2} $ for all reconstruction methods, where $ \tilde{ x} $ is the reconstruction and $ x $ is the ground truth. Note that the data-fidelity of the pseudo-inverse in theory should be zero since it is a right inverse of the forward operator. The non-zero values result from numerical instabilities in the computation of this operator

	PSNR
	Pseudo-inverse	One U-Net	Two U-Nets	Data-consistent
Regular set	$ 23.1 \pm2.3 $	$ 30.5 \pm1.5 $	$ 31.0 \pm1.5 $	$ 30.1 \pm1.9 $
Modified set	$ 29.1 \pm1.6 $	$ 27.5 \pm1.7 $	$ 28.3 \pm1.4 $	$ 29.9 \pm1.2 $
	SSIM
	Pseudo-inverse	One U-Net	Two U-Nets	Data-consistent
Regular set	$ 0.50 \pm0.07 $	$ 0.82 \pm0.04 $	$ 0.83 \pm0.04 $	$ 0.74 \pm0.07 $
Modified set	$ 0.71 \pm0.07 $	$ 0.74 \pm0.05 $	$ 0.73 \pm0.05 $	$ 0.75 \pm0.05 $
	Data-fidelity
	Pseudo-inverse	One U-Net	Two U-Nets	Data-consistent
Regular set	$ 6.1 \pm3.3 $	$ \quad 4.8 \pm1.5 $	$ 3.9 \pm1.1 $	$ 0.9 \pm0.4 $
Modified set	$ 0.4 \pm0.2 $	$ 11.9 \pm5.4 $	$ 8.5 \pm2.8 $	$ 0.6 \pm0.2 $

| Show Table

DownLoad: CSV
