Deblurring photographs of characters using deep neural networks

Thomas Germer; Tobias Uelwer; Stefan Harmeling

doi:10.3934/ipi.2022057

Article Contents

2023, Volume 17, Issue 5: 993-1007. Doi: 10.3934/ipi.2022057

This issue Previous Article Restoring severely out-of-focus blurred text images with Deep Image Prior Next Article Helsinki deblur challenge 2021: Description of photographic data

Deblurring photographs of characters using deep neural networks

1.
Heinrich Heine University Düsseldorf, Düsseldorf, Germany
2.
Technical University Dortmund, Dortmund, Germany

^*Corresponding author: Thomas Germer
^*Corresponding author: Thomas Germer

^†Part of this work was done at Heinrich Heine University

Received: May 2022

Revised: September 2022

Early access: November 2022

Published: October 2023

Abstract / Introduction Full Text(HTML) Figure(14) / Table(3) Related Papers Cited by

Abstract

In this paper, we present our approach for the Helsinki Deblur Challenge (HDC2021). The task of this challenge is to deblur images of characters without knowing the point spread function (PSF). The organizers provided a dataset of pairs of sharp and blurred images. Our method consists of three steps: First, we estimate a warping transformation of the images to align the sharp images with the blurred ones. Next, we estimate the PSF using a quasi-Newton method. The estimated PSF allows to generate additional pairs of sharp and blurred images. Finally, we train a deep convolutional neural network to reconstruct the sharp images from the blurred images. Our method is able to successfully reconstruct images from the first 10 stages of the HDC 2021 dataset. Our code is available at https://github.com/hhu-machine-learning/hdc2021-psfnn.

Keywords:

Mathematics Subject Classification: Primary: 68U10; Secondary: 78A46.

Citation:

Full Text(HTML)

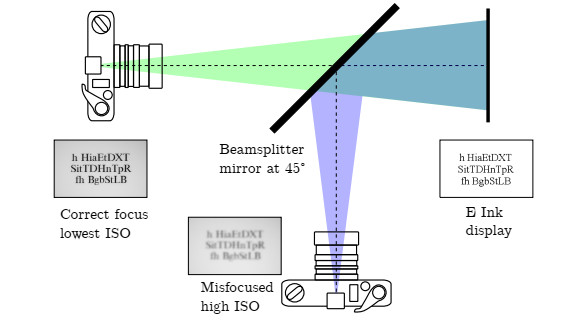

Figure 1. Simplified experimental setup reproduced from the HDC2021 description of photographic data [5], consisting of two cameras and a beamsplitter mirror that allows both cameras to capture images of the E Ink display. One camera is correctly focused with low ISO setting while the other camera is misfocused with high ISO setting, resulting in noisy and blurry images

Download: Full-size image PowerPoint slide

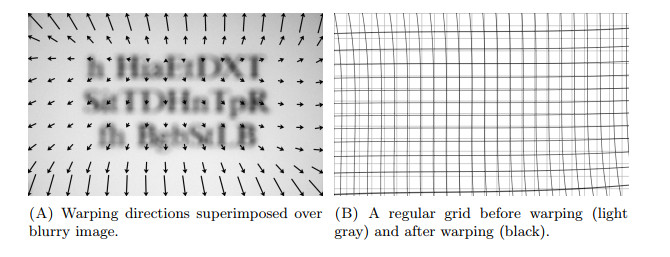

Figure 2. Visualization of warping operation

Download: Full-size image PowerPoint slide

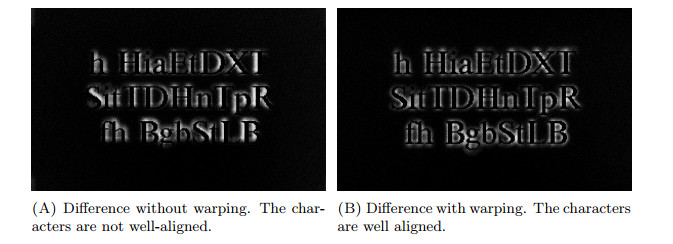

Figure 3. Difference between sharp and (warped) blurry image

Download: Full-size image PowerPoint slide

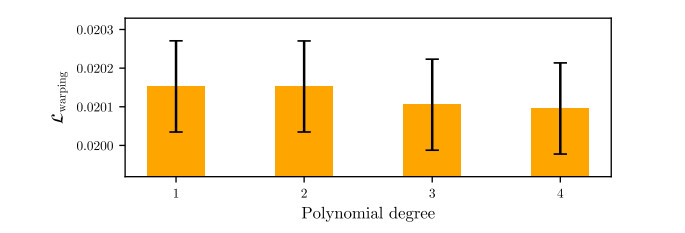

Figure 4. Degree of polynomial features (Equation 2) versus $ \mathcal{L}_\text{warping} $ (Equation 5) averaged over the image pairs of the fifth stage of the HDC2021 dataset, including standard error bars. Note that the y-axis is offset to emphasize the small difference between losses, which is relatively small compared to the standard error

Download: Full-size image PowerPoint slide

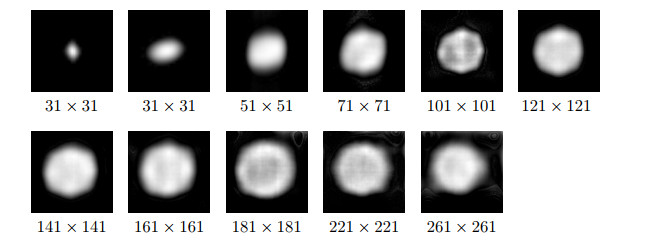

Figure 5. Estimated point spread functions for stages 0 through 10. For better readability, all PSFs have been scaled to the same image size. They vary between $ 31 \times 31 $ from the smallest size up to $ 261 \times 261 $ for stage 10

Download: Full-size image PowerPoint slide

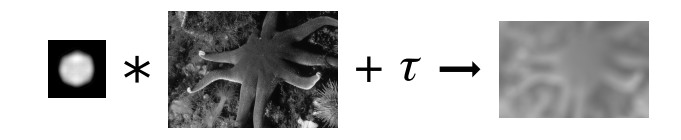

Figure 6. The sharp images from the DIV2K dataset $ V^S $ (middle left) are convolved with the point spread function $ P $ (left) and brightness adjusted ($ \tau $) to form a blurry image $ V^B $ for training. Note that the blurry image is slightly smaller than the initial sharp image since we only train on the valid convolution region. Before training, we crop the sharp image to the same size

Download: Full-size image PowerPoint slide

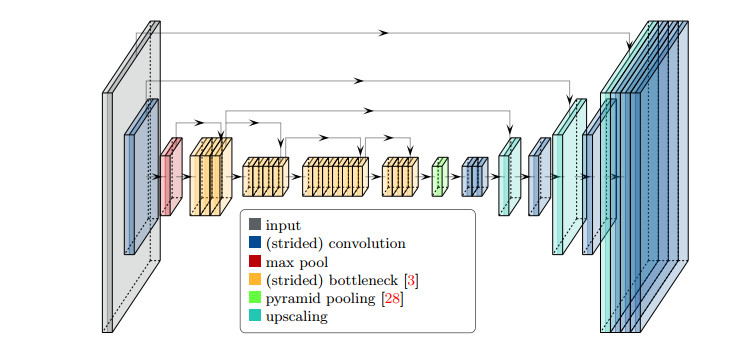

Figure 7. Feature maps of FBA-Net [2]. The output of the initial strided convolution (blue) of the input image (gray) is transformed with a max-pool layer (red), followed by 16 bottleneck layers (yellow), one pyramid pooling layer (green) and a mix of convolutions (blue) and upsampling operations (turquoise). The skip connections are indicated with arrows

Download: Full-size image PowerPoint slide

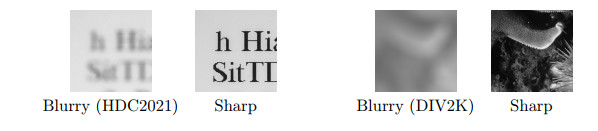

Figure 8. Two $ 320 \times 320 $ pairs of cropped training samples from the HDC2021 dataset (left) and DIV2K dataset (right)

Download: Full-size image PowerPoint slide

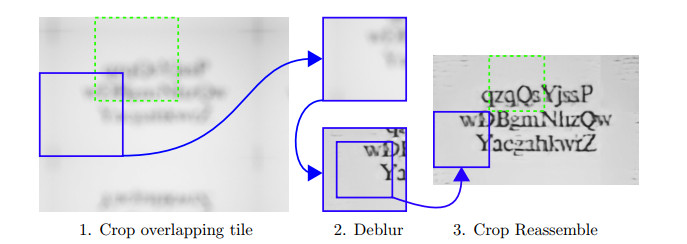

Figure 9. The padded blurry image is decomposed into overlapping tiles, which are then deblurred, cropped and reassembled (blue). The additional green tile with dashed outline shows that tiles in the blurry input image (left) overlap by 160 pixels, while tiles in the deblurred output image (right) do not

Download: Full-size image PowerPoint slide

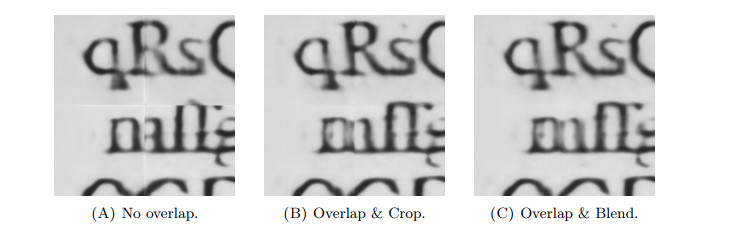

Figure 10. Comparison between different tile cropping and reassembling methods. A horizontal and vertical seam is clearly visible when neighboring tiles are deblurred individually. Cropping overlapped tiles greatly reduces those artifacts. No apparent seam is visible when blending overlapping tiles

Download: Full-size image PowerPoint slide

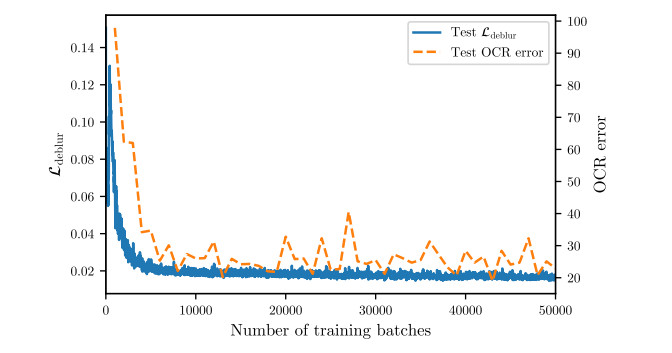

Figure 11. Evolution of $ \mathcal{L}_\text{deblur}(\theta_s) $ and the corresponding OCR error for stage 9 of the HDC 2021 dataset over 50000 training batches

Download: Full-size image PowerPoint slide

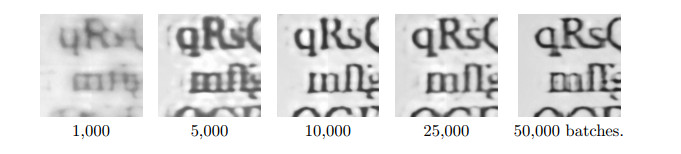

Figure 12. Evolution of deblurred images from our test dataset after training for a certain number of batches

Download: Full-size image PowerPoint slide

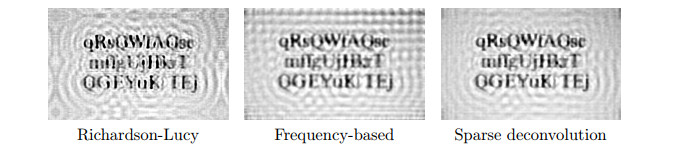

Figure 13. Qualitative comparison of deconvolution methods not based on deep learning for stage 9 of the HDC 2021 dataset

Download: Full-size image PowerPoint slide

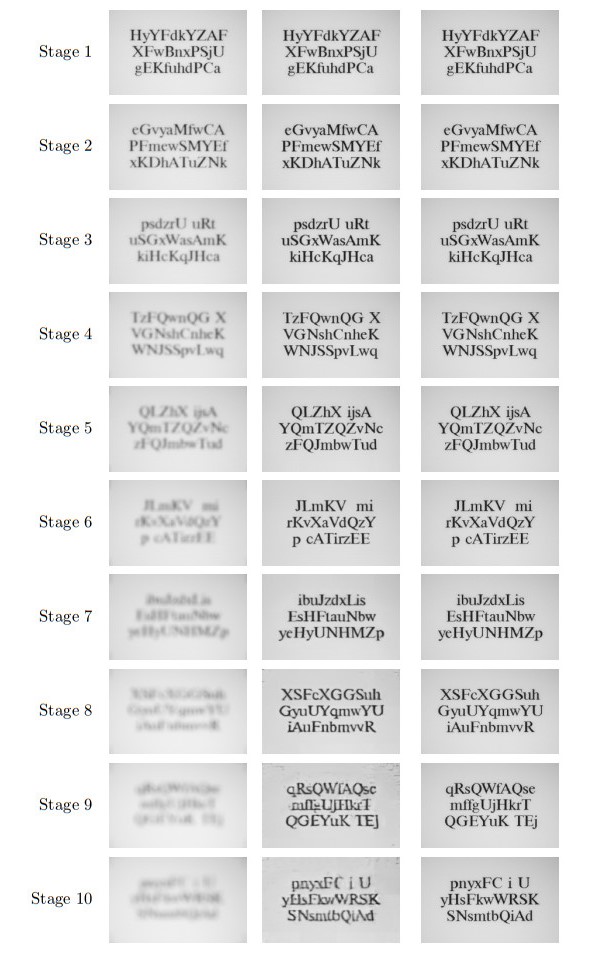

Figure 14. Blurry images, deblurred images and sharp images

Download: Full-size image PowerPoint slide

Table 1. Comparison of different networks and training methods for stage 9 of the HDC 2021 dataset. Variations marked with $ ^\dagger $ were trained on different datasets which include synthetically generated text images. Three methods not based on deep learning were also included for reference

Variation	OCR score	Parameters
U-Net 1¹	35.85	$ 7.76 \times 10^6 $
U-Net 2²	4.15	$ 7.78 \times 10^6 $
U-Net 3³	3.66	$ 31.04 \times 10^6 $
IndexNet	57.38	$ 3.69 \times 10^6 $
FBA-Net	75.34	$ 34.67 \times 10^6 $
FBA-Net without noise aug.	66.48	$ 34.67 \times 10^6 $
FBA-Net without warping	29.84	$ 34.67 \times 10^6 $
FBA-Net$ ^\dagger $ synthetic text & DIV2K	84.57	$ 34.67 \times 10^6 $
FBA-Net$ ^\dagger $ syn. & real text & DIV2K	83.62	$ 34.67 \times 10^6 $
FBA-Net$ ^\dagger $ only synthetic text	83.56	$ 34.67 \times 10^6 $
Richardson-Lucy [18,14]	34.36	—
Frequency-based [11]	5.77	—
Sparse [11]	38.23	—

| Show Table

DownLoad: CSV

Table 2. Comparison of different cropping strategies for tiled deblurring of the Times font images of stage 9 of the HDC2021 dataset

Overlap	OCR score
No overlap	65.37
Overlap & crop	70.27
Overlap & blend	71.98

| Show Table

DownLoad: CSV

Table 3. OCR scores for stages 0 to 10 of the HDC2021 dataset

Stage	0	1	2	3	4	5	6	7	8	9	10
Score	96.28	95.28	95.50	96.30	96.40	97.03	94.33	91.97	85.92	73.80	70.17

| Show Table

DownLoad: CSV
