A combined first and fractional order regularization method for mixed Poisson-white spike noisy image restoration

Suhua Wei; Linghai Kong

doi:10.3934/ipi.2023021

Article Contents

2024, Volume 18, Issue 1: 38-61. Doi: 10.3934/ipi.2023021

This issue Previous Article A multi-tasking novel variational model for image decolorization and denoising Next Article An inverse problem for a semi-linear wave equation: A numerical study

A combined first and fractional order regularization method for mixed Poisson-white spike noisy image restoration

Suhua Wei and
Linghai Kong^,

Institute of Applied Physics and Computational Mathematics, China

^*Corresponding author: Linghai Kong
^*Corresponding author: Linghai Kong

Received: August 2022

Revised: March 2023

Early access: May 2023

Published: February 2024

L. Kong and S. Wei are partially supported by National Science Foundation of China (NSFC) under Grant numbers 11571003, 12271053.

Abstract / Introduction Full Text(HTML) Figure(8) / Table(3) Related Papers Cited by

Abstract

In this paper we study the problem of restoring images affected by mixed Poisson-Square Cauchy noise. A multi-convex variational model is derived by integrating infimal convolution likelihood into a process of joint maximum a posteriori estimation, where a modified four-directional fractional-order total variation is united with the first order total variation to characterize the image prior. To solve the proposed model numerically, a block coefficient descent based algorithm is derived, in which variable splitting and alternating direction minimization of multipliers are utilized along with anisotropic diffusion and additive operator splitting to gain efficiency and quality. The obtained numerical results are compared with results obtained from two other total variation regularized models with different fidelities. The numerical discuss confirms the flexibility and validity of the proposed model.

Keywords:

Square Cauchy distribution,
four directional fractional order total variation,
mixed Poisson-white spike noise,
image restoration,
hybrid regularizer.

Mathematics Subject Classification: Primary: 65K10, 65R32; Secondary: 49M25, 49M41.

Citation:

Full Text(HTML)

Figure 1. Line slices of a NR data

Download: Full-size image PowerPoint slide

Figure 2. PDFs of standard Gaussian, Square-Cauchy, Cauchy, and Laplace distributions (log domain)

Download: Full-size image PowerPoint slide

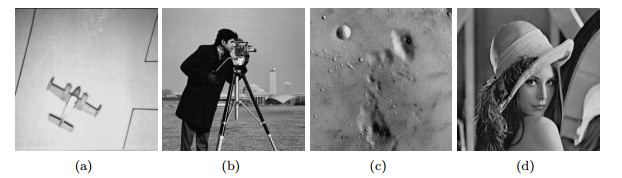

Figure 3. Original images for numerical experiments

Download: Full-size image PowerPoint slide

Figure 4. Image denoising: (a) Noisy image, obtained by adding mixed Poisson-Cauchy noise to Fig. 2(a). (b) An output of Algorithm 2. (c)An output of Algorithm 3. (d) Restored image derived by Algorithm with $ \alpha = 2 $. (e) A restored version of (d) with $ \alpha<2 $

Download: Full-size image PowerPoint slide

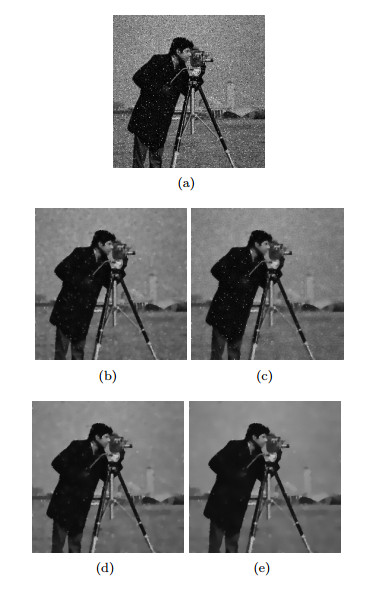

Figure 5. Image denoising: (a) Noisy image, obtained by adding MPC noise to Fig. 3(b). (b) Output of Algorithm 2. (c) Recovered image obtained by Algorithm 3. (d) Recovered image obtained by Algorithm 1 with $ \alpha>2 $. (e) Recovered image obtained by Algorithm 1 with $ \alpha \leq 2 $

Download: Full-size image PowerPoint slide

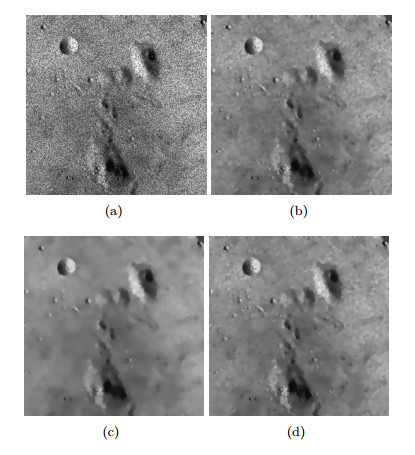

Figure 6. Image denoising: (a) Noisy image, obtained by adding Poisson noise to Figure 3(c). (b) Restored image by Algorithm 3. (c), (d) Restored images derived by Algorithm 1 with different $ K_d $ values

Download: Full-size image PowerPoint slide

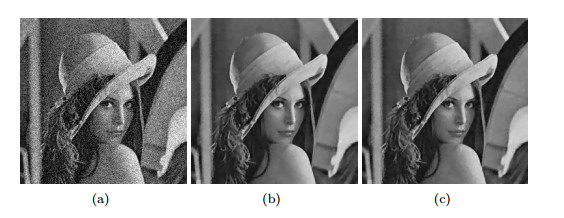

Figure 7. Image denoising: (a) Noisy image, obtained by adding truncated Gaussian noise to Figure 3(d). (b)An output of Algorithm 3. (c)A restored image derived by Algorithm 1

Download: Full-size image PowerPoint slide

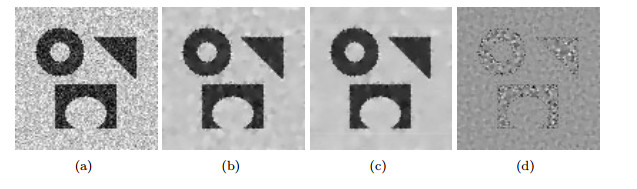

Figure 8. Image denoising: (a) A synthesized image with unknown noise. (b) A restored image using Algorithm 2. (c) A restored image derived by Algorithm 1. (d) the noise map $ w $

Download: Full-size image PowerPoint slide

Algorithm 1. Hybrid regularization model for MPS noisy image restoration
Given positive parameters $ \alpha $, $ \beta $, $ \lambda $, $ \tau $, $ \sigma_0^2 $, $ K_d $, $ K_h $, tolerance error $ \epsilon $, and number of iterations $ N $. Initialize $ u^0 = f $, $ \eta^0 $, $ (\sigma^2)^0 $. Set $ w^0 = 0 $, $ \mu_d^0 = \mu_h^0 = 0 $, $ d^0 = 0 $, and $ h^0 = 0 $. For $ \upsilon = 0, 1, 2, \ldots, N $, repeat the following steps:
Step 1. Calculate $ u^{v+1} $ by formuation (53). If $ \\|u^{v+1}-u^v\\|_2<\epsilon \max(1, \\|u^v\\|_2) $, then end the algorithm, otherwise,
Step 2. Update $ \eta $, $ d $, and $ h $ by formulations (57), (60), and (61), respectively.
Step 3. Update $ w $, $ \sigma^2 $ by formulations (72) and (75), or (79) and (80), respectively.
Step 4. Calculate $ \mu^{v+1} $ by formulation (50).
Let $ u^{v} = u^{v+1} $, $ v = v+1 $, and go to the Step 1.

| Show Table

DownLoad: CSV

Table 1. Parameter values for our proposed algorithms

Paras	$\alpha$	$b$	$\lambda$	$\tau$	$\beta$	$\Delta t$	$(\sigma^2)^0$	$K_d$	$K_h$
Values	[1.5, 3)	$10^{-2}$	0.85	$10^{-2}$	0.15	0.025	0.9	$0.0375$	$10^{-4}$

| Show Table

DownLoad: CSV

Table 2. Denoising performance

Image	Noise	SSIM-n	SSIM-t	SSIM-$p_1$	SSIM-$p_2$
Fig. 4	MPS	0.4453	0.8643 (0.8254)	0.9024	0.9790
Fig. 5	MPS	0.3684	0.6498 (0.6119)	0.6725	0.7223
Fig. 6	Poisson	0.5003	0.8633	0.9207	0.9406
Fig. 7	Gaussian	0.5918	0.9408	-	0.9477

| Show Table

DownLoad: CSV
