Fully-connected tensor network decomposition for robust tensor completion problem

Yun-Yang Liu; Xi-Le Zhao; Guang-Jing Song; Yu-Bang Zheng; Michael K. Ng; Ting-Zhu Huang

doi:10.3934/ipi.2023030

Article Contents

2024, Volume 18, Issue 1: 208-238. Doi: 10.3934/ipi.2023030

This issue Previous Article The Born approximation in the three-dimensional Calderón problem Ⅱ: Numerical reconstruction in the radial case Next Article Inverse Regge poles problem on a warped ball

Fully-connected tensor network decomposition for robust tensor completion problem

1.
School of Mathematical Sciences, University of Electronic Science and Technology of China, Chengdu, 611731, China
2.
School of Mathematics and Information Sciences, Weifang University, Weifang, 261061, China
3.
School of Information Science and Technology, Southwest Jiaotong University, Chengdu, 611756, China
4.
Department of Mathematics, The University of Hong Kong, Pokfulam, 999077, Hong Kong

^*Corresponding author: Xi-Le Zhao
^*Corresponding author: Xi-Le Zhao

Received: May 2022

Revised: January 2023

Early access: June 2023

Published: February 2024

Abstract / Introduction Full Text(HTML) Figure(9) / Table(5) Related Papers Cited by

Abstract

Motivated by the success of fully-connected tensor network (FCTN) decomposition, we suggest two FCTN-based models for the robust tensor completion (RTC) problem. Firstly, we propose an $ \textbf{FCTN} $-based $ \textbf{r} $obust $ \textbf{n} $on$ \textbf{c} $onvex optimization model (RNC-FCTN) directly based on FCTN decomposition for the RTC problem. Then, a proximal alternating minimization (PAM)-based algorithm is developed to solve the proposed RNC-FCTN. Meanwhile, we theoretically derive the convergence of the PAM-based algorithm. Although the nonconvex model has shown empirically excellent results, the exact recovery guarantee is still missing and $ N(N-1)/2+1 $ tuning parameters are difficult to choose for $ N $-th order tensor. Therefore, we propose the FCTN nuclear norm as the convex surrogate function of the FCTN rank and suggest an $ \textbf{FCTN} $ nuclear norm-based $ \textbf{r} $obust $ \textbf{c} $onvex optimization model (RC-FCTN) for the RTC problem. For solving the constrained optimization model RC-FCTN, we develop an alternating direction method of multipliers (ADMM)-based algorithm, which enjoys the global convergence guarantee. To explore the exact recovery guarantee, we design a constructive singular value decomposition (SVD)-based FCTN decomposition, which is another crucial algorithm to obtain the factor tensors of FCTN decomposition. Accordingly, we rigorously establish the exact recovery guarantee for the RC-FCTN and suggest the theoretical optimal value for the only one parameter in the convex model. Comprehensive numerical experiments in several applications, such as video completion and video background subtraction, demonstrate that the suggested convex and nonconvex models have achieved state-of-the-art performance.

Keywords:

Robust tensor completion,
fully-connected tensor network decomposition,
exact recovery guarantee.

Mathematics Subject Classification: Primary: 94A08, 68U10; Secondary: 65F50.

Citation:

FullText(HTML)

Figure 1. The illustration of tensor network decomposition

Download: Full-size image PowerPoint slide

Figure 2. The illustration of tensor network decompositions

Download: Full-size image PowerPoint slide

Figure 3. The graphical representation of the SVD-based FCTN decomposition. (a), (b), and (c) are the graphical representation of the SVD-based FCTN decomposition of a fourth-order tensor, a fifth-order tensor, and an $ \mathit{N} $th-order tensor, respectively

Download: Full-size image PowerPoint slide

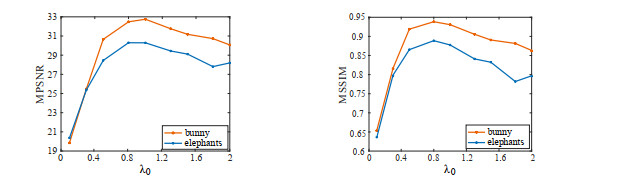

Figure 4. The MPSNR and MSSIM values recovered by RNC-FCTN with respect to $ \lambda_0 $ for two color videos

Download: Full-size image PowerPoint slide

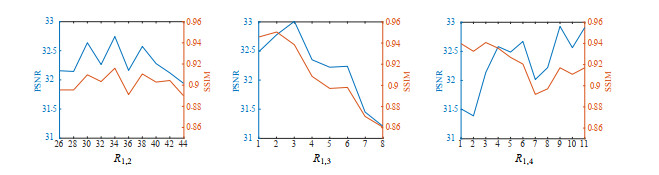

Figure 5. The MPSNR and MSSIM values recovered by RNC-FCTN with respect to the FCTN-rank for color video $ \mathit{bunny} $

Download: Full-size image PowerPoint slide

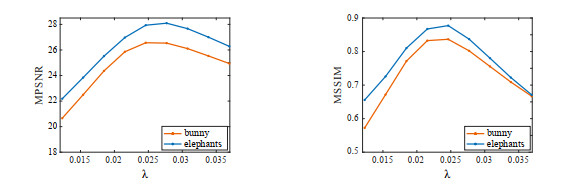

Figure 6. The MPSNR and MSSIM values recovered by RC-FCTN with respect to $ \lambda $ for two color videos

Download: Full-size image PowerPoint slide

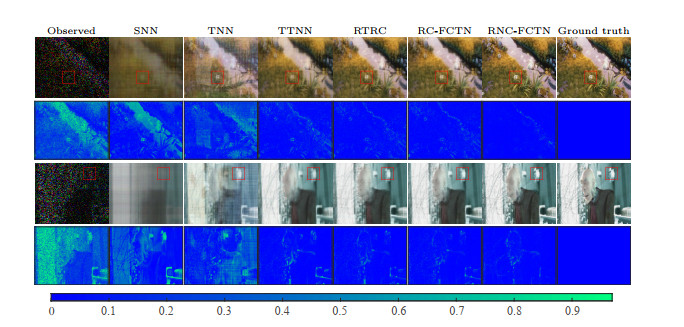

Figure 7. Recovered results on two color videos with SR = 0.2 and SaP = 0.1. The first row and third row are visual results at the 1st frame of $ \mathit{bunny} $ and the 50th frame of $ \mathit{elephants} $, respectively. The second row and fourth row are the corresponding residual images

Download: Full-size image PowerPoint slide

Figure 8. Recovered results on the HSV (band 8, 9, and 10 of first frame are picked as red, green, and blue channels). The first row and third row are visual results with SR = 0.1, SaP = 0.1 and 0.2, respectively. The second row and fourth row are the corresponding residual images

Download: Full-size image PowerPoint slide

Figure 9. The visual results of the 17th frame, the 27th frame, the 37th frame, and the 47th frame of six robust competition methods

Download: Full-size image PowerPoint slide

Table 1. The notations of the unfolding matrices of tensor $ \mathcal{X} \in \mathbb{R}^{I_1 \times I_2 \times \cdots \times I_N} $

Name	Form	Size	The corresponding tensor decomposition
The mode-$ k $ matricization	$ \textbf{X}_{(k)} $	$ I_k \times \Pi_{i=1, i \neq k}^N I_i $	Tucker decomposition
The $ k $th frontal slice	$ \textbf{X}^{(k)} $	$ I_1 \times I_2 $	t-SVD
The $ k $-mode matricization	$ \textbf{X}_{[k]} $	$ \Pi_{i=1}^k I_i \times \Pi_{i=k+1}^N I_i $	TT decomposition
The $ k $th circularly unfolding matrice	$ \textbf{X}_{<k, L>} $	$ \Pi_{i=k}^{k+L-1} I_i \times \Pi_{i=k+L}^{k-1} I_i $	TR decomposition
The generalized unfolding matrix	$ \textbf{X}_{[\textbf{n}_{1:d};\textbf{n}_{d+1:N}]} $	$ \Pi_{i=1}^d I_{\textbf{n}_i} \times \Pi_{i=d+1}^N I_{\textbf{n}_i} $	FCTN decomposition

| Show Table

DownLoad: CSV

Table 2. The comparison of the computational complexity of the proposed methods and compared methods

Method	The computational complexity of each step
SNN	$ \mathcal{O}\big(\sum_{k=1}^{4} p_k q_k $ min $ (p_k, q_k)\big) $ $ \left(p_k= I_k \text{and} q_k = \prod_{i=1, i \neq k }^4 I_i \right) $
TNN	$ \mathcal{O}\big(I_1 I_2 log(I_3 I_4))+\text{min}(I_1, I_2) \prod_{i=1}^4 I_i \big) $
TTNN	$ \mathcal{O}\big(\sum_{k=1}^{4} p_k q_k $ min $ (p_k, q_k)\big) $ $ \left(p_k= \prod_{i=1}^k I_i \text{and} q_i = \prod_{i=k+1}^4 I_i \right) $
RTRC	$ \mathcal{O}\big(\sum_{k=1}^{2} p_k q_k $ min $ (p_k, q_k)\big) $ $ \left(p_k= \prod_{i=k}^{k+1} I_i \text{and} q_i = \prod_{i=k+2}^{k+3} I_i \text{with} I_5=I_1 \right) $
RC-FCTN	$ \mathcal{O}\big(\sum_{k=1}^{3} p_k q_k $ min $ (p_k, q_k)\big) $ $ \left(p_k= \prod_{i=1}^l I_{\textbf{n}_i} \text{and} q_k= \prod_{i=l+1}^4 I_{\textbf{n}_i}\right) $
RNC-FCTN	$ \mathcal{O}(4\sum_{k=2}^{4} I^k R^{k(4-k)+k-1} +4 I^3 R^6) $

| Show Table

DownLoad: CSV

Table 3. Exact recovery on random synthetic data in different cases

size $ I $	rank $ r $	$ \rho $	$ s $	$ \\|\mathcal{X}-\mathcal{X}^0\\|_F/\\|\mathcal{X}^0\\|_F $	size $ I $	rank $ r $	$ \rho $	$ s $	$ \\|\mathcal{X}-\mathcal{X}^0\\|_F/\\|\mathcal{X}^0\\|_F $
20	0.1$ I $	1	0.05	$ 1.28 \times 10^{-4} $	40	0.1$ I $	1	0.05	$ 1.06 \times 10^{-4} $
		1	0.1	$ 1.56 \times 10^{-4} $			1	0.1	$ 1.12 \times 10^{-4} $
		0.9	0.05	$ 1.93 \times 10^{-4} $			0.9	0.05	$ 1.72 \times 10^{-4} $
		0.9	0.1	$ 1.96 \times 10^{-4} $			0.9	0.1	$ 2.25 \times 10^{-4} $
	0.2$ I $	1	0.05	$ 4.74 \times 10^{-4} $		0.2$ I $	1	0.05	$ 1.77 \times 10^{-4} $
		1	0.1	$ 7.83 \times 10^{-4} $			1	0.1	$ 2.88 \times 10^{-4} $
		0.9	0.05	$ 6.55 \times 10^{-4} $			0.9	0.05	$ 2.66 \times 10^{-4} $
		0.9	0.1	$ 8.35 \times 10^{-4} $			0.9	0.1	$ 3.01 \times 10^{-4} $

| Show Table

DownLoad: CSV

Table 4. The MPSNR/MSSIM, iteration number, and CPU time (seconds) of the recovered color videos by different methods for different cases

Data	Methods	SaP=0.1, SR=0.6				SaP=0.1, SR=0.4				SaP=0.1, SR=0.2
Data	Methods	MPSNR	MSSIM	Iter	Time	MPSNR	MSSIM	Iter	Time	MPSNR	MSSIM	Iter	Time
$ \mathit{bunny} $	Observed	9.357	0.095	-	-	8.035	0.062	-	-	7.024	0.033	-	-
	SNN	26.80	0.832	128	83.5	22.61	0.653	142	87.3	14.92	0.415	143	85.3
	TNN	34.61	0.955	34	22.9	30.59	0.925	34	22.6	25.67	0.774	34	22.1
	TTNN	32.86	0.966	60	27.8	29.80	0.937	66	29.3	23.90	0.764	74	33.7
	RTRC	34.05	0.962	66	26.7	30.87	0.924	67	28.5	26.60	0.835	72	30.1
	RC-FCTN	34.92	0.975	85	60.1	31.86	0.946	87	62.1	26.56	0.837	92	64.4
	RNC-FCTN	39.72	0.983	643	849.7	37.11	0.977	656	856.1	32.85	0.941	676	880.8
$ \mathit{elephants} $	Observed	7.146	0.049	-	-	5.631	0.031	-	-	4.516	0.017	-	-
	SNN	28.80	0.863	141	88.7	24.21	0.759	143	89.9	14.45	0.516	144	85.7
	TNN	34.35	0.958	32	22.2	31.05	0.928	33	22.5	26.28	0.811	32	21.8
	TTNN	32.61	0.943	62	28.1	29.75	0.933	68	30.5	25.42	0.845	67	29.4
	RTRC	33.69	0.961	66	27.2	30.52	0.929	68	28.5	26.31	0.847	75	32.3
	RC-FCTN	36.99	0.974	83	62.3	33.25	0.956	87	62.1	27.94	0.877	94	66.4
	RNC-FCTN	39.18	0.975	651	841.7	36.20	0.960	663	850.0	29.91	0.888	669	889.9

| Show Table

DownLoad: CSV

Table 5. The MPSNR/MSSIM, iteration number, and CPU time (seconds) of the recovered HSV by different methods for different cases

Methods	SaP=0.1, SR=0.3				SaP=0.1, SR=0.2				SaP=0.1, SR=0.1
Methods	MPSNR	MSSIM	Iter	Time	MPSNR	MSSIM	Iter	Time	MPSNR	MSSIM	Iter	Time
Observed	9.367	0.071	-	-	8.936	0.048	-	-	8.545	0.026	-	-
SNN	26.89	0.872	94	24.9	24.12	0.790	97	25.6	19.23	0.628	98	25.8
TNN	43.23	0.993	36	12.4	37.77	0.983	36	12.6	27.72	0.893	34	11.2
TTNN	45.71	0.995	89	28.7	43.18	0.993	94	30.7	36.68	0.985	94	29.2
RTRC	45.73	0.996	93	33.0	42.70	0.994	95	32.1	36.56	0.983	99	36.4
RC-FCTN	46.64	0.997	109	67.2	43.98	0.995	110	67.7	37.88	0.988	112	66.4
RNC-FCTN	46.91	0.997	436	162.2	44.38	0.995	443	159.0	39.20	0.986	446	159.9
Methods	SaP=0.2, SR=0.3				SaP=0.2, SR=0.2				SaP=0.2, SR=0.1
Methods	MPSNR	MSSIM	Iter	Time	MPSNR	MSSIM	Iter	Time	MPSNR	MSSIM	Iter	Time
Observed	9.015	0.055	-	-	8.716	0.038	-	-	8.448	0.022	-	-
SNN	24.24	0.759	89	23.1	21.32	0.722	94	24.8	17.00	0.527	98	25.1
TNN	39.75	0.987	36	12.4	34.37	0.969	36	12.2	25.14	0.821	34	11.0
TTNN	43.43	0.994	72	24.7	40.20	0.993	82	26.7	34.38	0.971	92	29.6
RTRC	42.62	0.994	83	30.6	39.09	0.991	87	31.7	33.65	0.972	96	35.8
RC-FCTN	43.79	0.996	110	68.7	39.62	0.991	112	69.9	34.49	0.974	112	67.1
RNC-FCTN	44.73	0.995	421	149.7	41.93	0.992	423	155.2	36.02	0.975	426	157.8

| Show Table

DownLoad: CSV
