An inverse potential problem for the stochastic diffusion equation with a multiplicative white noise

Xiaoli Feng; Peijun Li; Xu Wang

doi:10.3934/ipi.2023032

Article Contents

2024, Volume 18, Issue 1: 271-285. Doi: 10.3934/ipi.2023032

This issue Previous Article Inverse Regge poles problem on a warped ball Next Article Finding robust minimizer for non-convex phase retrieval

An inverse potential problem for the stochastic diffusion equation with a multiplicative white noise

1.
School of Mathematics and Statistics, Xidian University, Xi'an 713200, China
2.
Department of Mathematics, Purdue University, West Lafayette, Indiana 47907, USA
3.
LSEC, ICMSEC, Academy of Mathematics and Systems Science, Chinese Academy of Sciences, Beijing 100190, China, and School of Mathematical Sciences, University of Chinese Academy of Sciences, Beijing 100049, China

^*Corresponding author: Xu Wang
^*Corresponding author: Xu Wang

Received: February 2023

Revised: July 2023

Early access: August 2023

Published: February 2024

The first author is supported by the Natural Science Basic Research Program of Shaanxi (No. 2023-JC-YB-054). The second author is supported in part by the NSF grant DMS-2208256. The third author is supported by the NNSF of China (Nos. 11971470, 11871068, and 12288201).

Abstract / Introduction Full Text(HTML) Figure(8) Related Papers Cited by

Abstract

This work concerns the direct and inverse potential problems for the stochastic diffusion equation driven by a multiplicative time-dependent white noise. The direct problem is to examine the well-posedness of the stochastic diffusion equation for a given potential, while the inverse problem is to determine the potential from the expectation of the solution at a fixed observation point inside the spatial domain. The direct problem is shown to admit a unique and positive mild solution if the initial value is nonnegative. Moreover, an explicit formula is deduced to reconstruct the square of the potential, which leads to the uniqueness of the inverse problem for nonnegative potential functions. Two regularization methods are utilized to overcome the instability of the numerical differentiation in the reconstruction formula. Numerical results show that the methods are effective to reconstruct both smooth and nonsmooth potential functions.

Keywords:

Mathematics Subject Classification: 35K05, 35R30, 60H15, 80A23.

Citation:

FullText(HTML)

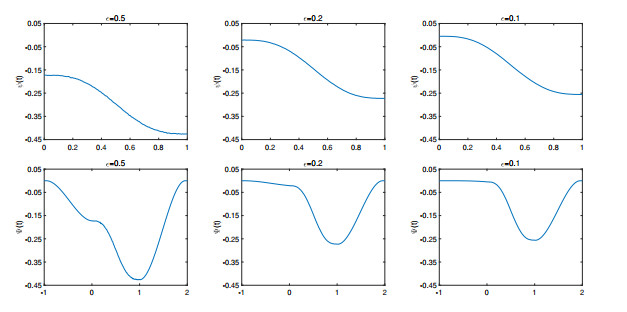

Figure 1. Example 1: the data function $ \psi(t) $ on $ [0,1] $ (top row) and the corresponding periodization $ \Psi(t) $ on $ [-1,2] $ (bottom row) at different noise levels ($ \epsilon = 0.5, 0.2, 0.1 $) with a fixed number of realizations ($ P = 10^6 $)

Download: Full-size image PowerPoint slide

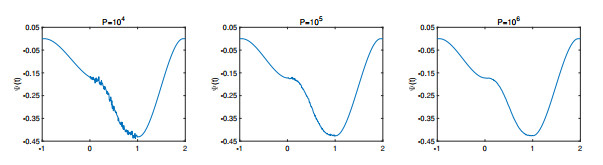

Figure 2. Example 1: the periodized data function $ \Psi(t) $ on $ [-1,2] $ with a different number of realizations ($ P = 10^4,10^5,10^6 $) at a fixed noise level ($ \epsilon = 0.5 $)

Download: Full-size image PowerPoint slide

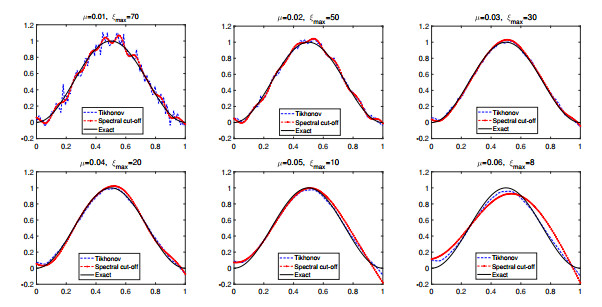

Figure 3. Example 1: the reconstruction of $ q^2 $ with different regularization parameters at a fixed noise level ($ \epsilon = 0.5 $) and a fixed number of realizations ($ P = 10^6 $)

Download: Full-size image PowerPoint slide

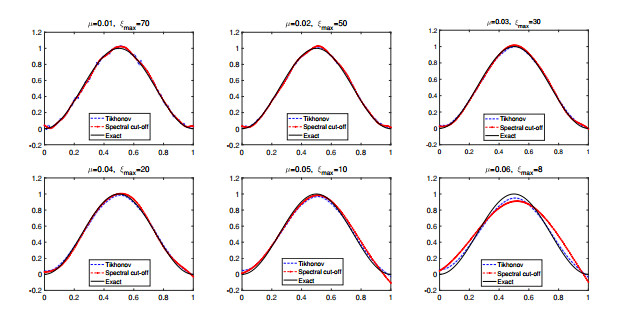

Figure 4. Example 1: the reconstruction of $ q^2 $ with different regularization parameters at a fixed noise level ($ \epsilon = 0.2 $) and a fixed number of realizations ($ P = 10^6 $)

Download: Full-size image PowerPoint slide

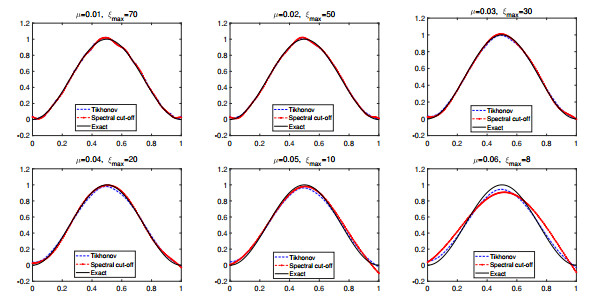

Figure 5. Example 1: the reconstruction of $ q^2 $ with different regularization parameters at a fixed noise level ($ \epsilon = 0.1 $) and a fixed number of realizations ($ P = 10^6 $)

Download: Full-size image PowerPoint slide

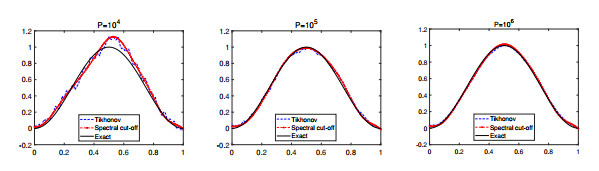

Figure 6. Example 1: the reconstruction of $ q^2 $ with a different number of realizations ($ P = 10^4,10^5,10^6 $) at a fixed noise level ($ \epsilon = 0.2 $) and a fixed regularization parameter ($ \mu = 0.03 $, $ \xi_{\rm max} = 30 $)

Download: Full-size image PowerPoint slide

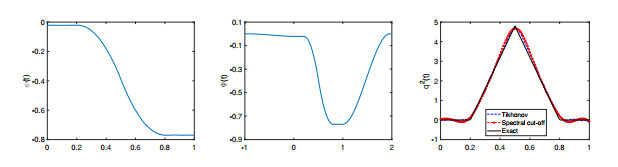

Figure 7. Example 2: the data function $ \psi(t) $ on $ [0, 1] $ (left), the periodization $ \Psi $ on $ [-1,2] $ (middle), and the reconstruction of $ q^2 $ (right) with the parameters given by $ P = 10^5 $, $ \epsilon = 0.2 $, $ \mu = 0.02 $, $ \xi_{\rm max} = 30 $

Download: Full-size image PowerPoint slide

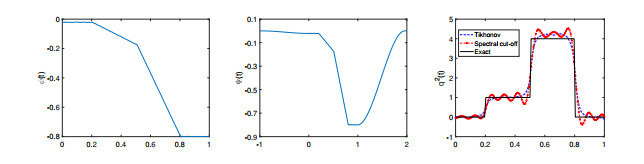

Figure 8. Example 3: the data function $ \psi(t) $ on $ [0, 1] $ (left), the periodization $ \Psi $ on $ [-1,2] $ (middle), and the reconstruction of $ q^2 $ (right) with the parameters given by $ P = 10^5 $, $ \epsilon = 0.2 $, $ \mu = 0.02 $, $ \xi_{\rm max} = 70 $

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	S. Avdonin and J. Bell, Determining a distributed parameter in a neural cable model via a boundary control method, J. Math. Biol., 67 (2013), 123-141. doi: 10.1007/s00285-012-0537-6.
[2]	A. Boumenir and V. K. Tuan, Reconstruction of the coefficients of a star graph from observations of its vertices, Inverse Probl. Imaging, 12 (2018), 1293-1308. doi: 10.3934/ipi.2018054.
[3]	J. R. Cannon, Y. Lin and S. Xu, Numerical procedures for the determination of an unknown coefficient in semi-linear parabolic differential equations, Inverse Problems, 10 (1994), 227-243.
[4]	B. Canuto and O. Kavian, Determining coefficients in a class of heat equations via boundary measurements, SIAM J. Math. Anal., 32 (2001), 963-986. doi: 10.1137/S003614109936525X.
[5]	J. Cheng, J. Nakagawa, M. Yamamoto and T. Yamazaki, Uniqueness in an inverse problem for a one-dimensional fractional diffusion equation, Inverse Problems, 25 (2009), 115002. doi: 10.1088/0266-5611/25/11/115002.
[6]	L. Eldén, F. Berntsson and T. Regińska, Wavelet and Fourier methods for solving the sideways heat equation, SIAM J. Sci. Comput., 21 (2000), 2187-2205. doi: 10.1137/S1064827597331394.
[7]	L. C. Evans, Partial Differential Equations, 2$^{nd}$ edition, Graduate Studies in Mathematics, 19, American Mathematical Society, Providence, RI, 2010. doi: 10.1090/gsm/019.
[8]	L. C. Evans, An Introduction to Stochastic Differential Equations, American Mathematical Society, Providence, RI, 2013. doi: 10.1090/mbk/082.
[9]	X. Feng, P. Li and X. Wang, An inverse random source problem for the time fractional diffusion equation driven by a fractional Brownian motion, Inverse Problems, 36 (2020), 045008. doi: 10.1088/1361-6420/ab6503.
[10]	P. Gaitan and Y. Kian, A stability result for a time-dependent potential in a cylindrical domain, Inverse Problems, 29 (2013), 065006. doi: 10.1088/0266-5611/29/6/065006.
[11]	Y. Gong, P. Li, X. Wang and X. Xu, Numerical solution of an inverse random source problem for the time fractional diffusion equation via PhaseLift, Inverse Problems, 37 (2021), 045001. doi: 10.1088/1361-6420/abe6f0.
[12]	I. Gyöngy, Lattice approximations for stochastic quasi-linear parabolic partial differential equations driven by space-time white noise, Ⅱ, Potential Anal., 11 (1999), 1-37. doi: 10.1023/A:1008699504438.
[13]	V. Isakov, Inverse Problems for Partial Differential Equations, Springer-Verlag, New York, 1998. doi: 10.1007/978-1-4899-0030-2.
[14]	S. Jiang and T. Wei, Recovering a time-dependent potential function in a time fractional diffusion equation by using a nonlinear condition, Inverse Probl. Sci. Eng., 29 (2021), 174-195. doi: 10.1080/17415977.2020.1782399.
[15]	B. Jin and Z. Zhou, An inverse potential problem for subdiffusion: stability and reconstruction, Inverse Problems, 37 (2021), 015006. doi: 10.1088/1361-6420/abb61e.
[16]	B. S. Jovanović and E. Süli, Analysis of Finite Difference Schemes. For Linear Partial Differential Equations with Generalized Solutions, Springer Ser. Comput. Math., 46 Springer, London, 2014. doi: 10.1007/978-1-4471-5460-0.
[17]	B. Kaltenbacher and W. Rundell, On an inverse potential problem for a fractional reaction-diffusion equation, Inverse Problems, 35 (2019), 065004. doi: 10.1088/1361-6420/ab109e.
[18]	I. Karatzas and S. E. Shreve, Brownian Motion and Stochastic Calculus, 2$^{nd}$ edition, Grad. Texts in Math., 113 Springer-Verlag, New York, 1991. doi: 10.1007/978-1-4612-0949-2.
[19]	Y. Kian, L. Oksanen, E. Soccorsi and M. Yamamoto, Global uniqueness in an inverse problem for time fractional diffusion equations, J. Differential Equations, 264 (2018), 1146-1170. doi: 10.1016/j.jde.2017.09.032.
[20]	G. Li, D. Zhang, X. Jia and M. Yamamoto, Simultaneous inversion for the space-dependent diffusion coefficient and the fractional order in the time-fractional diffusion equation, Inverse Problems, 29 (2013), 065014. doi: 10.1088/0266-5611/29/6/065014.
[21]	D. Liu and C. Yang, Recovery of the heat equation on a star graph, Mediterr. J. Math., 18 (2021), 1-15. doi: 10.1007/s00009-021-01881-8.
[22]	W. Liu and M. Röckner, Stochastic Partial Differential Equations: An Introduction, Universitext, Springer, Cham, 2015. doi: 10.1007/978-3-319-22354-4.
[23]	Q. Lü, Carleman estimate for stochastic parabolic equations and inverse stochastic parabolic problems, Inverse Problems, 28 (2012), 045008. doi: 10.1088/0266-5611/28/4/045008.
[24]	P. Niu, T. Helin and Z. Zhang, An inverse random source problem in a stochastic fractional diffusion equation, Inverse Problems, 36 (2020), 045002. doi: 10.1088/1361-6420/ab532c.
[25]	Y. Ou, J. Zhao, Z. Liu and J. Tang, Determination of the unknown time dependent coefficient $p(t)$ in the parabolic equation $u_t = \Delta u+p(t)u+\phi(x, t)$, J. Inverse Ill-Posed Probl., 19 (2011), 525-531. doi: 10.1515/JIIP.2011.042.
[26]	Z. Qian, C. Fu and X. Feng, A modified method for high order numerical derivatives, Appl. Math. Comput., 182 (2006), 1191-1200. doi: 10.1016/j.amc.2006.04.059.
[27]	Z. Qian, C. Fu, X. Xiong and T. Wei, Fourier truncation method for high order numerical derivatives, Appl. Math. Comput., 181 (2006), 940-948. doi: 10.1016/j.amc.2006.01.057.
[28]	Z. Ruan, Q. Hu and W. Zhang, Identification of a time-dependent control parameter for a stochastic diffusion equation, Comput. Appl. Math., 40 (2021), 1-21. doi: 10.1007/s40314-021-01598-0.
[29]	W. Rundell, The determination of a parabolic equation from initial and final data, Proc. Amer. Math. Soc., 99 (1987), 637-642. doi: 10.2307/2046467.
[30]	V. Thomée, Galerkin Finite Element Methods for Parabolic Problems, 2$^{nd}$ edition, Springer Series in Computational Mathematics, 25, Springer-Verlag, Berlin, 2006.
[31]	G. Yuan, Conditional stability in determination of initial data for stochastic parabolic equations, Inverse Problems, 33 (2017), 035014. doi: 10.1088/1361-6420/aa5d7a.
