A Wasserstein distance and total variation regularized model for image reconstruction problems

Yiming Gao

doi:10.3934/ipi.2023045

Article Contents

2024, Volume 18, Issue 3: 600-622. Doi: 10.3934/ipi.2023045

This issue Previous Article How to best combine demosaicing and denoising? Next Article Self-supervised multi-scale neural network for blind deblurring

A Wasserstein distance and total variation regularized model for image reconstruction problems

Yiming Gao

School of Mathematics, Nanjing University of Aeronautics and Astronautics, China

Received: February 2023

Revised: July 2023

Early access: November 7, 2023

Published online: November 7, 2023

The author is supported by the Natural Science Foundation of Jiangsu Province (No. BK20220864) and National Natural Science Foundation of China (No. 12301541).

Abstract / Introduction Full Text(HTML) Figure(6) / Table(3) Related Papers Cited by

Abstract

Optimal transport has gained much attention in image processing fields, such as computer vision, image interpolation and medical image registration. Recently, Bredies et al. (ESAIM: M2AN 54:2351-2382, 2020) and Schmitzer et al. (IEEE T MED IMAGING 39:1626-1635, 2019) established the framework of optimal transport regularization for dynamic inverse problems. In this paper, we incorporate Wasserstein distance, together with total variation, into static inverse problems as a prior regularization. The Wasserstein distance formulated by Benamou-Brenier energy measures the similarity between the given template and the reconstructed image. Also, we analyze the existence of solutions of such variational problems in Radon measure space. Moreover, the first-order primal-dual algorithm is constructed for solving this general imaging problem in a specific grid strategy. Finally, numerical experiments for undersampled MRI reconstruction are presented which show that our proposed model can recover images well with high quality and structure preservation.

Keywords:

Mathematics Subject Classification: Primary: 26A45, 68U10; Secondary: 92C55.

Citation:

Full Text(HTML)

Figure 1. The sampling pattern

Download: Full-size image PowerPoint slide

Figure 2. The testing images named "Phantom" (128$ \times $128), "SheppLogan" (128$ \times $128) and "Brain" (196$ \times $196) and their templates. The templates are made synthetically by performing some deformations on the ground truths

Download: Full-size image PowerPoint slide

Figure 3. The restorations of Zero-filling, TV and the proposed Wass-TV method on image "Phantom." The sampling rates of the first, third and fifth rows are 4.29%, 8.48% and 12.68%, respectively. The even rows exhibit the differences to the ground truth (blue indicates over estimation, and red indicates under estimation)

Download: Full-size image PowerPoint slide

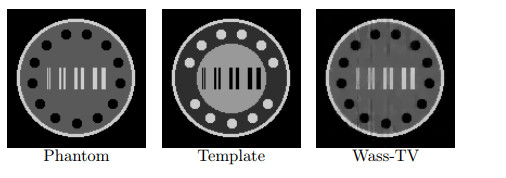

Figure 4. The "Phantom" image reconstruction based on another modality template with 10 spokes (8.48% sampling rate). Wass-TV: PSNR is 29.94; SSIM is 0.9421

Download: Full-size image PowerPoint slide

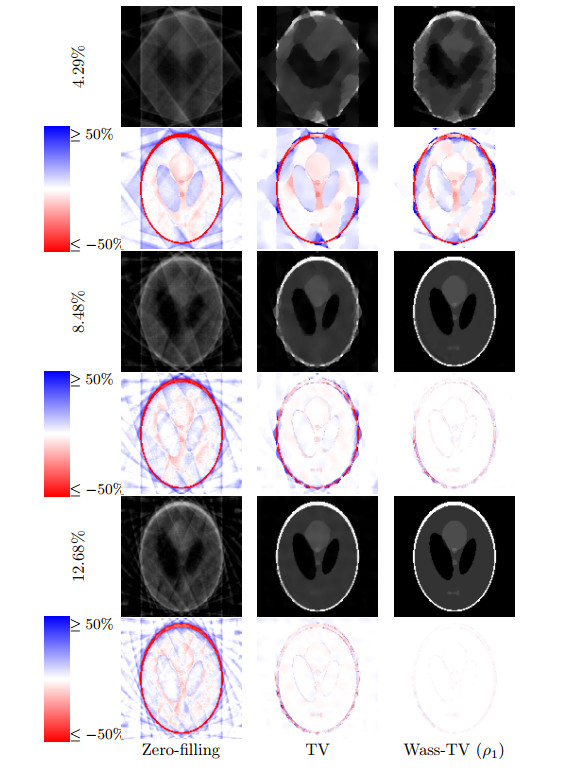

Figure 5. The restorations of Zero-filling, TV and the proposed Wass-TV method on image "SheppLogan." The sampling rates of the first, second and third rows are 4.29%, 8.48% and 12.68%, respectively. The even rows exhibit the differences to the ground truth (blue indicates over estimation, and red indicates under estimation)

Download: Full-size image PowerPoint slide

Figure 6. The restorations of Zero-filling, TV and the proposed Wass-TV method on image "Brain." The sampling rates of the first, second and third rows are 5.58%, 11.40% and 16.37%, respectively. The even rows exhibit the differences to the ground truth (blue indicates over estimation, and red indicates under estimation)

Download: Full-size image PowerPoint slide

Table 1. PSNR and SSIM values of Zero-filling, TV and our proposed method with different sampling rates on "Phantom" image. The numbers in the brackets (the first column) are the numbers of sampling spokes

sampling rate	PSNR (dB)			SSIM
sampling rate	Zero-filling	TV	Wass-TV	Zero-filling	TV	Wass-TV
4.29% (5)	15.40	15.48	17.26	0.2497	0.3163	0.5344
8.48% (10)	16.90	22.02	30.05	0.3173	0.6918	0.9441
12.68% (15)	18.02	28.70	37.60	0.3695	0.9181	0.9924

| Show Table

DownLoad: CSV

Table 2. PSNR and SSIM values of Zero-filling, TV and our proposed method with different sampling rates on "SheppLogan" image. The numbers in the brackets (the first column) are the numbers of sampling spokes

sampling rate	PSNR (dB)			SSIM
sampling rate	Zero-filling	TV	Wass-TV	Zero-filling	TV	Wass-TV
4.29% (5)	15.40	15.68	17.55	0.2989	0.3636	0.6218
8.48% (10)	16.61	20.80	30.74	0.3158	0.6927	0.9748
12.68% (15)	17.32	28.67	43.54	0.3235	0.8658	0.9979

| Show Table

DownLoad: CSV

Table 3. PSNR and SSIM values of Zero-filling, TV and our proposed method with different sampling rates on "Brain" image. The numbers in the brackets (the first column) are the numbers of sampling spokes

sampling rate	PSNR (dB)			SSIM
sampling rate	Zero-filling	TV	Wass-TV	Zero-filling	TV	Wass-TV
5.58% (10)	16.67	20.03	22.31	0.2813	0.4571	0.7407
11.40% (20)	19.29	27.54	29.74	0.3845	0.8215	0.9451
16.37% (30)	21.14	32.29	34.92	0.4646	0.9595	0.9865

| Show Table

DownLoad: CSV
