Direct imaging of inhomogeneities in a 3D shallow ocean waveguide with an elastic seabed

Keji Liu

doi:10.3934/ipi.2024027

Article Contents

2025, Volume 19, Issue 1: 109-132. Doi: 10.3934/ipi.2024027

This issue Previous Article Denoising of sphere- and SO(3)-valued data by relaxed tikhonov regularization Next Article Stability estimates for the inverse source problem with passive measurements

Direct imaging of inhomogeneities in a 3D shallow ocean waveguide with an elastic seabed

Keji Liu

School of Mathematics, Dishui Lake Advanced Finance Institute, Shanghai University of Finance and Economics, 777 Guoding Road, Shanghai 200433, China

Received: December 2023

Revised: May 2024

Early access: June 2024

Published: February 2025

The work of K. Liu was supported by [the NNSF of China under grant No. 12071275].

Abstract / Introduction Full Text(HTML) Figure(9) Related Papers Cited by

Abstract

We were concerned with identifying scattering inhomogeneities in a three-dimensional shallow ocean waveguide with an elastic seabed and a pressure-release (or perfectly rigid) surface, which was motivated by applications in ocean acoustics. An extended direct imaging method (DIM) was proposed to identify the marine point sources and medium objects from the far-field data, and the key component of the DIM was an imaging functional whose indicator property was quantitatively characterized. The DIM can generate reliable initial estimates of submerged inhomogeneities, which advanced inversion methods can then be utilized to accurately determine their physical properties. As exhibited in the numerical experiments, the DIM was computationally efficient, noise-tolerant, and can identified multiple sources and scatterers of varying shapes and locations using a few observation datasets.

Keywords:

Mathematics Subject Classification: Primary: 35R30, 41A27; Secondary: 76Q05.

Citation:

Full Text(HTML)

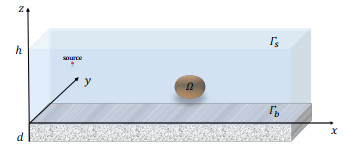

Figure 1. The demonstration of the 3D shallow ocean waveguide with an elastic seabed

Download: Full-size image PowerPoint slide

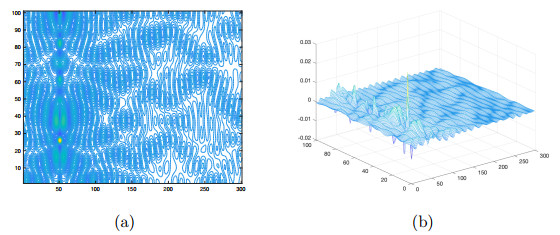

Figure 2. The asymptotic behavior for the wave propagation of a point source at $ (50, 50, 20) $ in a 3D shallow ocean waveguide with an elastic seabed and a pressure-release surface : (a) a slice of contour, (b) the corresponding 3D display

Download: Full-size image PowerPoint slide

Figure 3. The asymptotic behavior for the wave propagation of a point source at $ (50, 50, 25) $ in a 3D shallow ocean waveguide with an elastic seabed and a perfectly rigid surface: (a) a slice of contour, (b) the corresponding 3D display

Download: Full-size image PowerPoint slide

Figure 4. The illustration of the numerical settings

Download: Full-size image PowerPoint slide

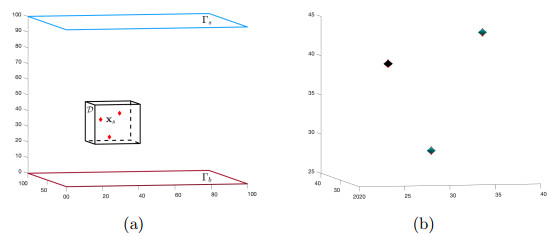

Figure 5. Experiment 1. (a) The demonstration of the submerged point sources $ {\bf x}_s $ and the sampling region $ \mathcal{D} $; (b) the reconstruction of the sources

Download: Full-size image PowerPoint slide

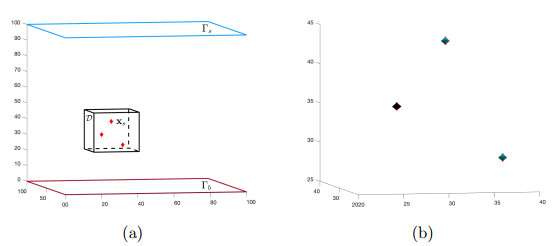

Figure 6. Experiment 2. (a) The demonstration of the submerged point sources $ {\bf x}_s $ and the sampling region $ \mathcal{D} $; (b) the reconstruction of the sources

Download: Full-size image PowerPoint slide

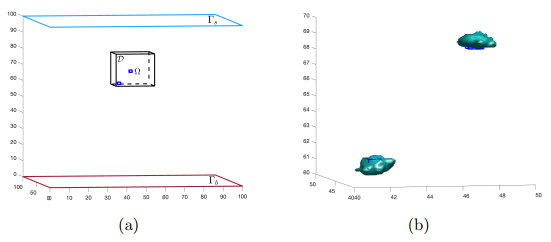

Figure 7. Experiment 3. (a) The demonstration of the submerged medium scatterers $ \Omega $ and the sampling region $ \mathcal{D} $; (b) the reconstruction of the scatterers

Download: Full-size image PowerPoint slide

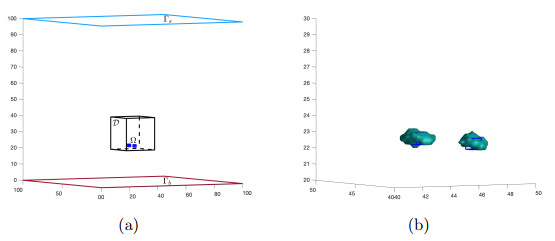

Figure 8. Experiment 4. (a) The demonstration of the submerged medium scatterers $ \Omega $ and the sampling region $ \mathcal{D} $; (b) the reconstruction of the scatterers
