Sampling strategies in Bayesian inversion: A study of RTO and Langevin methods

Rémi Laumont; Yiqiu Dong; Martin Skovgaard Andersen

doi:10.3934/ipi.2024046

Article Contents

2025, Volume 19, Issue 3: 592-612. Doi: 10.3934/ipi.2024046

This issue Previous Article Subspace-based coupled tensor decomposition for hyperspectral blind fusion Next Article Diffusion posterior sampling for magnetic resonance imaging

Sampling strategies in Bayesian inversion: A study of RTO and Langevin methods

Department of Applied Mathematics and Computer Science, Technical University of Denmark, DK-2800 Kgs. Lyngby, Denmark

^*Corresponding author: Rémi Laumont
^*Corresponding author: Rémi Laumont

Received: June 2024

Revised: November 2024

Early access: November 2024

Published: June 2025

This work was funded by a Villum Investigator grant (no. 25893) from the Villum Foundation.

Abstract / Introduction Full Text(HTML) Figure(16) / Table(2) Related Papers Cited by

Abstract

This paper studies two classes of sampling methods for the solution of inverse problems, namely Randomize-Then-Optimize (RTO), which is rooted in sensitivity analysis, and Langevin methods, which are rooted in the Bayesian framework. The two classes of methods correspond to different assumptions and yield samples from different target distributions. We highlight the main conceptual and theoretical differences between the two approaches and compare them from a practical point of view by tackling two classical inverse problems in imaging: deblurring and inpainting. We show that the choice of the sampling method has a significant impact on the reconstruction and the proposed uncertainty.

Keywords:

Mathematics Subject Classification: Primary: 65K10, 62F15, 62C10, 68U10, 90C25, 65C05; Secondary: 65K05, 65D18, 68Q25.

Citation:

Full Text(HTML)

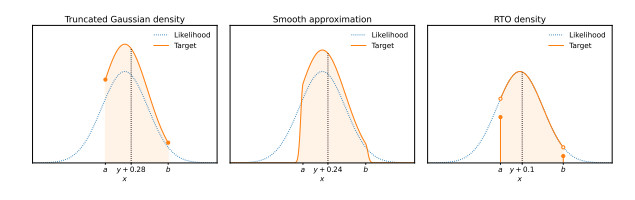

Figure 1. Truncated Gaussian posterior, a smooth approximation, and the RTO density for a Gaussian observation model. The vertical dotted line marks the target mean relative to the observation $ y $, which is the mode of the likelihood

Download: Full-size image PowerPoint slide

Figure 2. Original images used for the deblurring and inpainting experiments

Download: Full-size image PowerPoint slide

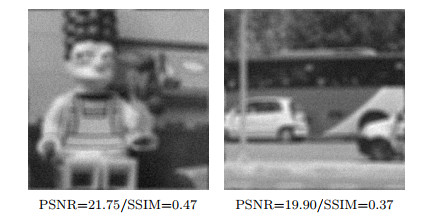

Figure 3. (Deblurring) degraded images

Download: Full-size image PowerPoint slide

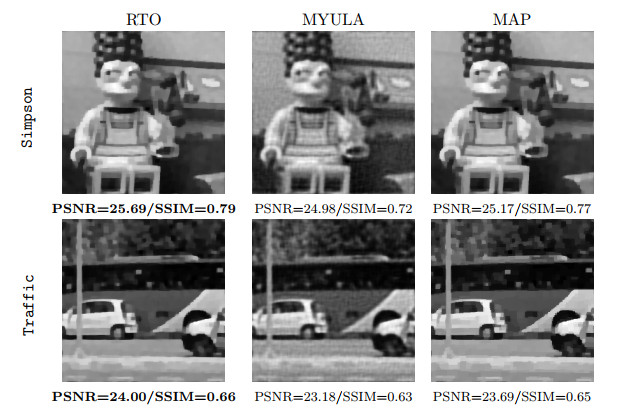

Figure 4. (Deblurring) MMSE estimates computed respectively with RTO and MYULA together with MAP estimates

Download: Full-size image PowerPoint slide

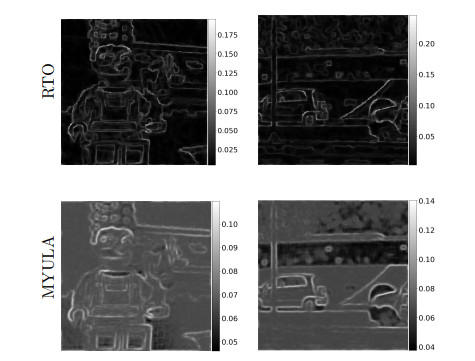

Figure 5. (Deblurring) Marginal posterior standard deviation computed with the samples generated by RTO and MYULA

Download: Full-size image PowerPoint slide

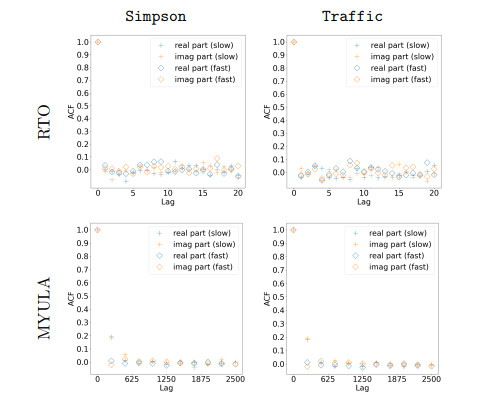

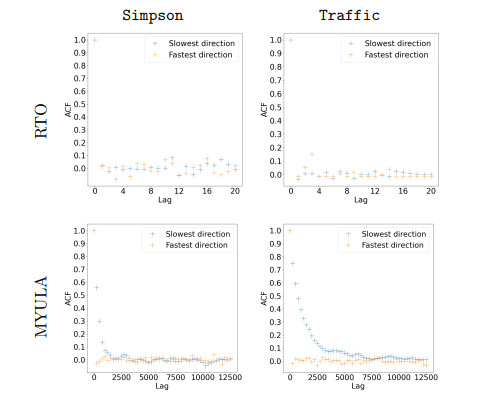

Figure 6. (Deblurring) The comparison of ACFs of RTO and MYULA on both test images

Download: Full-size image PowerPoint slide

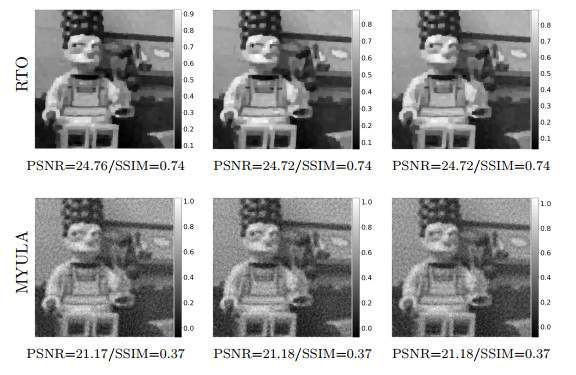

Figure 7. (Deblurring) Samples generated by RTO and MYULA

Download: Full-size image PowerPoint slide

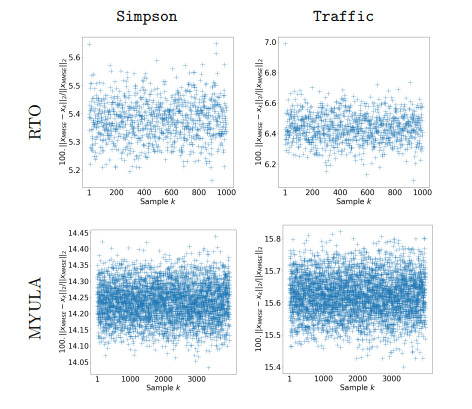

Figure 8. (Deblurring) Relative errors of samples generated of RTO and MYULA with respect to MMSE estimates

Download: Full-size image PowerPoint slide

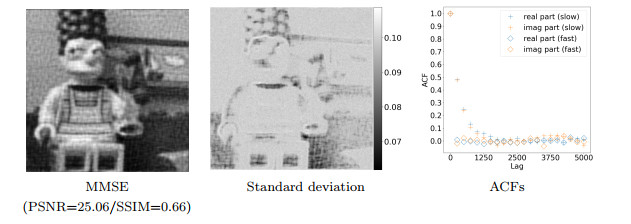

Figure 9. (Deblurring) Results generated by MYULA with $ n_{pd} = 10 $

Download: Full-size image PowerPoint slide

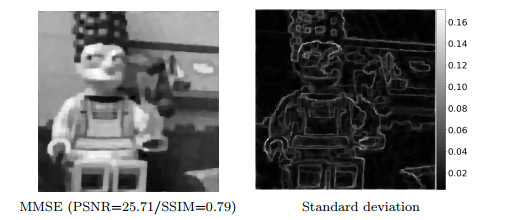

Figure 10. (Deblurring) Results generated by RTO with $ \texttt{tol} = 10^{-2} $

Download: Full-size image PowerPoint slide

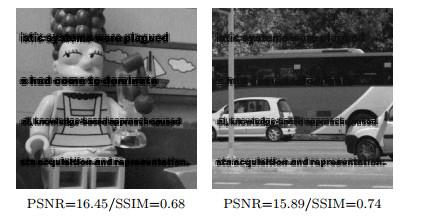

Figure 11. (Inpainting) Observations for the inpainting problem

Download: Full-size image PowerPoint slide

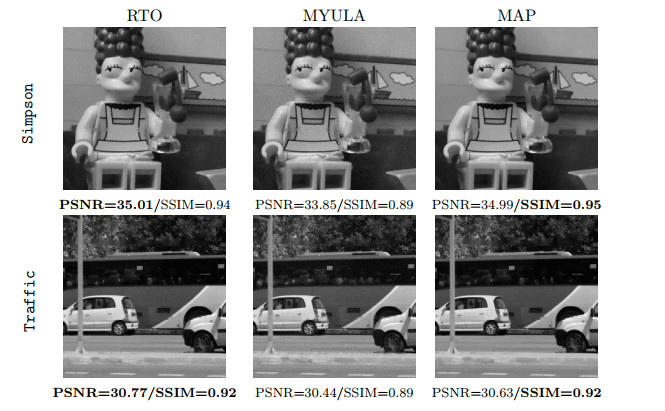

Figure 12. (Inpainting) MMSE estimates respectively obtained of RTO and MYULA together with MAP estimates

Download: Full-size image PowerPoint slide

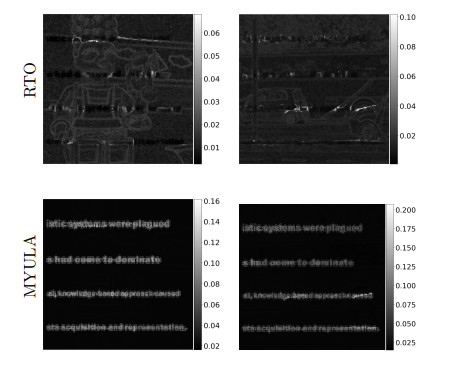

Figure 13. (Inpainting) The standard deviations computed with the samples generated by RTO and MYULA

Download: Full-size image PowerPoint slide

Figure 14. (Inpainting) ACFs from samples generated by RTO and MYULA, respectively

Download: Full-size image PowerPoint slide

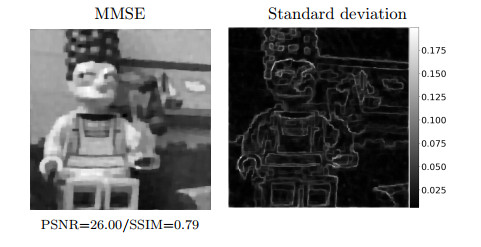

Figure 15. (Hierarchical Gibbs sampler) MMSE and marginal posterior standard deviations computed using the hierarchical Gibbs sampler presented in Algorithm 1 for image deblurring problem defined in Section 3.1

Download: Full-size image PowerPoint slide

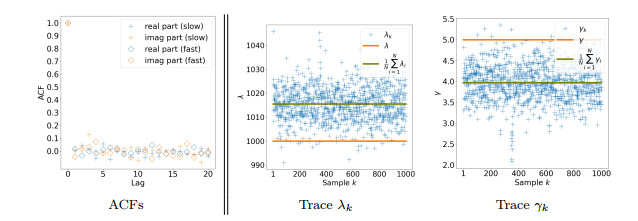

Figure 16. (Hierarchical Gibbs sampler) Analysis of the sample correlation of the augmented Gibbs sampler. Left: ACFs of the image samples. Middle and right: traces of the noise level and regularization parameters

Download: Full-size image PowerPoint slide

Table 1. Comparisons between RTO and MYULA from a theoretical point of view for a Gaussian likelihood

	RTO	MYULA
Log-prior	polyhedral hypograph	concave
Target density	implicit form	explicit form
Random perturbation	in data space	in image space
Samples	independent	correlated
Burn-in	no	required
Sample generation cost	high: computing (6b)	low: computing (10a)
Parameter selection	online	offline
	hierarchical approach	empirical approach
Parallelization	yes	possible but difficult

| Show Table

DownLoad: CSV

Table 2. (Hierarchical Gibbs sampler) Empirical mean and standard deviation of the noise level and regularization parameters $ \lambda $ and $ \gamma $

	Obtained from hierarchical Gibbs sampler	Used in RTO in Section 3.1
	mean (standard deviation)
$ \gamma $	3.97 (0.44)	5
$ \lambda $	1015.49(7.19)	1000

| Show Table

DownLoad: CSV
