Fast reconstruction approaches for photoacoustic tomography with smoothing Sobolev/Matérn priors

Jaakko Kultima; Ronny Ramlau; Teemu Sahlström; Tanja Tarvainen

doi:10.3934/ipi.2026015

Article Contents

2026, Volume 25: 51-66. Doi: 10.3934/ipi.2026015

This volume Previous Article A direct sampling method for inverse elastic scattering in cavity structure Next Article Factorization method for near-field inverse scattering problems in elastodynamics

Fast reconstruction approaches for photoacoustic tomography with smoothing Sobolev/Matérn priors

1.
Johann Radon Institute for Computational and Applied Mathematics (RICAM), Linz, Altenbergerstraße 69, A-4040 Linz, Austria
2.
Industrial Mathematics Institute, Johannes Kepler University, Linz, Altenbergerstraße 69, A-4040 Linz, Austria
3.
Department of Technical Physics, University of Eastern Finland, P.O. Box 1627, 70211 Kuopio, Finland

^*Corresponding author: Jaakko Kultima
^*Corresponding author: Jaakko Kultima

Received: July 3, 2025

Revised: December 19, 2025

Early access: January 26, 2026

Published online: January 26, 2026

Abstract / Introduction Full Text(HTML) Figure(6) / Table(2) Related Papers Cited by

Abstract

In photoacoustic tomography (PAT), the computation of the initial pressure distribution within an object from its time-dependent boundary measurements over time is considered. This problem can be approached from two well-established points of view: deterministically using regularization methods, or stochastically using the Bayesian framework. Both approaches frequently require the solution of a variational problem. In this paper, we elaborate the connection between these approaches by establishing the equivalence between a smoothing Matérn class of covariance operators and Sobolev embedding operator $ E_s: H^s \hookrightarrow L^2 $. We further discuss the use of a Wavelet-based implementation of the adjoint operator $ E_s^* $, which also allows for efficient evaluations for certain Matérn covariance operators, leading to efficient implementations both in terms of computational effort as well as memory requirements. The proposed methods are validated with reconstructions for the photoacoustic problem.

Keywords:

Mathematics Subject Classification: Primary: 92C55, 65M12; Secondary: 35R30, 62P10.

Citation:

Full Text(HTML)

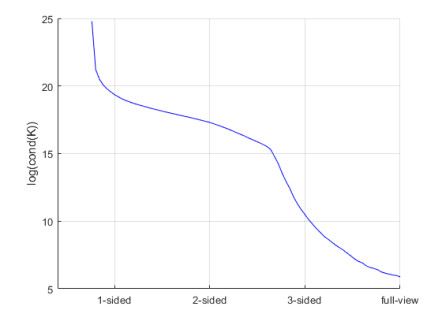

Figure 1. The condition numbers of the acoustic forward operator $ K $ vs. the number of sensors at the boundary as described above

Download: Full-size image PowerPoint slide

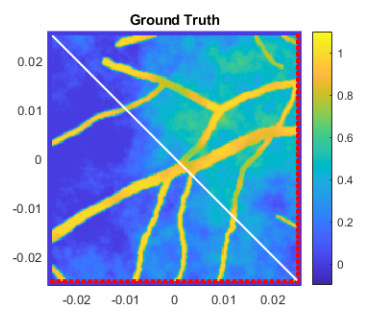

Figure 2. Simulated initial pressure distribution $ p_0 $, consisting of a vein-like pattern within a square-shaped domain with non-constant background. The phantom was modified from the high-resolution Fundus (HRF) image database published in [7]. Sensors are evenly distributed along one and two sides of the target. Cross-sections along the diagonal white line of the reconstructions are plotted in Figure 6

Download: Full-size image PowerPoint slide

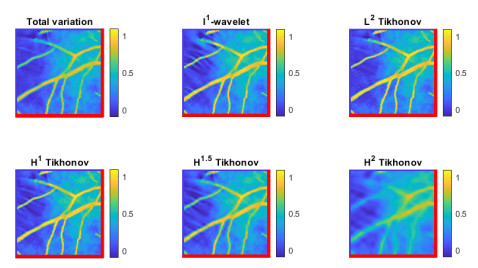

Figure 3. Estimated $ p_0 $ in the two-sided sensor geometry. Top row, reference reconstructions using total variation, $ \ell^1 $ for wavelet coefficients, and standard $ L^2 $- Tikhonov on the top row. Bottom row, reconstructions with $ s = 1 $ (Matérn covariance $ \Gamma_{0, 0} $ in $ \mathbb{{R}}^2 $), $ s = 3/2 $ (corresponding to Matérn covariance $ \Gamma_{1/2, 1} $ in $ \mathbb{{R}}^2 $), and $ s = 2 $ (Matérn covariance $ \Gamma_{1, \sqrt{2}} $ in $ \mathbb{{R}}^2 $)

Download: Full-size image PowerPoint slide

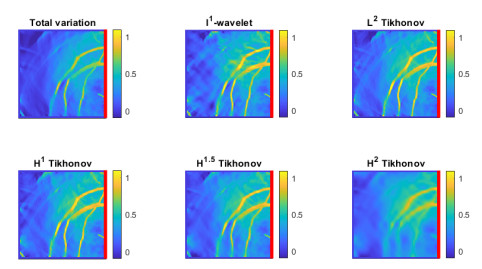

Figure 4. Estimated $ p_0 $ in the one-sided sensor geometry. Top row, reference reconstructions using total variation, $ \ell^1 $ for wavelet coefficients, and standard $ L^2 $- Tikhonov on the top row. Bottom row, reconstructions with $ s = 1 $ (Matérn covariance $ \Gamma_{0, 0} $ in $ \mathbb{{R}}^2 $), $ s = 3/2 $ (corresponding to Matérn covariance $ \Gamma_{1/2, 1} $ in $ \mathbb{{R}}^2 $), and $ s = 2 $ (Matérn covariance $ \Gamma_{1, \sqrt{2}} $ in $ \mathbb{{R}}^2 $)

Download: Full-size image PowerPoint slide

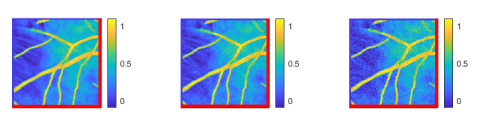

Figure 5. Estimated $ p_0 $ in the two-sided sensor geometry, with Sobolev smoothness $ s = 1 $, and noise-levels 1%, 5%, and 10%

Download: Full-size image PowerPoint slide

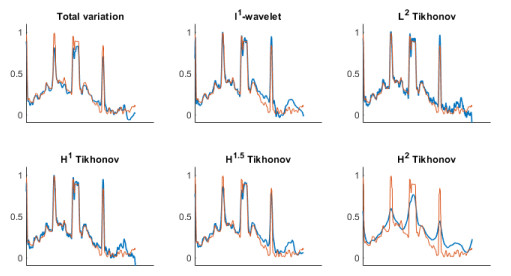

Figure 6. Diagonal cross sections of the reconstructions in two-sided sensor geometry. The orange plot is the underlying ground truth, and blue line is the reconstructed value

Download: Full-size image PowerPoint slide

Table 1. The computational efficiency as measured by the number of evaluations of the wave propagation using pseudo spectral method. Computational cost is dominated by these evaluations; convergence of the chosen method is critical. Algorithmic runtimes and memory usage are comparable for all examples

	$ \ell^1 $ (FISTA)	TV (Barzilai-Borwein)	Tikhonov
Number of iterations	200	150	25
Number of simulations	401	301	51

| Show Table

DownLoad: CSV

Table 2. Reconstruction quality at 5% noise level measured in terms of relative error (RE), peak signal-to-noise ratio (PSNR), and structural similarity index measure (SSIM) for TV, $ \ell^1 $, and $ H^s $-Tikhonov with $ s = 0, 1, 3/2, 2 $

		TV	$ \ell^1 $	$ s = 0 $	$ s = 1 $	$ s = 3/2 $	$ s = 2 $
	RE(%)	48.70	39.88	40.12	38.95	40.31	44.96
One side	PSNR	13.38	15.11	15.06	15.32	15.02	14.07
	SSIM	0.57	0.61	0.58	0.62	0.64	0.58
	RE(%)	19.31	15.00	12.16	12.42	17.32	33.93
Two side	PSNR	21.41	23.61	25.43	25.25	22.35	16.51
	SSIM	0.74	0.72	0.70	0.71	0.72	0.64

| Show Table

DownLoad: CSV
