Towards a geometric variational discretization of compressible fluids: The rotating shallow water equations

Werner Bauer ^1,2, and François Gay-Balmaz ^3,

1.	Imperial College London, Department of Mathematics, 180 Queen's Gate, London SW7 2AZ, United Kingdomand
2.	École Normale Supérieure, Laboratoire de Météorologie Dynamique, 24 Rue Lhomond, 75005 Paris, France
3.	CNRS/École Normale Supérieure, Laboratoire de Météorologie Dynamique, 24 Rue Lhomond, 75005 Paris, France

Published December 2018

This paper presents a geometric variational discretization of compressible fluid dynamics. The numerical scheme is obtained by discretizing, in a structure preserving way, the Lie group formulation of fluid dynamics on diffeomorphism groups and the associated variational principles. Our framework applies to irregular mesh discretizations in 2D and 3D. It systematically extends work previously made for incompressible fluids to the compressible case. We consider in detail the numerical scheme on 2D irregular simplicial meshes and evaluate the scheme numerically for the rotating shallow water equations. In particular, we investigate whether the scheme conserves stationary solutions, represents well the nonlinear dynamics, and approximates well the frequency relations of the continuous equations, while preserving conservation laws such as mass and total energy.

Keywords: Geometric discretization, structure-preserving schemes, fluid dynamics, Euler-Poincaré formulation, rotating shallow water equations.

Mathematics Subject Classification: Primary: 65P10, 76M60, 37N10; Secondary: 37K05, 37K65.

Citation: Werner Bauer, François Gay-Balmaz. Towards a geometric variational discretization of compressible fluids: The rotating shallow water equations. Journal of Computational Dynamics, 2019, 6 (1) : 1-37. doi: 10.3934/jcd.2019001

References:

[1]	V. I. Arnold, Sur la géométrie différentielle des groupes de Lie de dimenson infinie et ses applications à l'hydrodynamique des fluides parfaits, Ann. Inst. Fourier, Grenoble, 16 (1966), 319-361. doi: 10.5802/aif.233. Google Scholar
[2]	R. E. Bank and J. Xu, Asymptotically exact a posteriori error estimators, part Ⅰ: Grids with superconvergence, SIAM Journal on Numerical Analysis, 41 (2003), 2294-2312. doi: 10.1137/S003614290139874X. Google Scholar
[3]	W. Bauer, Toward Goal-Oriented R-adaptive Models in Geophysical Fluid Dynamics using a Generalized Discretization Approach, Ph.D thesis, Department of Geosciences, University of Hamburg, 2013. Google Scholar
[4]	W. Bauer, M. Baumann, L. Scheck, A. Gassmann, V. Heuveline and S. C. Jones, Simulation of tropical-cyclone-like vortices in shallow-water icon-hex using goal-oriented r-adaptivity, Theoretical and Computational Fluid Dynamics, 28 (2014), 107-128. doi: 10.1007/s00162-013-0303-4. Google Scholar
[5]	W. Bauer, A new hierarchically-structured $n$-dimensional covariant form of rotating equations of geophysical fluid dynamics, GEM - International Journal on Geomathematics, 7 (2016), 31-101. doi: 10.1007/s13137-015-0074-8. Google Scholar
[6]	W. Bauer and F. Gay-Balmaz, Variational integrators for the anelastic and pseudo-incompressible flows, preprint, 2017, arXiv: 1701.06448. Google Scholar
[7]	A. M. Bloch, Nonholonomic Mechanics and Control, Volume 24 of Interdisciplinary Applied Mathematics, Springer-Verlag, New York, 2003. With the collaboration of J. Baillieul, P. Crouch and J. E. Marsden, and with scientific input from P. S. Krishnaprasad, R. M. Murray and D. Zenkov. doi: 10.1007/b97376. Google Scholar
[8]	N. Bou-Rabee and J. E. Marsden, Hamilton-Pontryagin integrators on Lie groups. Part Ⅰ: Introduction and structure-preserving properties, Foundations of Computational Mathematics, 9 (2009), 197-219. doi: 10.1007/s10208-008-9030-4. Google Scholar
[9]	R. Brecht, W. Bauer, A. Bihlo, F. Gay-Balmaz and S. MacLachlan, Variational integrator for the rotating shallow-water equations on the sphere, preprint, 2018, arXiv: 1808.10507. Google Scholar
[10]	W. Cao, Superconvergence analysis of the linear finite element method and a gradient recovery postprocessing on anisotropic meshes, Math. Comput., 84 (2015), 89-117. doi: 10.1090/S0025-5718-2014-02846-9. Google Scholar
[11]	M. J. P. Cullen, A Mathematical Theory of Large-scale Atmosphere/ocean Flow, Imperial College Press, London, 2006. doi: 10.1142/p375. Google Scholar
[12]	F. Demoures, F. Gay-Balmaz and T. S. Ratiu, Multisymplectic variational integrators for nonsmooth Lagrangian continuum mechanics, Forum of Mathematics, Sigma, 4 (2016), e19, 54 pp. doi: 10.1017/fms.2016.17. Google Scholar
[13]	F. Demoures, F. Gay-Balmaz, M. Kobilarov and T. S. Ratiu, Multisymplectic Lie group variational integrators for a geometrically exact beam in $ \mathbb{R} ^3 $, Commun. Nonlinear Sci. Numer. Simulat., 19 (2014), 3492-3512. doi: 10.1016/j.cnsns.2014.02.032. Google Scholar
[14]	M. Desbrun, E. Gawlik, F. Gay-Balmaz and V. Zeitlin, Variational discretization for rotating stratified fluids, Disc. Cont. Dyn. Syst. Series A, 34 (2014), 479-511. doi: 10.3934/dcds.2014.34.477. Google Scholar
[15]	A. Ern and J.-L. Guermond, Theory and Practice of Finite Elements, Springer, 2004. doi: 10.1007/978-1-4757-4355-5. Google Scholar
[16]	E. Gawlik, P. Mullen, D. Pavlov, J. E. Marsden and M. Desbrun, Geometric, variational discretization of continuum theories, Physica D, 240 (2011), 1724-1760. doi: 10.1016/j.physd.2011.07.011. Google Scholar
[17]	M. Giorgetta, T. Hundertmark, P. Korn, S. Reich and M. Restelli, Conservative space and time regularizations for the icon model, Technical report, Berichte zur Erdsystemforschung, Report 67, MPI for Meteorology, Hamburg, 2009. Google Scholar
[18]	F. Gay-Balmaz and V. Putkaradze, Variational discretizations for the dynamics of fluid-conveying flexible tubes, C. R. Mécanique, 344 (2016), 769-775. doi: 10.1016/j.crme.2016.08.004. Google Scholar
[19]	E. Hairer, C. Lubich and G. Wanner, Geometric Numerical Integration: Structure-Preserving Algorithms for Ordinary Differential Equations, Springer Series in Computational Mathematics, 31, Springer-Verlag, 2006. Google Scholar
[20]	D. D. Holm, J. E. Marsden and T. S. Ratiu, The Euler-Poincaré equations and semidirect products with applications to continuum theories, Adv. in Math., 137 (1998), 1-81. doi: 10.1006/aima.1998.1721. Google Scholar
[21]	A. Lew, J. E. Marsden, M. Ortiz and M. West, Asynchronous variational integrators, Arch. Rat. Mech. Anal., 167 (2003), 85-146. doi: 10.1007/s00205-002-0212-y. Google Scholar
[22]	Y. Huang and J. Xu, Superconvergence of quadratic finite elements on mildly structured grids, Mathematics of Computation, 77 (2008), 1253-1268. doi: 10.1090/S0025-5718-08-02051-6. Google Scholar
[23]	R. J. LeVeque, Balancing source terms and flux gradients in high-resolution Godunov methods: The quasi-steady wave-propagation algorithm, J. Comput. Phys., 146 (1998), 346-365. doi: 10.1006/jcph.1998.6058. Google Scholar
[24]	B. Liu, G. Mason, J. Hodgson, Y. Tong and M. Desbrun, Model-reduced variational fluid simulation, ACM Trans. Graph. (SIG Asia), 34 (2015), Art. 244. doi: 10.1145/2816795.2818130. Google Scholar
[25]	J. E. Marsden and M. West, Discrete mechanics and variational integrators, Acta Numer., 10 (2001), 357-514. doi: 10.1017/S096249290100006X. Google Scholar
[26]	J. E. Marsden, G. W. Patrick and S. Shkoller, Multisymplectic geometry, variational integrators and nonlinear PDEs, Comm. Math. Phys., 199 (1998), 351-395. doi: 10.1007/s002200050505. Google Scholar
[27]	D. Pavlov, P. Mullen, Y. Tong, E. Kanso, J. E. Marsden and M. Desbrun, Structure-preserving discretization of incompressible fluids, Physica D, 240 (2010), 443-458. doi: 10.1016/j.physd.2010.10.012. Google Scholar
[28]	J. Pedlosky, Geophysical Fluid Dynamics, Springer Verlag, New York, 1979. Google Scholar
[29]	S. Reich, Linearly implicit time stepping methods for numerical weather prediction, BIT Numerical Mathematics, 46 (2006), 607-616. doi: 10.1007/s10543-006-0065-0. Google Scholar
[30]	S. Reich, N. Wood and A. Staniforth, Semi-implicit methods, nonlinear balance, and regularized equations, Atmospheric Science Letters, 8 (2007), 1-6. doi: 10.1002/asl.142. Google Scholar
[31]	T. D. Ringler, J. Thuburn, J. B. Klemp and W. C. Skamarock, A unified approach to energy conservation and potential vorticity dynamics for arbitrarily-structured C-grids, J. Comput. Phys., 229 (2010), 3065-3090. doi: 10.1016/j.jcp.2009.12.007. Google Scholar
[32]	A. Staniforth and A. A. White, Some exact solutions of geophysical fluid-dynamics equations for testing models in spherical and plane geometry, Q. J. R. Meteorol. Soc., 133 (2007), 1605-1614. doi: 10.1002/qj.122. Google Scholar
[33]	A. Staniforth, N. Wood and S. Reich, A time-staggered semi-lagrangian discretization of the rotating shallow-water equations, Quarterly Journal of the Royal Meteorological Society, 132 (2006), 3107-3116. doi: 10.1256/qj.06.30. Google Scholar
[34]	A. Stegner and D. Dritschel, A numerical investigation of the stability of isolated shallow-water vortices, J. Phys. Ocean., 30 (2000), 2562-2573. doi: 10.1175/1520-0485(2000)030<2562:ANIOTS>2.0.CO;2. Google Scholar
[35]	J. Thuburn, T. D. Ringler, W. C. Skamarock and J. B. Klemp, Numerical representation of geostrophic modes on arbitrarily structured C-grids, J. Comput. Phys., 228 (2009), 8321-8335. doi: 10.1016/j.jcp.2009.08.006. Google Scholar
[36]	J. Thuburn and C. J. Cotter, A primal-dual mimetic finite element scheme for the rotating shallow water equations on polygonal spherical meshes, Journal of Computational Physics, 290 (2015), 274-297. doi: 10.1016/j.jcp.2015.02.045. Google Scholar
[37]	D. L. Williamson, J. B. Drake, J. J. Hack, R. Jakob and P. N. Swarztrauber, A standard test set for numerical approximations to the shallow-water equations in spherical geometry, J. Comput. Phys., 102 (1992), 221-224. doi: 10.1016/S0021-9991(05)80016-6. Google Scholar
[38]	V. Zeitlin (Ed.), Nonlinear Dynamics of Rotating Shallow Water: Methods and Advances, Elsevier, New York, 2007. Google Scholar

show all references

References:

[1]	V. I. Arnold, Sur la géométrie différentielle des groupes de Lie de dimenson infinie et ses applications à l'hydrodynamique des fluides parfaits, Ann. Inst. Fourier, Grenoble, 16 (1966), 319-361. doi: 10.5802/aif.233. Google Scholar
[2]	R. E. Bank and J. Xu, Asymptotically exact a posteriori error estimators, part Ⅰ: Grids with superconvergence, SIAM Journal on Numerical Analysis, 41 (2003), 2294-2312. doi: 10.1137/S003614290139874X. Google Scholar
[3]	W. Bauer, Toward Goal-Oriented R-adaptive Models in Geophysical Fluid Dynamics using a Generalized Discretization Approach, Ph.D thesis, Department of Geosciences, University of Hamburg, 2013. Google Scholar
[4]	W. Bauer, M. Baumann, L. Scheck, A. Gassmann, V. Heuveline and S. C. Jones, Simulation of tropical-cyclone-like vortices in shallow-water icon-hex using goal-oriented r-adaptivity, Theoretical and Computational Fluid Dynamics, 28 (2014), 107-128. doi: 10.1007/s00162-013-0303-4. Google Scholar
[5]	W. Bauer, A new hierarchically-structured $n$-dimensional covariant form of rotating equations of geophysical fluid dynamics, GEM - International Journal on Geomathematics, 7 (2016), 31-101. doi: 10.1007/s13137-015-0074-8. Google Scholar
[6]	W. Bauer and F. Gay-Balmaz, Variational integrators for the anelastic and pseudo-incompressible flows, preprint, 2017, arXiv: 1701.06448. Google Scholar
[7]	A. M. Bloch, Nonholonomic Mechanics and Control, Volume 24 of Interdisciplinary Applied Mathematics, Springer-Verlag, New York, 2003. With the collaboration of J. Baillieul, P. Crouch and J. E. Marsden, and with scientific input from P. S. Krishnaprasad, R. M. Murray and D. Zenkov. doi: 10.1007/b97376. Google Scholar
[8]	N. Bou-Rabee and J. E. Marsden, Hamilton-Pontryagin integrators on Lie groups. Part Ⅰ: Introduction and structure-preserving properties, Foundations of Computational Mathematics, 9 (2009), 197-219. doi: 10.1007/s10208-008-9030-4. Google Scholar
[9]	R. Brecht, W. Bauer, A. Bihlo, F. Gay-Balmaz and S. MacLachlan, Variational integrator for the rotating shallow-water equations on the sphere, preprint, 2018, arXiv: 1808.10507. Google Scholar
[10]	W. Cao, Superconvergence analysis of the linear finite element method and a gradient recovery postprocessing on anisotropic meshes, Math. Comput., 84 (2015), 89-117. doi: 10.1090/S0025-5718-2014-02846-9. Google Scholar
[11]	M. J. P. Cullen, A Mathematical Theory of Large-scale Atmosphere/ocean Flow, Imperial College Press, London, 2006. doi: 10.1142/p375. Google Scholar
[12]	F. Demoures, F. Gay-Balmaz and T. S. Ratiu, Multisymplectic variational integrators for nonsmooth Lagrangian continuum mechanics, Forum of Mathematics, Sigma, 4 (2016), e19, 54 pp. doi: 10.1017/fms.2016.17. Google Scholar
[13]	F. Demoures, F. Gay-Balmaz, M. Kobilarov and T. S. Ratiu, Multisymplectic Lie group variational integrators for a geometrically exact beam in $ \mathbb{R} ^3 $, Commun. Nonlinear Sci. Numer. Simulat., 19 (2014), 3492-3512. doi: 10.1016/j.cnsns.2014.02.032. Google Scholar
[14]	M. Desbrun, E. Gawlik, F. Gay-Balmaz and V. Zeitlin, Variational discretization for rotating stratified fluids, Disc. Cont. Dyn. Syst. Series A, 34 (2014), 479-511. doi: 10.3934/dcds.2014.34.477. Google Scholar
[15]	A. Ern and J.-L. Guermond, Theory and Practice of Finite Elements, Springer, 2004. doi: 10.1007/978-1-4757-4355-5. Google Scholar
[16]	E. Gawlik, P. Mullen, D. Pavlov, J. E. Marsden and M. Desbrun, Geometric, variational discretization of continuum theories, Physica D, 240 (2011), 1724-1760. doi: 10.1016/j.physd.2011.07.011. Google Scholar
[17]	M. Giorgetta, T. Hundertmark, P. Korn, S. Reich and M. Restelli, Conservative space and time regularizations for the icon model, Technical report, Berichte zur Erdsystemforschung, Report 67, MPI for Meteorology, Hamburg, 2009. Google Scholar
[18]	F. Gay-Balmaz and V. Putkaradze, Variational discretizations for the dynamics of fluid-conveying flexible tubes, C. R. Mécanique, 344 (2016), 769-775. doi: 10.1016/j.crme.2016.08.004. Google Scholar
[19]	E. Hairer, C. Lubich and G. Wanner, Geometric Numerical Integration: Structure-Preserving Algorithms for Ordinary Differential Equations, Springer Series in Computational Mathematics, 31, Springer-Verlag, 2006. Google Scholar
[20]	D. D. Holm, J. E. Marsden and T. S. Ratiu, The Euler-Poincaré equations and semidirect products with applications to continuum theories, Adv. in Math., 137 (1998), 1-81. doi: 10.1006/aima.1998.1721. Google Scholar
[21]	A. Lew, J. E. Marsden, M. Ortiz and M. West, Asynchronous variational integrators, Arch. Rat. Mech. Anal., 167 (2003), 85-146. doi: 10.1007/s00205-002-0212-y. Google Scholar
[22]	Y. Huang and J. Xu, Superconvergence of quadratic finite elements on mildly structured grids, Mathematics of Computation, 77 (2008), 1253-1268. doi: 10.1090/S0025-5718-08-02051-6. Google Scholar
[23]	R. J. LeVeque, Balancing source terms and flux gradients in high-resolution Godunov methods: The quasi-steady wave-propagation algorithm, J. Comput. Phys., 146 (1998), 346-365. doi: 10.1006/jcph.1998.6058. Google Scholar
[24]	B. Liu, G. Mason, J. Hodgson, Y. Tong and M. Desbrun, Model-reduced variational fluid simulation, ACM Trans. Graph. (SIG Asia), 34 (2015), Art. 244. doi: 10.1145/2816795.2818130. Google Scholar
[25]	J. E. Marsden and M. West, Discrete mechanics and variational integrators, Acta Numer., 10 (2001), 357-514. doi: 10.1017/S096249290100006X. Google Scholar
[26]	J. E. Marsden, G. W. Patrick and S. Shkoller, Multisymplectic geometry, variational integrators and nonlinear PDEs, Comm. Math. Phys., 199 (1998), 351-395. doi: 10.1007/s002200050505. Google Scholar
[27]	D. Pavlov, P. Mullen, Y. Tong, E. Kanso, J. E. Marsden and M. Desbrun, Structure-preserving discretization of incompressible fluids, Physica D, 240 (2010), 443-458. doi: 10.1016/j.physd.2010.10.012. Google Scholar
[28]	J. Pedlosky, Geophysical Fluid Dynamics, Springer Verlag, New York, 1979. Google Scholar
[29]	S. Reich, Linearly implicit time stepping methods for numerical weather prediction, BIT Numerical Mathematics, 46 (2006), 607-616. doi: 10.1007/s10543-006-0065-0. Google Scholar
[30]	S. Reich, N. Wood and A. Staniforth, Semi-implicit methods, nonlinear balance, and regularized equations, Atmospheric Science Letters, 8 (2007), 1-6. doi: 10.1002/asl.142. Google Scholar
[31]	T. D. Ringler, J. Thuburn, J. B. Klemp and W. C. Skamarock, A unified approach to energy conservation and potential vorticity dynamics for arbitrarily-structured C-grids, J. Comput. Phys., 229 (2010), 3065-3090. doi: 10.1016/j.jcp.2009.12.007. Google Scholar
[32]	A. Staniforth and A. A. White, Some exact solutions of geophysical fluid-dynamics equations for testing models in spherical and plane geometry, Q. J. R. Meteorol. Soc., 133 (2007), 1605-1614. doi: 10.1002/qj.122. Google Scholar
[33]	A. Staniforth, N. Wood and S. Reich, A time-staggered semi-lagrangian discretization of the rotating shallow-water equations, Quarterly Journal of the Royal Meteorological Society, 132 (2006), 3107-3116. doi: 10.1256/qj.06.30. Google Scholar
[34]	A. Stegner and D. Dritschel, A numerical investigation of the stability of isolated shallow-water vortices, J. Phys. Ocean., 30 (2000), 2562-2573. doi: 10.1175/1520-0485(2000)030<2562:ANIOTS>2.0.CO;2. Google Scholar
[35]	J. Thuburn, T. D. Ringler, W. C. Skamarock and J. B. Klemp, Numerical representation of geostrophic modes on arbitrarily structured C-grids, J. Comput. Phys., 228 (2009), 8321-8335. doi: 10.1016/j.jcp.2009.08.006. Google Scholar
[36]	J. Thuburn and C. J. Cotter, A primal-dual mimetic finite element scheme for the rotating shallow water equations on polygonal spherical meshes, Journal of Computational Physics, 290 (2015), 274-297. doi: 10.1016/j.jcp.2015.02.045. Google Scholar
[37]	D. L. Williamson, J. B. Drake, J. J. Hack, R. Jakob and P. N. Swarztrauber, A standard test set for numerical approximations to the shallow-water equations in spherical geometry, J. Comput. Phys., 102 (1992), 221-224. doi: 10.1016/S0021-9991(05)80016-6. Google Scholar
[38]	V. Zeitlin (Ed.), Nonlinear Dynamics of Rotating Shallow Water: Methods and Advances, Elsevier, New York, 2007. Google Scholar

Figure 1. Notation and indexing conventions for the 2D simplicial mesh.

Download full-size image

Download as PowerPoint slide

Figure 2. Regular mesh with equilateral triangles and irregular mesh with central refinement region, both with $ 2 \cdot 32^2 $ triangular grid cells.

Download full-size image

Download as PowerPoint slide

Figure 3. Left: contour lines of the bottom topography $ B(x, y) $ on the computational domain. Right: maximum errors in surface elevation at rest relative to $ H_0 = 750 $m for regular (upper right) and irregular (lower right) meshes.

Download full-size image

Download as PowerPoint slide

Figure 4. Frequency spectra of the disturbed lake at rest after 10 days for parameters $ f = 5.31 $ $ \rm days^{-1} $, $ H_0 = 750 $m (left) or $ f = 6.903 $ $ \rm days^{-1} $, $ H_0 = 1267.5 $m (right) determined on an irregular mesh with $ 2 \cdot 64^2 $ cells. The frequency spectra determined on regular meshes looks very similar (not shown).

Download full-size image

Download as PowerPoint slide

Figure 5. Isolated vortex test case: fluid depth $ D(x, y) $ at initial time $ t = 0 $ (left) and at $ t = 100 $days on a regular (center) and an irregular (right) mesh with $ 2 \cdot 64^2 $ triangular cells. Contours between $ 0.698 {\rm km} $ and $ 0.752 {\rm km} $ with interval of $ 0.003 {\rm km} $.

Download full-size image

Download as PowerPoint slide

Figure 6. Isolated vortex test case: relative potential vorticity $ q_{\rm rel}(x, y) $ at initial time $ t = 0 $ (left) and at $ t = 100 $days on a regular (center) and an irregular (right) mesh with $ 2 \cdot 64^2 $ triangular cells. Contours between $ -1.5 {\rm days^{-1}km^{-1}} $ and $ 12.5 {\rm days^{-1}km^{-1}} $ with interval of $ 1 {\rm days^{-1}km^{-1}} $.

Download full-size image

Download as PowerPoint slide

Figure 8. Isolated vortex test case: $ L_2 $ and $ L_\infty $ error values of numerical solutions for $ D $ and $ q_{\rm rel} $ after 1 day as a function of grid resolution for a fluid in semi-geostrophic (left), quasi-geostrophic (middle), and incompressible (right) regime for regular and irregular meshes.

Download full-size image

Download as PowerPoint slide

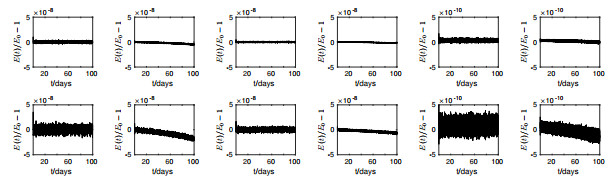

Figure 7. Isolated vortex test case: relative errors of total energy $ E(t) $ on meshes with $ 2\cdot 64^2 $ cells (upper row) and with $ 2\cdot 32^2 $ cells (lower row) for a fluid in semi-geostrophic ($ 1^{st}, 2^{nd} $ column), in quasi-geostrophic ($ 3^{rd}, 4^{th} $ column), and in incompressible ($ 5^{th}, 6^{th} $ column) regime for regular ($ 1^{st}, 3^{rd}, 5^{th} $ column) and irregular ($ 2^{nd}, 4^{th}, 6^{th} $ column) meshes.
