Pseudo-Hamiltonian system identification

Sigurd Holmsen; Sølve Eidnes; Signe Riemer-Sørensen

doi:10.3934/jcd.2024001

Article Contents

2024, Volume 11, Issue 1: 59-91. Doi: 10.3934/jcd.2024001

This issue Previous Article Geometric integration on symmetric spaces Next Article B-stability of numerical integrators on Riemannian manifolds

Pseudo-Hamiltonian system identification

1.
Norges Bank, 0107 Oslo, Norway
2.
Department of Mathematics and Cybernetics, SINTEF Digital, 0373 Oslo, Norway

^*Corresponding author
^*Corresponding author

Received: May 2023

Revised: December 2023

Early access: January 8, 2024

Published online: January 8, 2024

This research was supported by the Research Council of Norway and the industry partners Elkem, Eramet Norway, Equinor, BP, Subsea7, Kongsberg Maritime, Aker Solutions and Veas, through the projects BigDataMine (project no. 309691), PRAI (Prediction of Riser-response by Artificial Intelligence) (project no. 308832) and PhysML: Structure-based machine learning for physical systems (project no. 338779).

Abstract / Introduction Full Text(HTML) Figure(21) / Table(7) Related Papers Cited by

Abstract

Identifying the underlying dynamics of physical systems can be challenging when only provided with observational data. In this work, we consider systems that can be modelled as first-order ordinary differential equations. By assuming a certain pseudo-Hamiltonian formulation, we are able to learn the analytic terms of internal dynamics even if the model is trained on data where the system is affected by unknown damping and external disturbances. In cases where it is difficult to find analytic terms for the disturbances, a hybrid model that uses a neural network to learn these can still accurately identify the dynamics of the system as if under ideal conditions. This makes the models applicable in some situations where other system identification models fail. Furthermore, we propose to use a fourth-order symmetric integration scheme in the loss function and avoid actual integration in the training, and demonstrate on varied examples how this leads to increased performance on noisy data.

Keywords:

Mathematics Subject Classification: Primary: 34A55, 37M10; Secondary: 37J99.

Citation:

Full Text(HTML)

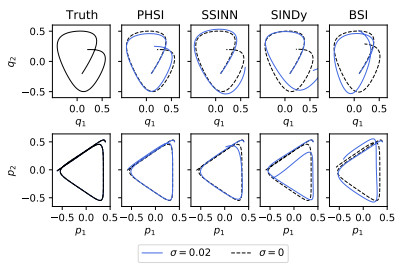

Figure 1. Comparison of simulated trajectories for the Hénon–Heiles system, with initial value $ (q,p) = (0.1, -0.2, 0.4, 0.5) $, from $ t = 0 $ to $ t = 10 $

Download: Full-size image PowerPoint slide

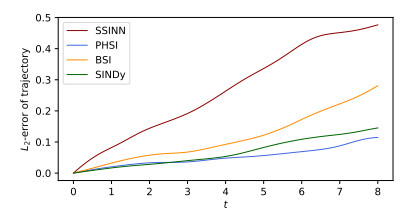

Figure 2. The average $ L_2 $-error of the trajectories obtained with 10 different random initial conditions, from the different models of the Hénon–Heiles system trained on noisy data with $ \sigma = 0.02 $, compared to trajectories simulated from the exact system,

Download: Full-size image PowerPoint slide

Figure 3. Phase portraits showing the trained models' trajectories next to the ground truth trajectory, for the nonlinear Schrödinger system. All models are trained on the two training sets, one clean data set and one noisy with $ \sigma = 10^{-4} $. The initial values are $ (q,p) = (-0.3, 0.5, -0.2, -0.4) $

Download: Full-size image PowerPoint slide

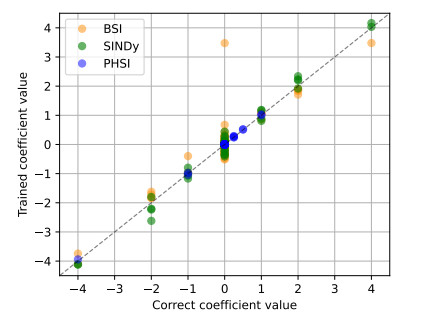

Figure 4. The trained coefficients of the PHSI, BSI, and SINDy models of the nonlinear Schrödinger system, plotted against the respective true values. A perfectly trained model will only have points along the dotted line. The models are trained on the noisy data set. Note that PHSI learns the Hamiltonian function while SINDy learns the right-hand side $ g $ of (1) and hence they will not learn the same coefficients for corresponding terms

Download: Full-size image PowerPoint slide

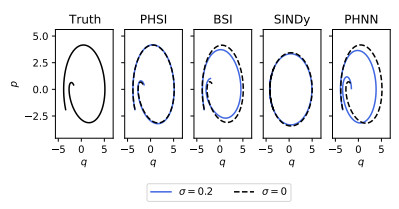

Figure 5. Comparison between the phase portraits obtained from integrating the exact forced and damped mass-spring system and the learned models from time 0 to 10. The initial value is $ (q,p) = (-3.4, -1.9) $

Download: Full-size image PowerPoint slide

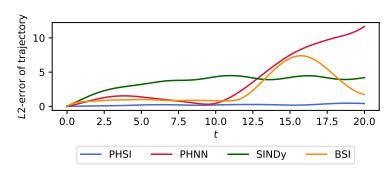

Figure 6. Average $ L_2 $-error of 30 simulated trajectories of the forced and damped mass-spring system, with random initial conditions

Download: Full-size image PowerPoint slide

Figure 7. Simulations of the tank system. Left: The volume of the fluid in the leaky fourth tank simulated from the exact system and the different models. Right: The leak approximated by the neural network in the hybrid PHSI model, compared to the exact solution. The upper plots have initial conditions within the distribution of the training data: $ (\phi,\mu) = (-0.4, 0, 0.5, 0, 0.2, 0 -0.6, -0.5, 0.5) $. The lower plots show extrapolation in time and space; time from 0 to 1 and initial state values $ (\phi,\mu) = (10, 19, 4, 19, 7, 9, 17, 9, 11) $

Download: Full-size image PowerPoint slide

Figure 8. Average $ L_2 $-error of 30 sets of simulated future tank volumes and pipe flows in the tank system, trained on noisy data with $ \sigma = 0.005 $

Download: Full-size image PowerPoint slide

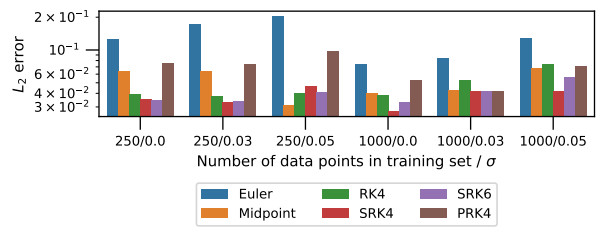

Figure 9. The mean $ L_2 $ error of PHSI models trained with the different integrators on the Hénon--Heiles problem. The error is on the predicted positions and momenta from $ t = 0 $ to $ t = 10 $ on 10 different random initial conditions

Download: Full-size image PowerPoint slide

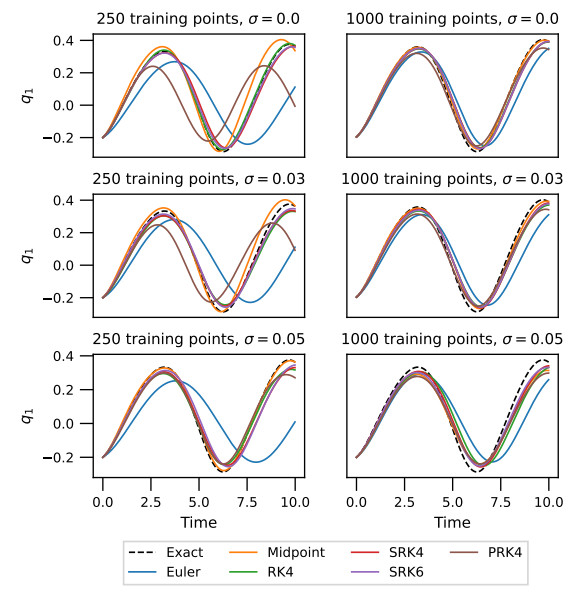

Figure 10. Prediction of $ q_1 $ by PHSI models trained with different integrators on the Hénon--Heiles problem. The initial condition is $ q = (-0.2, 0.2) $, $ p = (0.1,-0.2) $

Download: Full-size image PowerPoint slide

Figure 11. The mean $ L_2 $ error of hybrid PHSI models trained with the different integrators on the tank system. The error is of the predicted volume and flow in all tanks and pipes from $ t = 0 $ to $ t = 1 $ on 10 different random initial conditions

Download: Full-size image PowerPoint slide

Figure 12. Volume of the fourth tank as predicted by hybrid PHSI models trained with different integrators on the tank system. The initial condition is $ \phi^0 = (-1, -1, 0, \frac{1}{2}, -1) $, $ \mu^0 = (1, 1, -\frac{1}{2}, -1) $

Download: Full-size image PowerPoint slide

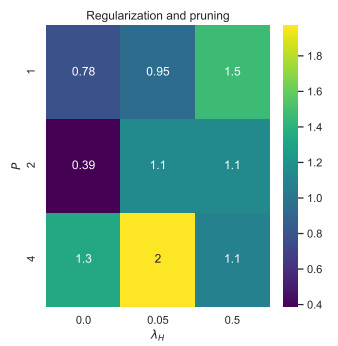

Figure 13. Average $ L_2 $-error over 30 simulated trajectories of the Hénon–Heiles system by PHSI models trained with different combinations of regularization parameter $ \lambda_H $ and pruning parameter $ P $. The models are trained for 3 epochs, which means that when $ P = 4 $, there is no pruning

Download: Full-size image PowerPoint slide

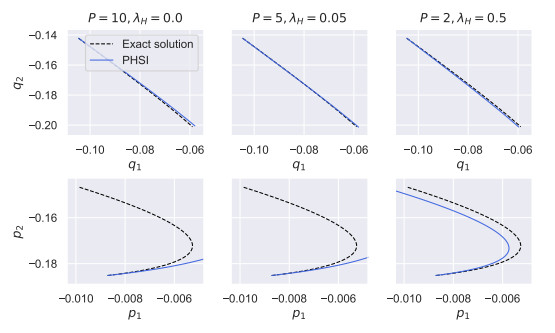

Figure 14. Simulated trajectories obtained for different PHSI models and the exact solution, for the nonlinear Hénon–Heiles system for three different combinations of regularization and pruning

Download: Full-size image PowerPoint slide

Figure 15. Average $ L_2 $-error over 30 simulated trajectories of the nonlinear Schrödinger system by PHSI models trained with different combinations of regularization parameter $ \lambda_H $ and pruning parameter $ P $. The models are trained for 10 epochs, meaning when $ P = 10 $, the pruning only occurs once

Download: Full-size image PowerPoint slide

Figure 16. Simulated PHSI trajectories along with a simulation of the exact nonlinear Schödinger system, for three different combinations of regularization and pruning

Download: Full-size image PowerPoint slide

Figure 17. Average $ L_2 $-error over 30 simulated trajectories of the damped mass-spring system by PHSI models trained with different combinations of regularization-parameter $ \lambda_H $ and pruning-parameter $ P $. The models are trained for 80 epochs, so that when $ P = 80 $, pruning is only done after the last epoch

Download: Full-size image PowerPoint slide

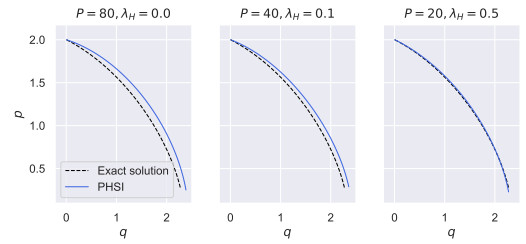

Figure 18. Simulated PHSI trajectories along with a simulation of the exact damped mass-spring system, for three different combinations of regularization and pruning

Download: Full-size image PowerPoint slide

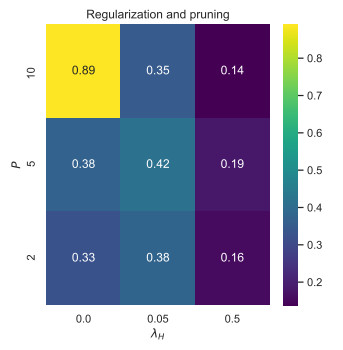

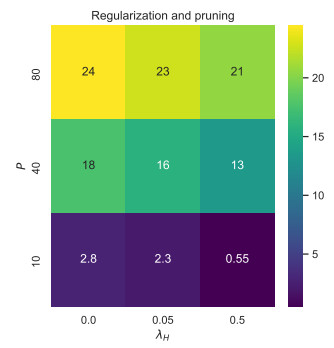

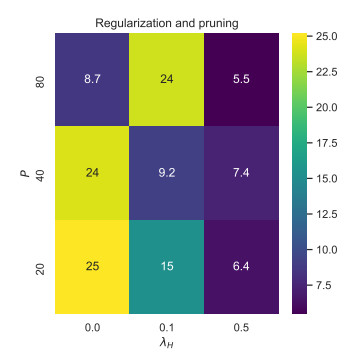

Figure 19. Average loss over simulated trajectories for PHSI models trained with different combinations of regularization-parameter $ \lambda_H $ and pruning-parameter $ P $. The models are trained for 80 epochs, which means that when $ P = 80 $, pruning is only done after the last epoch

Download: Full-size image PowerPoint slide

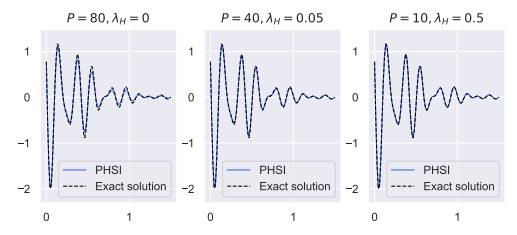

Figure 20. Simulated PHSI trajectories along with the exact solution of one of the leaking tanks in the connected tank system for three different combinations of regularization and pruning

Download: Full-size image PowerPoint slide

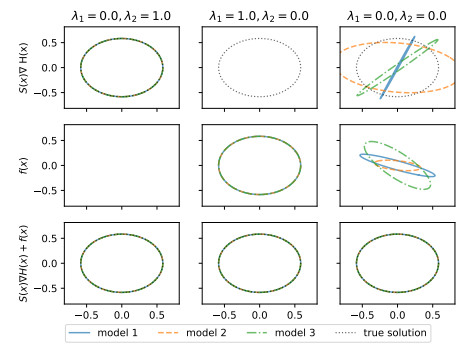

Figure 21. Phase plots of trajectories $ x = (q,p) $ obtained from systems where $ \hat{\dot{x}} $ is given by different combinations of $ S(x)\nabla H $ and $ f $. Each column is a different combination of regularization parameters, where $ \lambda_1 $ and $ \lambda_2 $ are the magnitudes of $ l_1 $ regularization on $ \hat{H}_\theta $ and $ \hat{F}_\theta $, respectively

Download: Full-size image PowerPoint slide

Table 1. Learned coefficients in the Hamiltonian for the Hénon–Heiles system

	$ q_1^2 $	$ q_2^2 $	$ q_1^2 q_2 $	$ q_2^3 $	$ p_1^2 $	$ p_2^2 $
True Value	$ 0.5 $	$ 0.5 $	1	$ -0.333 $	$ 0.5 $	$ 0.5 $
PHSI	$ 0.509 $	$ 0.495 $	$ 1.009 $	$ -0.338 $	$ 0.501 $	$ 0.477 $
SSINN	$ 0.421 $	$ 0.378 $	$ 0.569 $	$ -0.195 $	$ 0.484 $	$ 0.443 $
	$ q_2 p_1^2 $	$ q_2 $	$ q_1q_2 $	$ p_2 $	$ p_1p_2 $
True Value	0	0	0	0	0
PHSI	$ 0.124 $	0	0	0	0
SSINN	N/A	$ 0.004 $	$ 0.002 $	$ -0.006 $	$ -0.006 $

| Show Table

DownLoad: CSV

Table 2. Learned coefficients for the forced and damped mass-spring problem. $ q $ and $ p $ are multiplied with the trained coefficients while $ c, \alpha, \omega $ and $ const. $ are themselves the trainable parameters. Empty entries mean that the model does not learn that term

Trained PHSI parameters
	$ q^2 $	$ p^2 $	$ c $	$ \alpha $	$ \omega $
True value	$ 0.5 $	$ 0.5 $	$ 0.3 $	2	$ 0.5 $
$ \hat{H} $	$ 0.473 $	$ 0.484 $
$ \hat{R} $			0.300
$ \hat{F} $	0	0	0	1.984	0.505
Trained BSI and SINDy parameters
	$ q $	$ p $	$ const. $	$ \alpha $	$ \omega $
True $ \hat{\dot{q}} $	0	1	0	0	0
BSI $ \hat{\dot{q}} $	0	0.991	0	0	0
SINDy $ \hat{\dot{q}} $	0	0.983	0	0	0
True $ \hat{\dot{p}} $	$ -1 $	$ -0.3 $	0	2	$ 0.5 $
BSI $ \hat{\dot{p}} $	$ -0.980 $	$ -0.278 $	0	$ 1.999 $	$ 0.506 $
SINDy $ \hat{\dot{p}} $	$ -0.548 $	0	$ 0.241 $

| Show Table

DownLoad: CSV

Table 3. Learned coefficients for the tank system on the noisy data. $ x_1^2, \dots, x_9^2 $ are multiplied with the trained coefficients while $ r_1, \dots, r_5 $ are themselves the trainable parameters

	$ x_1^2 $	$ x_2^2 $	$ x_3^2 $	$ x_4^2 $	$ x_5^2 $	$ x_6^2 $	$ x_7^2 $
True value	25	25	25	25	25	$ 4.905 $	$ 4.905 $
PHSI	$ 24.94 $	$ 24.98 $	$ 24.98 $	$ 24.95 $	$ 24.97 $	$ 4.930 $	$ 4.960 $
	$ x_8^2 $	$ x_9^2 $	$ r_1 $	$ r_2 $	$ r_3 $	$ r_4 $	$ r_5 $
True value	$ 4.905 $	$ 4.905 $	$ 0.03 $	$ 0.03 $	$ 0.09 $	$ 0.05 $	$ 0.05 $
PHSI	$ 4.890 $	$ 4.930 $	$ 0.031 $	$ 0.029 $	$ 0.086 $	$ 0.051 $	$ 0.041 $

| Show Table

DownLoad: CSV

Table 4. The learned approximations of $ \gamma $ in (14), for different $ \gamma $ and different pruning tresholds $ \epsilon $, trained on noise-free data

$ \epsilon \backslash \gamma $	$ 0.1 $	$ 0.07 $	$ 0.05 $	$ 0.03 $	$ 0.01 $	$ 0.007 $	$ 0.005 $	$ 0.003 $	$ 0.001 $
$ 0.05 $	$ 0.1012 $	$ 0.0718 $	0	0	0	0	0	0	0
$ 0.01 $	$ 0.1000 $	$ 0.0717 $	$ 0.0501 $	$ 0.0310 $	0	0	0	0	0
$ 0.001 $	$ 0.1006 $	$ 0.0711 $	$ 0.0489 $	$ 0.0301 $	$ 0.0102 $	$ 0.0051 $	0	$ 0.0028 $	0

| Show Table

DownLoad: CSV

Table 5. The learned approximations of $ \gamma $ in (14), for different $ \gamma $ and different pruning tresholds $ \epsilon $, trained on data with added Gaussian noise with standard deviation $ \sigma = 0.2 $

$ \epsilon \backslash \gamma $	$ 0.1 $	$ 0.07 $	$ 0.05 $	$ 0.03 $	$ 0.01 $	$ 0.007 $	$ 0.005 $	$ 0.003 $	$ 0.001 $
$ 0.05 $	$ 0.0974 $	0	0	0	0	0	0	0	0
$ 0.01 $	$ 0.1001 $	$ 0.0485 $	$ 0.0515 $	$ 0.0412 $	0	0	0	0	0
$ 0.001 $	$ 0.0833 $	$ 0.0754 $	$ 0.0372 $	$ 0.0399 $	$ 0.0034 $	$ 0.0093 $	0	$ -0.0196 $	$ -0.0062 $

| Show Table

DownLoad: CSV

Table 6. Properties of integrators. PRK4 is explicit, mono-implicit and symplectic for separable systems but not for non-separable systems

Integrator	order	$ g $ eval's	explicit	mono-implicit	symmetric	symplectic
Euler	1	1	yes	yes	no	no
Midpoint	2	1	no	yes	yes	yes
RK4	4	4	yes	yes	no	no
SRK4	4	4	no	yes	yes	no
SRK6	6	5	no	yes	yes	no
PRK4	4	7	yes/no	yes/no	yes	yes/no

| Show Table

DownLoad: CSV

Table 7. Mean and standard deviation of the predicted friction coefficients of the tank system, relative to the ground truth $ R_p = (0.03, 0.03, 0.09, 0.03, 0.03) $ (i.e. so that 1 corresponds to the correct coefficient)

	no noise	$ \sigma=0.03 $	$ \sigma=0.05 $
7500 training points
Euler	$ 22.75\pm7.20 $	$ 23.59\pm7.04 $	$ 25.27\pm7.31 $
Midpoint	$ 1.27\pm0.04 $	$ 1.16\pm0.14 $	$ 1.01\pm0.11 $
RK4	$ 1.04\pm0.04 $	$ 1.70\pm0.24 $	$ 1.95\pm0.27 $
SRK4	$ 1.16\pm0.07 $	$ 0.92\pm0.13 $	$ 0.88\pm0.43 $
SRK6	$ 0.95\pm0.07 $	$ 0.85\pm0.19 $	$ 0.94\pm0.25 $
30000 training points
Euler	$ 11.33\pm3.31 $	$ 12.31\pm3.48 $	$ 13.83\pm3.91 $
Midpoint	$ 1.23\pm0.11 $	$ 1.15\pm0.16 $	$ 1.16\pm0.25 $
RK4	$ 1.20\pm0.06 $	$ 1.97\pm0.29 $	$ 4.18\pm0.70 $
SRK4	$ 1.16\pm0.04 $	$ 1.11\pm0.13 $	$ 1.00\pm0.23 $
SRK6	$ 1.24\pm0.06 $	$ 1.21\pm0.10 $	$ 1.35\pm0.32 $

| Show Table

DownLoad: CSV
