The Prytz connections

1.
Norwegian University of Life Sciences, Norway
2.
Norwegian University of Science and Technology, Norway
3.
University of Bergen, Norway

^*Corresponding author: Geir Bogfjellmo
^*Corresponding author: Geir Bogfjellmo

Received: August 2023

Revised: February 2024

Early access: March 14, 2024

Published online: March 14, 2024

Sylvie Vega-Molino is supported by the grant GeoProCo from the Trond Mohn Foundation Grant TMS2021STG02 (GeoProCo).

Abstract / Introduction Full Text(HTML) Figure(5) Related Papers Cited by

Abstract

The Prytz planimeter is a simple mechanical device that historically was used to approximate areas of plane regions. It also serves as a starting point to explain topics in differential geometry and sub-Riemannian geometry. In this article, we present a mathematical description and analysis of the planimeter and show how the analysis of its motion leads to concepts such as connections and sub-Riemannian geodesics.

Keywords:

Mathematics Subject Classification: Primary: 53Z30, 53B15, 53C17.

Citation:

Full Text(HTML)

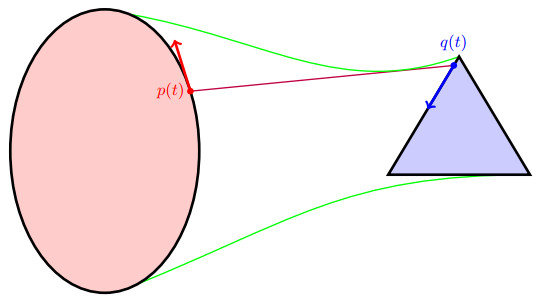

Figure 1. An illustration of the moving segment theorem. The area between the two shapes is swept out twice, once in the positive direction and once in the negative direction

Download: Full-size image PowerPoint slide

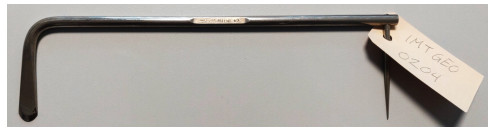

Figure 2. A Prytz planimeter

Download: Full-size image PowerPoint slide

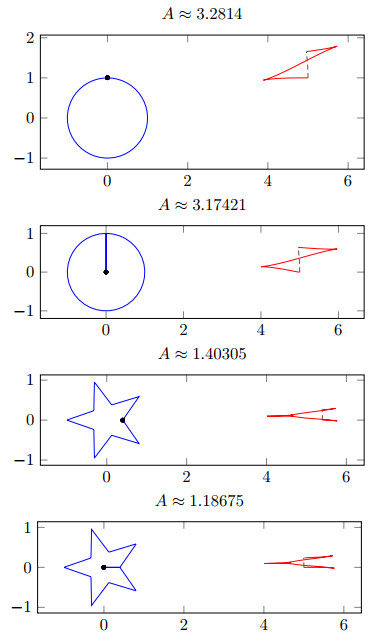

Figure 3. Some examples of planimeter paths. The blue line follows the tracer end $ p(t) $ and the red line the chisel end $ q(t) $. The circular arc segment between $ q(0) $ and $ q(T) $ with center in $ p(0) = p(T) $ is shown as a dashed line. The exact values are $ A = \pi\approx 3.14159 $ for the circle, and $ A = 2\sin\left(\frac{\pi}{5}\right)\approx 1.17557 $ for the star

Download: Full-size image PowerPoint slide

Figure 4. An illustration of the planimeter and the coordinates used. The chisel end $ q $ can only move parallel to the line $ p $-$ q $

Download: Full-size image PowerPoint slide

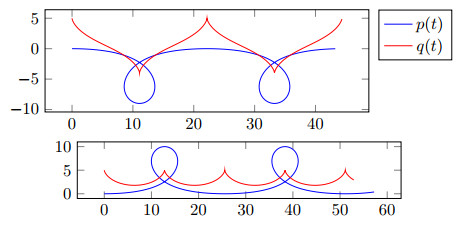

Figure 5. Examples of sub-Riemannian geodesics

Download: Full-size image PowerPoint slide
