Supervised time series classification for anomaly detection in subsea engineering

Ergys Çokaj; Halvor Snersrud Gustad; Andrea Leone; Per Thomas Moe; Lasse Moldestad

doi:10.3934/jcd.2024019

Article Contents

2024, Volume 11, Issue 3: 376-408. Doi: 10.3934/jcd.2024019

This issue Previous Article Optimization via conformal Hamiltonian systems on manifolds Next Article Preface

Supervised time series classification for anomaly detection in subsea engineering

1.
Norwegian University of Science and Technology, Norway
2.
TechnipFMC, Norway

^*Corresponding author: Halvor Snersrud Gustad
^*Corresponding author: Halvor Snersrud Gustad

Received: August 2023

Revised: February 2024

Early access: April 2024

Published: July 2024

Abstract / Introduction Full Text(HTML) Figure(24) / Table(8) Related Papers Cited by

Abstract

Time series classification is of significant importance in monitoring structural systems. In this work, we investigate the use of supervised machine learning classification algorithms on simulated data based on a physical system with two states: Intact and Broken. We provide a comprehensive discussion of the preprocessing of temporal data, using measures of statistical dispersion and dimension reduction techniques. We present an intuitive baseline method and discuss its efficiency. We conclude with a comparison of the various methods based on different performance metrics, showing the advantage of using machine learning techniques as a tool in decision making.

Keywords:

Mathematics Subject Classification: Primary: 62M10, Secondary: 62P30, 68T07.

Citation:

Full Text(HTML)

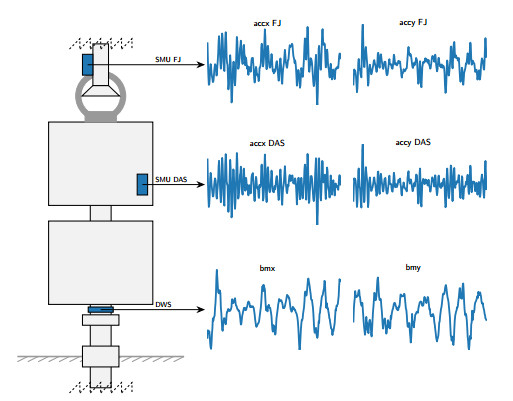

Figure 1. Stack with sensors and corresponding data

Download: Full-size image PowerPoint slide

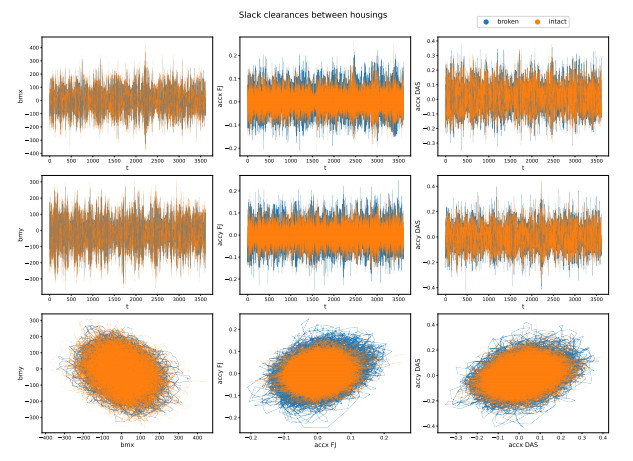

Figure 2. Two 1-hour simulations from the dataset comparing a broken and intact well under similar conditions. Plots are given for the $ x $ and $ y $ component of the different physical measurements. The two top rows give the time series while the bottom row shows phase plots

Download: Full-size image PowerPoint slide

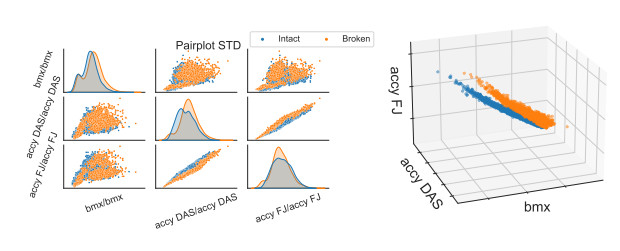

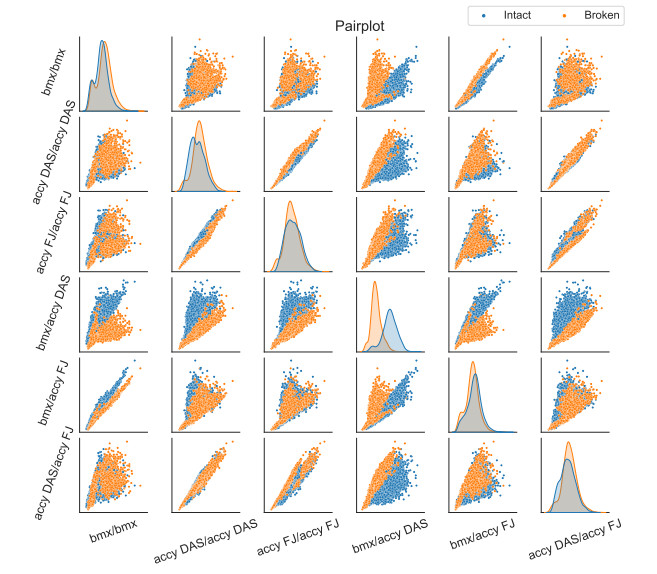

Figure 3. Pair plot showing of the scatter and distribution of data after a standard deviation transform (left). Plot visualizing the transformed data in 3 dimensions (right)

Download: Full-size image PowerPoint slide

Figure 4. Pair plot of the data after using aforementioned covariance transform. For certain combinations the broken and intact cases separate quite well

Download: Full-size image PowerPoint slide

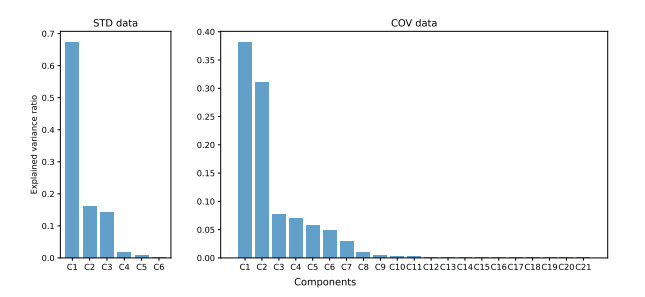

Figure 5. Ratio each component explains

Download: Full-size image PowerPoint slide

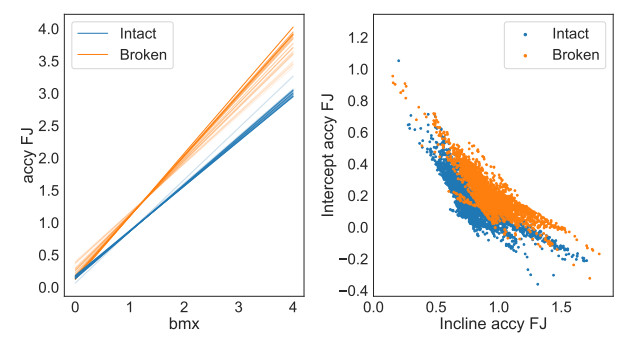

Figure 6. Left: Visualization of the lines capturing the relation between the standard deviation of accelerations in the flex-joint and wellhead bending moments using linear regression. The lines are meant to be displayed on a vessel's monitor and gradually fade over time highlighting the most recent behaviour. Right: Distribution of data for the baseline method

Download: Full-size image PowerPoint slide

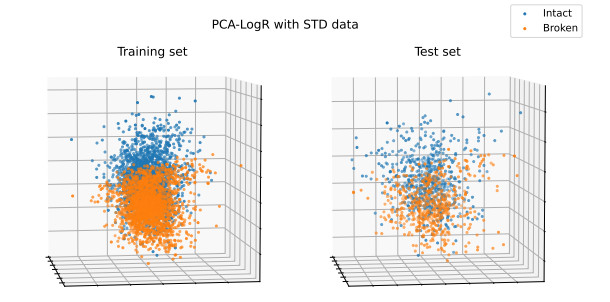

Figure 7. Classification of the STD data from the Noise 1 data set with 3 principal components

Download: Full-size image PowerPoint slide

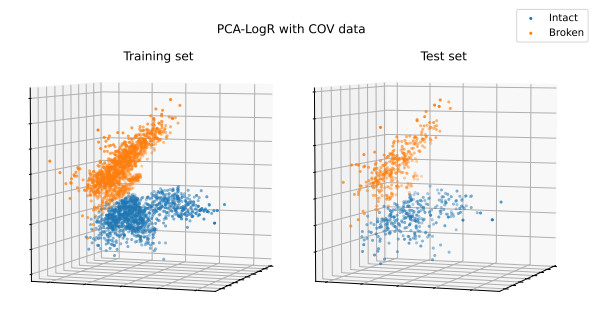

Figure 8. Classification of the COV data from the Noise 1 data set with 4 principal components. The 3D visualization is made with 3 components

Download: Full-size image PowerPoint slide

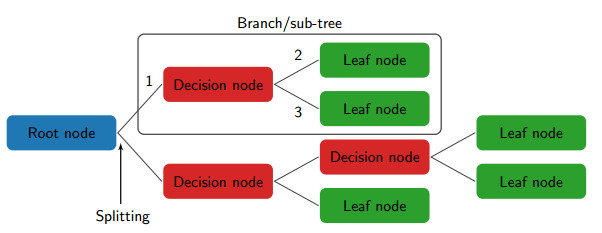

Figure 9. Example of a horizontal decision tree with depth 3. Node 1 is the parent node of nodes 2 and 3

Download: Full-size image PowerPoint slide

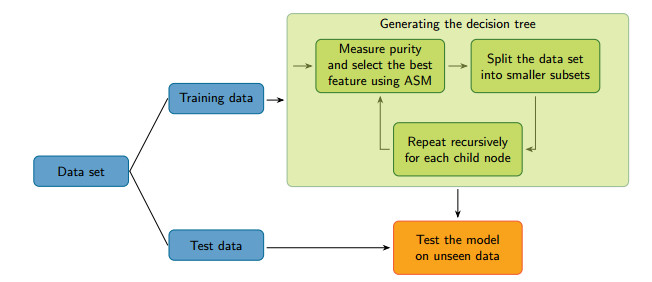

Figure 10. Decision tree algorithm illustrated as in [15]

Download: Full-size image PowerPoint slide

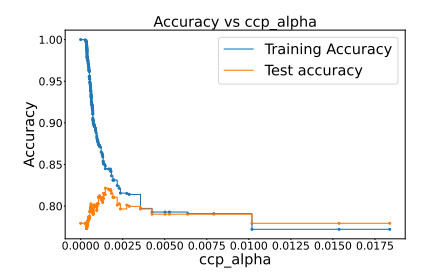

Figure 11. The effect of post-pruning in the reduction of overfitting. Scenario: Noise 50, COV-PCA(4), Gini (bottom-right block of Table 3.)

Download: Full-size image PowerPoint slide

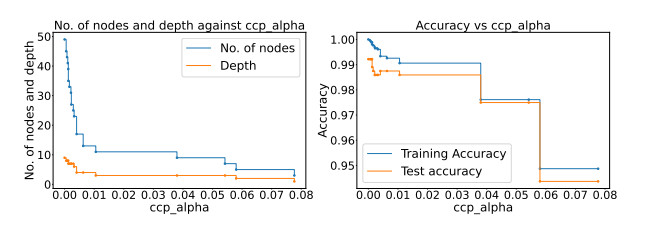

Figure 12. The effect of $ \texttt{ccp_alpha}$ on the structure and the accuracy of the tree. Scenario: Noise 1, COV-PCA(4), Entropy (marked in bold in Table 3.)

Download: Full-size image PowerPoint slide

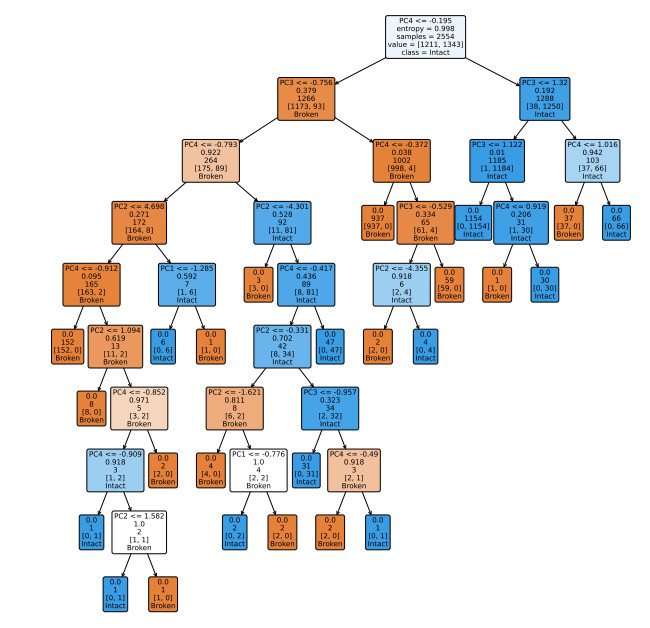

Figure 13. DT generated with entropy as splitting criterion on the data set consisting of the first four PCs of the COV data. Blue and orange are used for intact and broken, respectively. A light colour indicates a high entropy, an intense colour a low entropy.

Download: Full-size image PowerPoint slide

Figure 14. The same DT as in Figure 13 post pruned with $ \texttt{ccp_alpha}$ = 0.01

Download: Full-size image PowerPoint slide

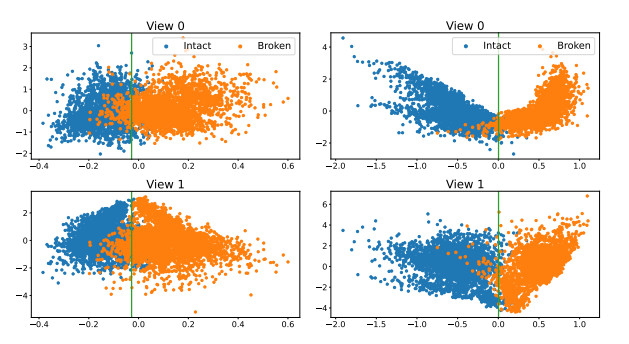

Figure 15. Figure showing linear SVMs performance on dataset with STD transform (left column) or COV transform and 3 PCs (right column). Both are created from a subset of the data set containing only one physical direction

Download: Full-size image PowerPoint slide

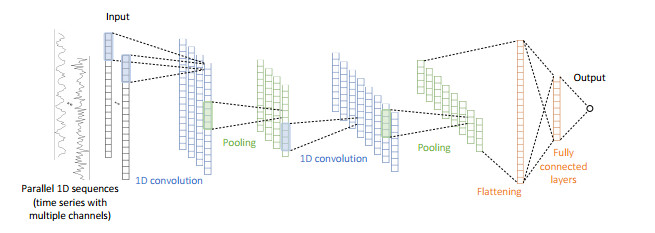

Figure 16. A typical one-dimensional CNN architecture

Download: Full-size image PowerPoint slide

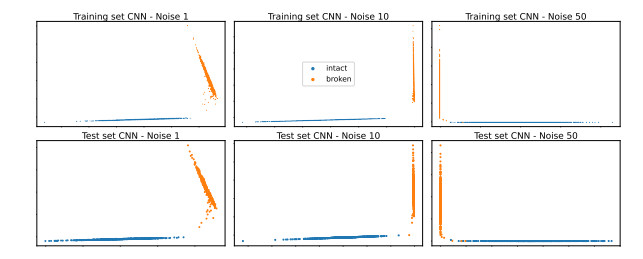

Figure 17. The figures illustrate the transformation of the input data by the CNN in both the training and test sets, under the three different noise scenarios. Prior to the output layer, which predicts the class, each individual time series is converted into a two-dimensional vector and can be visually represented as a point on a plane. In the case of Noise 1 and Noise 10, the data points belonging to the two categories form separate clusters

Download: Full-size image PowerPoint slide

Figure 18. Confusion matrix used to evaluate the performance of the classification techniques

Download: Full-size image PowerPoint slide

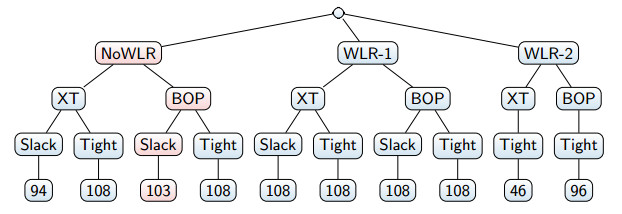

Figure 19. Number of analyses for fixed configurations. In red is the combination of configurations that we analyze in this work

Download: Full-size image PowerPoint slide

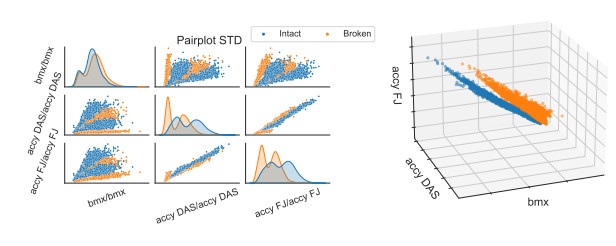

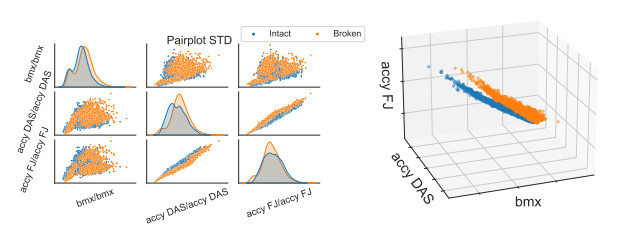

Figure 20. To the left a pair plot of the data after using aforementioned standard deviation transform on wells with a tight wellhead housing. For certain combinations the broken and intact cases separate quite well. To the right a 3D plot showing the spread of the data

Download: Full-size image PowerPoint slide

Figure 21. To the left a pair plot of the data after using aforementioned standard deviation transform on wells with a slack wellhead housing. For certain combinations the broken and intact cases separate quite well. To the right a 3D plot showing the spread of the data

Download: Full-size image PowerPoint slide

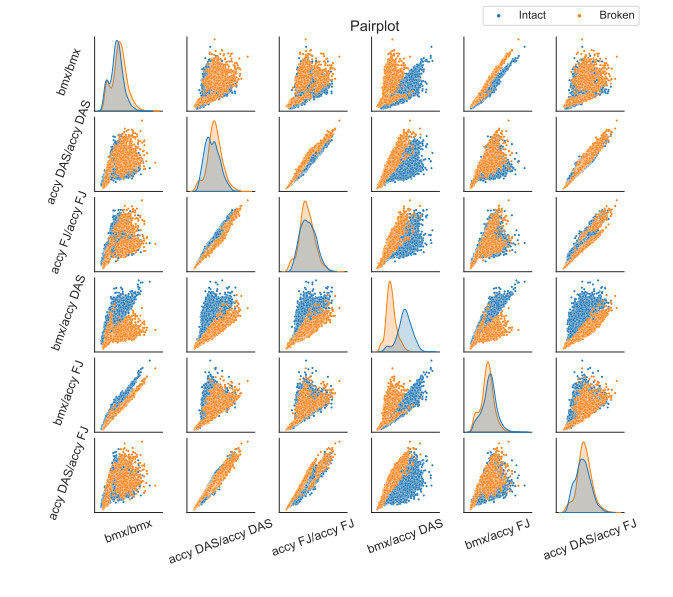

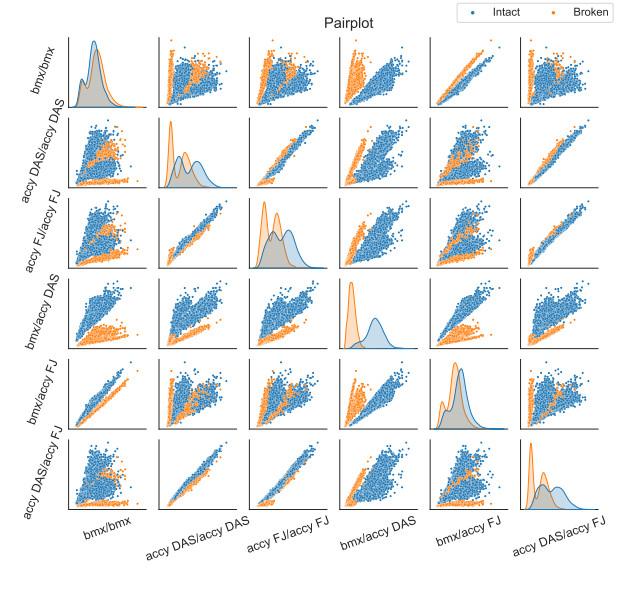

Figure 22. Pair plot of the data after using aforementioned covariance transform on wells with a tight wellhead housing. For certain combinations the broken and intact cases separate quite well

Download: Full-size image PowerPoint slide

Figure 23. Pair plot of the data after using aforementioned covariance transform on wells with a slack wellhead housing. For certain combinations the broken and intact cases separate quite well

Download: Full-size image PowerPoint slide

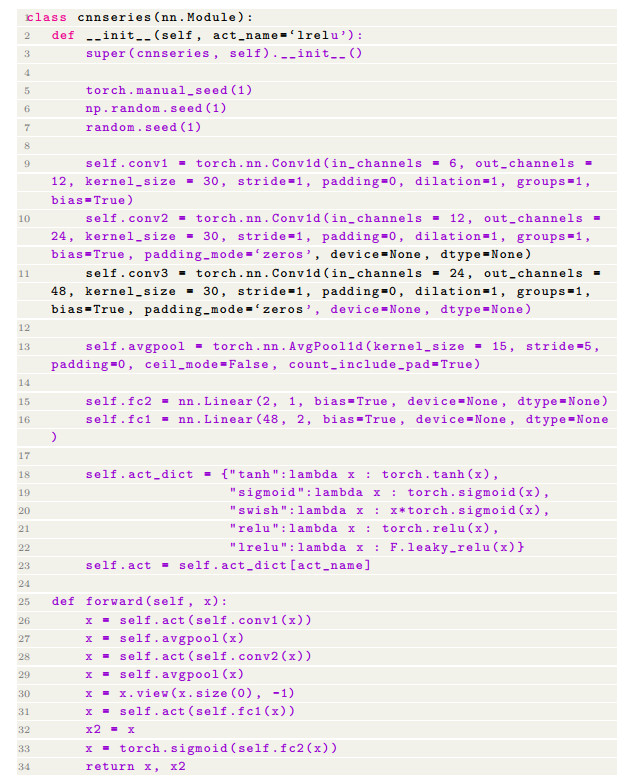

Figure LISTING 1. Architecture of the CNN used in the eperiments of Section 7

Download: Full-size image PowerPoint slide

Table 1. List of abbreviations and notations

Nomenclature
accx, accy	x and y component of the acceleration
ASM	Attribute Selection Measure
bmx, bmy	x and y component of the bending moment
BOP	Blowout Preventer
CNN	Convolutional Neural Network
DAS	Data Acquisition System
DT	Decision Tree
DWS	Deep Water Strain
FJ	Flex Joint
LogR	Logistic Regression
ML	Machine Learning
MLP	Multi-layer Perceptron
PCA	Principal Component Analysis
SMU	Subsea Motion Units
STD	Standard Deviation
SVD	Singular Value Decomposition
SVM	Support Vector Machine
TSC	Time Series Classification
WLR	Wire Load Relief

| Show Table

DownLoad: CSV

Table 2. Accuracy of LogR-PCA applied to the STD and COV data from the different data sets with different number of PCs. In bold are marked the scenarios that will be reported in Table 6 for comparison purposes

Data set and data transformation		Accuracy (%)
		Number of PCs
		1	2	3	4	5	6	7
Noise 1	STD	55.99	54.53	69.26	69.17	98.46	98.62	-
Noise 1	COV	55.24	55.56	65.88	99.69	99.84	100	100
Noise 10	STD	55.66	54.53	69.17	69.17	98.14	98.14	-
Noise 10	COV	55.56	55.87	64.16	99.53	99.84	99.84	99.84
Noise 50	STD	54.29	54.21	68.77	69.01	89.97	91.26	-
Noise 50	COV	55.56	56.81	54.93	79.34	91.06	95.62	96.09

| Show Table

DownLoad: CSV

Table 3. Performance of DTs tested on different scenarios. In bold are marked the scenarios that will be reported in Table 6 for comparison purposes

			Data set
			Noise 1				Noise 10				Noise 50
Data transformation	Splitting criterion	DT prun.	Depth	# of nodes	Train acc. (%)	Test acc. (%)	Depth	# of nodes	Train acc. (%)	Test acc. (%)	Depth	# of nodes	Train acc. (%)	Test acc. (%)
STD	Entropy	no	15	454	100	93.69	16	480	100	93.45	19	1018	100	84.39
		pre	13	416	99.47	93.61	13	428	99.37	93.93	12	782	97.17	84.87
		post	12	154	95.57	91.59	12	142	95.31	91.99	10	128	87.15	83.5
	Gini	no	15	530	100	93.45	14	600	100	93.37	19	1078	100	83.25
		pre	13	520	99.84	93.61	13	556	99.55	93.28	10	686	95.47	83.25
		post	10	116	93.75	89.56	10	106	91.42	90.13	9	82	85.17	81.96
COV	Entropy	no	6	48	100	98.28	8	54	100	98.9	11	118	100	94.99
		pre	5	44	99.57	98.28	5	44	98.98	98.75	5	50	95.54	91.86
		post	6	22	98.83	97.97	6	26	98.94	98.59	6	24	95.61	92.8
	Gini	no	7	73	100	98.9	9	80	100	98.59	10	136	100	95.62
		pre	6	60	99.61	99.06	6	62	99.41	98.28	6	76	97.65	95.77
		post	6	26	98.63	98.44	5	24	98.16	98.28	7	32	97.06	95.15
COV-PCA(4)	Entropy	no	9	48	100	99.22	8	44	100	98.75	26	792	100	78.72
		pre	5	30	99.61	99.06	7	40	99.92	98.75	6	102	83.95	82.79
		post	4	12	99.26	98.75	4	14	98.86	98.9	10	66	83.4	82.0
	Gini	no	9	50	100	98.9	7	58	100	99.37	20	820	100	77.93
		pre	5	34	99.65	98.9	7	58	100	99.37	7	206	87.67	80.44
		post	4	12	99.14	98.75	4	12	98.94	99.06	6	24	81.4	79.97

| Show Table

DownLoad: CSV

Table 4. Accuracy for linear SVM and RBF SVM applied to the noisy test sets. The number of support vectors for the SVM with the RBF kernel is given in the SV columns. An asterisk (*) indicates that only one physical direction was used from the sensors. In bold are marked the scenarios that will be reported in Table 6 for comparison purposes

Data trans. (#PCs)	Noise 1			Noise 10			Noise 50
	Linear	RBF		Linear	RBF		Linear	RBF
	Acc.	Acc.	SV	Acc.	Acc.	SV	Acc.	Acc.	SV
STD(3)*	0.940	0.950	1264	0.866	0.874	1866	0.650	0.668	3591
COV(3)*	0.986	0.986	465	0.974	0.987	568	0.928	0.923	1066
COV(4)*	0.983	0.990	418	0.988	0.984	441	0.927	0.940	980
COV(6)*	0.994	0.999	364	0.983	0.994	444	0.933	0.942	954
STD(6)	0.978	0.983	969	0.926	0.942	1345	0.682	0.726	3239
COV(6)	0.988	0.993	621	0.982	0.994	616	0.946	0.958	992
COV(7)	0.993	0.998	484	0.993	0.996	481	0.953	0.970	853
COV(21)	0.999	1.000	462	0.996	0.998	519	0.947	0.972	923

| Show Table

DownLoad: CSV

Table 5. Combination of hyperparameters yielding the best results in each scenario, corresponding to the plots in Figure 17, after conducting 100 trials with $ \texttt{Optuna}$

Selected hyperparameters
	Noise 1	Noise 10	Noise 50
activation function	LeakyReLU	LeakyReLU	Swish
learning rate $ \eta $	$ 2.562 \cdot 10^{-2} $	$ 2.102 \cdot 10^{-3} $	$ 1.017 \cdot 10^{-2} $
weight decay	$ 1.243 \cdot 10^{-5} $	$ 1.221 \cdot 10^{-5} $	$ 1.520 \cdot 10^{-7} $
batch size	30	10	30
MSE train	$ 8.856 \cdot 10^{-6} $	$ 5.968 \cdot 10^{-5} $	$ 6.068 \cdot 10^{-4} $
MSE test	$ 2.815 \cdot 10^{-5} $	$ 3.054 \cdot 10^{-4} $	$ 2.427 \cdot 10^{-3} $

| Show Table

DownLoad: CSV

Table 6. Performance of the methods. Given the high scoring of the classical ML algorithms on the full data set they are here compared using $ 4 $ PCs of the COV-transformed data set

Data set	Method	Precision	Recall	F1 Score	Train Time (ms)	Test Time (ms)
Noise 1	LogR-PCA	0.997	0.997	0.997	10.195	0.990
	DT-PCA	0.997	0.987	0.992	6.662	0.998
	SVM-PCA	0.990	0.990	0.990	133.799	51.615
	CNN	1.000	1.000	1.000	$ \sim $ 3 min	30.535
Noise 10	LogR-PCA	0.997	0.994	0.995	12.408	1.001
	DT-PCA	1.000	0.987	0.993	5.207	0.999
	SVM-PCA	0.988	0.988	0.988	24.639	3.003
	CNN	1.000	1.000	1.000	$ \sim $ 3 min	27.133
Noise 50	LogR-PCA	0.808	0.750	0.778	11.026	1.016
	DT-PCA	0.830	0.808	0.819	10.910	0.994
	SVM-PCA	0.940	0.940	0.940	212.493	106.985
	CNN	0.995	1.000	0.998	$ \sim $ 4 min	49.181

| Show Table

DownLoad: CSV

Table 7. Hyperparameter ranges for the pre-pruning and choice of the $ \alpha $ for the post-pruning of the DTs, used to obtain the results reported in Table 3. * except for the Noise 50 data set where $ \alpha $ = 0.003

		Pre-pruning		Post-pruning
Data transformation	Splitting criterion	Hyperparameter	Range	$\alpha $
STD	Entropy	$\texttt{max_depth}$	$ [2, 13]\cap\mathbb{N} $
		$\texttt{min_samples_split}$	$ [2, 4]\cap\mathbb{N} $	0.003
		$\texttt{min_samples_leaf}$	$ [1, 2]\cap\mathbb{N} $
	Gini	$\texttt{max_depth}$	$ [2, 13]\cap\mathbb{N} $
		$\texttt{min_samples_split}$	$ [2, 4]\cap\mathbb{N} $	0.002
		$\texttt{min_samples_leaf}$	$ [1, 2]\cap\mathbb{N} $
COV	Entropy	$\texttt{max_depth}$	$ [2, 5]\cap\mathbb{N} $
		$\texttt{min_samples_split}$	$ [2, 4]\cap\mathbb{N} $	0.01
		$\texttt{min_samples_leaf}$	$ [1, 2]\cap\mathbb{N} $
	Gini	$\texttt{max_depth}$	$ [2, 6]\cap\mathbb{N} $
		$\texttt{min_samples_split}$	$ [2, 4]\cap\mathbb{N} $	0.003
		$\texttt{min_samples_leaf}$	$ [1, 2]\cap\mathbb{N} $
COV-PCA(4)	Entropy	$\texttt{max_depth}$	$ [2, 8]\cap\mathbb{N} $
		$\texttt{min_samples_split}$	$ [2, 4]\cap\mathbb{N} $	0.01*
		$\texttt{min_samples_leaf}$	$ [1, 2]\cap\mathbb{N} $
	Gini	$\texttt{max_depth}$	$ [2, 8]\cap\mathbb{N} $
		$\texttt{min_samples_split}$	$ [2, 4]\cap\mathbb{N} $	0.003
		$\texttt{min_samples_leaf}$	$ [1, 2]\cap\mathbb{N} $

| Show Table

DownLoad: CSV

Table 8. Range of values allowed for each hyperparameter in the experiments with CNNs, with the third column describing how the values were explored using $ \texttt{Optuna}$

Hyperparameter	Range	Distribution
activation function	{Tanh, Swish, Sigmoid, ReLU, LeakyReLU}	discrete uniform
learning rate	$ [1 \cdot 10^{-4} , 1 \cdot 10^{-1}] $	log uniform
weight decay	$ [1 \cdot 10^{-7} , 5 \cdot 10^{-4}] $	log uniform
batch size	$ \{10, 30, 50,100\} $	discrete uniform

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	T. Akiba, S. Sano, T. Yanase, T. Ohta and M. Koyama, Optuna: A next-generation hyperparameter optimization framework, in Proceedings of the 25th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, 2019.
[2]	D. Bank, N. Koenigstein and R. Giryes, Autoencoders, 2021.,
[3]	M. A. Belay, S. S. Blakseth, A. Rasheed and P. S. Rossi, Unsupervised Anomaly detection for IoT-Based Multivariate Time Series: Existing Solutions, Performance Analysis and Future Directions, Sensors, 2023.
[4]	J. Berkson, Application of the Logistic Function to Bio-Assay, Journal of the American Statistical Association, 39 (1944), 357-365.
[5]	B. E. Boser, I. M. Guyon and V. N. Vapnik, A training algorithm for optimal margin classifiers, in Proceedings of the Fifth Annual Workshop on Computational Learning Theory, COLT '92, Association for Computing Machinery, New York, NY, USA (1992), 144-152.
[6]	M. M. Bronstein, J. Bruna, T. Cohen and P. Veličković, Geometric deep learning: Grids, Groups, Graphs, Geodesics, and Gauges, 2021.
[7]	J. Cadima and I. T. Jolliffe, Principal component analysis: A review and recent developments, Philosophical Transactions of the Royal Society A: Mathematical, Physical and Engineering Sciences, 374 (2016), 20150202. doi: 10.1098/rsta.2015.0202.
[8]	J. Cervantes, F. Garcia-Lamont, L. Rodríguez-Mazahua and A. Lopez, A comprehensive survey on support vector machine classification: Applications, challenges and trends, Neurocomputing, 408 (2020), 189-215.
[9]	C. Cortes and V. Vapnik, Support-vector networks, Machine Learning, 20 (1995), 273-297. doi: 10.1023/A:1022627411411.
[10]	H. I. Fawaz, G. Forestier, J. Weber, L. Idoumghar and P. A. Muller, Deep learning for time series classification: A review, Data Mining and Knowledge Discovery, 33 (2019), 917-963. doi: 10.1007/s10618-019-00619-1.
[11]	F. E. Harrell, Regression Modeling Strategies: With Applications to Linear Models, Logistic Regression, and Survival Analysis, vol. 608, Springer, 2001.
[12]	C. F. Higham and D. J. Higham, Deep learning: An introduction for applied mathematicians, SIAM Review, 61 (2019), 860-891. doi: 10.1137/18M1165748.
[13]	H. Hotelling, Analysis of a complex of statistical variables into principal components, Journal of Educational Psychology, 24 (), 417-441.
[14]	D. W. H. Jr, S. Lemeshow and R. X. Sturdivant, Applied Logistic Regression, vol. 398, John Wiley & Sons, 2013.
[15]	H. Kim, Artificial Intelligence for 6G, Springer International Publishing, Cham, 2022.
[16]	D. Kingma and J. Ba, Adam: A Method for Stochastic Optimization, in International Conference on Learning Representations (ICLR), San Diega, CA, USA, 2015.
[17]	Y. LeCun, Y. Bengio and G. Hinton, Deep learning, Nature, 521 (2015), 436-444.
[18]	D. Lee, S. Malacarne and E. Aune, Vector quantized time series generation with a bidirectional prior model, in Proceedings of The 26th International Conference on Artificial Intelligence and Statistics, (eds. F. Ruiz, J. Dy and J.-W. van de Meent), vol. 206 of Proceedings of Machine Learning Research, PMLR, (2023), 7665-7693.
[19]	R. J. Lewis, An Introduction to Classification and Regression Tree (CART) Analysis, in Annual Meeting of the Society for Academic Emergency Medicine in San Francisco, California, vol. 14, 2000.
[20]	F. T. Liu, K. M. Ting and Z.-H. Zhou, Isolation forest, in 2008 Eighth IEEE International Conference on Data Mining, (2008), 413-422.
[21]	S. Menard, Logistic Regression: From Introductory to Advanced Concepts and Applications, Sage, 2010.
[22]	F. Mola and R. Siciliano, A fast splitting procedure for classification trees, Statistics and Computing, 7 (1997), 209-216.
[23]	J. N. Morgan and J. A. Sonquist, Problems in the Analysis of Survey Data, and a Proposal, Journal of the American Statistical Association, 58 (1963), 415-434.
[24]	Orcina Ltd, Orcaflex, 2023, https://www.orcina.com/orcaflex/.
[25]	A. Paszke, S. Gross, F. Massa, A. Lerer, J. Bradbury, G. Chanan, T. Killeen, Z. Lin, N. Gimelshein, L. Antiga, A. Desmaison, A. Kopf, E. Yang, Z. DeVito, M. Raison, A. Tejani, S. Chilamkurthy, B. Steiner, L. Fang, J. Bai and S. Chintala, PyTorch: An Imperative Style, High-Performance Deep Learning Library, in Advances in Neural Information Processing Systems, vol. 32, Curran Associates, Inc., 2019.
[26]	K. Pearson, On lines and planes of closest fit to systems of points in space, The London, Edinburgh, and Dublin Philosophical Magazine and Journal of Science, 2 (1901), 559-572.
[27]	V. Podgorelec, P. Kokol, B. Stiglic and I. Rozman, Decision trees: An overview and their use in medicine, Journal of Medical Systems, 26 (2002), 445-463.
[28]	J. R. Quinlan, Induction of decision trees, Machine Learning, 1 (1986), 81-106.
[29]	L. E. Raileanu and K. Stoffel, Theoretical Comparison between the Gini Index and Information Gain Criteria, Annals of Mathematics and Artificial Intelligence, 41 (2004), 77-93. doi: 10.1023/B:AMAI.0000018580.96245.c6.
[30]	L. Rokach and O. Maimon, Top-Down Induction of Decision Trees Classifiers-A Survey, IEEE Transactions on Systems, Man, and Cybernetics, Part C (Applications and Reviews), 35 (2005), 476-487.
[31]	B. Schölkopf, R. Williamson, A. Smola, J. Shawe-Taylor and J. Platt, Support vector method for novelty detection, in Proceedings of the 12th International Conference on Neural Information Processing Systems, NIPS'99, MIT Press, Cambridge, MA, USA, (1999), 582-588.
[32]	C. Sensors, TILT - 57A DYNAMIC INCLINOMETER, Three-Axis Accelerometer, Three-Axis Gyroscope, 2024, https://ctisensors.com/products/tilt-5x-dynamic-inclinometer/.
[33]	R. H. Shumway and D. S. Stoffer, Time Series Analysis and Its Applications, Springer Cham, 2017. doi: 10.1007/978-3-319-52452-8.
[34]	Y. Y. Song and L. Ying, Decision tree methods: applications for classification and prediction, Shanghai Archives of Psychiatry, 27 (2015), 130.
[35]	S. Tangirala, Evaluating the Impact of GINI Index and Information Gain on Classification using Decision Tree Classifier Algorithm, International Journal of Advanced Computer Science and Applications, 11 (2020), 612-619.
[36]	A. Venkatasubramaniam, J. Wolfson, N. Mitchell, T. Barnes, M. Jaka and S. French, Decision trees in epidemiological research, Emerging Themes in Epidemiology, 14 (2017), 1-12.
[37]	D. N. Veritas, Recommended Practice, Technical Report DNV-RP-E104, 2019.
