Sub-Riemannian landmark matching and its interpretation as residual neural networks

Erik Jansson; Klas Modin

doi:10.3934/jcd.2025004

Article Contents

2025, Volume 12, Issue 3: 467-490. Doi: 10.3934/jcd.2025004

This issue Previous Article Computer assisted existence proofs for parameterized cycle-to-cycle connections Next Article

Sub-Riemannian landmark matching and its interpretation as residual neural networks

Erik Jansson^, and
Klas Modin

Department of Mathematical Sciences, Chalmers University of Technology & University of Gothenburg, Sweden

^*Corresponding author: Erik Jansson
^*Corresponding author: Erik Jansson

Received: September 2024

Revised: February 2025

Early access: April 27, 2025

Published online: April 27, 2025

Abstract / Introduction Full Text(HTML) Figure(13) / Table(2) Related Papers Cited by

Abstract

The problem of finding a time-dependent vector field which warps an initial set of points to a target set is common in shape analysis. It is an example of a problem in the diffeomorphic shape matching regime, and can be thought of as a spatial discretization of diffeomorphic image matching. In this paper, we consider landmark matching modified by restricting the set of available vector fields in the sense that vector fields are parametrized by a set of controls. We determine the geometric setting of the problem, referred to as sub-Riemannian landmark matching, and derive the equations of motion for the controls. We provide two computational algorithms and demonstrate them in numerical examples. In particular, the experiments highlight the importance of the regularization term. A strong motivation is that sub-Riemannian landmark matching have connections with neural networks, in particular the interpretation of residual neural networks as time discretizations of continuous control problems. It allows shape analysis practitioners to think about neural networks in terms of diffeomorphic landmark matching, thereby providing a bridge between the two fields.

Keywords:

Mathematics Subject Classification: Primary: 68T07, 53C17, 70H99, 70G45.

Citation:

Full Text(HTML)

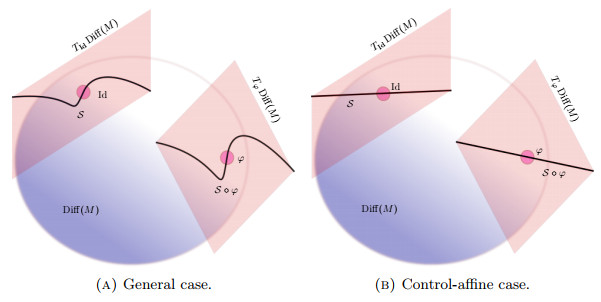

Figure 1. Illustration of the $ \mathcal E(\mathcal S) $ sub-bundle of $ T\operatorname{Diff}(M) $ in two different cases

Download: Full-size image PowerPoint slide

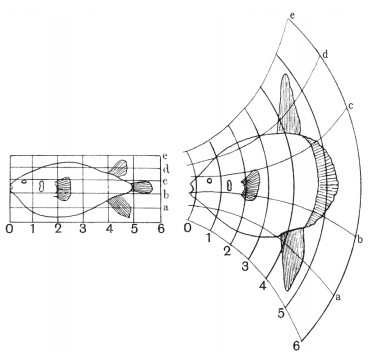

Figure 2. The left fish is the initial image, and the right one is the target. Note the structural similarities between the fish, implying that it should be possible to warp one to the other

Download: Full-size image PowerPoint slide

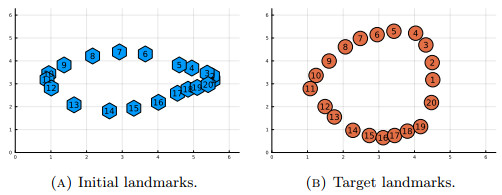

Figure 3. The images in Figure 2 approximated by landmarks on the flat torus

Download: Full-size image PowerPoint slide

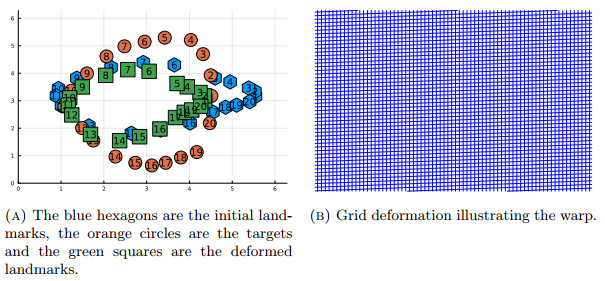

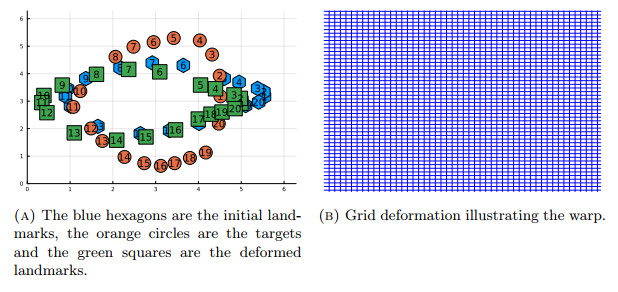

Figure 4. The result of applying the shooting method with constant vector fields. We illustrate both how the initial landmarks are transported and the resulting grid deformation. The deformed landmarks are only a translation of the original landmarks

Download: Full-size image PowerPoint slide

Figure 5. The result of applying the shooting method with four vector fields that form an algebra

Download: Full-size image PowerPoint slide

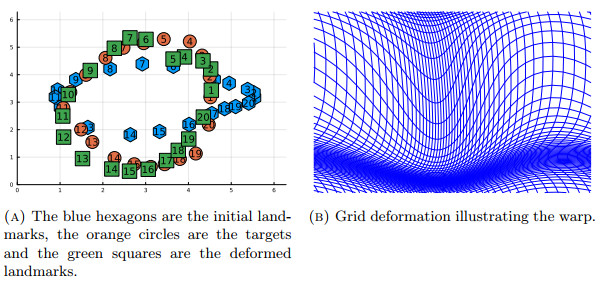

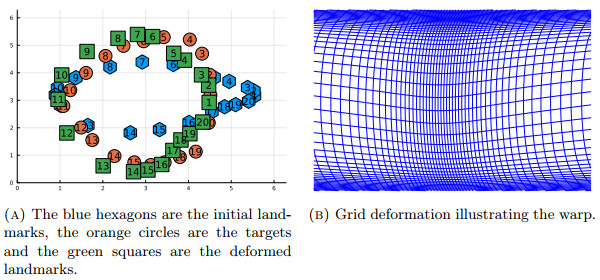

Figure 6. The result of applying the shooting method with four vector fields that do not form an algebra. The resulting deformation is a drastic improvement to the previous examples

Download: Full-size image PowerPoint slide

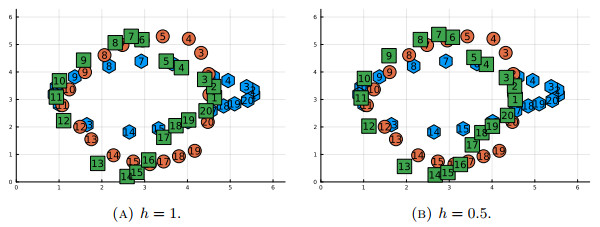

Figure 7. The effect of changing the integration step size $ h $. The blue hexagons are the initial landmarks, the orange circles are the targets and the green squares are the deformed landmarks. Note that the matching improves as $ h $ decreases. This is because the vector fields do not form an algebra

Download: Full-size image PowerPoint slide

Figure 8. The result of applying the shooting method with more complicated vector fields, taken to build truncated Fourier expansions

Download: Full-size image PowerPoint slide

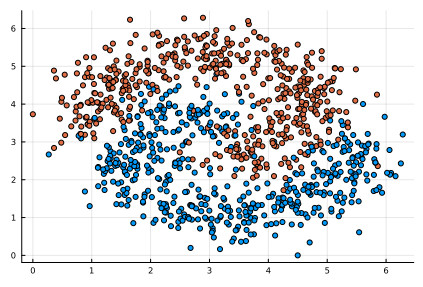

Figure 9. Two artificial datasets. The orange dots are classified as 1, the blue dots as 0

Download: Full-size image PowerPoint slide

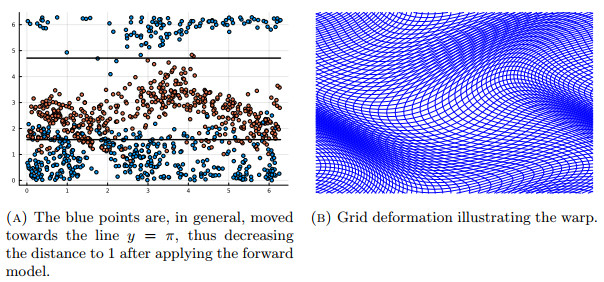

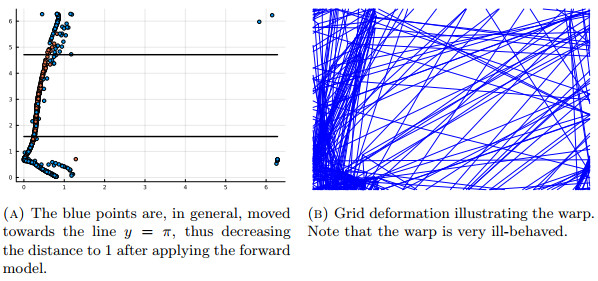

Figure 10. The result of applying the shooting method to the spiral data set using a lower regularization parameter. The classification boundary consists of the black horizontal lines: points between them are classified as 1, and points outside them are classified as 0

Download: Full-size image PowerPoint slide

Figure 11. The result of applying the shooting method to the spiral data set using a higher regularization parameter. The classification boundary consists of the black horizontal lines: points between them are classified as 1, and points outside them are classified as 0

Download: Full-size image PowerPoint slide

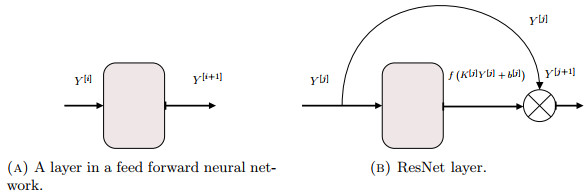

Figure 12. Schematic illustration of layers in two different neural network architectures

Download: Full-size image PowerPoint slide

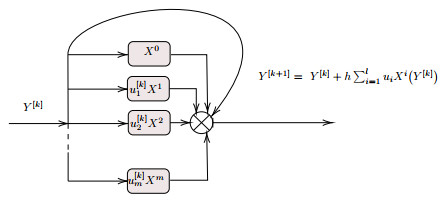

Figure 13. A layer in the neural network control-affine case. Note that the layout is dependent on the choice of temporal discretization. In this case, forward Euler is used, resulting in a ResNet-like structure

Download: Full-size image PowerPoint slide

Table 1. The impact of regularization strength on classification performance

$ \sigma $ (times $ 1/(4\pi^2) $)	Correct %	Correct %, new data
$ 0.2 $	$ 86.5 $	$ 83.2 $
$ 1.0 $	$ 87.8 $	$ 86.9 $
$ 10.0 $	$ 83.7 $	$ 82.8 $
$ 100.0 $	$ 78.8 $	$ 75.4 $
$ 1000.0 $	$ 60.2 $	$ 53.5 $

| Show Table

DownLoad: CSV

Table 2. Dictionary between sub-Riemannian landmark matching and ResNets

Deep Learning	Landmark matching
Images	Landmarks
Meta-images	Images
Training network	Shooting method
Testing	Warping new landmarks
Classification layer	Forward model
Weights and biases	Control parameters in $ \mathcal{U} $
Neural architecture	ODE Discretization

| Show Table

DownLoad: CSV
