Variational integrators for stochastic Hamiltonian systems on Lie groups: properties and convergence

François Gay-Balmaz; Meng Wu

doi:10.3934/jcd.2026004

Article Contents

2026, Volume 15: 1-62. Doi: 10.3934/jcd.2026004

This volume Previous Article A new perspective on symplectic integration of constrained mechanical systems via discretization maps Next Article Rough differential equations and planarly branched universal limit theorem

Variational integrators for stochastic Hamiltonian systems on Lie groups: properties and convergence

François Gay-Balmaz^1, , and
Meng Wu^{1, 2,}

1.
Division of Mathematical Sciences, Nanyang Technological University, Singapore
2.
LMD, École Normale Supérieure, France

^*Corresponding author: François Gay-Balmaz
^*Corresponding author: François Gay-Balmaz

Received: January 29, 2025

Revised: January 14, 2026

Published online: February 12, 2026

The first author is partially supported by a startup grant from Nanyang Technological University and by the Ministry of Education, Singapore, under Academic Research Fund (AcRF) Tier 1 Grant RG99/24.

Abstract / Introduction Full Text(HTML) Figure(16) / Table(1) Related Papers Cited by

Abstract

We derive variational integrators for stochastic Hamiltonian systems on Lie groups using a discrete version of the stochastic Hamiltonian phase space principle. The structure-preserving properties of the resulting scheme, such as symplecticity, preservation of the Lie-Poisson structure, preservation of the coadjoint orbits, and preservation of Casimir functions, are discussed, along with a discrete Noether theorem for subgroup symmetries. We also consider in detail the case of stochastic Hamiltonian systems with advected quantities, studying the associated structure-preserving properties in relation to semidirect product Lie groups. A full convergence proof for the scheme is provided for the case of the Lie group of rotations. Several numerical examples are presented, including simulations of the free rigid body and the heavy top.

Keywords:

Stochastic variational integrators,
stochastic Hamiltonian systems on Lie groups,
convergence analysis,
Poisson integrators,
coadjoint orbits,
Casimir functions,
discrete Noether theorem,
semidirect products.

Mathematics Subject Classification: Primary: 65P10, 37M15; Secondary: 65C30, 70L10.

Citation:

Full Text(HTML)

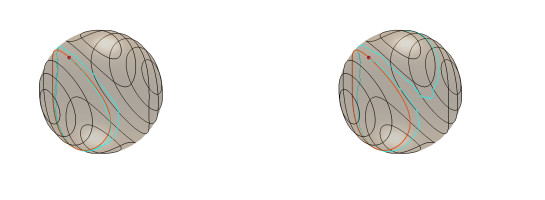

Figure 1. Two stochastic paths on the angular momentum sphere, with the initial condition $ \Pi_0 = (-0.5878, 0, 0.8090) $, marked by the red dot. The deterministic path of the same initial condition is highlighted in red

Download: Full-size image PowerPoint slide

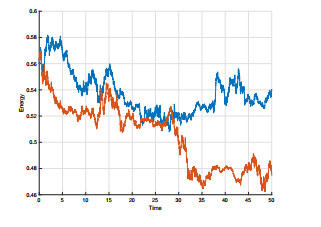

Figure 2. Energy evolution of the two stochastic paths presented in Figure 1. The blue line corresponds to the stochastic path on the left, and the orange line corresponds to the stochastic path on the right

Download: Full-size image PowerPoint slide

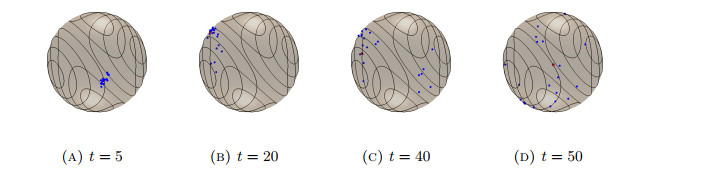

Figure 3. With the initial condition $ \Pi_0 = (-0.5878, 0, 0.8090) $, an ensemble of 20 stochastic paths are generated. Each image shows the positions of $ \Pi_k $ of the ensemble at the given time horizon. The deterministic $ \pi_k $ is marked in red for reference. The possibility of bifurcation significantly influences the scattering pattern of $ \Pi_k $

Download: Full-size image PowerPoint slide

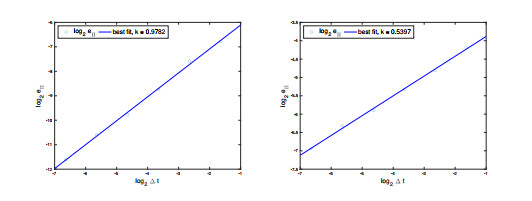

Figure 4. Plots of the mean square errors of $ \Pi $ for different step size $ \Delta t $ on $ \mathrm{log}_2 $ scale. The plot on the left corresponds to the numerical solutions with $ N = 1 $; the best fit line has slope $ k = 0.9782 $. The plot on the right corresponds to the numerical solutions with $ N = 3 $; the best fit line has slope $ k = 0.5397 $

Download: Full-size image PowerPoint slide

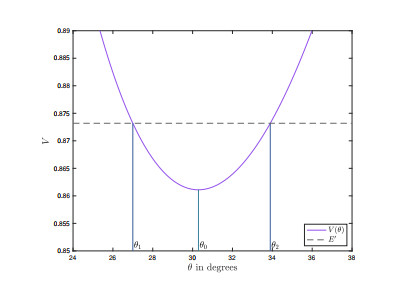

Figure 5. $ V(\theta) $ as function of $ \theta $, for $ p_{\psi} = 0.891 $ and $ p_{\phi} = 1 $. The dashed line marks the level of $ E' = 0.8732 $. This is the setting of the deterministic experiment to be presented below in Section 7.3.4

Download: Full-size image PowerPoint slide

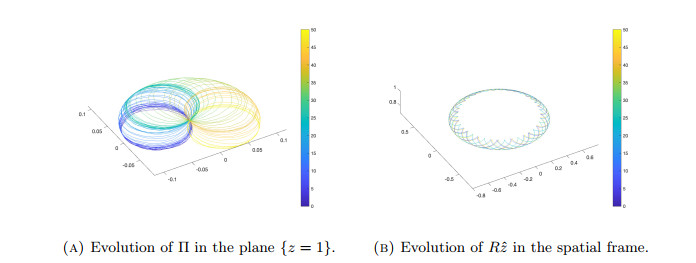

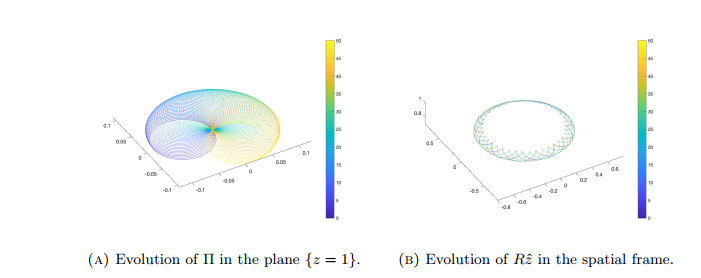

Figure 6. Deterministic experiment: the colour pattern indicates the time

Download: Full-size image PowerPoint slide

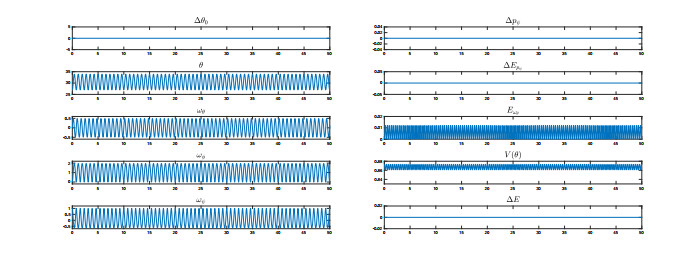

Figure 7. Deterministic experiment: evolution of various parameters. $ \theta_0 $, $ p_{\psi} $ and $ E_{p_{\psi}} $ are exactly conserved and $ E $ is nearly conserved

Download: Full-size image PowerPoint slide

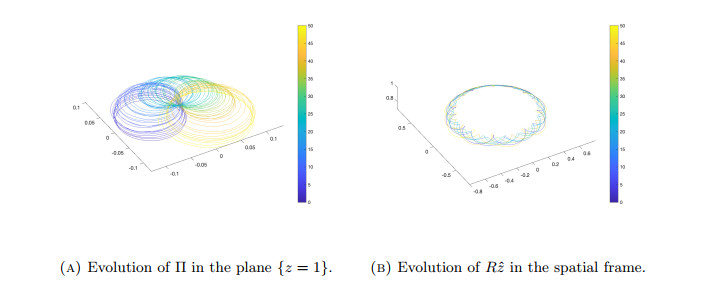

Figure 8. One sample path from the stochastic experiment with stochastic Hamiltonian $ h_1(\Pi, \Gamma) = 0.1 \Pi_z $; the colour pattern indicates the time

Download: Full-size image PowerPoint slide

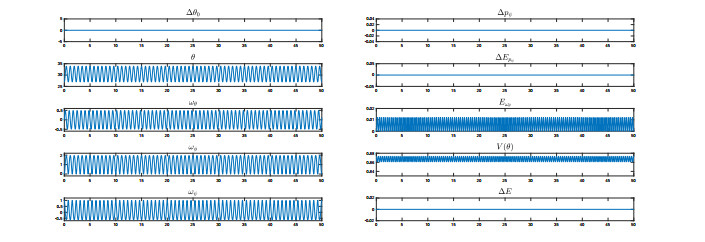

Figure 9. Stochastic experiment with stochastic Hamiltonian $ h_1(\Pi, \Gamma) = 0.1 \Pi_z $: evolution of various parameters of the same sample path as presented in Figure 8. $ \theta_0 $, $ p_{\psi} $ and $ E_{p_{\psi}} $ are exactly conserved and $ E $ is nearly conserved

Download: Full-size image PowerPoint slide

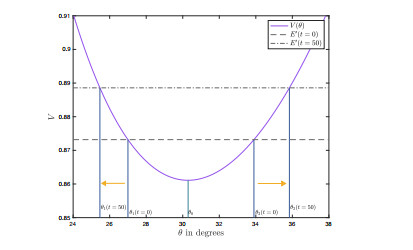

Figure 10. $ V(\theta) $ as function of $ \theta $, for $ p_{\psi} = 0.891 $ and $ p_{\phi} = 1 $. The partial energy jumped from $ E'(t = 0) = 0.8732 $ to $ E'(t = 50) = 0.8886 $, causing the expansion of the nutation angle range. The nutation angle $ \theta_0 $ of the lowest "effective potential" stays unchanged

Download: Full-size image PowerPoint slide

Figure 11. One sample path from stochastic experiment with stochastic Hamiltonian $ h_1(\Pi, \Gamma) = Mg \Gamma_z $; the colour pattern indicates the time

Download: Full-size image PowerPoint slide

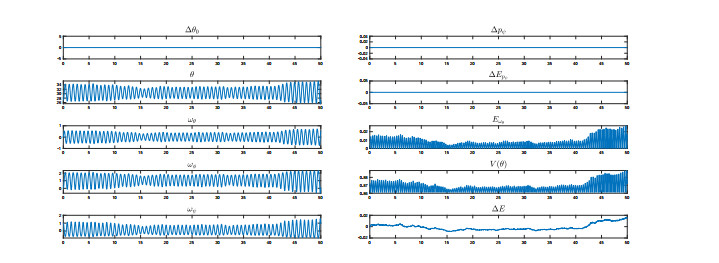

Figure 12. Stochastic experiment with stochastic Hamiltonian $ h_1(\Pi, \Gamma) = Mg \Gamma_z $: evolution of various parameters of the same sample path as presented in Figure \ref{Gyros_ex_Ga_z}. $ \theta_0 $, $ p_{\psi} $ and $ E_{p_{\psi}} $ are exactly conserved while $ E $ is perturbed

Download: Full-size image PowerPoint slide

Figure 13. $ V(\theta)_t $ as functions of $ \theta $, for $ p_{\psi} = 0.891 $ and $ p_{\psi} = 0.891 $, $ p_{\phi}(t = 50) = 0.8048 $. The partial energy jumps from $ E'(t = 0) = 0.8732 $ to $ E'(t = 50) = 0.8886 $, causing the shift of both the nutation angle range $ [\theta_1, \theta_2] $ and the nutation angle $ \theta_0 $ corresponding to the lowest "effective potential"

Download: Full-size image PowerPoint slide

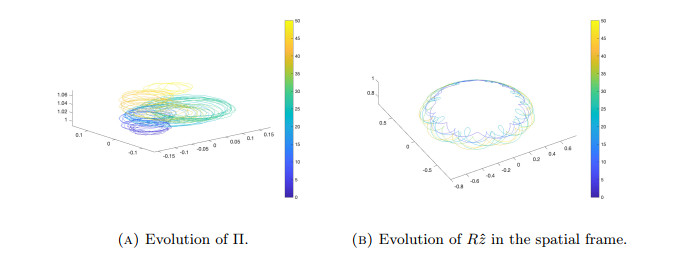

Figure 14. One sample path from stochastic experiment with stochastic Hamiltonians $ h_1(\Pi, \Gamma) = Mg\Gamma_x $, $ h_2(\Pi, \Gamma) = Mg\Gamma_y $; the colour pattern indicates the time

Download: Full-size image PowerPoint slide

Figure 15. Stochastic experiment with stochastic Hamiltonians $ h_1(\Pi, \Gamma) = mg \Gamma_x $, $ h_2(\Pi, \Gamma) = mg\Gamma_y $: evolution of various parameters of the same sample path as presented in Figure 14. $ \theta_0 $, $ p_{\psi} $ and $ E_{p_{\psi}} $ and $ E $ are all perturbed

Download: Full-size image PowerPoint slide

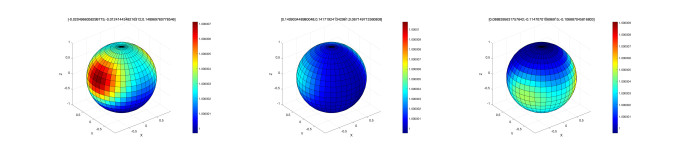

Figure 16. $ ||(A, B)|| $ as function of $ \Pi $ on one coadjoint orbit — the unit sphere. Here we consider multiple stochastic Hamiltonians, with $ \Delta t = 0.01 $, $ N = 3 $, $ \Delta t = 0.01 $, $ N = 3 $, $ \chi_1 = (1, 0, 0) $, $ \chi_2 = (0, 1, 0) $, $ \chi_3 = (0, 0, 1) $, the value $ \overline{\Delta W} $ is indicated above each figure

Download: Full-size image PowerPoint slide

	$ T^*_g G $	$ \mathfrak{g}^* $
	...	...
$ t_{k-\frac{1}{2}} $	$ (\tilde g_k, \tilde p^1_k) $	$ \tilde g_k^{-1} \tilde p^1_k = \tilde \mu^1_k $
$ t_{k-\frac{1}{2}} $	$ (\tilde g_k , \tilde p^2_k) $	$ \tilde g_k^{-1} \tilde p^2_k = \tilde \mu^2_k $
$ t_k $	$ (g_k, p_k) $	$ g_k^{-1} p_k = \mu_k = \begin{cases} \operatorname{Ad}^_{\tilde g_k ^{-1} g _k } [ {\rm d} _{ \tau ^{-1} (\tilde g_k ^{-1} g _k )} \tau ^{-1} ] ^ \tilde\mu^2 _k\\ [ {\rm d} _{ \tau ^{-1} ( g_{k} ^{-1} \tilde g _{k+1} )} \tau ^{-1} ] ^* \tilde\mu^1 _{k+1} \end{cases} $
$ t_{k+\frac{1}{2}} $	$ (\tilde g_{k+1}, \tilde p^1_{k+1}) $	$ \tilde g_{k+1}^{-1} \tilde p^1_{k+1} = \tilde \mu^1_{k+1} $
$ t_{k+\frac{1}{2}} $	$ (\tilde g_{k+1} , \tilde p^2_{k+1}) $	$ \tilde g_{k+1}^{-1} \tilde p^2_{k+1} = \tilde \mu^2_{k+1} $
	...	...

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	R. Abraham and J. E. Marsden, Foundations of Mechanics, 2$^{nd}$ edition, revised and enlarged. With the assistance of Tudor Raţiu and Richard Cushman Benjamin/Cummings Publishing Co., Inc., Advanced Book Program, Reading, MA, 1978.
[2]	F. Barbaresco and F. Gay-Balmaz, Lie group cohomology and (multi)symplectic integrators: New geometric tools for Lie group machine learning based on Souriau geometric statistical mechanics, Entropy, 22 (2020), Paper No. 498, 52 pp. doi: 10.3390/e22050498.
[3]	J.-M. Bismut, Mécanique Aléatoire, in École d'Été de Probabilités de Saint-Flour X–1980, Lecture Notes in Math., Springer, Berlin, 929 (1982), 1-100. doi: 10.1007/BFb0095618.
[4]	A. I. Bobenko and Y. B. Suris, Discrete time Lagrangian mechanics on Lie groups, with an application to the Lagrange top, Commun. Math. Phys., 204 (1999), 147-188. doi: 10.1007/s002200050642.
[5]	A. I. Bobenko and Y. B. Suris, Discrete Lagrangian reduction, discrete Euler–Poincaré equations, and semidirect products, Lett. Math. Phys., 49 (1999), 79-93. doi: 10.1023/A:1007654605901.
[6]	N. Bou-Rabee and J. E. Marsden, Hamilton–Pontryagin integrators on Lie groups, Found. Comput. Math., 9 (2009), 197-219. doi: 10.1007/s10208-008-9030-4.
[7]	N. Bou-Rabee and H. Owhadi, Stochastic variational integrators, IMA J. Numer. Anal., 29 (2009), 421-443. doi: 10.1093/imanum/drn018.
[8]	C.-E. Bréhier, D. Cohen and T. Jahnke, Splitting integrators for stochastic Lie–Poisson systems, Math. Comp., 92 (2023), 2167-2216. doi: 10.1090/mcom/3829.
[9]	B. Couéraud and F. Gay-Balmaz, Variational discretization of simple thermodynamical systems on Lie groups, Discrete Contin. Dyn. Syst. Ser. S, 13 (2020), 1075-1102. doi: 10.3934/dcdss.2020064.
[10]	F. Demoures, F. Gay-Balmaz, M. Kobilarov and T. S. Ratiu, Multisymplectic Lie group variational integrators for a geometrically exact beam in $\mathbb{R}^3$, Commun. Nonlinear Sci. Numer. Simul., 19 (2014), 3492-3512. doi: 10.1016/j.cnsns.2014.02.032.
[11]	F. Demoures, F. Gay-Balmaz, S. Leyendecker, S. Ober-Blöbaum, T. S. Ratiu and Y. Weinand, Discrete variational Lie group formulation of geometrically exact beam dynamics, Numer. Math., 130 (2015), 73-123. doi: 10.1007/s00211-014-0659-4.
[12]	J. Deng, C. Anton and Y. Shu Wong, High-order symplectic schemes for stochastic Hamiltonian systems, Commun. Comput. Phys., 16 (2014), 169-200. doi: 10.4208/cicp.311012.191113a.
[13]	M. Emery, Stochastic Calculus in Manifolds, Springer, Berlin, 1989.
[14]	S. Ephrati, E. Jansson, A. Lang and E. Luesink, An exponential map free implicit midpoint method for stochastic Lie–Poisson systems, preprint, 2025, arXiv: 2408.16701.
[15]	F. Gay-Balmaz and E. Gawlik, A conservative finite element method for the incompressible Euler equations with variable density, J. Comput. Phys., 412 (2020), 109439, 15pp. doi: 10.1016/j.jcp.2020.109439.
[16]	F. Gay-Balmaz and E. Gawlik, A variational finite element discretization of compressible flow, Found. Comput. Math., 21 (2021), 961-1001. doi: 10.1007/s10208-020-09473-w.
[17]	F. Gay-Balmaz and D. D. Holm, Stochastic geometric models with non-stationary spatial correlations in Lagrangian fluid flows, J. Nonlinear Sci., 28 (2018), 873-904. doi: 10.1007/s00332-017-9431-0.
[18]	F. Gay-Balmaz and D. D. Holm, Predicting uncertainty in geometric fluid mechanics, Discrete Contin. Dyn. Syst. Ser. S, 13 (2020), 1229-1242. doi: 10.3934/dcdss.2020071.
[19]	E. Hairer, C. Lubich and G. Wanner, Geometric Numerical Integration: Structure-Preserving Algorithms for Ordinary Differential Equations, 2$^{nd}$ edition, Springer Ser. Comput. Math., 31, Springer, Berlin, 2006.
[20]	D. D. Holm, Variational principles for stochastic fluid dynamics, Proc. R. Soc. Lond. Ser. A Math. Phys. Eng. Sci., 471 (2015), 20140963, 19 pp. doi: 10.1098/rspa.2014.0963.
[21]	D. D. Holm and T. M. Tyranowski, Stochastic discrete Hamiltonian variational integrators, BIT Numer. Math., 58 (2018), 1009-1048. doi: 10.1007/s10543-018-0720-2.
[22]	J. Hong, J. Ruan, L. Sun and L. Wang, Structure-preserving numerical methods for stochastic Poisson systems, Commun. Comput. Phys., 29 (2021), 802-830. doi: 10.4208/cicp.OA-2019-0084.
[23]	A. Iserles, H. Z. Munthe-Kaas, S. P. Nørsett and A. Zanna, Lie-group methods, Acta Numer., Cambridge University Press, Cambridge, 9 (2000), 215-365. doi: 10.1017/S0962492900002154.
[24]	P. E. Kloeden and E. Platen, Numerical Solution of Stochastic Differential Equations, Appl. Math. (N. Y.), 23, Springer-Verlag, Berlin, 1992.
[25]	M. Kobilarov and J. E. Marsden, Discrete geometric optimal control on Lie groups, IEEE Trans. Robot., 27 (2011), 641-655. doi: 10.1109/TRO.2011.2139130.
[26]	J. A. Lázaro-Camí and J. P. Ortega, Stochastic Hamiltonian dynamical systems, Rep. Math. Phys., 61 (2008), 65-122. doi: 10.1016/S0034-4877(08)80003-1.
[27]	T. Lee, Computational Geometric Mechanics and Control of Rigid Bodies, Ph.D thesis, University of Michigan, 2008.
[28]	M. Leok and J. Zhang, Discrete Hamiltonian variational integrators, IMA J. Numer. Anal., 31 (2011), 1497-1532. doi: 10.1093/imanum/drq027.
[29]	Q. Ma and X. Ding, Stochastic symplectic partitioned Runge–Kutta methods for stochastic Hamiltonian systems with multiplicative noise, Appl. Math. Comput., 252 (2015), 520-534. doi: 10.1016/j.amc.2014.12.045.
[30]	Q. Ma, D. Ding and X. Ding, Symplectic conditions and stochastic generating functions of stochastic Runge–Kutta methods for stochastic Hamiltonian systems with multiplicative noise, Appl. Math. Comput., 219 (2012), 635-643. doi: 10.1016/j.amc.2012.06.053.
[31]	X. Mao and L. Szpruch, Strong convergence and stability of implicit numerical methods for stochastic differential equations with non-globally Lipschitz continuous coefficients, J. Comput. Appl. Math., 238 (2013), 14-28. doi: 10.1016/j.cam.2012.08.015.
[32]	J. E. Marsden, S. Pekarsky and S. Shkoller, Discrete Euler–Poincaré and Lie–Poisson equations, Nonlinearity, 12 (1999), 1647-1662. doi: 10.1088/0951-7715/12/6/314.
[33]	J. E. Marsden, S. Pekarsky and S. Shkoller, Symmetry reduction of discrete Lagrangian mechanics on Lie groups, J. Geom. Phys., 36 (2000), 140-151. doi: 10.1016/S0393-0440(00)00018-8.
[34]	J. E. Marsden and T. S. Ratiu, Introduction to Mechanics and Symmetry, 2$^{nd}$ edition, Texts Appl. Math., 17, Springer, New York, 1999.
[35]	J. E. Marsden, T. S. Ratiu and A. Weinstein, Semidirect product and reduction in mechanics, Trans. Amer. Math. Soc., 281 (1984), 147-177. doi: 10.1090/S0002-9947-1984-0719663-1.
[36]	J. E. Marsden and M. West, Discrete mechanics and variational integrators, Acta Numer., 10 (2001), 357-514. doi: 10.1017/S096249290100006X.
[37]	G. N. Milstein, Numerical Integration of Stochastic Differential Equations, Math. Appl., 313, Kluwer Academic Publishers Group, Dordrecht, 1995.
[38]	G. N. Milstein, Y. M. Repin and M. V. Tretyakov, Symplectic integration of Hamiltonian systems with additive noise, SIAM J. Numer. Anal., 39 (2002), 2066-2088. doi: 10.1137/S0036142901387440.
[39]	G. N. Milstein, Y. M. Repin and M. V. Tretyakov, Numerical methods for stochastic systems preserving symplectic structure, SIAM J. Numer. Anal., 40 (2002), 1583-1604. doi: 10.1137/S0036142901395588.
[40]	T. Misawa, Symplectic integrators to stochastic Hamiltonian dynamical systems derived from composition methods, Math. Probl. Eng., 2010 (2010), Art. ID 384937, 12 pp. doi: 10.1155/2010/384937.
[41]	S. Ober-Blöbaum and N. Saake, Construction and analysis of higher order Galerkin variational integrators, Adv. Comput. Math., 41 (2015), 955-986. doi: 10.1007/s10444-014-9394-8.
[42]	O. D. Street and S. Takao, Semimartingale driven mechanics and reduction by symmetry for stochastic and dissipative dynamical systems, preprint, 2024, arXiv: 2312.09769.
[43]	S. T. Thornton and J. B. Marion, Classical Dynamics of Particles and Systems, Thomson Learning, Belmont, 2004.
[44]	P. Wang, J. Hong and D. Xu, Construction of symplectic Runge–Kutta methods for stochastic Hamiltonian systems, Commun. Comput. Phys., 21 (2017), 237-270. doi: 10.4208/cicp.261014.230616a.
[45]	M. Wu and F. Gay-Balmaz, Variational integrators for stochastic Hamiltonian systems on Lie groups, in Geometric Science of Information, Lecture Notes in Comput. Sci., Springer, Cham, 14072 (2023), 212-220. doi: 10.1007/978-3-031-38299-4_23.
[46]	W. Zhou, J. Zhang, J. Hong and S. Song, Stochastic symplectic Runge–Kutta methods for the strong approximation of Hamiltonian systems with additive noise, J. Comput. Appl. Math., 325 (2017), 134-148. doi: 10.1016/j.cam.2017.04.050.
