Silvopastoral and agroforestry systems: An integer linear programming model for investment decisions

Rodrigo Conde; Franco Robledo; Agustín López de Lacalle

doi:10.3934/jdg.2023013

Article Contents

2023, Volume 10, Issue 4: 304-329. Doi: 10.3934/jdg.2023013

This issue Previous Article Optimal economic policy and growth in an open economy Next Article Producer behavior with rules of origin

Silvopastoral and agroforestry systems: An integer linear programming model for investment decisions

Facultad de Ingeniería, Universidad de la República, Uruguay

^*Corresponding author: Rodrigo Conde
^*Corresponding author: Rodrigo Conde

Received: August 2023

Early access: September 19, 2023

Published online: September 19, 2023

Abstract / Introduction Full Text(HTML) Figure(11) / Table(22) Related Papers Cited by

Abstract

Since the countryside is one of the main drivers of the global economy, it is vital to support its technological development. When a potential investor contemplates agribusiness investments, several alternatives are presented to him, including forestry, livestock raising, and silvopastoralism, which consists of integrating both activities into a single agroforestry system. In this paper, we address the problem of designing a portfolio of agroforestry investments that maximizes economic results. In order to do so, we developed an integer linear programming model, which selects the optimal combination of the three aforementioned activities for a zoned field. This model was created from a national perspective, considering elements specific to the Uruguayan reality. Additionally, we produced a model implementation utilizing cutting-edge software such as AMPL and CPLEX. This solution was empirically validated using a battery of 56 test cases, based on actual data gathered from multiple sources.

Keywords:

Mathematics Subject Classification: Primary: 90-10, 91G10; Secondary: 90C11.

Citation:

Full Text(HTML)

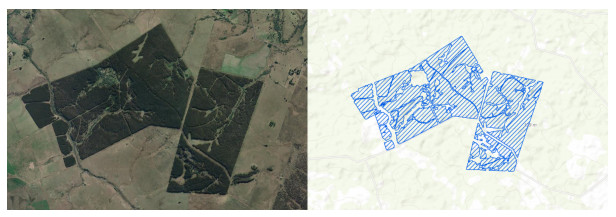

Figure 1. Satelital image (left) and zoning plan (right) of property 4 (extracted from Google Maps and [10])

Download: Full-size image PowerPoint slide

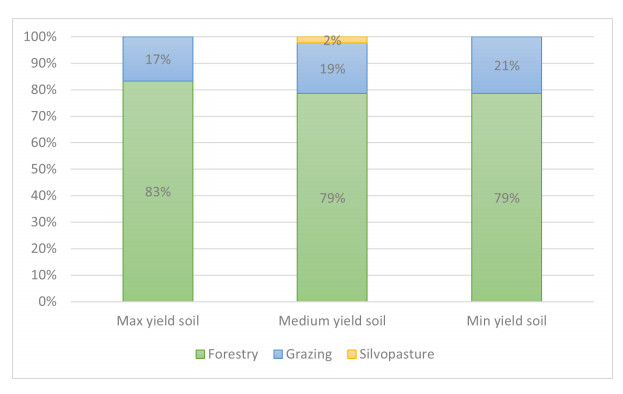

Figure 2. Proportion of activities by soil

Download: Full-size image PowerPoint slide

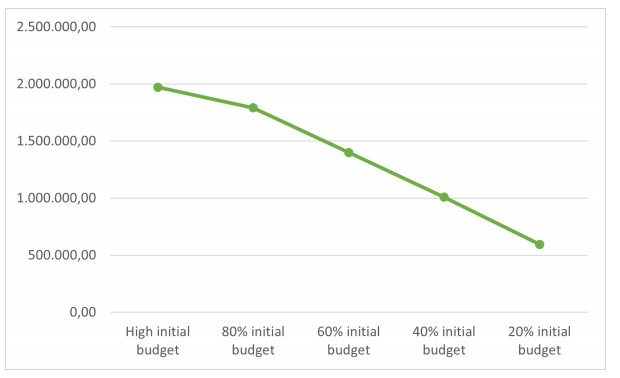

Figure 3. NPV evolution as a function of the initial budget

Download: Full-size image PowerPoint slide

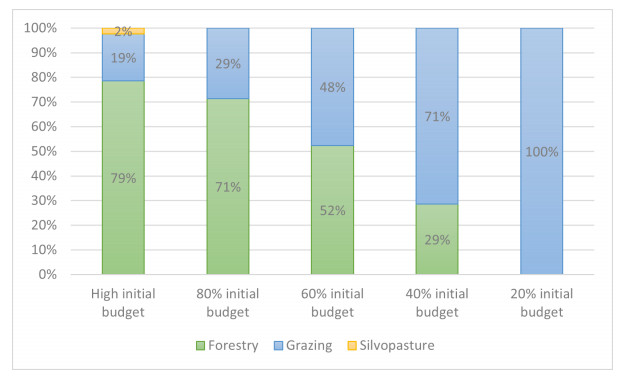

Figure 4. Proportion of activities by initial budget

Download: Full-size image PowerPoint slide

Figure 5. Proportion of activities by operational budget

Download: Full-size image PowerPoint slide

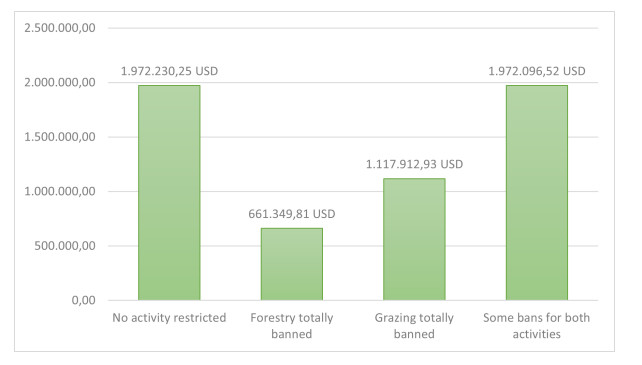

Figure 6. NPV for different activity restrictions

Download: Full-size image PowerPoint slide

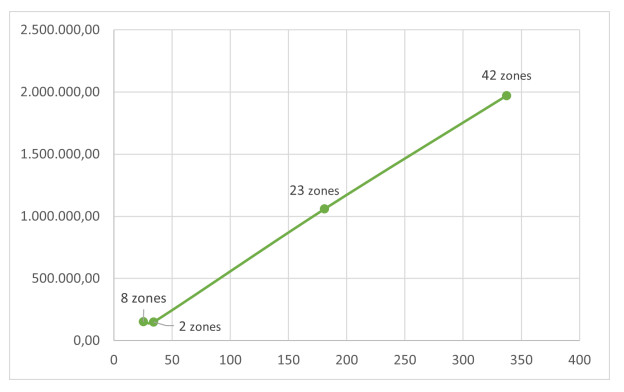

Figure 7. Evolution of the NPV as a function of the surface

Download: Full-size image PowerPoint slide

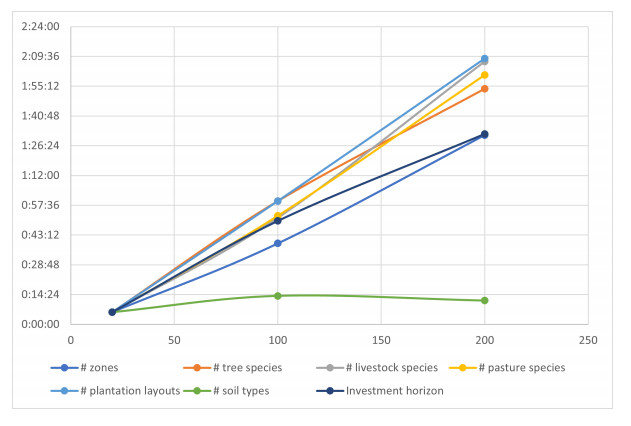

Figure 8. Total execution time as a function of the problem's size

Download: Full-size image PowerPoint slide

Figure 9. Total execution time as a function of the problem's size

Download: Full-size image PowerPoint slide

Figure 10. Solve and load time evolution as a function of the number of forestry and livestock species ($ \mid E_f \mid $ and $ \mid E_g \mid $ respectively)

Download: Full-size image PowerPoint slide

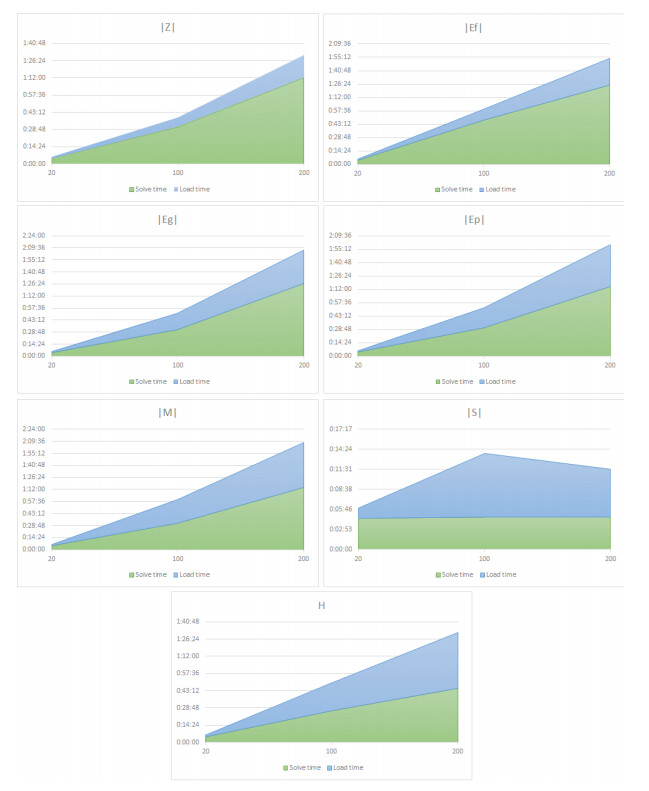

Figure 11. Solve and load time evolution as a function of the problem's size (The notation used is the same as in the model's specification)

Download: Full-size image PowerPoint slide

Table 1. Assumed costs for the main initial activities of a forestry system

Activity	Assumed cost (US$ \$/ha)
Site preparation	$ 302 $
Plowing	$ 74 $
Plantation	$ 0.21 \times d(m) $

| Show Table

DownLoad: CSV

Table 2. Estimated volume per tree ($ m^3 $) by year 10 as a function of soil and tree species

Soil region	Eucalyptus grandis	Eucalyptus dunni
Basaltic	$ 0.178 $	$ 0.16 $
Central-south	$ 0.20 $	$ 0.18 $
Eastern hills	$ 0.224 $	$ 0.202 $
Western basin	$ 0.188 $	$ 0.169 $
Northwestern basin	$ 0.21 $	$ 0.189 $
Eastern hill ranges	$ 0.214 $	$ 0.193 $
Plains systems	$ 0.198 $	$ 0.178 $

| Show Table

DownLoad: CSV

Table 3. Assumed costs for the main operational activities of a forestry system

Activity	Estimated cost (US$ \$/ha)
Insects control	$ 43 $
Weed control	$ 52 $
Harvest, extraction and load	$ 14 \times V $
Transport	$ 15 \times V $

| Show Table

DownLoad: CSV

Table 4. Wood selling price per $ m^3 $ according to species

Species	Price (US$ \$/$ {\bf m^3} $)
Eucalyptus grandis	$ 60 $
Eucalyptus dunni	$ 55 $

| Show Table

DownLoad: CSV

Table 5. Annual dry matter production and cattle units (CU) supported per hectare by region

Soil region	Dry matter (Kg/ha)	Ideal capacity (CU/ha)	Secure capacity (CU/ha)
Basaltic	$ 4,073.9 $	$ 1.47 $	$ 0.74 $
Central-south	$ 4,599.1 $	$ 1.66 $	$ 0.83 $
Eastern hills	$ 5,185.7 $	$ 1.87 $	$ 0.94 $
Western basin	$ 4,325.0 $	$ 1.56 $	$ 0.78 $
Northwestern basin	$ 4,855.7 $	$ 1.75 $	$ 0.88 $
Eastern hill ranges	$ 4,923.0 $	$ 1.77 $	$ 0.89 $
Plains systems	$ 4,553.9 $	$ 1.64 $	$ 0.82 $

| Show Table

DownLoad: CSV

Table 6. Pasture planting costs by species

Species	Price (US$ \$/ha)
Natural field	0
25% enhanced pasture	200
50% enhanced pasture	375

| Show Table

DownLoad: CSV

Table 7. Livestock prices by category

Category	Price (US$ \$/Kg)	Initial weight (Kg)	Price(US$ \$/CU)
Steers (1 year old)	$ 2.75 $	$ 240 $	$ 660 $
Steers (2+ years old)	$ 2.69 $	$ 330 $	$ 887.7 $
Calf	$ 3.06 $	$ 70 $	$ 214.2 $
Wintering cattle	$ 2.22 $	$ 380 $	$ 843.6 $

| Show Table

DownLoad: CSV

Table 8. Livestock selling prices by initial category

Category	Final weight (Kg)	Price(US$ \$/CU)
Steers (1 year old)	$ 360 $	$ 968.4 $
Steers (2+ years old)	$ 450 $	$ 1,170 $
Calf	$ 190 $	$ 522.5 $
Wintering cattle	$ 500 $	$ 1,110 $

| Show Table

DownLoad: CSV

Table 9. Real properties considered in this paper

Property	Location	$ {\bf \mid Z \mid} $	Soil region	Surface (ha)	Coordinates (S, W)
1	Florida	2	Central-south	33.96	33$ ^\circ$48'10.8" 56$ ^\circ$04'08.4"
2	Rocha	8	Eastern hills	25.47	34$ ^\circ$22'33.6" 54$ ^\circ$19'58.8"
3	Florida	23	Central-south	180.81	33$ ^\circ$39'57.6" 55$ ^\circ$36'50.4"
4	Maldonado	42	Eastern hill ranges	337.17	34$ ^\circ$41'24.0" 55$ ^\circ$08'20.4"

| Show Table

DownLoad: CSV

Table 10. Realistic test cases

Case	Property	$ {\bf P_0} $ (US$ \$)	$ {\bf P_y} $ (US$ \$)	Accepts forestry?	Accepts grazing?
1	1	28,000	3,500	Every zone	Every zone
2	1	28,000	1,750	Every zone	Every zone
3	1	28,000	0	Every zone	Every zone
4	1	14,000	1,750	Every zone	Every zone
5	1	14,000	0	Every zone	Every zone
6	2	20,500	2,500	1 zone doesn't	1 zone doesn't
7	2	20,500	1,250	1 zone doesn't	1 zone doesn't
8	2	20,500	0	1 zone doesn't	1 zone doesn't
9	2	10,200	1,250	1 zone doesn't	1 zone doesn't
10	2	10,200	0	1 zone doesn't	1 zone doesn't
11	3	150,000	18,000	3 zones don't	3 zones don't
12	3	150,000	9,000	3 zones don't	3 zones don't
13	3	150,000	0	3 zones don't	3 zones don't
14	3	72,000	9,000	3 zones don't	3 zones don't
15	3	72,000	0	3 zones don't	3 zones don't
16	4	270,000	33,000	5 zones don't	5 zones don't
17	4	270,000	16,500	5 zones don't	5 zones don't
18	4	270,000	0	5 zones don't	5 zones don't
19	4	135,000	16,500	5 zones don't	5 zones don't
20	4	135,000	0	5 zones don't	5 zones don't

| Show Table

DownLoad: CSV

Table 11. Solutions found for realistic cases

Case	Soil region	$ {\bf P_0} $ (US$ \$)	$ {\bf P_y} $ (US$ \$)	Forestry	Grazing	Silvopasture
1	Central-south	28,000	3,500	2	0	0
2	Central-south	28,000	1,750	1	0	1
3	Central-south	28,000	0	1	1	0
4	Central-south	14,000	1,750	1	0	0
5	Central-south	14,000	0	1	1	0
6	Eastern hills	20,500	2,500	7	1	0
7	Eastern hills	20,500	1,250	7	1	0
8	Eastern hills	20,500	0	4	3	1
9	Eastern hills	10,200	1,250	3	4	0
10	Eastern hills	10,200	0	3	4	0
11	Central-south	150,000	18,000	20	3	0
12	Central-south	150,000	9,000	17	6	0
13	Central-south	150,000	0	14	9	0
14	Central-south	72,000	9,000	9	14	0
15	Central-south	72,000	0	9	14	0
16	Eastern hill ranges	270,000	33,000	37	5	0
17	Eastern hill ranges	270,000	16,500	33	9	0
18	Eastern hill ranges	270,000	0	33	9	0
19	Eastern hill ranges	135,000	16,500	19	23	0
20	Eastern hill ranges	135,000	0	19	23	0

| Show Table

DownLoad: CSV

Table 12. Economic results for realistic cases

Case	Soil region	$ {\bf P_0} $ (US$ \$)	$ {\bf P_y} $ (US$ \$)	Initial investment	NPV
1	Central-south	28,000	3,500	27,032.16	218,600.35
2	Central-south	28,000	1,750	27,348.82	184,065.92
3	Central-south	28,000	0	17,381.84	148,737.45
4	Central-south	14,000	1,750	12,425.56	100,481.49
5	Central-south	14,000	0	13,229.36	92,192.64
6	Eastern hills	20,500	2,500	19,012.53	177,833.85
7	Eastern hills	20,500	1,250	19,012.53	177,833.85
8	Eastern hills	20,500	0	17,256.54	161,488.70
9	Eastern hills	10,200	1,250	10,199.60	101,129.33
10	Eastern hills	10,200	0	10,199.60	101,129.33
11	Central-south	150,000	18,000	138,904.86	1,127,531.83
12	Central-south	150,000	9,000	129,501.83	1,059,459.14
13	Central-south	150,000	0	113,650.82	944,706.75
14	Central-south	72,000	9,000	71,995.56	643,146.07
15	Central-south	72,000	0	71,995.56	643,146.07
16	Eastern hill ranges	270,000	33,000	244,808.47	2,168,246.75
17	Eastern hill ranges	270,000	16,500	242,925.79	2,153,030.58
18	Eastern hill ranges	270,000	0	215,884.27	1,934,475.54
19	Eastern hill ranges	135,000	16,500	134,995.80	1,280,718.55
20	Eastern hill ranges	135,000	0	134,995.80	1,280,718.55

| Show Table

DownLoad: CSV

Table 13. Sensitivity test cases

Case	$ {\bf \mid Z \mid} $	Soil region	$ {\bf P_0} $ (US$ \$)	$ {\bf P_y} $ (US$ \$)	Activity limitations
1	42	Max yield	270,000	16,500	Some for both
2	42	Medium yield	270,000	16,500	Some for both
3	42	Min yield	270,000	16,500	Some for both
4	42	50% max 50% min	270,000	16,500	Some for both
5	42	Equal thirds	270,000	16,500	Some for both
6	42	Mixed (good average)	270,000	16,500	Some for both
7	42	Mixed (bad average)	270,000	16,500	Some for both
2	42	Medium yield	270,000	16,500	Some for both
8	42	Medium yield	216,000	16,500	Some for both
9	42	Medium yield	162,000	16,500	Some for both
10	42	Medium yield	108,000	16,500	Some for both
11	42	Medium yield	54,000	16,500	Some for both
12	42	Medium yield	270,000	33,000	Some for both
2	42	Medium yield	270,000	16,500	Some for both
13	42	Medium yield	270,000	0	Some for both
14	42	Medium yield	270,000	33,000 - 3,667 $ \times (y - 1) $	Some for both
15	42	Medium yield	270,000	1320 $ \times (y-5)^2 $	Some for both
16	42	Medium yield	270,000	16,500	None
17	42	Medium yield	270,000	16,500	Forestry 100% banned
18	42	Medium yield	270,000	16,500	Grazing 100% banned
2	42	Medium yield	270,000	16,500	Some for both
19	2	Medium yield	28,000	1,750	Some for both
20	8	Medium yield	20,500	1,250	Some for both
21	23	Medium yield	150,000	9	Some for both
2	42	Medium yield	270,000	16,500	Some for both

| Show Table

DownLoad: CSV

Table 14. Solutions found for the sensitivity test cases

Case	Description	Forestry	Grazing	Silvopasture
1	Max yield soil	35	7	0
2	Medium yield soil	33	8	1
3	Min yield soil	33	9	0
4	Soils 50% max yield, 50% min yield	31	10	1
5	Soils distributed in thirds	35	7	0
6	Soils mostly good	32	10	0
7	Soils mostly bad	34	8	0
2	High initial budget	33	8	1
8	80% initial budget	30	12	0
9	60% initial budget	22	20	0
10	40% initial budget	12	30	0
11	20% initial budget	0	31	0
12	High operational budget	37	5	0
2	Medium operational budget	33	8	1
13	Low operational budget	31	11	0
14	Linearly decreasing operational budget	34	8	0
15	Parabolic operational budget	31	11	0
16	No activity restricted	35	7	0
17	Forestry totally banned	0	42	0
18	Grazing totally banned	26	0	0
2	Some bans for both activities	33	8	1
19	2 zones	1	1	0
20	8 zones	5	2	1
21	23 zones	17	6	0
2	42 zones	33	8	1

| Show Table

DownLoad: CSV

Table 15. Economic results for sensitivity cases

Case	Description	Initial investment	NPV
1	Max yield soil	244,381.22	2,284,562.33
2	Medium yield soil	241,045.83	1,972,096.52
3	Min yield soil	237,736.70	1,691,039.62
4	Soils 50% max yield, 50% min yield	242,947.50	2,044,119.08
5	Soils distributed in thirds	242,015.14	2,034,251.20
6	Soils mostly good	241,155.92	2,097,111.14
7	Soils mostly bad	240,758, 75	1,872,426.03
2	High initial budget	241,045.83	1,972,096.52
8	80% initial budget	215,993.68	1,791,061.11
9	60% initial budget	161,992.69	1,400,124.25
10	40% initial budget	107,997.88	1,009,232.14
11	20% initial budget	53,998.94	595,758.15
12	High operational budget	244,307.88	1,996,040.03
2	Medium operational budget	241,045.83	1,972,096.52
13	Low operational budget	211,950.56	1,761,791.20
14	Linearly decreasing operational budget	218,386.17	1,808,381.38
15	Parabolic operational budget	214,362.42	1,766,503.98
16	No activity restricted	241,018.99	1,972,230.25
17	Forestry totally banned	59,944.11	661,349.81
18	Grazing totally banned	138,241.32	1,117,912.93
2	Some bans for both activities	241,045.83	1,972,096.52
19	2 zones	17,381.84	148,737.45
20	8 zones	18,904.19	153,601.66
21	23 zones	129,501.83	1,059,459.14
2	42 zones	241,045.83	1,972,096.52

| Show Table

DownLoad: CSV

Table 16. Reference values for devising performance test cases

Parameter	Description	Reference value
$ T $	Zone's surface	10
$ I_f $	Initial forestry investment	638.5
$ C_f[y< H] $	Forestry operational cost	95
$ C_f[H] $	Forestry operational cost (harvest year)	6,018.77
$ R_f $	Forestry returns	12,256.09
$ I_p $	Initial grazing investment	845
$ C_p $	Grazing operational cost	845
$ R_p $	Grazing returns	1,111.91

| Show Table

DownLoad: CSV

Table 17. Performance test plan

Case	$ {\bf \mid Z \mid} $	$ {\bf \mid E_f \mid} $	$ {\bf \mid E_g \mid} $	$ {\bf \mid E_p \mid} $	$ {\bf \mid M \mid} $	$ {\bf \mid S \mid} $	$ {\bf H} $
1	20	20	20	20	20	20	20
2	100	20	20	20	20	20	20
3	200	20	20	20	20	20	20
4	20	100	20	20	20	20	20
5	20	200	20	20	20	20	20
6	20	20	100	20	20	20	20
7	20	20	200	20	20	20	20
8	20	20	20	100	20	20	20
9	20	20	20	200	20	20	20
10	20	20	20	20	100	20	20
11	20	20	20	20	200	20	20
12	20	20	20	20	20	100	20
13	20	20	20	20	20	200	20
14	20	20	20	20	20	20	100
15	20	20	20	20	20	20	200

| Show Table

DownLoad: CSV

Table 18. Execution times for performance tests

Case	$ {\bf \mid Z \mid} $	$ {\bf \mid E_f \mid} $	$ {\bf \mid E_g \mid} $	$ {\bf \mid E_p \mid} $	$ {\bf \mid M \mid} $	$ {\bf \mid S \mid} $	$ {\bf H} $	$ {\bf T_{solve}} $	$ {\bf T_{load}} $	$ {\bf T_{total}} $
1	20	20	20	20	20	20	20	0:04:31	0:01:26	0:05:57
2	100	20	20	20	20	20	20	0:31:07	0:08:02	0:39:09
3	200	20	20	20	20	20	20	1:12:21	0:19:08	1:31:29
4	20	100	20	20	20	20	20	0:47:29	0:12:07	0:59:36
5	20	200	20	20	20	20	20	1:25:45	0:28:08	1:53:53
6	20	20	100	20	20	20	20	0:31:36	0:19:58	0:51:35
7	20	20	200	20	20	20	20	1:26:57	0:40:12	2:07:10
8	20	20	20	100	20	20	20	0:30:57	0:21:33	0:52:30
9	20	20	20	200	20	20	20	1:14:54	0:45:40	2:00:34
10	20	20	20	20	100	20	20	0:31:19	0:28:22	0:59:41
11	20	20	20	20	200	20	20	1:14:17	0:54:20	2:08:36
12	20	20	20	20	20	100	20	0:04:37	0:09:09	0:13:46
13	20	20	20	20	20	200	20	0:04:42	0:06:49	0:11:30
14	20	20	20	20	20	20	100	0:26:32	0:23:30	0:50:02
15	20	20	20	20	20	20	200	0:45:27	0:46:38	1:32:05

| Show Table

DownLoad: CSV

Table 19. Realistic tests' execution time

Case	Soil region	$ {\bf P_0} $ (US$ \$)	$ {\bf P_y} $ (US$ \$)	$ {\bf T_{solve}(s)} $	$ {\bf T_{load}(s)} $
1	Central-south	28,000	3,500	0.153	0.546
2	Central-south	28,000	1,750	0.103	0.624
3	Central-south	28,000	0	0.094	0.662
4	Central-south	14,000	1,750	0.068	0.613
5	Central-south	14,000	0	0.102	0.888
6	Eastern hills	20,500	2,500	0.081	0.521
7	Eastern hills	20,500	1,250	0.077	0.41
8	Eastern hills	20,500	0	6.633	0.462
9	Eastern hills	10,200	1,250	21.152	0.812
10	Eastern hills	10,200	0	6.120	0.564
11	Central-south	150,000	18,000	0.115	0.384
12	Central-south	150,000	9,000	46.138	0.706
13	Central-south	150,000	0	48.650	0.69
14	Central-south	72,000	9,000	34.377	0.611
15	Central-south	72,000	0	0.151	0.591
16	Eastern hill ranges	270,000	33,000	0.154	0.566
17	Eastern hill ranges	270,000	16,500	12.338	0.95
18	Eastern hill ranges	270,000	0	28.670	0.742
19	Eastern hill ranges	135,000	16,500	17.095	0.547
20	Eastern hill ranges	135,000	0	0.183	0.637

| Show Table

DownLoad: CSV

Table 20. Annual balances for the solutions of realistic cases

Case	1	2	3	4	5	6	7	8	9	10
1	$ -3,226.20 $	$ -3,226.20 $	$ -3,226.20 $	$ -3,226.20 $	$ -3,226.20 $	$ -3,226.20 $	$ -3,226.20 $	$ -3,226.20 $	$ -3,226.20 $	$ 417,877.80 $
2	$ -1,728.29 $	$ -1,728.29 $	$ -1,728.29 $	$ -1,728.29 $	$ -1,728.29 $	$ -1,728.29 $	$ -1,728.29 $	$ -1,728.29 $	$ -1,728.29 $	$ 347,829.93 $
3	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 232,566.42 $
4	$ -1,482.95 $	$ -1,482.95 $	$ -1,482.95 $	$ -1,482.95 $	$ -1,482.95 $	$ -1,482.95 $	$ -1,482.95 $	$ -1,482.95 $	$ -1,482.95 $	$ 192,081.05 $
5	$ 3,212.61 $	$ 3,212.61 $	$ 3,212.61 $	$ 3,212.61 $	$ 3,212.61 $	$ 3,212.61 $	$ 3,212.61 $	$ 3,212.61 $	$ 3,212.61 $	$ 127,452.49 $
6	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ 319,194.59 $
7	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ -1,195.78 $	$ 319,194.59 $
8	$ 1.71 $	$ 1.71 $	$ 1.71 $	$ 1.71 $	$ 1.71 $	$ 1.71 $	$ 1.71 $	$ 1.71 $	$ 1.71 $	$ 277,566.55 $
9	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 122,297.74 $
10	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 4,481.90 $	$ 122,297.74 $
11	$ -14,327.73 $	$ -14,327.73 $	$ -14,327.73 $	$ -14,327.73 $	$ -14,327.73 $	$ -14,327.73 $	$ -14,327.73 $	$ -14,327.73 $	$ -14,327.73 $	$ 2,128,471.89 $
12	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ 1,947,909.04 $
13	$ 6.08 $	$ 6.08 $	$ 6.08 $	$ 6.08 $	$ 6.08 $	$ 6.08 $	$ 6.08 $	$ 6.08 $	$ 6.08 $	$ 1,643,528.26 $
14	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 843,638.39 $
15	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 23,648.99 $	$ 843,638.39 $
16	$ -17,643.53 $	$ -17,643.53 $	$ -17,643.53 $	$ -17,643.53 $	$ -17,643.53 $	$ -17,643.53 $	$ -17,643.53 $	$ -17,643.53 $	$ -17,643.53 $	$ 3,946,564.78 $
17	$ -16,494.73 $	$ -16,494.73 $	$ -16,494.73 $	$ -16,494.73 $	$ -16,494.73 $	$ -16,494.73 $	$ -16,494.73 $	$ -16,494.73 $	$ -16,494.73 $	$ 3,907,042.98 $
18	$ 5.78 $	$ 5.78 $	$ 5.78 $	$ 5.78 $	$ 5.78 $	$ 5.78 $	$ 5.78 $	$ 5.78 $	$ 5.78 $	$ 3,339,377.74 $
19	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 1,641,338.12 $
20	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 49,363.28 $	$ 1,641,338.12 $

| Show Table

DownLoad: CSV

Table 21. Sensitivity tests' execution time

Case	Soil region	$ {\bf P_0} $ (US$ \$)	$ {\bf P_y} $ (US$ \$)	$ {\bf T_{solve}(s)} $	$ {\bf T_{load}(s)} $
1	Eastern hills	270,000	16,500	7.512	3.377
2	Central-south	270,000	16,500	8.440	0.81
3	Basaltic	270,000	16,500	15.510	0.798
4	Basaltic	270,000	16,500	18.584	0.779
5	Basaltic	270,000	16,500	55.411	0.623
6	Eastern hills	270,000	16,500	27.218	0.765
7	Basaltic	270,000	16,500	11.222	0.627
8	Central-south	216,000	16,500	50.483	0.794
9	Central-south	162,000	16,500	21.461	0.685
10	Central-south	108,000	16,500	28.265	2.812
11	Central-south	54,000	16,500	1.900	1.046
12	Central-south	270,000	33,000	0.207	0.736
13	Central-south	270,000	0	26.524	0.661
14	Central-south	270,000	33,000	6.592	0.93
15	Central-south	270,000	21,120	13.022	0.718
16	Central-south	270,000	16,500	0.559	0.682
17	Central-south	270,000	16,500	0.108	1.978
18	Central-south	270,000	16,500	0.203	1.098
19	Central-south	28,000	1,750	0.089	0.811
20	Central-south	20,500	1,250	6.088	0.752
21	Central-south	150,000	9,000	24.213	0.593

| Show Table

DownLoad: CSV

Table 22. Annual balances for the solutions of sensitivity cases

Case	1	2	3	4	5	6	7	8	9	10
1	$ -16,496.69 $	$ -16,496.69 $	$ -16,496.69 $	$ -16,496.69 $	$ -16,496.69 $	$ -16,496.69 $	$ -16,496.69 $	$ -16,496.69 $	$ -16,496.69 $	$ 4,113,590.13 $
2	$ -16,493.89 $	$ -16,493.89 $	$ -16,493.89 $	$ -16,493.89 $	$ -16,493.89 $	$ -16,493.89 $	$ -16,493.89 $	$ -16,493.89 $	$ -16,493.89 $	$ 3,623,128.91 $
3	$ -16,494.48 $	$ -16,494.48 $	$ -16,494.48 $	$ -16,494.48 $	$ -16,494.48 $	$ -16,494.48 $	$ -16,494.48 $	$ -16,494.48 $	$ -16,494.48 $	$ 3,181,523.82 $
4	$ -16,499.65 $	$ -16,499.65 $	$ -16,499.65 $	$ -16,499.65 $	$ -16,499.65 $	$ -16,499.65 $	$ -16,499.65 $	$ -16,499.65 $	$ -16,499.65 $	$ 3,737,995.96 $
5	$ -16,490.31 $	$ -16,490.31 $	$ -16,490.31 $	$ -16,490.31 $	$ -16,490.31 $	$ -16,490.31 $	$ -16,490.31 $	$ -16,490.31 $	$ -16,490.31 $	$ 3,721,118.14 $
6	$ -16,498.71 $	$ -16,498.71 $	$ -16,498.71 $	$ -16,498.71 $	$ -16,498.71 $	$ -16,498.71 $	$ -16,498.71 $	$ -16,498.71 $	$ -16,498.71 $	$ 3,817,498.17 $
7	$ -16,487.24 $	$ -16,487.24 $	$ -16,487.24 $	$ -16,487.24 $	$ -16,487.24 $	$ -16,487.24 $	$ -16,487.24 $	$ -16,487.24 $	$ -16,487.24 $	$ 3,467,822.72 $
8	$ -2,293.31 $	$ -2,293.31 $	$ -2,293.31 $	$ -2,293.31 $	$ -2,293.31 $	$ -2,293.31 $	$ -2,293.31 $	$ -2,293.31 $	$ -2,293.31 $	$ 3,142,782.06 $
9	$ 28,356.85 $	$ 28,356.85 $	$ 28,356.85 $	$ 28,356.85 $	$ 28,356.85 $	$ 28,356.85 $	$ 28,356.85 $	$ 28,356.85 $	$ 28,356.85 $	$ 2,105,821.82 $
10	$ 59,003.49 $	$ 59,003.49 $	$ 59,003.49 $	$ 59,003.49 $	$ 59,003.49 $	$ 59,003.49 $	$ 59,003.49 $	$ 59,003.49 $	$ 59,003.49 $	$ 1,068,980.29 $
11	$ 77,721.17 $	$ 77,721.17 $	$ 77,721.17 $	$ 77,721.17 $	$ 77,721.17 $	$ 77,721.17 $	$ 77,721.17 $	$ 77,721.17 $	$ 77,721.17 $	$ 131,720.11 $
12	$ -18,364.02 $	$ -18,364.02 $	$ -18,364.02 $	$ -18,364.02 $	$ -18,364.02 $	$ -18,364.02 $	$ -18,364.02 $	$ -18,364.02 $	$ -18,364.02 $	$ 3,686,488.74 $
13	$ 1.51 $	$ 1.51 $	$ 1.51 $	$ 1.51 $	$ 1.51 $	$ 1.51 $	$ 1.51 $	$ 1.51 $	$ 1.51 $	$ 3,065,143.59 $
14	$ -3,651.25 $	$ -3,651.25 $	$ -3,651.25 $	$ -3,651.25 $	$ -3,651.25 $	$ -3,651.25 $	$ -3,651.25 $	$ -3,651.25 $	$ -3,651.25 $	$ 3,188,724.08 $
15	$ 9.75 $	$ 9.75 $	$ -1,310.25 $	$ 9.75 $	$ 9.75 $	$ -1,310.25 $	$ 9.75 $	$ 9.75 $	$ -1,310.25 $	$ 3,080,864.73 $
16	$ -16,497.29 $	$ -16,497.29 $	$ -16,497.29 $	$ -16,497.29 $	$ -16,497.29 $	$ -16,497.29 $	$ -16,497.29 $	$ -16,497.29 $	$ -16,497.29 $	$ 3,623,333.29 $
17	$ 86,278.09 $	$ 86,278.09 $	$ 86,278.09 $	$ 86,278.09 $	$ 86,278.09 $	$ 86,278.09 $	$ 86,278.09 $	$ 86,278.09 $	$ 86,278.09 $	$ 146,222.20 $
18	$ -16,498.65 $	$ -16,498.65 $	$ -16,498.65 $	$ -16,498.65 $	$ -16,498.65 $	$ -16,498.65 $	$ -16,498.65 $	$ -16,498.65 $	$ -16,498.65 $	$ 2,137,009.35 $
19	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 2,251.18 $	$ 232,566.42 $
20	$ -1,246.57 $	$ -1,246.57 $	$ -1,246.57 $	$ -1,246.57 $	$ -1,246.57 $	$ -1,246.57 $	$ -1,246.57 $	$ -1,246.57 $	$ -1,246.57 $	$ 281,967.80 $
21	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ -8,990.71 $	$ 1,947,909.04 $

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	J. Almeida, D. A. Canavarro, C. Rebello-Andrade and A. M. Rodrigues, Optimization of mediterranean rainfed pasture systems in portuguese conditions, based on a linear programing model, Annals of Agriculture and Crop Sciences, 2 (2017), 1028.
[2]	AMPL, AMPL - optimizing the world's most complex tasks, https://ampl.com/, 2022.
[3]	S. D. Angima, Silvopasture: An Agroforestry Practice, Oregon State University, 2019.
[4]	M. Boscana and M. E. Arriaga. Informe tercer encuesta de servicios forestales, 2021.
[5]	H. Bueno, P. Bobadilla and S. Huertas, Silvopastoreo una opción productiva sostenible, Plan Agropecuario, 167 (2018), 32-34.
[6]	A. Bussoni, Producción ganadera y forestal: Análisis de sistemas de producción integrados, 2019.
[7]	J. Campos, T. Serebrisky and A. Suárez-Alemán, Tasa de descuento social y evaluación de proyectos: Algunas reflexiones prácticas para américa latina y el caribe.
[8]	R. Conde, Silvopasture optimization, https://gitlab.fing.edu.uy/rodrigo.conde/silvopasture-optimization, 2022.
[9]	G. Frey, H. Fassola, A. Pachas, L. Colcombet, S. Lacorte, F. Cubbage and O. Pérez, Adoption and economics of silvopasture systems by farm size in northeastern argentina, 2007.
[10]	G. Forestal, Geoportal forestal del uruguay, https://web.snig.gub.uy/arcgisprtal/apps/webappviewer/index.html?id = b90f805255ae4ef0983c2bfb40be627f, 2022.
[11]	Y. Hala, M. W. Abdullah, W. Andayani, G. B. Ilyas and M. Akob, The financial behavior of investment decision making between real and financial assets sectors, The Journal of Asian Finance, Economics and Business, 7 (2020), 635-645. doi: 10.13106/jafeb.2020.vol7.no12.635.
[12]	C. Hepburn, P. Koundouri, E. Panopoulou and T. Pantelidis, Social discounting under uncertainty: A cross-country comparison, Journal of Environmental Economics and Management, 57 (2009), 140-150. doi: 10.1016/j.jeem.2008.04.004.
[13]	M. Izanloo, A. Aslani and R. Zahedi, Development of a machine learning assessment method for renewable energy investment decision making, Applied Energy, 327 (2022), 120096. doi: 10.1016/j.apenergy.2022.120096.
[14]	N. B. Klopfenstein, W. J. Rietveld and R. C. Carman, Silvopasture: An Agroforestry Practice, Agroforestry Notes, 1997.
[15]	Y. Li, J. Li and L. Wu, A novel integer linear programming based optimal PMU placement model, In 2018 North American Power Symposium (NAPS), 2019, 1-6. doi: 10.1109/NAPS.2018.8600551.
[16]	T. H. Mackay-Smith, L. Burkitt, J. Reid, I. F. López and C. Phillips, A framework for reviewing silvopastoralism: A new zealand hill country case study, Land, 10 (2021), 1386-1386. doi: 10.3390/land10121386.
[17]	R. Methol, Sistema de apoyo a la gestión de plantaciones de eucalyptus orientadas a la producción de celulosa en uruguay, INIA, 2008.
[18]	S. Nesmachnow and S. Iturriaga, Cluster-UY: Collaborative scientific high performance computing in uruguay, Communications in Computer and Information Science, 1151 (2019), 188-202. doi: 10.1007/978-3-030-38043-4_16.
[19]	S. Z. Nordin, F. Johar and N. Abu, Linear programming model for investment problem in maximizing the total return, Journal of Physics: Conference Series, 1988 (2021), 012064. doi: 10.1088/1742-6596/1988/1/012064.
[20]	J. Perrachón, Instalación y Manejo de Praderas, Plan Agropecuario, 1 edition, 2015.
[21]	J. I. Pérez-Zuñiga, J. Rojas-Molina and A. F. Zabala-Perilla, Plant spacing assessment in cocoa (theobroma cacao l.) agroforestry systems in the colombian pacific region: Evaluación de densidades de siembra en sistemas agroforestales con cacao (theobroma cacao l.) en la región pacífica colombiana, Agronomía Colombiana, 39 (2021), 426-437.
[22]	J. C. Porteiro, Evaluación de Proyectos de Inversión - Perspectiva Empresarial, Fundación de Cultura Universitaria, 2 edition, 2007.
[23]	F. J. Rodríguez-Rigueiro, J. J. Santiago-Freijanes, M. R. Mosquera-Losada, M. Castro, P. Silva-Losada, A. Pisanelli, A. Pantera, A. Rigueiro-Rodríguez and N. Ferreiro-Domínguez, Silvopasture policy promotion in european mediterranean areas, PLoS ONE, 16 (2021), 1-16. Publisher: Public Library of Science.
[24]	A. Sabu, S. Padma Rani and A. Vidhyavathi, Economic analysis of integrated farming systems in the kuttanad region of kerala state, india: A case study, Journal of Applied and Natural Science, 12 (2020), 270-276. doi: 10.31018/jans.vi.2292.
[25]	L. Sancho, I. Arocena and L. Ordeig, Definición, Caracterización y Cuantificación del Área Bajo Sistemas Silvopastoriles, para el seguimiento de las contribuciones establecidas en la contribución determinada a nivel nacional de uruguay, 2020.
[26]	T. Sawik, A linear model for optimal cybersecurity investment in industry 4.0 supply chains, International Journal of Production Research, 60 (2022), 1368-1385. doi: 10.1080/00207543.2020.1856442.
[27]	M. M. Smith, G. Bentrup, T. Kellerman, K. MacFarland, R. Straight, L. Ameyaw and S. Stein, Silvopasture in the USA: A systematic review of natural resource professional and producer-reported benefits, challenges, and management activities, Agriculture, Ecosystems and Environment, 326, 2022. Publisher: Elsevier B.V.
[28]	P. Uruguay, Promedios por categoría, https://pantallauruguay.com.uy/promedios/, 2022.
[29]	E. F. Varela, Modelo de simulación para sistemas de silvopastoreo en regiones centro sur y sureste de uruguay, https://www.colibri.udelar.edu.uy/jspui/handle/20.500.12008/29153, 2019. Accepted: 2021-08-19T16: 53: 35Z Publisher: Udelar. FA.
[30]	L. Vesa, The net present value and the optimal solution of linear programming in investment decisions, Annals of the University of Oradea: Economic Science, 29 (2020), 135-145.
[31]	M. R. Young, A minimax portfolio selection rule with linear programming solution, Management Science, 44 (1998), 673. doi: 10.1287/mnsc.44.5.673.
