    Optimal Placement of wireless charging lanes in road networks
doi: 10.3934/jimo.2019111

Mean-field analysis of a scaling MAC radio protocol

Illés Horváth 1,, , Kristóf Attila Horváth 2, , Péter Kovács 1, and  Miklós Telek 3,

1.

MTA-BME Information Systems Research Group, H-1117 Budapest, Magyar Tudosok krt. 2
2.

Budapest University of Technology and Economics, Department of Networked Systems and Services, H-1117 Budapest, Magyar Tudosok krt. 2
3.

MTA-BME Information Systems Research Group, Budapest University of Technology and Economics, Department of Networked Systems and Services, H-1117 Budapest, Magyar Tudosok krt. 2

* Corresponding author

Received  November 2018 Revised  May 2019 Published  September 2019

Fund Project: This work is supported by the OTKA 123914 project and the TUDFO/51757/2019-ITM grants.

We examine the transient behavior of a positioning system with a large number of tags trying to connect to the infrastructure with an exponential backoff policy in case of unsuccessful connection. Using a classic mean-field approach, we derive a system of differential equations whose solution approximates the original process. Analysis of the solution shows that both the solution and the original system exhibits an unusual log-periodic behavior in the mean-field limit, along with other interesting patterns of behavior. We also perform numerical optimization for the backoff policy.

Keywords: Population model, density dependent behavior, asymptotic limit, log-periodicity, positioning, ultra wideband, MAC, random access channel, exponential backoff.
Mathematics Subject Classification: Primary: 68M20, 60J20; Secondary: 90B20.
Citation: Illés Horváth, Kristóf Attila Horváth, Péter Kovács, Miklós Telek. Mean-field analysis of a scaling MAC radio protocol. Journal of Industrial & Management Optimization, doi: 10.3934/jimo.2019111
References:
[1]

A.-L. Barabási, R. Albert and H. Jeong, Mean-field theory for scale-free random networks, Physica A: Statistical Mechanics and its Applications, 272 (1999), 173-187.   Google Scholar

[2]

G. Ben Arous, A. Fribergh, N. Gantert and Al an Hammond, Biased random walks on Galton-Watson trees with leaves, Ann. Probab., 40 (2012), 280-338.  doi: 10.1214/10-AOP620.  Google Scholar

[3]

J. I. Capetanakis, Tree algorithms for packet broadcast channels, IEEE Transactions on Information Theory, 25 (1979), 505-515.  doi: 10.1109/TIT.1979.1056093.  Google Scholar

[4]

V. Claesson, H. Lonn and N. Suri, An efficient TDMA start-up and restart synchronization approach for distributed embedded systems, IEEE Transactions on Parallel and Distributed Systems, 15 (2004), 725-739.   Google Scholar

[5]

Federal Communications Commission et al, Title 47-Telecommunication: Chapter I-Federal Communications Commission: Subchapter A-General: Part 15-radio frequency devices, Federal Communications Commission Regulatory Information, (2009). Google Scholar

[6]

S. N. Ethier and T. G. Kurtz, Characterization and Convergence, Wiley Series in Probability and Mathematical Statistics: Probability and Mathematical Statistics, John Wiley & Sons, Inc., New York, 1986. doi: 10.1002/9780470316658.  Google Scholar

[7]

International Organization for Standardization, Information technology-Radio frequency identification for item management-Part 6: Parameters for air interface communications at 860 MHz to 960 MHz General, ISO/IEC standard, (2013). Google Scholar

[8]

C. Kipnis and S. R. S. Varadhan, Central limit theorem for additive functionals of reversible Markov processes and applications to simple exclusions, Comm. Math. Phys., 104 (1986), 1-19.  doi: 10.1007/BF01210789.  Google Scholar

[9]

T. Komorowski, C. Landim and S. Olla, Fluctuations in Markov Processes: Time Symmetry and Martingale Approximation, Grundlehren der mathematischen Wissenschaften, 325. Springer Berlin Heidelberg, 2012. doi: 10.1007/978-3-642-29880-6.  Google Scholar

[10]

T. G. Kurtz, Solutions of ordinary differential equations as limits of pure jump Markov processes, Journal of Applied Probability, 7 (1970), 49-58.  doi: 10.2307/3212147.  Google Scholar

[11]

B.-J. Kwak, N.-O. Song and L. E. Miller, On the stability of exponential backoff, Journal of research of the National Institute of Standards and Technology, 108 (2003), 289-297.   Google Scholar

[12]

B.-J. Kwak, N.-O. Song and L. E. Miller, Performance analysis of exponential backoff, IEEE/ACM Trans. Netw., 13 (2005), 343-355.   Google Scholar

[13]

V. Bansaye and S. Méléard, Stochastic Models for Structured Populations: Scaling Limits and Long Time Behavior, Springer International Publishing, 2015. doi: 10.1007/978-3-319-21711-6.  Google Scholar

[14]

Y. Shen, H. Wymeersch and M. Z. Win, Fundamental limits of wideband localization-part II: Cooperative networks, IEEE Trans. Inform. Theory, 56 (2010), 4981-5000.  doi: 10.1109/TIT.2010.2059720.  Google Scholar

[15]

G. W. Shi and Y. Ming, Survey of indoor positioning systems based on ultra-wideband (UWB) technology, Wireless Communications, Networking and Applications, (2016), 1269–1278. doi: 10.1007/978-81-322-2580-5_115.  Google Scholar

[16]

M. Shurman, B. Al Shua'b, M. Alsaedeen, M. F. Al-Mistarihi and K. Darabkh, N-BEB: New backoff algorithm for IEEE 802.11 MAC protocol, In 37th International Convention on Information and Communication Technology, Electronics and Microelectronics (MIPRO), (2014), 540–544. doi: 10.1109/MIPRO.2014.6859627.  Google Scholar

[17]

IEEE Computer Society, Low-Rate Wireless Personal Area Networks (LR-WPANs), IEEE Standard, 2011. Google Scholar

[18]

L. Y. Song, H. L. Zou and T. T. Zhang, A low complexity asynchronous UWB TDOA localization method, International Journal of Distributed Sensor Networks, 11 (2015). Google Scholar

[19]

D. Stauffer and D. Sornette, Log-periodic oscillations for biased diffusion on random lattice, Physica A, 252 (1998), 271-277.  doi: 10.1016/S0378-4371(97)00680-8.  Google Scholar

[20]

W. Steiner and M. Paulitsch, The transition from asynchronous to synchronous system operation: An approach for distributed fault-tolerant systems, Proceedings 22nd International Conference on Distributed Computing Systemspages, (2002), 329–336. doi: 10.1109/ICDCS.2002.1022270.  Google Scholar

show all references

References:
[1]

A.-L. Barabási, R. Albert and H. Jeong, Mean-field theory for scale-free random networks, Physica A: Statistical Mechanics and its Applications, 272 (1999), 173-187.   Google Scholar

[2]

G. Ben Arous, A. Fribergh, N. Gantert and Al an Hammond, Biased random walks on Galton-Watson trees with leaves, Ann. Probab., 40 (2012), 280-338.  doi: 10.1214/10-AOP620.  Google Scholar

[3]

J. I. Capetanakis, Tree algorithms for packet broadcast channels, IEEE Transactions on Information Theory, 25 (1979), 505-515.  doi: 10.1109/TIT.1979.1056093.  Google Scholar

[4]

V. Claesson, H. Lonn and N. Suri, An efficient TDMA start-up and restart synchronization approach for distributed embedded systems, IEEE Transactions on Parallel and Distributed Systems, 15 (2004), 725-739.   Google Scholar

[5]

Federal Communications Commission et al, Title 47-Telecommunication: Chapter I-Federal Communications Commission: Subchapter A-General: Part 15-radio frequency devices, Federal Communications Commission Regulatory Information, (2009). Google Scholar

[6]

S. N. Ethier and T. G. Kurtz, Characterization and Convergence, Wiley Series in Probability and Mathematical Statistics: Probability and Mathematical Statistics, John Wiley & Sons, Inc., New York, 1986. doi: 10.1002/9780470316658.  Google Scholar

[7]

International Organization for Standardization, Information technology-Radio frequency identification for item management-Part 6: Parameters for air interface communications at 860 MHz to 960 MHz General, ISO/IEC standard, (2013). Google Scholar

[8]

C. Kipnis and S. R. S. Varadhan, Central limit theorem for additive functionals of reversible Markov processes and applications to simple exclusions, Comm. Math. Phys., 104 (1986), 1-19.  doi: 10.1007/BF01210789.  Google Scholar

[9]

T. Komorowski, C. Landim and S. Olla, Fluctuations in Markov Processes: Time Symmetry and Martingale Approximation, Grundlehren der mathematischen Wissenschaften, 325. Springer Berlin Heidelberg, 2012. doi: 10.1007/978-3-642-29880-6.  Google Scholar

[10]

T. G. Kurtz, Solutions of ordinary differential equations as limits of pure jump Markov processes, Journal of Applied Probability, 7 (1970), 49-58.  doi: 10.2307/3212147.  Google Scholar

[11]

B.-J. Kwak, N.-O. Song and L. E. Miller, On the stability of exponential backoff, Journal of research of the National Institute of Standards and Technology, 108 (2003), 289-297.   Google Scholar

[12]

B.-J. Kwak, N.-O. Song and L. E. Miller, Performance analysis of exponential backoff, IEEE/ACM Trans. Netw., 13 (2005), 343-355.   Google Scholar

[13]

V. Bansaye and S. Méléard, Stochastic Models for Structured Populations: Scaling Limits and Long Time Behavior, Springer International Publishing, 2015. doi: 10.1007/978-3-319-21711-6.  Google Scholar

[14]

Y. Shen, H. Wymeersch and M. Z. Win, Fundamental limits of wideband localization-part II: Cooperative networks, IEEE Trans. Inform. Theory, 56 (2010), 4981-5000.  doi: 10.1109/TIT.2010.2059720.  Google Scholar

[15]

G. W. Shi and Y. Ming, Survey of indoor positioning systems based on ultra-wideband (UWB) technology, Wireless Communications, Networking and Applications, (2016), 1269–1278. doi: 10.1007/978-81-322-2580-5_115.  Google Scholar

[16]

M. Shurman, B. Al Shua'b, M. Alsaedeen, M. F. Al-Mistarihi and K. Darabkh, N-BEB: New backoff algorithm for IEEE 802.11 MAC protocol, In 37th International Convention on Information and Communication Technology, Electronics and Microelectronics (MIPRO), (2014), 540–544. doi: 10.1109/MIPRO.2014.6859627.  Google Scholar

[17]

IEEE Computer Society, Low-Rate Wireless Personal Area Networks (LR-WPANs), IEEE Standard, 2011. Google Scholar

[18]

L. Y. Song, H. L. Zou and T. T. Zhang, A low complexity asynchronous UWB TDOA localization method, International Journal of Distributed Sensor Networks, 11 (2015). Google Scholar

[19]

D. Stauffer and D. Sornette, Log-periodic oscillations for biased diffusion on random lattice, Physica A, 252 (1998), 271-277.  doi: 10.1016/S0378-4371(97)00680-8.  Google Scholar

[20]

W. Steiner and M. Paulitsch, The transition from asynchronous to synchronous system operation: An approach for distributed fault-tolerant systems, Proceedings 22nd International Conference on Distributed Computing Systemspages, (2002), 329–336. doi: 10.1109/ICDCS.2002.1022270.  Google Scholar

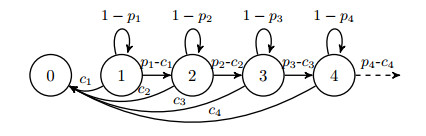

Figure 1.  State transitions of a single user; $ p_i $ are constant, $ c_i $ depend on other users
Figure Options

Download full-size image

Download as PowerPoint slide

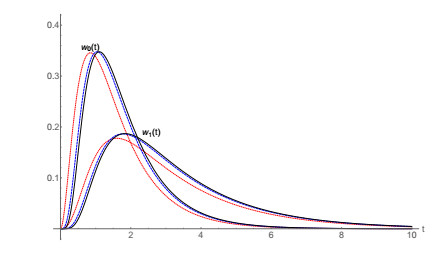

Figure 2.  Convergence of $ w_0(t) $ and $ w_1(t) $ when $ \alpha $ is fixed and $ L\to\infty $
Figure Options

Download full-size image

Download as PowerPoint slide

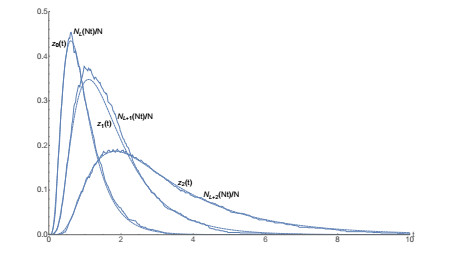

Figure 3.  Simulation for $ N_{L+i}(Nt)/N $ versus numerical solution for $ z_i(t) $ for $ i = 0, 1, 2 $ (parameters are $ N = 2^{10}, \gamma = 2, L = 10, \alpha = 0 $)
Figure Options

Download full-size image

Download as PowerPoint slide

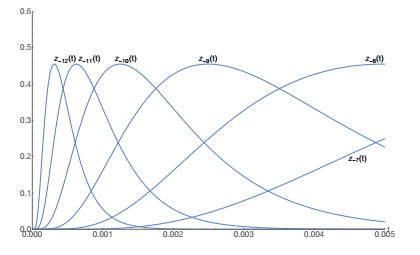

Figure 4.  Early rapid transition: $ z_i(t) $ for values of $ i $ considerably smaller than 0 ($ \alpha = 0 $ and $ \gamma = 2 $)
Figure Options

Download full-size image

Download as PowerPoint slide

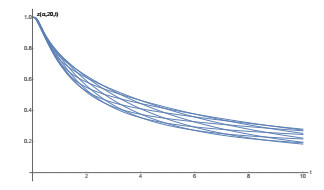

Figure 5.  The functions $ z(\gamma, \alpha, t) $ for $ \gamma = 20 $ and $ \alpha = 0 $ (thick line), $ 1/10, \dots, 9/10 $
Figure Options

Download full-size image

Download as PowerPoint slide

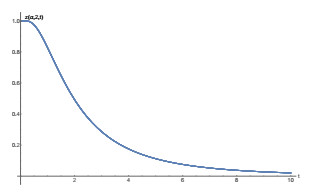

Figure 6.  The functions $ z(\gamma, \alpha, t) $ for $ \gamma = 2 $ and $ \alpha = 0, 1/10, \dots, 9/10 $
Figure Options

Download full-size image

Download as PowerPoint slide

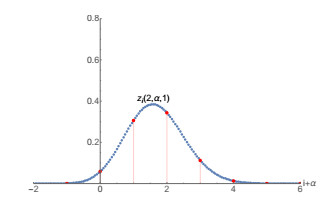

Figure 7.  The values $ z_i(2, \alpha, 1) $ for $ \alpha = 0, 1/20, \dots, 19/20 $
Figure Options

Download full-size image

Download as PowerPoint slide

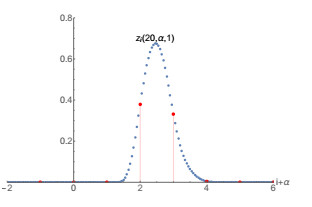

Figure 8.  The values $ z_i(20, \alpha, 1) $ for $ \alpha = 0, 1/20, \dots, 19/20 $
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 9.  Mean of the scaled connection time for $ \gamma=20 $
Figure Options

Download full-size image

Download as PowerPoint slide

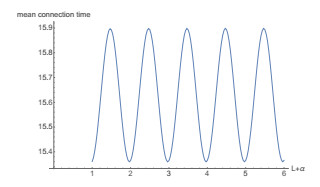

Figure 10.  Mean of the scaled connection time for $ \gamma=2 $
Figure Options

Download full-size image

Download as PowerPoint slide

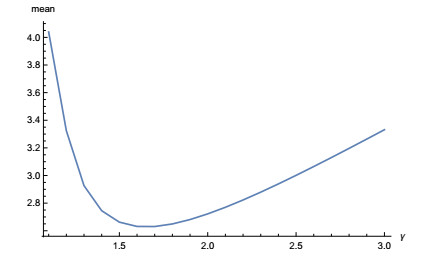

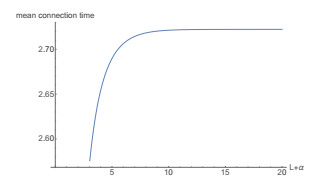

Figure 11.  Mean of the scaled connection time as a function of $ \gamma $
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 12.  Simulation for $1-\bar N_0(Nt)/N $ (red line) versus $\bar z(t) $ (dashed blue line); parameters are $ N=2^{10},\gamma=2,L=10,\alpha=0,t_0=0.5$
Figure Options

Download full-size image

Download as PowerPoint slide

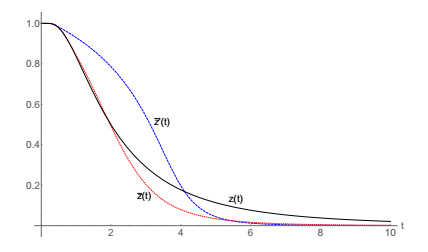

Figure 13.  $z(t)$ (no switching, black line) versus $\bar z(t) $ (switching at time $t_0=0.72 $, optimal for $m_z $, dotted red line) versus $ \bar z'(t)$ (switching at time $ t_0=0.39$, optimal for the 99.9% quantile, dashed blue line). Parameters are $\gamma=2,L=10,\alpha=0 $
