An efficient genetic algorithm for decentralized multi-project scheduling with resource transfers

Jingwen Zhang; Wanjun Liu; Wanlin Liu

doi:10.3934/jimo.2020140

Article Contents

2022, Volume 18, Issue 1: 1-24. Doi: 10.3934/jimo.2020140

This issue Previous Article Next Article Statistical mechanics approach for steady-state analysis in M/M/s queueing system with balking

An efficient genetic algorithm for decentralized multi-project scheduling with resource transfers

School of Management, Northwestern Polytechnical University, Xi’an 710072, Shaanxi, China

^* Corresponding author: Jingwen Zhang
^* Corresponding author: Jingwen Zhang

Received: December 31, 2019

Revised: June 30, 2020

Early access: September 2020

Published: January 2022

Abstract Full Text(HTML) Figure(11) / Table(7) Related Papers Cited by

Abstract

This paper investigates the decentralized resource-constrained multi-project scheduling problem with transfer times (DRCMPSPTT) in which the transfer times of the global resources among different projects are assumed to be sequence-independent, while transfers of local resources take no time within a project. First, two decision variables ($ {y_{ijg}} $ and $ {w_{ijg}} $) are adopted to express the transition state of global resources between projects. $ {y_{ijg}} $ (takes a value of 0 or 1) represents whether activity i transfers global resource g to activity j; accordingly, the transferred quantity is denoted as $ {w_{ijg}} $. Then, we construct an integer linear model with the goal of minimizing the average project delay for the DRCMPSPTT. Second, an adaptive genetic algorithm (GA) is developed to solve the DRCMPSPTT. To gain the schedules for the DRCMPSPTT, the traditional serial and parallel scheduling generation schemes (SGSs) are modified to combine with different resource transfer rules and to design multiple decoding schemes. Third, the numerical experiments are implemented to analyse the effects of eight decoding schemes, and we found that the scheme comprising the parallel SGS and maxRS rule can make the GA work the best; furthermore, the effectiveness of the GA_maxRS (GA embedded with the best scheme) is demonstrated by solving some instances with different sizes.

Keywords:

Mathematics Subject Classification: Primary: 90B35, 90C11.

Citation:

FullText(HTML)

Figure 1. An example of a DRCMPSPTT

Download: Full-size image PowerPoint slide

Figure 2. Renumbered network of the example

Download: Full-size image PowerPoint slide

Figure 3. Individual representation for the DRCMPSPTT

Download: Full-size image PowerPoint slide

Figure 4. A precedence feasible AL of the multi-project example

Download: Full-size image PowerPoint slide

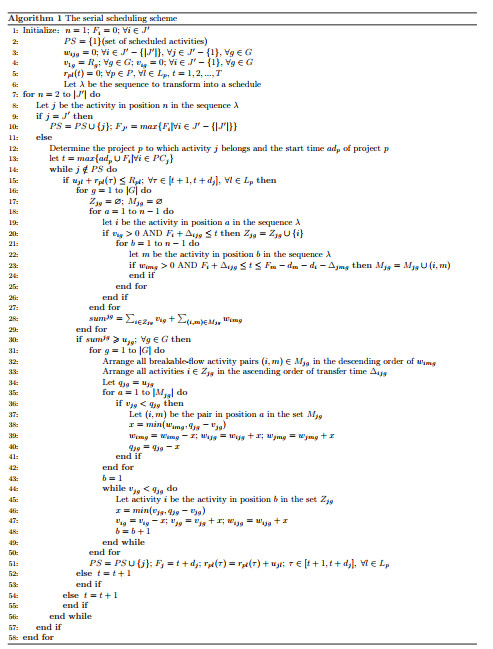

Figure 5. The adaptive serial SGS with transfer times

Download: Full-size image PowerPoint slide

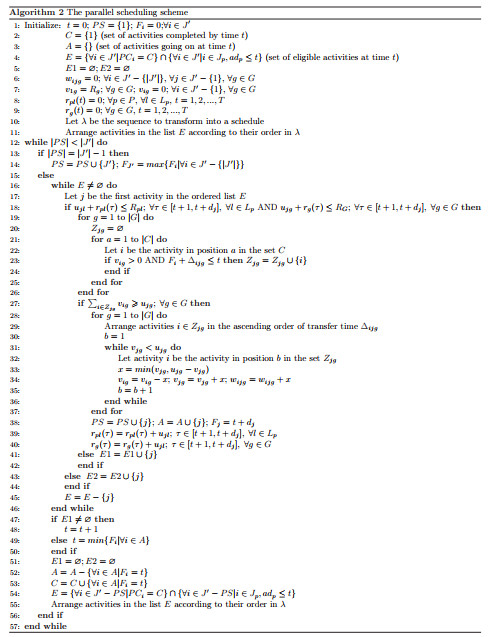

Figure 6. The adaptive parallel SGS with transfer times

Download: Full-size image PowerPoint slide

Figure 7. Two-point crossover operator

Download: Full-size image PowerPoint slide

Figure 8. Average APDs obtained by different schemes

Download: Full-size image PowerPoint slide

Figure 9. (a) APDs obtained by the two schemes, and (b) the deviation of the APDs obtained by the two schemes varies as $ UF_{AV} $ increases

Download: Full-size image PowerPoint slide

Figure 10. (a) The three types PREs, and (b) computation times of the solution methods

Download: Full-size image PowerPoint slide

Figure 11. (a) mean value of the APD obtained by different methods, and (b) The three types PREs, (c) The $ PRE_{_GA} $ of the 12 problem sets, and (d) The change trend of $ PRE_{_GA} $ as $ UF_{AV} $ increases

Download: Full-size image PowerPoint slide

Table 1. Literature review of the project scheduling with transfer 09:49:34

Authors	Project			Objective		Transfer times		Algorithm
Authors	Single	Multi-	Decentralized multi-	Makespan	Others	sequence-dependent	sequence-independent
Kolisch (1995)	$ \surd $			$ \surd $			$ \surd $		Parallel scheme based heuristic
Neumann et al (2003)	$ \surd $			$ \surd $		$ \surd $		Branch-and-bound
Vanhoucke(2008)	$ \surd $			$ \surd $			$ \surd $	Branch-and-bound
Mika (2008)	$ \surd $			$ \surd $		$ \surd $		Tabu search
Afshar-Nadjafi et al (2014)	$ \surd $			$ \surd $			$ \surd $	GA
Poppenborg(2016)	$ \surd $			$ \surd $		$ \surd $		Tabu search
Kadri and Boctor (2017)	$ \surd $			$ \surd $		$ \surd $		GA
Yang and Sum(1993, 1997)		$ \surd $		$ \surd $			$ \surd $	Computational experiment
Mittal and Kanda (2009)		$ \surd $		$ \surd $	Cost		$ \surd $	Heuristics
Kruger and Scholl(2009, 2010)	$ \surd $	$ \surd $		$ \surd $	Cost	$ \surd $		Priority-rule based heuristic
Cai and Li(2012)		$ \surd $			APD	$ \surd $		Hybrid GA
Adhau and Mittal(2013)			$ \surd $		APD		$ \surd $	DMAS/RIA
This research			$ \surd $		APD		$ \surd $	GA

| Show Table

DownLoad: CSV

Table 2. Resource transfer rules

Transfer rules	Priority value $ \pi_i $	Extremum
minTT	$ \pi_i = \Delta_{ijg} $	min
minGAP	$ \pi_i = gap_{ijg} = t - (F_i + \Delta_{ijg}) $	min
maxRS	$ \pi_i = v_{ig} = u_{ig} - \sum\limits_{l \in PS} {w_{ilg}} $	max
minRS	$ \pi_i = v_{ig} = u_{ig} - \sum\limits_{l \in PS} {w_{ilg}} $	min

| Show Table

DownLoad: CSV

Table 3. The instances for the DRCMPSP

Problem subset	NOI	Characterization per instance			UF$ _{AV} $
Problem subset	NOI	$ \left\| {P} \right\| $	$ \left\| J_{p} \right\| $	$ (\left\| G \right\| $; $ \left\| L_{p} \right\|) $	UF$ _{AV} $
MP30_2	5	2	30	(1;3)/(2;2)/(3;1)	0.84
MP90_2	5	2	90	(1;3)/(2;2)/(3;1)	0.57
MP120_2	5	2	120	(1;3)/(2;2)/(3;1)	1.31
MP30_5	5	5	30	(1;3)/(2;2)/(3;1)	0.82
MP90_5	5	5	90	(1;3)/(2;2)/(3;1)	0.61
MP120_5	5	5	120	(1;3)/(2;2)/(3;1)	1.32
MP30_10	5	10	30	(1;3)/(2;2)/(3;1)	2.38
MP90_10	5	10	90	(1;3)/(2;2)/(3;1)	1.14
MP120_10	5	10	120	(1;3)/(2;2)/(3;1)	1.91
MP30_20	5	20	30	(1;3)/(2;2)/(3;1)	3.37
MP90_20	5	20	90	(1;3)/(2;2)/(3;1)	0.9
MP120_20	5	20	120	(1;3)/(2;2)/(3;1)	0.87

| Show Table

DownLoad: CSV

Table 4. APDs obtained by the adaptive GA with different schemes

Problem subsets	Serial				parallel
Problem subsets	minTT	minGAP	maxRS	minRS	minTT	minGAP	maxRS	minRS
MP30_2	14.8	13.7	14.8	16.1	13.9	13.3	13.7	14
MP90_2	10	8.8	10.1	11.3	6.9	6.8	7.1	7.3
MP120_2	86.3	83.6	85.1	92.3	57.2	56.7	56.6	57.2
MP30_5	34.24	34.2	36.44	39.04	23.16	23.28	22.48	23.36
MP90_5	23.96	21.76	22.92	25.44	12.4	12.4	11.76	13
MP120_5	104.04	104.44	106.56	112.64	67.72	68.32	67.56	67.8
MP30_10	131.78	126.4	134.3	145.34	85.1	85.22	83.48	87.62
MP90_10	104.14	106.72	108.96	114.3	61.34	60.4	61.12	62.1
MP120_10	252.43	254.44	256.73	262.54	164.38	166.78	166.84	171.96
MP30_20	333.61	340.69	338.15	352.6	205.06	208.3	203.74	213.16
MP90_20	65.24	65.04	66.76	72.84	44.16	43.95	44.06	44.49
MP120_20	71.28	70.49	71.48	77.56	47.48	48.28	47.24	47.52
Average	102.65	102.52	104.36	110.17	65.73	66.14	65.47	67.46

| Show Table

DownLoad: CSV

Table 5. Parameter configurations to generate test problems

Parameter	J	P	K	$ r_j $	$ d_j $	NC	RF	RS
value	5, 8, 10 or 14	2 or 3	4	$ [1,8] $	$ [1,5] $	1.5	0.25	0.2

| Show Table

DownLoad: CSV

Table 6. Results of the two methods

instances		CPLEX		GA_maxRS (100 solutions)				$ PRE_w $ (%)	$ PRE_b $ (%)	$ PRE_m $ (%)
instances		opt	$ ct_{ave} (s) $	worst	best	mean	$ ct_{ave} (s) $	$ PRE_w $ (%)	$ PRE_b $ (%)	$ PRE_m $ (%)
J5_2	1	3	0.08	3	3	3	0.11	0	0	0
	2	1.5	0.03	1.5	1.5	1.5	0.14	0	0	0
	3	2	0.05	2	2	2	0.1	0	0	0
	4	5	0.08	5	5	5	0.15	0	0	0
	5	2	0.05	2	2	2	0.13	0	0	0
J8_2	1	0.5	0.06	0.5	0.5	0.5	0.11	0	0	0
	2	1	0.09	1	1	1	0.17	0	0	0
	3	2.5	0.08	2.5	2.5	2.5	0.2	0	0	0
	4	5	0.3	5	5	5	0.24	0	0	0
	5	3	0.2	3	3	3	0.31	0	0	0
J10_2	1	2.5	2.11	2.5	2.5	2.5	0.94	0	0	0
	2	9	3.72	9.5	9	9.1	0.87	6	0	1
	3	10.5	2.23	12	10.5	11	1.06	14	0	5
	4	7.5	3.2	7.5	7.5	7.5	0.56	0	0	0
	5	7	4.83	7	7	7	1.42	0	0	0
J14_2	1	2	0.94	2.5	2	2.2	0.89	25	0	10
	2	6	25.23	6	6	6	0.99	0	0	0
	3	4.5	1.91	5.5	4.5	4.7	1.18	22	0	4
	4	7.5	30.42	7.5	7.5	7.5	1.5	0	0	0
	5	4	15.2	6	4	5.5	1.45	50	0	38
J5_3	1	4.33	0.23	4.33	4.33	4.33	0.44	0	0	0
	2	2.67	0.63	3.67	3.33	3.53	0.82	37	25	32
	3	4	0.86	5.33	4	4.67	0.61	33	0	17
	4	3.33	0.19	4.33	3.33	3.94	0.45	30	0	18
	5	3.33	0.7	3.33	3.33	3.33	0.63	0	0	0
J8_3	1	2	0.5	2	2	2	0.75	0	0	0
	2	7.67	15.69	8.67	7.67	7.94	1.18	13	0	4
	3	2	0.22	2	2	2	0.58	0	0	0
	4	6	152.2	8.33	6	6.47	1.85	39	0	8
	5	1.33	0.41	1.33	1.33	1.33	0.66	0	0	0
J10_3	1	8.67	157.94	9.33	8.76	9.01	1.86	8	1	4
	2	10.67	249.08	11	10.67	10.79	1.67	3	0	1
	3	4.33	320.17	5.67	4.33	4.79	1.27	31	0	11
	4	8	824.63	8	8	8	1.28	0	0	0
	5	6	1832.06	6	6	6	1.06	0	0	0
J14_3	1	6.33	131.98	6.33	6.33	6.33	2.14	0	0	0
	2	3.33	411.58	5	3.33	3.79	2.93	50	0	14
	3	5.67	3600.44	6.67	5.67	5.79	3.03	18	0	2
	4	11	3600.13	13.67	11	12.1	7.33	24	0	10
	5	5	450.97	7	5	5.4	3.01	40	0	8

| Show Table

DownLoad: CSV

Table 7. Results of GA_maxRS and DMAS/RIA

Problem subsets	GA_maxRS			DMAS/RIA			$ PRE_{_A} $ (%)
Problem subsets	with TT	without TT	$ PRE_{_GA} $ (%)	with TT	without TT	$ PRE_{_D} $ (%)	$ PRE_{_A} $ (%)
MP30_2	with TT	without TT	13	with TT	without TT	10.9	19	23.3	18	29	-39
MP90_2	6.9	6.7	3	17.1	11.8	45	-43
MP120_2	56.1	55.6	1	89.6	80.3	12	-31
MP30_5	22.2	18.08	23	35.28	21.64	63	-16
MP90_5	11.68	9.36	25	22	13.32	65	-30
MP120_5	66.84	65.48	2	86.12	77.68	11	-16
MP30_10	81.58	78.16	4	92.68	83	12	-6
MP90_10	59.34	50.36	18	62.66	61.52	2	-18
MP120_10	164.28	140.3	17	162.6	144.1	13	-3
MP30_20	199.63	189.6	5	206.9	193	7	-2
MP90_20	43.38	34.92	24	42.88	43.13	-1	-19
MP120_20	46.42	39.71	17	48.09	42.11	14	-6
Average	64.28	58.26	10	74.1	65.8	13	-11

| Show Table

DownLoad: CSV
