Energy management method for an unpowered landing

Xiaoxiao Li; Yingjing Shi; Rui Li; Shida Cao

doi:10.3934/jimo.2020180

Article Contents

2022, Volume 18, Issue 2: 825-841. Doi: 10.3934/jimo.2020180

This issue Previous Article General drawdown based dividend control with fixed transaction costs for spectrally negative Lévy risk processes Next Article Coordinating a supply chain with demand information updating

Energy management method for an unpowered landing

School of Automation Engineering, University of Electronic Science and Technology of China, Chengdu 611731, China

^* Corresponding author: Yingjing Shi (shiyingjing@uestc.edu.cn)
^* Corresponding author: Yingjing Shi (shiyingjing@uestc.edu.cn)

Received: May 31, 2020

Revised: August 31, 2020

Early access: December 2020

Published: March 2022

This work is supported in part by the National Natural Science Foundation of China under grant (No. 61973055), the Fundamental Research Funds for the Central Universities (No. ZYGX2019J062) and a grant from the applied basic research programs of Sichuan province (No. 2019YJ0206).

Abstract Full Text(HTML) Figure(14) / Table(2) Related Papers Cited by

Abstract

The unpowered landing of unmanned aerial vehicle (UAV) is a critical stage, which affects the safety of flight. To solve the problem of the unpowered landing of UAV, an energy management scheme is proposed. After the cruise is over, the aircraft shuts down the engine and begins to land. When the aircraft is in the high altitude, the dynamic pressure is too large, and it is difficult to open the speed brake. When the aircraft is in the low altitude, it is close to the runway. The method of S-turn may make the aircraft veer off the runway and may be unable to land. So two different schemes of high altitude and low altitude are designed to control energy. In the high altitude, when the energy is too high, it takes the S-turn scheme to consume excess energy. At the same time, the availability and reasonability of the S-turn scheme is demonstrated. In the low altitude, the open angle of speed brake is controlled to adjust the energy consumption. Finally, the simulation results are given to illustrate the availability of energy management.

Keywords:

Mathematics Subject Classification: Primary: 58F15, 58F17; Secondary: 53C35.

Citation:

FullText(HTML)

Figure 1. The full ground track of S-turn scheme

Download: Full-size image PowerPoint slide

Figure 2. Flow chart of terminal energy management at various phase

Download: Full-size image PowerPoint slide

Figure 3. The prediction of range in acquisition phase

Download: Full-size image PowerPoint slide

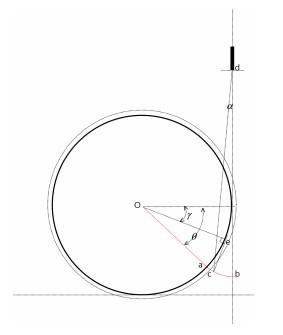

Figure 4. The prediction of range in HAC-Turn phase

Download: Full-size image PowerPoint slide

Figure 5. Track angle of aircraft

Download: Full-size image PowerPoint slide

Figure 6. The judgment nominal line of aircraft in pre-approach phase

Download: Full-size image PowerPoint slide

Figure 7. The force direction of the aircraft

Download: Full-size image PowerPoint slide

Figure 8. The high energy change of the S-turning scheme

Download: Full-size image PowerPoint slide

Figure 9. The range of the S-turning scheme at high energy

Download: Full-size image PowerPoint slide

Figure 10. The low energy change of the S-turning scheme

Download: Full-size image PowerPoint slide

Figure 11. The range of the S-turning scheme at low energy

Download: Full-size image PowerPoint slide

Figure 12. The angle of speed brake in the nominal case

Download: Full-size image PowerPoint slide

Figure 13. The angle of speed brake at high energy

Download: Full-size image PowerPoint slide

Figure 14. The angle of speed brake at low energy

Download: Full-size image PowerPoint slide

Table 1. The resistance of closed speed brake and opened speed brake

h(m)	$ \rho(kg/m^3) $	$ \alpha (^\circ) $	$ D_c $(N)	$ D_o $(N)
4500	0.7768	4.86	5541	7565
4000	0.8191	4.74	5643	7782
3500	0.8632	4.46	5769	8028
3000	0.9091	4.36	5913	8296
2500	0.9569	4.12	6071	8558
2000	1.0065	3.76	11760	14290
1500	1.0580	3.60	12290	14950
1000	1.1116	3.44	12840	15630

| Show Table

DownLoad: CSV

Table 2. The control effect of the speed brake

Speed brake	Glide angle (high/low)	Touchdown velocity
Closed	$ -9^{\circ}/-15^{\circ}/-19^{\circ} $	293.4km/h
Fully opened	$ -29^{\circ}/-15^{\circ}/-19^{\circ} $	290.2km/h

| Show Table

DownLoad: CSV
