Variable metric proximal stochastic variance reduced gradient methods for nonconvex nonsmooth optimization

Tengteng Yu; Xin-Wei Liu; Yu-Hong Dai; Jie Sun

doi:10.3934/jimo.2021084

Article Contents

2022, Volume 18, Issue 4: 2611-2631. Doi: 10.3934/jimo.2021084

This issue Previous Article Quantitative stability of the ERM formulation for a class of stochastic linear variational inequalities Next Article The loss-averse newsvendor problem with quantity-oriented reference point under CVaR criterion

Variable metric proximal stochastic variance reduced gradient methods for nonconvex nonsmooth optimization

1.
School of Artificial Intelligence, Hebei University of Technology, Tianjin 300401, China
2.
Institute of Mathematics, Hebei University of Technology, Tianjin 300401, China
3.
LSEC, Academy of Mathematics and Systems Science, Chinese Academy of Sciences, Beijing 100190, China
4.
School of Mathematical Sciences, University of Chinese Academy of Sciences, Beijing 100049, China
5.
School of Business, National University of Singapore, Singapore 119245, Singapore

^* Corresponding author: Xin-Wei Liu
^* Corresponding author: Xin-Wei Liu

Received: December 31, 2020

Revised: January 31, 2021

Published: July 2022

Abstract Full Text(HTML) Figure(4) / Table(4) Related Papers Cited by

Abstract

We study the problem of minimizing the sum of two functions. The first function is the average of a large number of nonconvex component functions and the second function is a convex (possibly nonsmooth) function that admits a simple proximal mapping. With a diagonal Barzilai-Borwein stepsize for updating the metric, we propose a variable metric proximal stochastic variance reduced gradient method in the mini-batch setting, named VM-SVRG. It is proved that VM-SVRG converges sublinearly to a stationary point in expectation. We further suggest a variant of VM-SVRG to achieve linear convergence rate in expectation for nonconvex problems satisfying the proximal Polyak-Łojasiewicz inequality. The complexity of VM-SVRG is lower than that of the proximal gradient method and proximal stochastic gradient method, and is the same as the proximal stochastic variance reduced gradient method. Numerical experiments are conducted on standard data sets. Comparisons with other advanced proximal stochastic gradient methods show the efficiency of the proposed method.

Keywords:

Mathematics Subject Classification: Primary: 90C06; Secondary: 90C30.

Citation:

FullText(HTML)

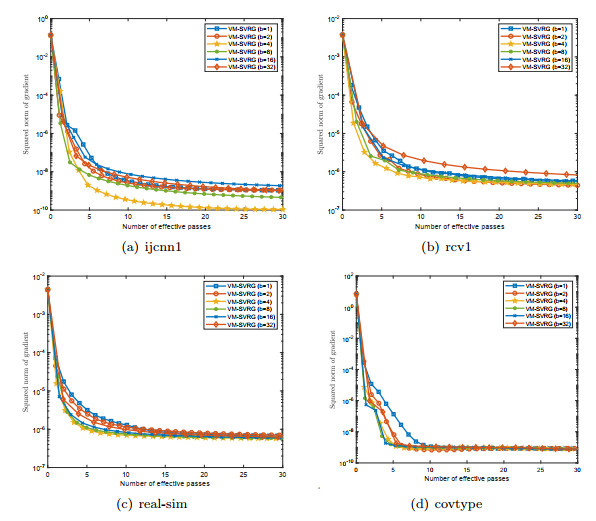

Figure 1. Comparison of VM-SVRG with different mini-batch sizes

Download: Full-size image PowerPoint slide

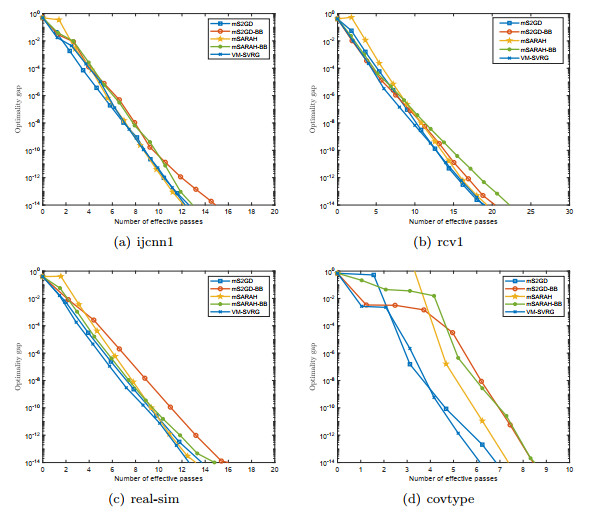

Figure 2. Comparison of VM-SVRG and other modern methods for solving LR problem

Download: Full-size image PowerPoint slide

Figure 3. Comparison of VM-SVRG with different mini-batch sizes

Download: Full-size image PowerPoint slide

Figure 4. Comparison of VM-SVRG and mS2GD for solving SVM problem

Download: Full-size image PowerPoint slide

Algorithm 2 PL-VM-SVRG($ w^0,m,b,U_0 $)

Input: Number of inner iterations $ m $, initial point $ \tilde{w}_0=w^0 \in \mathbb{R}^d $, initial metric $ U_0 $, mini-batch size $ b\in \{1,2,\ldots,n\} $;
1: for $ s=0,1,\ldots,S-1 $ do
2: $ w^{s+1} = $ VM-SVRG($ w^s,m,b,U_0 $).
3: end for
Output: $ w^S $.

| Show Table

DownLoad: CSV

Table 1. Comparison of the SFO and PO complexity.

Complexity	Prox-GD	Prox-SGD	Prox-SVRG	VM-SVRG
SFO	$ \mathcal{O}(n/\epsilon) $	$ \mathcal{O}(1/\epsilon^2) $	$ \mathcal{O}(n+(n^{2/3}/\epsilon)) $	$ \mathcal{O}(n+(n^{2/3}/\epsilon)) $
PO	$ \mathcal{O}(1/\epsilon) $	$ \mathcal{O}(1/\epsilon) $	$ \mathcal{O}(1/\epsilon) $	$ \mathcal{O}(1/\epsilon) $
SFO(PL)	$ \mathcal{O}(n\kappa\log(1/\epsilon)) $	$ \mathcal{O}(1/\epsilon^2) $	$ \mathcal{O}((n+\kappa n^{2/3})\log(1/\epsilon)) $	$ \mathcal{O}((n+\kappa n^{2/3})\log(1/\epsilon)) $
PO(PL)	$ \mathcal{O}(\kappa \log(1/\epsilon)) $	$ \mathcal{O}(1/\epsilon) $	$ \mathcal{O}(\kappa \log(1/\epsilon)) $	$ \mathcal{O}(\kappa \log(1/\epsilon)) $

| Show Table

DownLoad: CSV

Table 2. The information of data sets

Data sets	$ n $	$ d $
ijcnn1	49, 990	22
rcv1	20, 242	47, 236
real-sim	72, 309	20, 958
covtype	581, 012	54

| Show Table

DownLoad: CSV

Table 3. Best choices of parameters for the methods

Data sets	mS2GD$ (m,\eta) $	mS2GD-BB	mSARAH$ (m,\eta) $	mSARAH-BB	VM-SVRG
ijcnn1	$ (0.02n,\frac{4}{L}) $	$ 0.04n $	$ (0.05n,\frac{1.8}{L}) $	$ 0.04n $	$ 0.04n $
rcv1	$ (0.1n,\frac{4}{L}) $	$ 0.11n $	$ (0.1n,\frac{3.5}{L}) $	$ 0.09n $	$ 0.25n $
real-sim	$ (0.12n,\frac{0.6}{L}) $	$ 0.15n $	$ (0.07n,\frac{2}{L}) $	$ 0.06 $	$ 0.11n $
covtype	$ (0.07n,\frac{21}{L}) $	$ 0.03n $	$ (0.07n,\frac{25}{L}) $	$ 0.008n $	$ 0.01n $

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	J. Barzilai and J. M. Borwein, Two-point step size gradient methods, IMA J. Numer. Anal., 8 (1988), 141-148. doi: 10.1093/imanum/8.1.141.
[2]	J. F. Bonnans, J. Ch. Gilbert, C. Lemaréchal and C. A. Sagastizábal, A family of variable metric proximal methods, Math. Programming, 68 (1995), 15-47. doi: 10.1007/BF01585756.
[3]	L. Bottou, F. E. Curtis and J. Nocedal, Optimization methods for large-scale machine learning, SIAM Rev., 60 (2018), 223-311. doi: 10.1137/16M1080173.
[4]	Y.-H. Dai, M. Al-Baali and X. Yang, A positive Barzilai-Borwein-like stepsize and an extension for symmetric linear systems, Numerical Analysis and Optimization, 134 (2015), 59-75. doi: 10.1007/978-3-319-17689-5_3.
[5]	Y.-H. Dai, Y. Huang and X.-W. Liu, A family of spectral gradient methods for optimization, Comput. Optim. Appl., 74 (2019), 43-65. doi: 10.1007/s10589-019-00107-8.
[6]	A. Defazio, F. Bach and S. Lacoste-Julien, SAGA: A fast incremental gradient method with support for non-strongly convex composite objectives, in Advances in Neural Information Processing Systems, (2014), 1646-1654.
[7]	R. Fletcher, On the Barzilai-Borwein method, in Optimization and control with applications, Springer, New York, 96 (2005), 235-256. doi: 10.1007/0-387-24255-4_10.
[8]	S. Ghadimi and G. Lan, Stochastic first-and zeroth-order methods for nonconvex stochastic programming, SIAM J. Optim., 23 (2013), 2341-2368. doi: 10.1137/120880811.
[9]	S. Ghadimi, G. Lan and H. Zhang, Mini-batch stochastic approximation methods for nonconvex stochastic composite optimization, Math. Program., 155 (2016), 267-305. doi: 10.1007/s10107-014-0846-1.
[10]	T. Hastie, R. Tibshirani and J. Friedman, The Elements of Statistical Learning: Data Mining, Inference, and Prediction, Springer Series in Statistics. Springer, New York, 2009. doi: 10.1007/978-0-387-84858-7.
[11]	Y. Huang, Y.-H. Dai, X.-W. Liu and H. Zhang, Gradient methods exploiting spectral properties, Optim. Methods Softw., 35 (2020), 681-705. doi: 10.1080/10556788.2020.1727476.
[12]	R. Johnson and T. Zhang, Accelerating stochastic gradient descent using predictive variance reduction, in Advances in Neural Information Processing Systems, (2013), 315-323.
[13]	H. Karimi, J. Nutini and M. Schmidt, Linear convergence of gradient and proximal-gradient methods under the Polyak-Łojasiewicz condition, in Joint European Conference on Machine Learning and Knowledge Discovery in Databases, (2016), 795-811. doi: 10.1007/978-3-319-46128-1_50.
[14]	J. Konečnỳ, J. Liu, P. Richtárik and M. Takáč, Mini-batch semi-stochastic gradient descent in the proximal setting, IEEE Journal of Selected Topics in Signal Processing, 10 (2015), 242-255.
[15]	J. Konečnỳ and P. Richtárik, Semi-stochastic gradient descent methods, Frontiers in Applied Mathematics and Statistics, 3 (2017), 9.
[16]	L. Lei, C. Ju, J. Chen and M. I. Jordan, Non-convex finite-sum optimization via SCSG methods, in Advances in Neural Information Processing Systems, (2017), 2348-2358.
[17]	Z. Li and J. Li, A simple proximal stochastic gradient method for nonsmooth nonconvex optimization, in Advances in Neural Information Processing Systems, (2018), 5564-5574.
[18]	Y. Liu, X. Wang and T. Guo, A linearly convergent stochastic recursive gradient method for convex optimization, Optim. Lett., 14 (2020), 2265-2283. doi: 10.1007/s11590-020-01550-x.
[19]	Y. Nesterov, Introductory Lectures on Convex Programming: A Basic Course, Applied Optimization, 87. Kluwer Academic Publishers, Boston, MA, 2004. doi: 10.1007/978-1-4419-8853-9.
[20]	L. M. Nguyen, J. Liu, K. Scheinberg and M. Takáč, SARAH: A novel method for machine learning problems using stochastic recursive gradient, Proceedings of the 34th International Conference on Machine Learning, 70 (2017), 2613-2621.
[21]	L. A. Parente, P. A. Lotito and M. V. Solodov, A class of inexact variable metric proximal point algorithms, SIAM J. Optim., 19 (2008), 240-260. doi: 10.1137/070688146.
[22]	N. Parikh and S. Boyd et al., Proximal algorithms, Foundations and Trends in Optimization, 1 (2014), 127-239.
[23]	Y. Park, S. Dhar, S. Boyd and M. Shah, Variable metric proximal gradient method with diagonal Barzilai-Borwein stepsize, (2019), arXiv: 1910.07056.
[24]	N. H. Pham, L. M. Nguyen, D. T. Phan and Q. Tran-Dinh, ProxSARAH: An efficient algorithmic framework for stochastic composite nonconvex optimization, J. Mach. Learn. Res., 21 (2020), Paper No. 110, 48 pp.
[25]	S. J. Reddi, A. Hefny, S. Sra, B. Poczos and A. Smola, Stochastic variance reduction for nonconvex optimization, in International Conference on Machine Learning, (2016), 314-323.
[26]	S. J. Reddi, S. Sra, B. Poczos and A. J. Smola, Proximal stochastic methods for nonsmooth nonconvex finite-sum optimization, in Advances in Neural Information Processing Systems, (2016), 1145-1153.
[27]	H. Robbins and S. Monro, A stochastic approximation method, Ann. Math. Statistics, 22 (1951), 400-407. doi: 10.1214/aoms/1177729586.
[28]	M. Schmidt, N. Le Roux and F. Bach, Minimizing finite sums with the stochastic average gradient, Math. Program., 162 (2017), 83-112. doi: 10.1007/s10107-016-1030-6.
[29]	F. Shang, K. Zhou, H. Liu, J. Cheng, I. W. Tsang, L. Zhang, D. Tao and L. Jiao, VR-SGD: A simple stochastic variance reduction method for machine learning, IEEE Transactions on Knowledge and Data Engineering, 32 (2020), 188-202. doi: 10.1109/TKDE.2018.2878765.
[30]	C. Tan, S. Ma, Y. -H. Dai and Y. Qian, Barzilai-Borwein step size for stochastic gradient descent, in Advances in Neural Information Processing Systems, (2016), 685-693.
[31]	X. Wang, X. Wang and Y.-X. Yuan, Stochastic proximal quasi-Newton methods for non-convex composite optimization, Optim. Methods Softw., 34 (2019), 922-948. doi: 10.1080/10556788.2018.1471141.
[32]	X. Wang, S. Wang and H. Zhang, Inexact proximal stochastic gradient method for convex composite optimization, Comput. Optim. Appl., 68 (2017), 579-618. doi: 10.1007/s10589-017-9932-7.
[33]	X. Wang and H. Zhang, Inexact proximal stochastic second-order methods for nonconvex composite optimization, Optim. Methods Softw., 35 (2020), 808-835. doi: 10.1080/10556788.2020.1713128.
[34]	L. Xiao and T. Zhang, A proximal stochastic gradient method with progressive variance reduction, SIAM J. Optim., 24 (2014), 2057-2075. doi: 10.1137/140961791.
[35]	T. Yu, X. -W. Liu, Y. -H. Dai and J. Sun, A minibatch proximal stochastic recursive gradient algorithm using a trust-region-like scheme and Barzilai-Borwein stepsizes, IEEE Transactions on Neural Networks and Learning Systems, 2020. doi: 10.1109/TNNLS. 2020.3025383.
[36]	T. Yu, X. -W. Liu, Y. -H. Dai and J. Sun, Stochastic variance reduced gradient methods using a trust-region-like scheme, J. Sci. Comput., 87 (2021), Article number: 5. doi: 10.1007/s10915-020-01402-x.
[37]	T. Yu, X. -W. Liu, Y. -H. Dai and J. Sun, A variable metric mini-batch proximal stochastic recursive gradient algorithm with diagonal Barzilai-Borwein stepsize, 2020, arXiv: 2010.00817.
