Integrated proactive-reactive approach and a hybrid adaptive large neighborhood search algorithm for berth and quay crane scheduling under uncertain combination

Enjie Wu; Jin Zhu

doi:10.3934/jimo.2022188

Article Contents

2023, Volume 19, Issue 8: 5612-5640. Doi: 10.3934/jimo.2022188

This issue Previous Article Picker routing optimization of storage stacker based on improved multi-objective iterative local search algorithm Next Article Quality investment strategies in a complementary supply chain with an unreliable supplier

Integrated proactive-reactive approach and a hybrid adaptive large neighborhood search algorithm for berth and quay crane scheduling under uncertain combination

Enjie Wu^1, and
Jin Zhu^1, ,

1.
Institute of Logistics Science and Engineering, Shanghai Maritime University, Shanghai 201306, China

^*Corresponding author: Jin Zhu
^*Corresponding author: Jin Zhu

Received: November 2021

Revised: May 2022

Early access: September 2022

Published: August 2023

The first author is supported by Shanghai Pujiang Program (16PJC043).

Abstract / Introduction Full Text(HTML) Figure(6) / Table(7) Related Papers Cited by

Abstract

The integrated berth and quay crane scheduling problem is frequently encountered in port management issue, and the dynamic random data obtained by the container terminals under uncertain combination usually makes it unworkable to execute the scheduling. To promote sustainability and adaptivity of container terminals, this paper focuses on developing an integrated proactive-reactive approach for berth and quay crane scheduling under the fluctuation of vessels' arrival time and breakdown of quay crane. The problem is modelled as a two-stage mixed integer program where the baseline schedule with robustness is established in the first stage, and the recovery schedule is established in the second stage. This study aims to minimize the total management cost deviation and total time deviation of the terminal scheduling, so as to implement minimal changes compared with the baseline schedule. Therefore, the scheduling performance such as robustness, recoverability and adaptability is considered. To solve this model, a hybrid adaptive large neighborhood search (HALNS) algorithm framework combined with variable neighborhood search is developed, and the greedy algorithm is developed to construct the initial feasible solution. The performance evaluation tests of the proposed algorithm are performed on the three scales of benchmark. Computational results indicate the strength of solution methods and effectiveness of the proposed model.

Keywords:

Container terminals,
proactive-reactive approach,
uncertain combination,
berth and quay crane scheduling,
hybrid adaptive large neighborhood search.

Mathematics Subject Classification: Primary: 90B06, 90B50; Secondary: 90C27.

Citation:

Full Text(HTML)

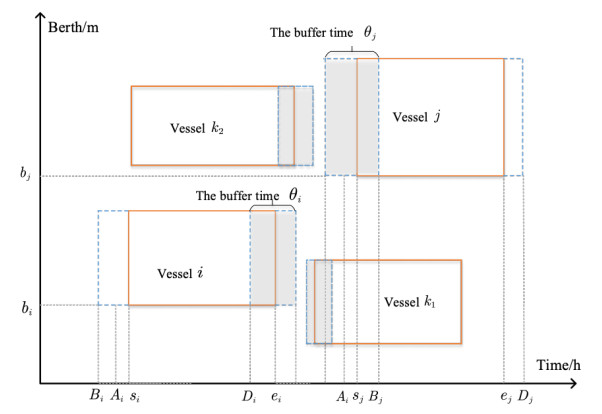

Figure 1. An illustration of the baseline schedule model with robustness

Download: Full-size image PowerPoint slide

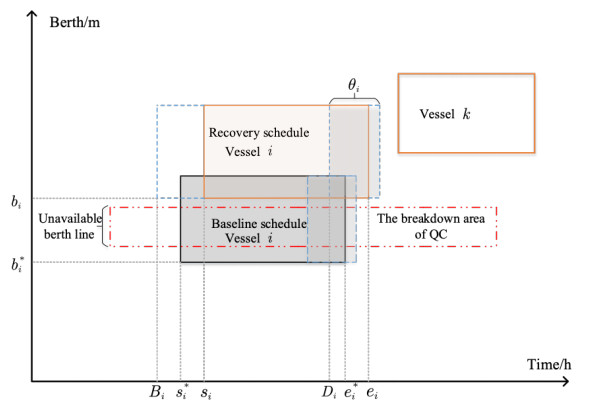

Figure 2. An illustration of the recovery schedule model

Download: Full-size image PowerPoint slide

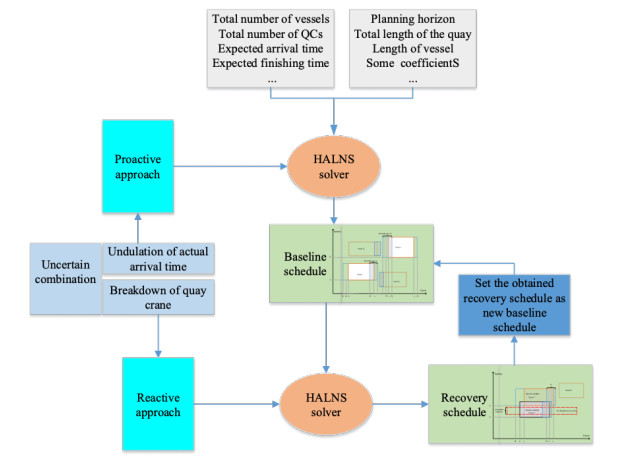

Figure 3. The dynamic process of implementing proactive-reaction approach

Download: Full-size image PowerPoint slide

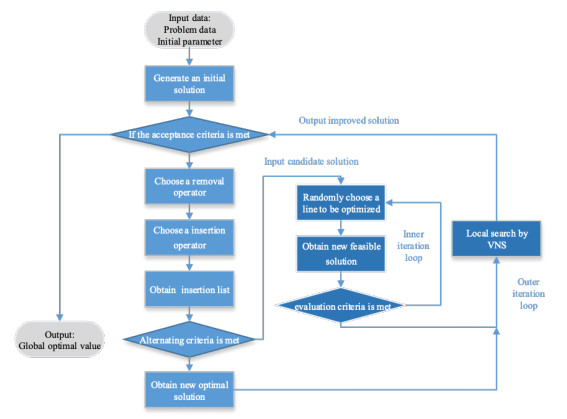

Figure 4. Overall flowchart of HALNS

Download: Full-size image PowerPoint slide

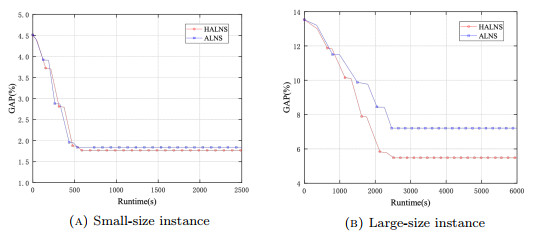

Figure 5. Convergence tendency of GAP(%) between HALNS and ALNS

Download: Full-size image PowerPoint slide

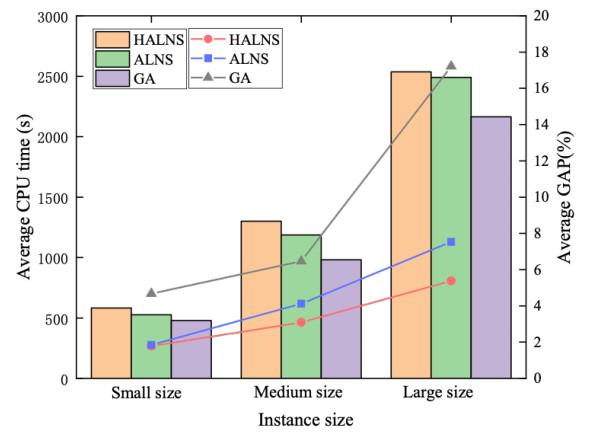

Figure 6. Comparison of average CPU time and average GAP of three algorithms

Download: Full-size image PowerPoint slide

Table 1. Summary of related literatures

literature	Berth property	Uncertain combination	Strategy	Algorithm
Zhou et al. [43]	Discrete	AT+OT	Proactive	GA
Han et al. [7]	Discrete	AT+OT	Proactive	GA
Rodriguez et al. [24]	Continuous	AT+OT	Proactive	Meta-heuristic
Xiang et al. [36]	Discrete	AT+QC quantity	Proactive	Decomposition algorithm (DA)
Zeng et al. [41]	Continuous	Disruption events	Reactive	Local rescheduling and tabu search
Li et al. [17]	Continuous	AT+OT	Reactive	Heuristic
Xiang et al. [37]	Discrete	Disruption events	Reactive	Rolling horizon heuristic
Iris et al. [12]	Continuous	AT+QC handling rates	Proactive-reactive	Heuristic
Tan et al. [27]	Continuous	AT+OT	Proactive-reactive	GA with heuristic
Our study	Continuous	AT+breakdown of QC	Proactive-reactive	Hybrid ALNS

| Show Table

DownLoad: CSV

Table 2. Parameters for setting instance size.

Instance size	N	L	Q	Planning horizon
Small-size	18	1200	12	3 days
Small-size	20	1200	12	3 days
Medium-size	30	1800	18	4 days
Medium-size	34	1800	18	4 days
Large-size	44	2400	24	5 days
Large-size	50	2400	24	5 days

| Show Table

DownLoad: CSV

Table 3. Vessel's information in the benchmark

Class	Vessel length (m)	Handling volume (TEU)	Number of QCs can be assigned
Feeder	U[70,200]	U[400,600]	[1, 2]
Medium	U[210,300]	U[1000, 1200]	[2, 4]
Jumbo	U[310,400]	U[1800, 2400]	[4, 6]

| Show Table

DownLoad: CSV

Table 4. Comparison results

				HALNS			ALNS			GA
	No	N	Z	OBJ	T(s)	GAP(%)	OBJ	T(s)	GAP(%)	OBJ	T(s)	GAP(%)
Large-size	1	18	134.16	{135.73	622	1.17	136.59	521	1.81	140.63	479	4.82
	2	18	122.36	122.42	567	0.05	122.62	491	0.21	128.50	456	5.02
	3	18	142.18	145.35	590	2.23	145.69	582	2.47	149.69	471	5.28
	4	18	107.07	108.70	489	1.52	109.40	495	2.18	110.05	434	2.78
	5	18	134.43	137.43	582	2.30	138.37	469	2.93	143.75	441	6.93
	6	20	123.47	123.87	590	0.32	124.78	547	1.06	127.00	502	2.86
	7	20	122.83	126.31	637	2.83	125.66	563	2.30	129.59	531	5.50
	8	20	156.30	158.27	529	1.26	156.74	499	0.28	164.08	465	4.98
	9	20	107.10	110.56	598	3.23	109.42	546	2.17	110.27	481	2.96
	10	20	133.44	137.32	616	2.91	137.60	542	3.12	141.01	517	5.67
			avg	582	1.78		526	1.85		478	4.68
Medium-size	1	30	183.24	187.36	1248	2.25	188.98	1133	3.13	195.04	984	6.44
	2	30	194.45	201.74	1147	3.75	203.57	1044	4.69	208.63	970	7.29
	3	30	195.41	199.22	1322	1.95	199.92	1293	2.31	206.27	991	5.56
	4	30	184.96	187.20	1129	1.21	188.16	954	1.73	194.17	838	4.98
	5	30	173.43	178.04	1241	2.66	180.28	1157	3.95	181.84	946	4.85
	6	34	198.97	205.12	1544	3.09	207.98	1427	4.53	212.42	1054	6.76
	7	34	167.02	174.35	1302	4.39	177.26	1003	6.13	181.63	951	8.75
	8	34	213.42	220.72	1353	3.42	223.96	1278	4.94	230.13	836	7.83
	9	34	204.55	212.16	1405	3.72	214.00	1369	4.62	214.51	1152	4.87
	10	34	229.28	239.51	1319	4.46	241.13	1212	5.17	245.95	1098	7.27
			avg	1301	3.09		1187	4.12		982	6.46
Large-size	1	44	289.20	306.84	2249	6.10	312.36	2387	8.01	338.71	1957	17.12
	2	44	237.32	247.43	2368	4.26	251.04	2283	5.78	283.60	2211	19.50
	3	44	238.21	253.24	2144	6.31	256.62	2489	7.73	278.85	2016	17.06
	4	44	261.24	275.76	2524	5.56	280.75	2396	7.47	308.42	1962	18.06
	5	44	338.41	349.00	2485	3.13	359.49	2378	6.23	396.08	2027	17.04
	6	50	353.96	372.54	2621	5.25	383.76	2474	8.42	423.23	2283	19.57
	7	50	263.45	283.50	2752	7.61	287.69	2477	9.20	310.77	2403	17.96
	8	50	343.36	361.25	2519	5.21	371.55	2456	8.21	398.61	2236	16.09
	9	50	370.09	380.64	2910	2.85	390.78	2849	5.59	425.64	2261	15.01
	10	50	246.81	265.37	2783	7.52	268.21	2711	8.67	283.41	2284	14.83
			avg	2536	5.38			2490	7.53		2164	17.22

| Show Table

DownLoad: CSV

Table 5. Performance of the proposed model

Instance size	Costs and efficiency				Robustness	Recoverability
Instance size	Total management cost of terminal	Average operation Time for a vessel	Average time deviation for a vessel	The operating cost of QCs	Average buffer time for a vessel	The Number of rescheduled vessels
20	416.23	8.51	3.21	93.61	8.02	3.25
20	528.74	8.05	2.73	96.19	7.53	2.60
20	445.03	9.10	3.61	88.23	8.25	3.29
20	377.20	8.42	2.88	93.52	7.32	1.83
20	401.56	8.27	3.27	88.23	8.14	3.18
Avg	433.75	8.47	3.14	92.39	7.85	2.83
30	585.32	8.90	3.59	219.02	5.71	5.39
30	615.37	8.39	3.28	200.96	5.98	4.61
30	549.75	9.05	3, 12	201.79	6.22	5.65
30	608.15	8.63	3.03	206.00	5.56	5.87
30	538.17	8.50	3.47	215.08	6.38	5.93
Avg	579.35	8.69	3.30	208.57	5.97	5.49
50	862.37	8.43	3.84	482.95	4.80	9.25
50	878.68	8.61	3.07	458.19	4.58	9.51
50	975.12	8.09	3.92	501.41	4.02	9.98
50	938.42	9.23	3.23	465.80	4.34	8.50
50	802.21	8.91	3.78	450.75	5.11	9.46
Avg	891.36	8.65	3.57	471.82	4.57	9.34

| Show Table

DownLoad: CSV

Table 6. Impact of uncertainty degree $ \Delta B $

Instance size	$ \Delta B $	$ P_a $	Our model				Rescheduling model
Instance size	$ \Delta B $	$ P_a $	$ C I $	ADP of CI	$ T I $	ADP of TI	$ C I $	ADP of CI	$ T I $	ADP of TI
	2	50%	178.32		1.94		181.70		2.61
20	4	30%	216.00	219.33	2.47	2.28	253.14	248.09	3.04	2.96
	6	15%	293.27		2.76		361.51		3.58
	8	5%	427.51		3.11		541.34		4.21
	2	50%	255.30		1.55		263.21		2.82
30	4	30%	281.35	298.73	2.63	2.19	332.75	321.16	3.23	3.15
	6	15%	353.26		3.08		407.10		3.71
	8	5%	473.72		3.23		573.28		4.33
	2	50%	301.24		1.89		357.51		3.17
50	4	30%	392.53	365.60	2.53	2.33	442.38	428.34	3.82	3.61
	6	15%	462.10		2.96		552.73		4.20
	8	5%	558.12		3.72		679.25		4.92

| Show Table

DownLoad: CSV

Table 7. Impact of uncertainty degree $ t_d $

Instance size	$ t_d $	$ P_b $	Our model				Rescheduling model
Instance size	$ t_d $	$ P_b $	$ C I $	ADP of CI	$ T I $	ADP of TI	$ C I $	ADP of CI	$ T I $	ADP of TI
	5	20%	175.31		1.41		211.05		2.36
20	15	60%	248.70	265.79	1.98	1.92	295.26	312.60	4.78	4.82
	25	20%	407.52		2.23		466.17		7.39
	5	20%	213.65		1.58		256.30		2.62
30	15	60%	286.21	305.42	2.02	2.08	347.52	364.49	5.15	5.22
	25	20%	454.84		2.77		523.60		8.02
	5	20%	285.30		1.86		334.73		3.20
50	15	60%	352.63	371.39	2.46	2.44	445.80	451.90	6.14	6.23
	25	20%	513.74		2.97		587.35		9.52

| Show Table

DownLoad: CSV
