An internal state kinetic model for chemically reacting mixtures of monatomic and polyatomic gases

Marzia Bisi; Thomas Borsoni; Maria Groppi

doi:10.3934/krm.2023023

Article Contents

2024, Volume 17, Issue 2: 276-311. Doi: 10.3934/krm.2023023

This issue Previous Article Asymptotic behavior of a kinetic approach to the collective dynamics of a rock-paper-scissors binary game Next Article Backward problem for the 1D ionic Vlasov-Poisson equation

An internal state kinetic model for chemically reacting mixtures of monatomic and polyatomic gases

1.
Department of Mathematical, Physical and Computer Sciences, University of Parma, I-43121 Parma, Italy
2.
Sorbonne Université, CNRS, Université Paris Cité, Laboratoire Jacques-Louis Lions (LJLL), F-75005 Paris, France

^*Corresponding author: Maria Groppi
^*Corresponding author: Maria Groppi

Received: December 2022

Revised: May 2023

Early access: May 30, 2023

Published online: May 30, 2023

Abstract / Introduction Full Text(HTML) Figure(3) / Table(3) Related Papers Cited by

Abstract

We propose a general kinetic framework for the description of a mixture of non-relativistic mono- or polyatomic gases undergoing any number of bimolecular reactions. The description of the internal structure of the molecules is kept general, in order to model it according to the physical properties of the considered species. The possibility of keeping separate rotational and vibrational energies of polyatomic particles is thus included in the present framework. Moreover, activation energy for chemical reactions is taken into account, allowing to accurately describe the kinetics of the chemical process. We prove the validity of the H-Theorem, recover the expected Maxwellian equilibrium distributions joint with the mass-action laws of chemical reactions, and obtain an explicit formula for the rate constant of a given chemical reaction. The system of Euler equations in the case of moderately slow chemical reactions is also derived.

Keywords:

Mathematics Subject Classification: 82B40, 76P05.

Citation:

Full Text(HTML)

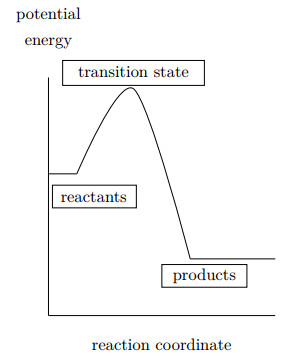

Figure 1. Reaction coordinate diagram

Download: Full-size image PowerPoint slide

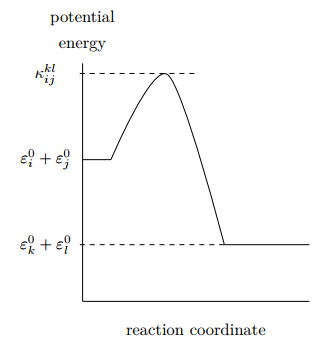

Figure 2. Reaction coordinate diagram with reference energy thresholds

Download: Full-size image PowerPoint slide

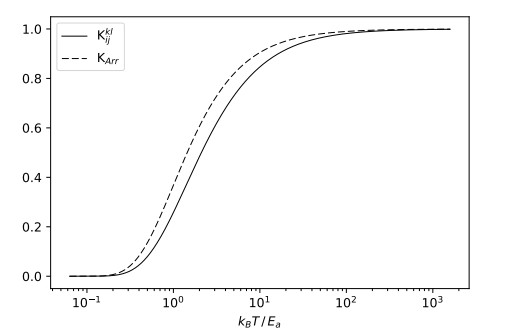

Figure 3. Plot of $ \mathit{K}_{ij}^{kl} $ given in (81) and $ \mathit{K}_{Arr} $ as functions of $ \frac{k_B T}{E_a} $, with $ \beta = 1 $

Download: Full-size image PowerPoint slide

Table 1. Quantities related to internal energy modelling of a single species

	Fundamental energy of the species $ i $	$ \varepsilon^0_i = \mathrm{inf \, ess}_{\mu_i} \big\{\varepsilon_i \big\} $
	Grounded internal energy function of the species $ i $	$ \bar{\varepsilon}_i = \varepsilon_i - \varepsilon^0_i : \mathcal{E}_i \to \mathbb{R}_+ $
	Energy law of the species $ i $	$ \mu_i^{\bar{\varepsilon}_i} $ is the image measure of $ \mu_i $ by $ \bar{\varepsilon}_i $
	Partition function of the species $ i $	$ Z_i(\beta) = \int_{ \mathcal{E}_i} e^{-\beta \, \bar{\varepsilon}_i(\zeta)} \, \mathrm{d} \mu_i(\zeta) = \int_{ \mathbb{R}_+} e^{-\beta I} \, \mathrm{d} \mu_i^{\bar{\varepsilon}_i} (I) $
	Gibbs measure on the space of internal states of the species $ i $ at temperature $ T >0 $	$ \mathrm{d} \nu^i_T(\zeta) = Z \left( \frac{1}{k_B T} \right)^{-1} \, \exp \left(- \frac{\bar{\varepsilon}_i(\zeta)}{k_B T} \right) \, \mathrm{d} \mu_i(\zeta) $
	Gibbs measure on the space of internal energies of the species $ i $ at temperature $ T>0 $	$ \mathrm{d} \widetilde{\nu}^i_T(I) = Z \left( \frac{1}{k_B T} \right)^{-1} \, \exp \left(- \frac{I}{k_B T} \right) \, \mathrm{d} \mu_i^{\bar{\varepsilon}_i} (I) $
	Number of internal degrees of freedom of the species $ i $ at temperature $ T>0 $	$ \delta_i(T) = - \frac{2}{k_B T} \big( \log(Z_i) \big)' \left( \frac{1}{k_B T} \right) = 2 \, \mathbb{E}_{\nu^i_{T}} \left[ \frac{\bar{\varepsilon}_i}{k_B T} \right] $
	Heat capacity at constant volume of the species $ i $ at temperature $ T>0 $	$ \begin{array}{c} c_V^i(T) = \frac{3 + D_i(T)}{2}, \\D_i(T) = \frac{ \mathrm{d} (T \delta_i(T))}{ \mathrm{d} T} = \frac{2}{(k_B T)^2} \big( \log(Z_i) \big)'' \left( \frac{1}{k_B T} \right) = 2 \, \mathrm{Var}_{\nu^i_{T}} \left[ \frac{\bar{\varepsilon}_i}{k_B T} \right]\end{array} $

| Show Table

DownLoad: CSV

Table 2. Fundamental quantities involved in interactions between different species

	Reduced and total mass of species $ i $ and $ j $	$ m_{ij}^* = \frac{m_i m_j}{m_i + m_j}, \qquad M_{ij} = m_i + m_j $
	Energy consumed by the chemical reaction $ \big\{ (i,j) \rightarrow (k,l) \big\} $	$ (\Delta \varepsilon^0)_{ij}^{kl} = \varepsilon^0_k + \varepsilon^0_l - \varepsilon^0_i - \varepsilon^0_j $
	Activation energy of $ \big\{ (i,j) \rightarrow (k,l) \big\} $	$ E_a = \kappa_{ij}^{kl} - \varepsilon^0_i - \varepsilon^0_j $
	Averaged collision kernel	$ \begin{array}{c} \bar{B}_{ij}^{kl}(g,\zeta,\zeta_) = \iint_{ \mathcal{E}_k \times \mathcal{E}_l} \int_{ \mathbb{S}^2} \widetilde{B}_{ij}^{kl}(g,\zeta,\zeta_,\zeta',\zeta'_,\omega) \, \mathrm{d} \omega \, \mathrm{d} \mu_k(\zeta') \, \mathrm{d} \mu_l(\zeta'_), \\ \widetilde{B}_{ij}^{kl}(v-v_,\zeta,\zeta_,\zeta',\zeta'_,\omega) = B_{ij}^{kl}(v,v_,\zeta,\zeta_,\zeta',\zeta'_,\omega) \end{array} $

| Show Table

DownLoad: CSV

Table 3. Quantities related to mechanical or global collision equilibrium

	Relative kinetic Gibbs probability measure on $ \mathbb{R}^3 $, of the species $ i $ and $ j $ at temperature $ T>0 $	$ \mathrm{d} \lambda^{ij}_T(g) = \left( \frac{m_{ij}^}{2 \pi k_B T} \right)^{3/2} \exp \left(-\frac{m_{ij}^ \|g\|^2}{2 k_B T} \right) \, \mathrm{d} g $
	Rate constant of the chemical reaction $ \left\{(i,j) \to (k,l) \right\} $ at temperature $ T>0 $	$ \mathit{K}_{ij}^{kl}(T) = \mathbb{E}_{\lambda^{ij}_T \otimes \nu^i_T \otimes \nu^j_T} \left[\bar{B}_{ij}^{kl} \right] $
	Rate of the chemical reaction $ \left\{(i,j) \to (k,l) \right\} $ at temperature $ T>0 $ and with respective densities $ n_i,n_j,n_k $ and $ n_l $	$ r_{ij}^{kl} = \mathit{K}^{ij}_{kl}(T) \, n_k \, n_l - \mathit{K}_{ij}^{kl}(T) \, n_i \, n_j $
	Reaction rate of the species $ i $	$ r_i =\underset{\big\{ (i,j) \rightarrow (k,l) \big\} \in \Omega_{chem}}{ \quad \sum_{j,k,l} \quad r_{ij}^{kl}} $
	Equilibrium constant of the chemical reaction $ \left\{(i,j) \to (k,l) \right\} $ at temperature $ T>0 $, with $ \sigma_k = \sigma_l = - \sigma_i = - \sigma_j = 1 $	$ \begin{array}{ccl} \mathcal{K}^{kl}_{ij}(T) = \prod\limits_{p \in \{i,j,k,l\}} \left\{ \left( 2 \pi m_i k_B T \right)^{3 \sigma_p/2} \, Z_p \left( \frac{1}{k_B T} \right)^{\sigma_p} \right\} \\ \times \exp \left( - \frac{(\Delta \varepsilon^{0})_{ij}^{kl}}{k_B T} \right) \end{array} $

| Show Table

DownLoad: CSV
