December  2019, 9(4): 729-758. doi: 10.3934/mcrf.2019030

Approximation of controls for linear wave equations: A first order mixed formulation

Santiago Montaner and  Arnaud Münch ,

Laboratoire de Mathématiques Blaise Pascal, Université Clermont Auvergne, UMR CNRS 6620, Campus des Cézeaux, 63178 Aubière, France

* Corresponding author: Arnaud Münch

Received  May 2018 Published  April 2019

Fund Project: This work has been sponsored by the French government research program "Investissements d'Avenir" through the IDEX-ISITE initiative 16-IDEX-0001 (CAP 20-25).

This paper deals with the numerical approximation of null controls for the wave equation posed in a bounded domain of $ \mathbb{R}^n $. The goal is to compute approximations of controls that drive the solution from a prescribed initial state to zero at a large enough controllability time. In [Cindea & Münch, A mixed formulation for the direct approximation of the control of minimal $ L^2 $-norm for linear type wave equations], we have introduced a space-time variational approach ensuring strong convergent approximations with respect to the discretization parameter. The method, which relies on generalized observability inequality, requires $ H^2 $-finite element approximation both in time and space. Following a similar approach, we present and analyze a variational method still leading to strong convergent results but using simpler $ H^1 $-approximation. The main point is to preliminary restate the second order wave equation into a first order system and then prove an appropriate observability inequality.

Keywords: Wave equation, first order system, null controllability, space-time discretization, finite element.
Mathematics Subject Classification: Primary: 35B37, 93B05; Secondary: 65N06.
Citation: Santiago Montaner, Arnaud Münch. Approximation of controls for linear wave equations: A first order mixed formulation. Mathematical Control & Related Fields, 2019, 9 (4) : 729-758. doi: 10.3934/mcrf.2019030
References:
[1]

H. J. C. Barbosa and T. J. R. Hughes, The finite element method with Lagrange multipliers on the boundary: Circumventing the Babuška-Brezzi condition, Comput. Methods Appl. Mech. Engrg., 85 (1991), 109-128.  doi: 10.1016/0045-7825(91)90125-P.  Google Scholar

[2]

L. Baudouin, M. De Buhan and S. Ervedoza, Global Carleman estimates for waves and applications, Comm. Partial Differential Equations, 38 (2013), 823-859.  doi: 10.1080/03605302.2013.771659.  Google Scholar

[3]

E. Bécache, P. Joly and C. Tsogka, An analysis of new mixed finite elements for the approximation of wave propagation problems, SIAM J. Numer. Anal., 37 (2000), 1053-1084.  doi: 10.1137/S0036142998345499.  Google Scholar

[4]

____, A new family of mixed finite elements for the linear elastodynamic problem, SIAM J. Numer. Anal., 39 (2002), 2109-2132. doi: 10.1137/S0036142999359189.  Google Scholar

[5]

D. Boffi, F. Brezzi and M. Fortin, Mixed Finite Element Methods and Applications, Springer Series in Computational Mathematics, vol. 44, Springer, Heidelberg, 2013. doi: 10.1007/978-3-642-36519-5.  Google Scholar

[6]

C. Castro and S. Micu, Boundary controllability of a linear semi-discrete 1-D wave equation derived from a mixed finite element method, Numer. Math., 102 (2006), 413-462.  doi: 10.1007/s00211-005-0651-0.  Google Scholar

[7]

D. Chapelle and K.-J. Bathe, The inf-sup test, Comput. & Structures, 47 (1993), 537-545.  doi: 10.1016/0045-7949(93)90340-J.  Google Scholar

[8]

P. G. Ciarlet, The finite Element Method for Elliptic Problems, Classics in Applied Mathematics, vol. 40, Society for Industrial and Applied Mathematics (SIAM), Philadelphia, PA, 2002, Reprint of the 1978 original [North-Holland, Amsterdam; MR0520174 (58 #25001)]. doi: 10.1137/1.9780898719208.  Google Scholar

[9]

N. Cîndea and A. Münch, Inverse problems for linear hyperbolic equations using mixed formulations, Inverse Problems, 31 (2015), 075001, 38pp. doi: 10.1088/0266-5611/31/7/075001.  Google Scholar

[10]

____, A mixed formulation for the direct approximation of the control of minimal L2-norm for linear type wave equations, Calcolo, 52 (2015), 245-288. doi: 10.1007/s10092-014-0116-x.  Google Scholar

[11]

R Codina, Finite element approximation of the hyperbolic wave equation in mixed form, Comput. Methods Appl. Mech. Engrg., 197 (2008), 1305-1322.  doi: 10.1016/j.cma.2007.11.006.  Google Scholar

[12]

S. Ervedoza and E. Zuazua, Numerical Approximation of Exact Controls for Waves, SpringerBriefs in Mathematics, Springer, New York, 2013. doi: 10.1007/978-1-4614-5808-1.  Google Scholar

[13]

L. C. Evans, Partial Differential Equations, Graduate Studies in Mathematics, vol. 19, American Mathematical Society, Providence, RI, 1998.  Google Scholar

[14]

R. Glowinski, Ensuring well-posedness by analogy: Stokes problem and boundary control for the wave equation, J. Comput. Phys., 103 (1992), 189-221.  doi: 10.1016/0021-9991(92)90396-G.  Google Scholar

[15]

R. Glowinski, W. Kinton and M. F. Wheeler, A mixed finite element formulation for the boundary controllability of the wave equation, Internat. J. Numer. Methods Engrg., 27 (1989), 623-635.  doi: 10.1002/nme.1620270313.  Google Scholar

[16]

R. Glowinski, C. H. Li and J.-L. Lions, A numerical approach to the exact boundary controllability of the wave equation. I. Dirichlet controls: description of the numerical methods, Japan J. Appl. Math., 7 (1990), 1-76.  doi: 10.1007/BF03167859.  Google Scholar

[17]

F. Hecht, New development in freefem++, J. Numer. Math., 20 (2012), 251-265.  doi: 10.1515/jnum-2012-0013.  Google Scholar

[18]

V. Komornik, Exact Controllability and Stabilization, RAM: Research in Applied Mathematics, Masson, Paris; John Wiley & Sons, Ltd., Chichester, 1994, The multiplier method.  Google Scholar

[19]

A. Kröner, K. Kunisch and B. Vexler, Semismooth Newton methods for optimal control of the wave equation with control constraints, SIAM J. Control Optim., 49 (2011), 830-858.  doi: 10.1137/090766541.  Google Scholar

[20]

J.-L. Lions, Contrôlabilité Exacte, Perturbations et Stabilisation de Systèmes distribués. Tome 1, Recherches en Mathématiques Appliquées [Research in Applied Mathematics], vol. 8, Masson, Paris, 1988, Contrôlabilité exacte. [Exact controllability], With appendices by E. Zuazua, C. Bardos, G. Lebeau and J. Rauch.  Google Scholar

[21]

A. Münch, A uniformly controllable and implicit scheme for the 1-D wave equation, M2AN Math. Model. Numer. Anal., 39 (2005), 377-418.  doi: 10.1051/m2an:2005012.  Google Scholar

[22]

A. Münch and D. A. Souza, Inverse problems for linear parabolic equations using mixed formulations-Part 1: Theoretical analysis, J. Inverse Ill-Posed Probl., 25 (2017), 445-468.  doi: 10.1515/jiip-2015-0112.  Google Scholar

[23]

A. Pazy, Semigroups of Linear Operators and Applications to Partial Differential Equations, Applied Mathematical Sciences, vol. 44, Springer-Verlag, New York, 1983. doi: 10.1007/978-1-4612-5561-1.  Google Scholar

show all references

References:
[1]

H. J. C. Barbosa and T. J. R. Hughes, The finite element method with Lagrange multipliers on the boundary: Circumventing the Babuška-Brezzi condition, Comput. Methods Appl. Mech. Engrg., 85 (1991), 109-128.  doi: 10.1016/0045-7825(91)90125-P.  Google Scholar

[2]

L. Baudouin, M. De Buhan and S. Ervedoza, Global Carleman estimates for waves and applications, Comm. Partial Differential Equations, 38 (2013), 823-859.  doi: 10.1080/03605302.2013.771659.  Google Scholar

[3]

E. Bécache, P. Joly and C. Tsogka, An analysis of new mixed finite elements for the approximation of wave propagation problems, SIAM J. Numer. Anal., 37 (2000), 1053-1084.  doi: 10.1137/S0036142998345499.  Google Scholar

[4]

____, A new family of mixed finite elements for the linear elastodynamic problem, SIAM J. Numer. Anal., 39 (2002), 2109-2132. doi: 10.1137/S0036142999359189.  Google Scholar

[5]

D. Boffi, F. Brezzi and M. Fortin, Mixed Finite Element Methods and Applications, Springer Series in Computational Mathematics, vol. 44, Springer, Heidelberg, 2013. doi: 10.1007/978-3-642-36519-5.  Google Scholar

[6]

C. Castro and S. Micu, Boundary controllability of a linear semi-discrete 1-D wave equation derived from a mixed finite element method, Numer. Math., 102 (2006), 413-462.  doi: 10.1007/s00211-005-0651-0.  Google Scholar

[7]

D. Chapelle and K.-J. Bathe, The inf-sup test, Comput. & Structures, 47 (1993), 537-545.  doi: 10.1016/0045-7949(93)90340-J.  Google Scholar

[8]

P. G. Ciarlet, The finite Element Method for Elliptic Problems, Classics in Applied Mathematics, vol. 40, Society for Industrial and Applied Mathematics (SIAM), Philadelphia, PA, 2002, Reprint of the 1978 original [North-Holland, Amsterdam; MR0520174 (58 #25001)]. doi: 10.1137/1.9780898719208.  Google Scholar

[9]

N. Cîndea and A. Münch, Inverse problems for linear hyperbolic equations using mixed formulations, Inverse Problems, 31 (2015), 075001, 38pp. doi: 10.1088/0266-5611/31/7/075001.  Google Scholar

[10]

____, A mixed formulation for the direct approximation of the control of minimal L2-norm for linear type wave equations, Calcolo, 52 (2015), 245-288. doi: 10.1007/s10092-014-0116-x.  Google Scholar

[11]

R Codina, Finite element approximation of the hyperbolic wave equation in mixed form, Comput. Methods Appl. Mech. Engrg., 197 (2008), 1305-1322.  doi: 10.1016/j.cma.2007.11.006.  Google Scholar

[12]

S. Ervedoza and E. Zuazua, Numerical Approximation of Exact Controls for Waves, SpringerBriefs in Mathematics, Springer, New York, 2013. doi: 10.1007/978-1-4614-5808-1.  Google Scholar

[13]

L. C. Evans, Partial Differential Equations, Graduate Studies in Mathematics, vol. 19, American Mathematical Society, Providence, RI, 1998.  Google Scholar

[14]

R. Glowinski, Ensuring well-posedness by analogy: Stokes problem and boundary control for the wave equation, J. Comput. Phys., 103 (1992), 189-221.  doi: 10.1016/0021-9991(92)90396-G.  Google Scholar

[15]

R. Glowinski, W. Kinton and M. F. Wheeler, A mixed finite element formulation for the boundary controllability of the wave equation, Internat. J. Numer. Methods Engrg., 27 (1989), 623-635.  doi: 10.1002/nme.1620270313.  Google Scholar

[16]

R. Glowinski, C. H. Li and J.-L. Lions, A numerical approach to the exact boundary controllability of the wave equation. I. Dirichlet controls: description of the numerical methods, Japan J. Appl. Math., 7 (1990), 1-76.  doi: 10.1007/BF03167859.  Google Scholar

[17]

F. Hecht, New development in freefem++, J. Numer. Math., 20 (2012), 251-265.  doi: 10.1515/jnum-2012-0013.  Google Scholar

[18]

V. Komornik, Exact Controllability and Stabilization, RAM: Research in Applied Mathematics, Masson, Paris; John Wiley & Sons, Ltd., Chichester, 1994, The multiplier method.  Google Scholar

[19]

A. Kröner, K. Kunisch and B. Vexler, Semismooth Newton methods for optimal control of the wave equation with control constraints, SIAM J. Control Optim., 49 (2011), 830-858.  doi: 10.1137/090766541.  Google Scholar

[20]

J.-L. Lions, Contrôlabilité Exacte, Perturbations et Stabilisation de Systèmes distribués. Tome 1, Recherches en Mathématiques Appliquées [Research in Applied Mathematics], vol. 8, Masson, Paris, 1988, Contrôlabilité exacte. [Exact controllability], With appendices by E. Zuazua, C. Bardos, G. Lebeau and J. Rauch.  Google Scholar

[21]

A. Münch, A uniformly controllable and implicit scheme for the 1-D wave equation, M2AN Math. Model. Numer. Anal., 39 (2005), 377-418.  doi: 10.1051/m2an:2005012.  Google Scholar

[22]

A. Münch and D. A. Souza, Inverse problems for linear parabolic equations using mixed formulations-Part 1: Theoretical analysis, J. Inverse Ill-Posed Probl., 25 (2017), 445-468.  doi: 10.1515/jiip-2015-0112.  Google Scholar

[23]

A. Pazy, Semigroups of Linear Operators and Applications to Partial Differential Equations, Applied Mathematical Sciences, vol. 44, Springer-Verlag, New York, 1983. doi: 10.1007/978-1-4612-5561-1.  Google Scholar

Figure 1.  Regular meshes for $ Q_T $; Left: uniform mesh - $ h = 1.41\times10^{-1} $. Right: non uniform mesh - $ h = 1.52\times 10^{-1} $
Figure Options

Download full-size image

Download as PowerPoint slide

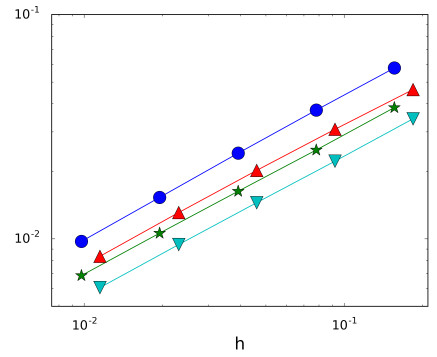

Figure 2.  Non uniform mesh - Evolution of $ \sqrt{hr}\delta_h $ with respect to $ h $ (see Table 3) for $ r = 1 $ $ ({\bigcirc}) $, $ r = 10^{-1} $ $ (\bigtriangledown) $, $ r = 10^{-2} $ $ ({\bigtriangleup}) $, $ r = h $ $ ({\star}) $, $ r = h^2 $ $ ({\circ)} $
Figure Options

Download full-size image

Download as PowerPoint slide

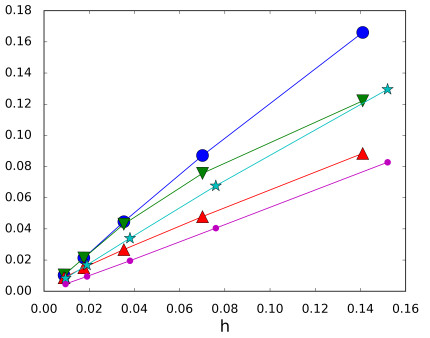

Figure 3.  Evolution of $ \|v-\mathbf{q}_h(1, \cdot)\|_{L^2(0, T)} $ w.r.t $ h $ for uniform mesh with $ r = 1 $ $ (\circ) $, $ r = h $ $ (\star) $ and non uniform mesh with $ r = 1 $ $ (\bigtriangleup) $ and $ r = h $ $ (\bigtriangledown) $
