Approximation of linear controlled dynamical systems with small random noise and fast periodic sampling

Shivam Dhama; Chetan D. Pahlajani

doi:10.3934/mcrf.2022018

Article Contents

2023, Volume 13, Issue 3: 852-872. Doi: 10.3934/mcrf.2022018

This issue Previous Article Next Article Second-order problems involving time-dependent subdifferential operators and application to control

Approximation of linear controlled dynamical systems with small random noise and fast periodic sampling

Shivam Dhama^, and
Chetan D. Pahlajani

Discipline of Mathematics, Indian Institute of Technology Gandhinagar, Palaj, Gandhinagar 382055, India

^* Corresponding author: Shivam Dhama
^* Corresponding author: Shivam Dhama

Received: September 2021

Revised: February 2022

Early access: April 20, 2022

Published online: April 20, 2022

The second author acknowledges research support from DST SERB Project No. EMR/2015/000904.

Abstract / Introduction Full Text(HTML) Figure(2) Related Papers Cited by

Abstract

In this paper, we study the dynamics of a linear control system with given state feedback control law in the presence of fast periodic sampling at temporal frequency $ 1/\delta $ ($ 0 < \delta \ll 1 $), together with small white noise perturbations of size $ \varepsilon $ ($ 0< \varepsilon \ll 1 $) in the state dynamics. For the ensuing continuous-time stochastic process indexed by two small parameters $ \varepsilon,\delta $, we obtain effective ordinary and stochastic differential equations describing the mean behavior and the typical fluctuations about the mean in the limit as $ \varepsilon,\delta \searrow 0 $. The effective fluctuation process is found to vary, depending on whether $ \delta \searrow 0 $ faster than/at the same rate as/slower than $ \varepsilon \searrow 0 $. The most interesting case is found to be the one where $ \delta, \varepsilon $ are comparable in size; here, the limiting stochastic differential equation for the fluctuations has both a diffusive term due to the small noise and an effective drift term which captures the cumulative effect of the fast sampling. In this regime, our results yield a time-inhomogeneous Markov process which provides a strong (pathwise) approximation of the original non-Markovian process, together with estimates on the ensuing error. A simple example involving an infinite time horizon linear quadratic regulation problem illustrates the results.

Keywords:

Mathematics Subject Classification: Primary: 60F17.

Citation:

Full Text(HTML)

Figure 1. Sample paths for the components $ X_1\triangleq X_1^{ \varepsilon,\delta}(t),\; X_2 \triangleq X_2^{ \varepsilon,\delta}(t) $ of the sde defined by (10) and $ S_1 \triangleq S_1^{ \varepsilon}(t) = x_1(t)+ \varepsilon Z_1(t),\; S_2 \triangleq S_2^{ \varepsilon}(t) = x_2(t)+ \varepsilon Z_2(t) $ with $ \varepsilon = 2^{-5},\; \delta = 2^{-4}, $ and $ T = 2^3 $. Here $ Z_1(t) $ and $ Z_2(t) $ are the components of $ Z(t) $ defined in (14)

Download: Full-size image PowerPoint slide

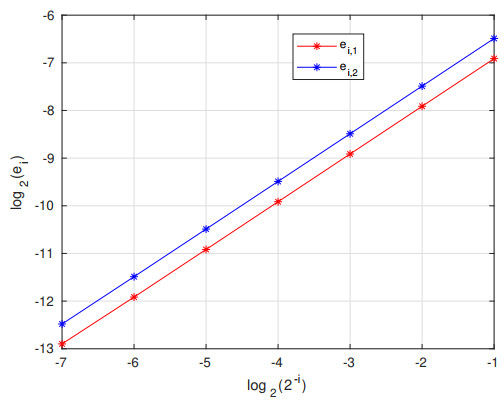

Figure 2. For $ 1 \le i \le 7 $, let $ e_i $ be the vector $ (e_{i,1},e_{i,2}) $, where, for $ j = 1,2 $, the quantity $ e_{i,j} $ is the mean of $ |X^{ \varepsilon,\delta}_j(T)-S^ \varepsilon_j(T)| $ over 1000 sample paths generated by the Euler-Maruyama method, with $ T = 2^3 $, $ \delta = 2^{-4} $. On a $ \log_2 $-$ \log_2 $ scale, we see that as $ \varepsilon\triangleq 2^{-i} $ decreases, the corresponding error $ e_{i,j} $ also decreases

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	M. Adès, P. E. Caines and R. P. Malhamé, Stochastic optimal control under Poisson-distributed observations, IEEE Trans. Automat. Control, 45 (2000), 3-13.
[2]	D. J. Antunes, J. P. Hespanha and C. J. Silvestre, Volterra integral approach to impulsive renewal systems: Application to networked control, IEEE Trans. Automat. Control, 57 (2012), 607-619. doi: 10.1109/TAC.2011.2166300.
[3]	D. Antunes, J. Hespanha and C. Silvestre, Stability of networked control systems with asynchronous renewal links: An impulsive systems approach, Automatica J. IFAC, 49 (2013), 402-413. doi: 10.1016/j.automatica.2012.11.033.
[4]	R. P. Anderson, D. Milutinović and D. V. Dimarogonas, Self-triggered sampling for second-moment stability of state-feedback controlled SDE systems, Automatica J. IFAC, 54 (2015), 8–15. https://www.sciencedirect.com/science/article/pii/S0005109815000308?via%3Dihub doi: 10.1016/j.automatica.2015.01.020.
[5]	A. Arapostathis, A. Biswas and V. S. Borkar, Controlled equilibrium selection in stochastically perturbed dynamics, Ann. Probab., 46 (2018), 2749-2799. doi: 10.1214/17-AOP1238.
[6]	S. R. Athreya, V. S. Borkar, K. S. Kumar and R. Sundaresan, Simultaneous small noise limit for singularly perturbed slow-fast coupled diffusions, Appl. Math. Optim., 83 (2021), 2327-2374. doi: 10.1007/s00245-019-09630-w.
[7]	P. Billingsley, Convergence of Probability Measures, John Wiley and Sons Inc., second edition, 1999. doi: 10.1002/9780470316962.
[8]	D. P. Borgers, V. S. Dolk, G. E. Dullerud, A. R. Teel and W. P. M. H. Heemels, Time-regularized and periodic event triggered control for linear systems, in Control Subject to Computational and Communication Constraints, Springer, 2018,121–149. https://link.springer.com/chapter/10.1007/978-3-319-78449-6_7
[9]	S. Bourguin, S. Gailus and K. Spiliopoulos, Typical dynamics and fluctuation analysis of slow–fast systems driven by fractional Brownian motion, Stoch. Dyn., (2021), 2150030, 30 pp. doi: 10.1142/S0219493721500301.
[10]	S. Cerrai, A Khasminskii type averaging principle for stochastic reaction–diffusion equations, Ann. Appl. Probab., 19 (2009), 899-948. doi: 10.1214/08-AAP560.
[11]	S. Cerrai and M. Freidlin, Averaging principle for a class of stochastic reaction–diffusion equations, Probab. Theory Related Fields, 144 (2009), 137-177. doi: 10.1007/s00440-008-0144-z.
[12]	G. Chen, C. Fan, J. Sun and J. Xia, Mean square exponential stability analysis for ito stochastic systems with aperiodic sampling and multiple time-delays, IEEE Transactions on Automatic Control, 2021. https://ieeexplore.ieee.org/abstract/document/9410357
[13]	T. Chen and B. Francis, Optimal Sampled-Data Control Systems, Springer, 1996.
[14]	A. Dembo and O. Zeitouni, Large Deviations Techniques and Applications, Springer, second edition, 1998. https://link.springer.com/book/10.1007/978-3-642-03311-7
[15]	R. Dong and X. Mao, Asymptotic stabilization of continuous-time periodic stochastic systems by feedback control based on periodic discrete-time observations, Math. Control Relat. Fields, 10 (2020), 715-734. doi: 10.3934/mcrf.2020017.
[16]	V. Drǎgan and I. G. Ivanov, On the stochastic linear quadratic control problem with piecewise constant admissible controls, J. Franklin Inst., 357 (2020), 1532-1559. doi: 10.1016/j.jfranklin.2019.10.036.
[17]	M. I. Freidlin and R. B. Sowers, A comparison of homogenization and large deviations, with applications to wavefront propagation, Stochastic Process. Appl., 82 (1999), 23-52. doi: 10.1016/S0304-4149(99)00003-4.
[18]	M. I. Freidlin and A. D. Wentzell, Random perturbations of Hamiltonian systems, Mem. Amer. Math. Soc., 109 (1994), 523. doi: 10.1090/memo/0523.
[19]	M. I. Freidlin and A. D. Wentzell, Random Perturbations of Dynamical Systems, Springer, third edition, 2012. doi: 10.1007/978-3-642-25847-3.
[20]	R. Goebel, R. G. Sanfelice and A. R. Teel, Hybrid Dynamical Systems: Modeling, Stability and Robustness, Princeton University Press, 2012.
[21]	R. Z. Has'minskii, On stochastic processes defined by differential equations with a small parameter, Theory of Probability & Its Applications, 11 (1966), 211-228. doi: 10.1137/1111018.
[22]	R. Z. Has'Minskii, On the principle of averaging the Ito's stochastic differential equations, Kybernetika, 4 (1968), 260-279.
[23]	W. P. M. H. Heemels, M. C. F. Donkers and A. R. Teel, Periodic event-triggered control for linear systems, IEEE Trans. Automat. Control, 58 (2013), 847-861. doi: 10.1109/TAC.2012.2220443.
[24]	J. P. Hespanha, Linear Systems Theory, Princeton University Press, 2009.
[25]	J. P. Hespanha, Modeling and analysis of networked control systems using stochastic hybrid systems, Annual Reviews in Control, 38 (2014), 155–170. https://www.sciencedirect.com/science/article/pii/S1367578814000352
[26]	J. P. Hespanha and A. R. Teel, Stochastic impulsive systems driven by renewal processes, Proc. 17th International Symposium on Mathematical Theory of Networked Systems, (2006), 606–618. https://scholar.google.co.in/scholar?q=Stochastic+impulsive+systems+driven+by+renewal+processes&hl=en&as_sdt=0&as_vis=1&oi=scholart
[27]	J. Higham Desmond, An algorithmic introduction to numerical simulation of stochastic differential equations, SIAM Rev., 43 (2001), 525-546. doi: 10.1137/S0036144500378302.
[28]	I. Karafyllis and C. Kravaris, Global stability results for systems under sampled-data control, Internat. J. Robust Nonlinear Control, 19 (2009), 1105-1128. doi: 10.1002/rnc.1364.
[29]	I. Karatzas and S. E. Shreve, Brownian Motion and Stochastic Calculus, volume 113 of Graduate Texts in Mathematics, Springer-Verlag New York, second edition, 1991. doi: 10.1007/978-1-4612-0949-2.
[30]	H. K. Khalil, Performance recovery under output feedback sampled-data stabilization of a class of nonlinear systems, IEEE Trans. Automat. Control, 49 (2004), 2173-2184. doi: 10.1109/TAC.2004.838496.
[31]	P. E. Kloeden and E. Platen, Numerical Solution of Stochastic Differential Equations, Springer, 1992. doi: 10.1007/978-3-662-12616-5.
[32]	P. V. Kokotovic, H. K. Khalil and J. O'Reilly, Singular Perturbation Methods in Control: Analysis and Design, SIAM, 1999. https://epubs.siam.org/doi/book/10.1137/1.9781611971118
[33]	D. S. Laila, D. Nesic and A. R. Teel, Open- and closed-loop dissipation inequalities under sampling and controller emulation, European Journal of Control, 8 (2002), 109–125. https://www.sciencedirect.com/science/article/pii/S0947358002702161
[34]	D. Nesic and A. R. Teel, A framework for stabilization of non-linear sampled-data systems based on their approximate discrete-time models, IEEE Trans. Automat. Control, 49 (2004), 1103-1122. doi: 10.1109/TAC.2004.831175.
[35]	D. Nesic, A. R. Teel and D. Carnevale, Explicit computation of the sampling period in emulation of controllers for nonlinear sampled-data systems, IEEE Trans. Automat. Control, 54 (2009), 619–624. https://ieeexplore.ieee.org/document/4796269 doi: 10.1109/TAC.2008.2009597.
[36]	D. Nesic, A. R. Teel and P. V. Kokotovic, Sufficient conditions for stabilization of sampled-data nonlinear systems via discrete-time approximations, Systems Control Lett., 38 (1999), 259-270. doi: 10.1016/S0167-6911(99)00073-0.
[37]	B. Oksendal, Stochastic Differential Equations, Springer, sixth edition, 2003. doi: 10.1007/978-3-642-14394-6.
[38]	M. Röckner and L. Xie, Averaging principle and normal deviations for multiscale stochastic systems, Comm. Math. Phys., 383 (2021), 1889-1937. doi: 10.1007/s00220-021-04069-z.
[39]	M. Röckner and L. Xie, Diffusion approximation for fully coupled stochastic differential equations, Ann. Probab., 49 (2021), 1205-1236. doi: 10.1214/20-aop1475.
[40]	A. V. Skorokhod, F. C. Hoppensteadt and H. Salehi, Random Perturbation Methods with Applications in Science and Engineering, volume 150 of Applied Mathematical Sciences. Springer-Verlag, New York, 2002. doi: 10.1007/b98905.
[41]	K. Spiliopoulos, Large deviations and importance sampling for systems of slow-fast motion, Appl. Math. Optim., 67 (2013), 123-161. doi: 10.1007/s00245-012-9183-z.
[42]	K. Spiliopoulos, Fluctuation analysis and short time asymptotics for multiple scales diffusion processes, Stoch. Dyn., 14 (2014), 1350026, 22 pp. doi: 10.1142/S0219493713500263.
[43]	A. Tanwani, D. Chatterjee and D. Liberzon, Stabilization of deterministic control systems under random sampling: Overview and recent developments, Uncertainty in Complex Networked Systems. In T. Basar, editor, Springer, 2018,209–246. https://link.springer.com/chapter/10.1007/978-3-030-04630-9_6
[44]	A. Tanwani and O. Yufereva, Error covariance bounds for suboptimal filters with Lipschitzian drift and Poisson-sampled measurements, Automatica J. IFAC, 122 (2020), 109280, 14 pp. doi: 10.1016/j.automatica.2020.109280.
[45]	W. Wang, R. Postoyan, D. Nesic and W. P. M. H. Heemels, Periodic event-triggered control for nonlinear networked control systems, IEEE Trans. Automat. Control, 65 (2020), 620-635. doi: 10.1109/TAC.2019.2914255.
[46]	J. I. Yuz and G. C. Goodwin, Sampled-Data Models for Linear and Nonlinear Systems, Springer, 2014.
[47]	O. Zeitouni, Approximate and limit results for nonlinear filters with small observation noise: the linear sensor and constant diffusion coefficient case, IEEE Transactions on Automatic Control, 33 (1988), 595–599. https://ieeexplore.ieee.org/abstract/document/1262
