Optimal control of the Navier-Stokes equations via pressure boundary conditions

Boris Vexler; Jakob Wagner

doi:10.3934/mcrf.2025053

Article Contents

2026, Volume 18: 79-121. Doi: 10.3934/mcrf.2025053

This volume Previous Article Collective behavior in discontinuous second-order consensus model with collision avoidance Next Article Energy decay of a linear isotropic thermoelastic system with damping subject only to full Wentzell boundary

Optimal control of the Navier-Stokes equations via pressure boundary conditions

Boris Vexler and
Jakob Wagner^, ,

Technical University of Munich, School for Computation, Information and Technology, Chair of Optimal Control, Germany

^*Corresponding author: Jakob Wagner
^*Corresponding author: Jakob Wagner

Received: January 2025

Revised: June 2025

Early access: September 9, 2025

Published online: September 9, 2025

Abstract / Introduction Full Text(HTML) Figure(7) Related Papers Cited by

Abstract

In this work, we studied an optimal control problem subject to the unsteady Navier-Stokes equations, where the control enters via an inhomogeneous Neumann/Do-Nothing boundary condition. Despite the Navier-Stokes equations with these boundary conditions not being well-posed for large times and/or data, we obtained well-posedness of the optimal control problem by choosing a proper tracking type term. Moreover, we derived first- and second-order optimality conditions. In order to discuss the regularity of the optimal control, state, and adjoint state, we presented new results on $ L^2(I;H^2( \Omega)) $ regularity of solutions to a Stokes problem with mixed inhomogeneous boundary conditions.

Keywords:

Mathematics Subject Classification: 35Q30, 76D05, 49J20, 49K20.

Citation:

Full Text(HTML)

Figure 1. Domain $ \Omega $ satisfying Assumption 2.1

Download: Full-size image PowerPoint slide

Figure 2. Domain $ \Omega $ depending on the parameters $ r, R, L $

Download: Full-size image PowerPoint slide

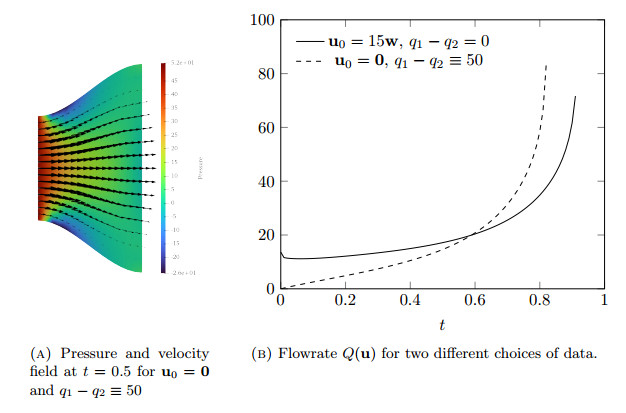

Figure 3. Two reasons for blowup of numerical solutions: large initial data or large boundary data

Download: Full-size image PowerPoint slide

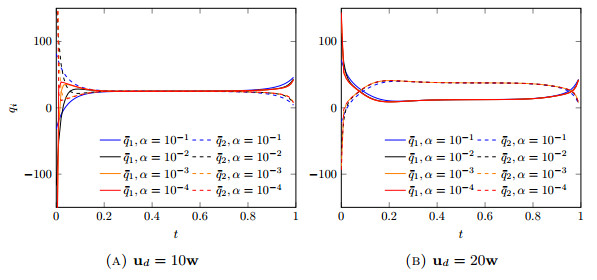

Figure 4. Optimal controls for different choices of $ \mathbf{u}_d $ and $ \alpha $

Download: Full-size image PowerPoint slide

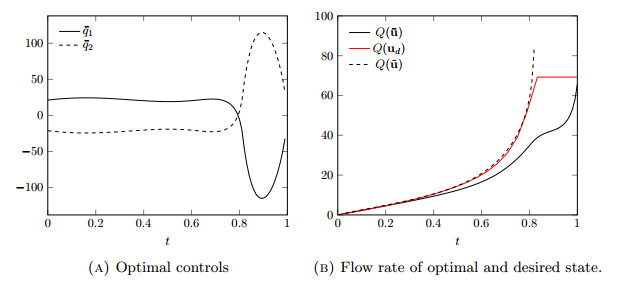

Figure 5. Results of an optimal control problem with data close to blowup

Download: Full-size image PowerPoint slide

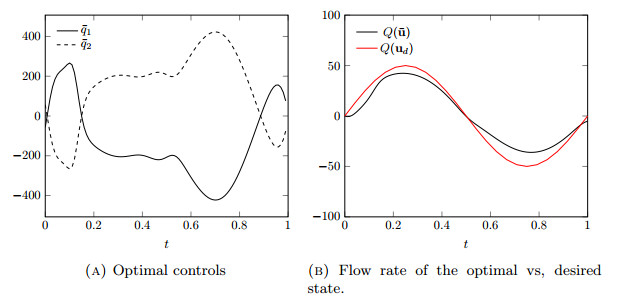

Figure 6. Solution of the optimal control problem with desired state that features a sinusoidal dependence of time

Download: Full-size image PowerPoint slide

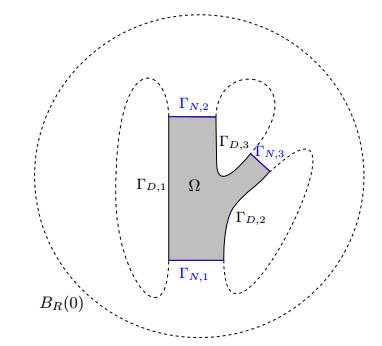

Figure 7. Extension of $ \Omega $, which admits an extension of divergence-free vector fields from $ \Omega $ to the larger domain

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	R. Adams and J. Fournier, Cone conditions and properties of Sobolev spaces, Journal of Mathematical Analysis and Applications, 61 (1977), 713-734.
[2]	C. Amrouche and V. Girault, Decomposition of vector spaces and application to the Stokes problem in arbitrary dimension, Czechoslovak Mathematical Journal, 44 (1994), 109-140.
[3]	C. Amrouche and N. E. H. Seloula, Stokes equations and elliptic systems with nonstandard boundary conditions, Comptes Rendus Mathematique, 349 (2011), 703-708.
[4]	R. Arndt, A. N. Ceretani and C. N. Rautenberg, On existence and uniqueness of solutions to a Boussinesq system with nonlinear and mixed boundary conditions, Journal of Mathematical Analysis and Applications, 490 (2020), 124201, 29pp.
[5]	J. Banasiak and G. Roach, On mixed boundary value problems of Dirichlet oblique-derivative type in plane domains with piecewise differentiable boundary, Journal of Differential Equations, 79 (1989), 111-131.
[6]	A. Behzadan and M. Holst, Multiplication in Sobolev spaces, revisited, Arkiv för Matematik, 59 (2021), 275-306.
[7]	M. Beneš, Mixed initial-boundary value problem for the three-dimensional Navier-Stokes equations in polyhedral domains, in Conference Publications, AIMS Press, 2011 (2011), 135-144.
[8]	M. Beneš, Strong solutions to non-stationary channel flows of heat-conducting viscous incompressible fluids with dissipative heating, Acta Applicandae Mathematicae, 116 (2011), 237-254. doi: 10.1007/s10440-011-9640-8.
[9]	M. Beneš and P. Kučera, Solutions of the Navier–Stokes equations with various types of boundary conditions, Archiv der Mathematik, 98 (2012), 487-497.
[10]	M. Beneš and P. Kučera, Solutions to the Navier–Stokes equations with mixed boundary conditions in two‐dimensional bounded domains, Mathematische Nachrichten, 289 (2016), 194-212. doi: 10.1002/mana.201400046.
[11]	M. Beneš, P. Kučera and P. Vacková, Local in time existence of solution of the Navier-Stokes equations with various types of boundary conditions, Journal of Elliptic and Parabolic Equations, 7 (2021), 297-310.
[12]	D. Boffi, F. Brezzi and M. Fortin, Mixed Finite Element Methods and Applications, vol. 44 of Springer Series in Computational Mathematics, Springer Berlin Heidelberg, Berlin, Heidelberg, 2013.
[13]	J. F. Bonnans and H. Zidani, Optimal Control Problems with Partially Polyhedric Constraints, SIAM Journal on Control and Optimization, 37 (1999), 1726-1741.
[14]	F. Boyer and P. Fabrie, Mathematical Tools for the Study of the Incompressible Navier-Stokes Equations and Related Models, vol. 183 of Applied Mathematical Sciences, Springer New York, New York, NY, 2013.
[15]	M. Braack and P. Mucha, Directional Do-Nothing Condition for the Navier-Stokes Equations, Journal of Computational Mathematics, 32 (2014), 507-521.
[16]	S. C. Brenner and L. Scott, The Mathematical Theory of Finite Element Methods, Texts in Applied Mathematics, 15, Springer, New York, 2008.
[17]	H. Brezis and P. Mironescu, Gagliardo-Nirenberg inequalities and non-inequalities: The full story, Annales de l'Institut Henri Poincaré C, Analyse Non Linéaire, 35 (2018), 1355-1376.
[18]	R. Brown, I. Mitrea, M. Mitrea and M. Wright, Mixed boundary value problems for the Stokes system, Transactions of the American Mathematical Society, 362 (2010), 1211-1230. doi: 10.1090/S0002-9947-09-04774-6.
[19]	E. Casas, Chapter 4. An Optimal Control Problem Governed by the Evolution Navier-Stokes Equations, in Optimal Control of Viscous Flow, S. S. Sritharan, ed., Society for Industrial and Applied Mathematics, (1998), 79-95. doi: 10.1137/1.9781611971415.ch4.
[20]	E. Casas and K. Chrysafinos, A Discontinuous Galerkin Time-Stepping Scheme for the Velocity Tracking Problem, SIAM Journal on Numerical Analysis, 50 (2012), 2281-2306.
[21]	E. Casas and K. Chrysafinos, Analysis of the velocity tracking control problem for the 3d evolutionary Navier–Stokes equations, SIAM Journal on Control and Optimization, 54 (2016), 99-128. doi: 10.1137/140978107.
[22]	E. Casas and K. Chrysafinos, The velocity tracking problem for Navier–Stokes equations with pointwise-integral control constraints in time-space, Optimization, (2024), 1-33. doi: 10.1080/02331934.2024.2425734.
[23]	E. Casas and F. Tröltzsch, A general theorem on error estimates with application to a quasilinear elliptic optimal control problem, Computational Optimization and Applications, 53 (2012), 173-206.
[24]	A. N. Ceretani and C. N. Rautenberg, The Boussinesq system with mixed non-smooth boundary conditions and do-nothing boundary flow, Zeitschrift für angewandte Mathematik und Physik, 70 (2019), Paper No. 14, 24 pp.
[25]	J. Choi, H. Dong and Z. Li, Optimal regularity of mixed dirichlet-conormal boundary value problems for parabolic operators, SIAM Journal on Mathematical Analysis, 54 (2022), 1393-1427.
[26]	F. Demengel and G. Demengel, Functional Spaces for the Theory of Elliptic Partial Differential Equations, Universitext, Springer London, 2012.
[27]	R. Denk, An introduction to maximal regularity for parabolic evolution equations, in Nonlinear Partial Differential Equations for Future Applications, vol. 346 of Springer Proceedings in Mathematics & Statistics, Springer Singapore, Singapore, 2021, 1-70.
[28]	R. Denk, M. Hieber and J. Prüss, Optimal L p -L q -estimates for parabolic boundary value problems with inhomogeneous data, Mathematische Zeitschrift, 257 (2007), 193-224.
[29]	A. Ern and J.-L. Guermond, Finite Elements I: Approximation and Interpolation, vol. 72 of Texts in Applied Mathematics, Springer International Publishing, Cham, 2021.
[30]	A. Ern and J.-L. Guermond, Finite Elements III: First-Order and Time-Dependent PDEs, vol. 74 of Texts in Applied Mathematics, Springer International Publishing, Cham, 2021.
[31]	G. Galdi, An Introduction to the Mathematical Theory of the Navier-Stokes Equations, Springer Monographs in Mathematics, Springer, New York, 2011.
[32]	V. Girault and P.-A. Raviart, Finite Element Methods for Navier-Stokes Equations, vol. 5 of Springer Series in Computational Mathematics, Springer Berlin Heidelberg, 1986.
[33]	P. Grisvard, Caractérisation de quelques espaces d'interpolation, Archive for Rational Mechanics and Analysis, 25 (1967), 40-63.
[34]	P. Grisvard, Elliptic Problems in Nonsmooth Domains, no. 69 in Classics in Applied Mathematics, Society for Industrial and Applied Mathematics, Philadelphia, siam ed ed., 2011.
[35]	G. Grubb, Regularity of spectral fractional Dirichlet and Neumann problems, Mathematische Nachrichten, 289 (2016), 831-844.
[36]	T. Guerra, A. Sequeira and J. Tiago, Existence of optimal boundary control for the Navier–Stokes equations with mixed boundary conditions, Portugaliae Mathematica, 72 (2015), 267-283.
[37]	T. Guerra, J. Tiago and A. Sequeira, Optimal control in blood flow simulations, International Journal of Non-Linear Mechanics, 64 (2014), 57-69.
[38]	M. D. Gunzburger, L. S. Hou and T. P. Svobodny, Analysis and finite element approximation of optimal control problems for the stationary Navier-Stokes equations with Dirichlet controls, ESAIM: Mathematical Modelling and Numerical Analysis, 25 (1991), 711-748.
[39]	R. Haller-Dintelmann and J. Rehberg, Maximal parabolic regularity for divergence operators including mixed boundary conditions, Journal of Differential Equations, 247 (2009), 1354-1396.
[40]	J. G. Heywood, R. Rannacher and S. Turek, Artificial boundaries and flux and pressure conditions for the incompressible navier–stokes equations, International Journal for Numerical Methods in Fluids, 22 (1996), 325-352.
[41]	M. Hieber and J. Rehberg, Quasilinear parabolic systems with mixed boundary conditions on nonsmooth domains, SIAM Journal on Mathematical Analysis, 40 (2008), 292-305.
[42]	M. Hintermüller and A. Kröner, Differentiability properties for boundary control of fluid-structure interactions of linear elasticity with Navier-Stokes equations with mixed-boundary conditions in a channel, Applied Mathematics & Optimization, 87 (2023), Paper No. 15, 38 pp.
[43]	M. Hinze and K. Kunisch, Second order methods for boundary control of the instationary Navier-Stokes system, Zeitschrift für angewandte Mathematik und Mechanik, 84 (2004), 171-187.
[44]	F. Hoppe and I. Neitzel, Optimal control of quasilinear parabolic pdes with state-constraints, SIAM Journal on Control and Optimization, 60 (2022), 330-354.
[45]	V. John, Finite Element Methods for Incompressible Flow Problems, vol. 51 of Springer Series in Computational Mathematics, Springer International Publishing, Cham, 2016.
[46]	T. Kato, M. Mitrea, G. Ponce and M. Taylor, Extension and representation of divergence-free vector fields on bounded domains, Mathematical Research Letters, 7 (2000), 643-650.
[47]	T. Kim and D. Cao, Non-stationary Navier-Stokes equations with mixed boundary conditions, Journal of Mathematical Sciences The University of Tokio, 24 (2017), 159-194.
[48]	T. Kim and D. Cao, Existence of solution to parabolic equations with mixed boundary condition on non-cylindrical domains, Journal of Differential Equations, 265 (2018), 2648-2670. doi: 10.1016/j.jde.2018.04.046.
[49]	T. Kim and D. Cao, Equations of Motion for Incompressible Viscous Fluids: With Mixed Boundary Conditions, Advances in Mathematical Fluid Mechanics, Springer International Publishing, Cham, 2021.
[50]	V. Kozlov and J. Rossmann, On the Neumann problem for the nonstationary Stokes system in angles and cones, Mathematische Nachrichten, 296 (2023), 1504-1533.
[51]	S. Kračmar and J. Neustupa, Modeling of the unsteady flow through a channel with an artificial outflow condition by the Navier–Stokes variational inequality, Mathematische Nachrichten, 291 (2018), 1801-1814.
[52]	K. Kunisch and B. Vexler, Constrained dirichlet boundary control in ＄L^2＄ for a class of evolution equations, SIAM Journal on Control and Optimization, 46 (2007), 1726-1753. Publisher: Society for Industrial and Applied Mathematics. doi: 10.1137/060670110.
[53]	P. Kučera, Basic properties of solution of the non-steady Navier–Stokes equations with mixed boundary conditions in a bounded domain, Annali Dell'Universita' Di Ferrara, 55 (2009), 289-308.
[54]	P. Kučera and Z. Skalak, Local solutions to the Navier–Stokes equations with mixed boundary conditions, Acta Applicandae Mathematicae, 54 (1998), 275-288.
[55]	M. Lanzendörfer and J. Hron, On multiple solutions to the steady flow of incompressible fluids subject to do-nothing or constant traction boundary conditions on artificial boundaries, Journal of Mathematical Fluid Mechanics, 22 (2020), Paper No. 11, 18 pp.
[56]	M. Lanzendörfer and J. Stebel, On pressure boundary conditions for steady flows of incompressible fluids with pressure and shear rate dependent viscosities, Applications of Mathematics, 56 (2011), 265-285.
[57]	I. Lasiecka, K. Szulc and A. Żochowski, Boundary control of small solutions to fluid–structure interactions arising in coupling of elasticity with Navier–Stokes equation under mixed boundary conditions, Nonlinear Analysis: Real World Applications, 44 (2018), 54-85.
[58]	N. Lindemulder, Maximal regularity with weights for parabolic problems with inhomogeneous boundary conditions, Journal of Evolution Equations, 20 (2020), 59-108.
[59]	J. L. Lions and E. Magenes, Non-Homogeneous Boundary Value Problems and Applications, Volume 1, Die Grundlehren der mathematischen Wissenschaften, Band 181, Springer-Verlag, New York-Heidelberg, 1972.
[60]	＿＿, Non-Homogeneous Boundary Value Problems and Applications, Volume 2, vol. 2, Springer Berlin Heidelberg, Berlin, Heidelberg, 1972.
[61]	J. Marschall, The trace of Sobolev-Slobodeckij spaces on Lipschitz domains, Manuscripta Mathematica, 58 (1987), 47-65. doi: 10.1007/BF01169082.
[62]	V. Maz'ya and J. Rossmann, ${{L}} _{p}$ estimates of solutions tomixed boundary value problems for the Stokes system in polyhedral domains, Mathematische Nachrichten, 280 (2007), 751-793.
[63]	V. G. Maz'ya and J. Rossmann, Elliptic Equations in Polyhedral Domains, no. v. 162 in Mathematical surveys and monographs, American Mathematical Society, Providence, R.I, 2010. OCLC: ocn499129712.
[64]	M. Mitrea, S. Monniaux and M. Wright, The Stokes operator with Neumann boundary conditions in Lipschitz domains, Journal of Mathematical Sciences, 176 (2011), 409-457.
[65]	M. Mitrea and M. Wright, Boundary Value Problems for the Stokes System in Arbitrary Lipschitz Domains, no. 344 in Astérisque, Soc. Math. de France, Paris, 2012.
[66]	P. A. Nguyen and J.-P. Raymond, Boundary stabilization of the navier–stokes equations in the case of mixed boundary conditions, SIAM Journal on Control and Optimization, 53 (2015), 3006-3039.
[67]	P. Nogueira and A. L. Silvestre, Navier–stokes equations with regularized directional boundary condition, in Nonlinear Differential Equations and Applications, H. Beirão Da Veiga, F. Minhós, N. Van Goethem, and L. Sanchez Rodrigues, eds., Springer International Publishing, Cham, 7 (2024), 197-220. Series Title: CIM Series in Mathematical Sciences. doi: 10.1007/978-3-031-53740-0_11.
[68]	D. Nolte and C. Bertoglio, Inverse problems in blood flow modeling: A review, International Journal for Numerical Methods in Biomedical Engineering, 38 (2022), e3613. doi: 10.1002/cnm.3613.
[69]	A. Quarteroni, S. Ragni and A. Veneziani, Coupling between lumped and distributed models for blood flow problems, Computing and Visualization in Science, 4 (2001), 111-124.
[70]	S. Rathore, P. C. Africa, F. Ballarin, F. Pichi, M. Girfoglio and G. Rozza, Projection-based Reduced Order Modelling for Unsteady Parametrized Optimal Control Problems in 3D Cardiovascular Flows, Oct. 2024., arXiv: 2410.20828.
[71]	J. Rossmann, Mixed boundary value problems for Stokes and Navier-Stokes systems in polyhedral domains, in Analysis, Partial Differential Equations and Applications, A. Cialdea, P. E. Ricci, and F. Lanzara, eds., Birkhäuser Basel, 163 (2009), 269-280. doi: 10.1007/978-3-7643-9898-9_19.
[72]	A. Rösch and D. Wachsmuth, Regularity of the adjoint state for the instationary navier-stokes equations, Zeitschrift für Analysis und ihre Anwendungen, 24 (2005), 103-116.
[73]	G. Savaré, Parabolic problems with mixed variable lateral conditions: An abstract approach, Journal de Mathématiques Pures et Appliquées, 76 (1997), 321-351.
[74]	R. Seeley, Interpolation in ${L}^p$ with boundary condition, Studia Mathematica, 44 (1972), 47-60.
[75]	A. Sequeira, J. Tiago and T. Guerra, Boundary control problems in hemodynamics, in Trends in Biomathematics: Modeling, Optimization and Computational Problems, R. P. Mondaini, ed., Springer International Publishing, 2018, 27-48. doi: 10.1007/978-3-319-91092-5_3.
[76]	J. Simon, Compact sets in the space ${L}^p(0, {T}; {B})$, Annali di Matematica pura ed applicata, 146 (1987), 65-96.
[77]	J. S. H. Simon and H. Notsu, A convective boundary condition for the Navier–Stokes equations, Applied Mathematics Letters, 128 (2022), Paper No. 107876, 8 pp.
[78]	H. Sohr, The Navier-Stokes Equations, Mod. Birkhäuser Class, Birkhäuser/Springer Basel AG, Basel, 2001.
[79]	Z. Stankovic, B. D. Allen, J. Garcia, K. B. Jarvis and M. Markl, 4D flow imaging with MRI, Cardiovascular Diagnosis and Therapy, 4 (2014), 17392-17192, Number: 2 Publisher: AME publishing company.
[80]	R. Temam, Navier-Stokes Equations: Theory and Numerical Analysis, Stud. Math. Appl., Vol. 2, North-Holland Publishing Co., Amsterdam-New York-Oxford, 1977.
[81]	J. Tiago, T. Guerra and A. Sequeira, A velocity tracking approach for the data assimilation problem in blood flow simulations, International Journal for Numerical Methods in Biomedical Engineering, 33 (2017), e2856, 17pp.
[82]	H. Triebel, Interpolation Theory, Function Spaces, Differential Operators, North-Holland Math. Library, 18, North-Holland Publishing Co., Amsterdam-New York, 1978.
[83]	＿＿, Theory of Function Spaces II, Springer Basel, 1992.
[84]	B. Vexler and J. Wagner, Error estimates for finite element discretizations of the instationary Navier–Stokes equations, ESAIM: Mathematical Modelling and Numerical Analysis, 58 (2024), 457-488.
