Figure 1.
An illustration of the representative and point-level sparse graphs in the RepStream algorithm
-
Previous Article
Eigenstructure assignment for polynomial matrix systems ensuring normalization and impulse elimination
- MFC Home
- This Issue
-
Next Article
Data modeling analysis on removal efficiency of hexavalent chromium
August
2019, 2(3): 215-250.
doi: 10.3934/mfc.2019015
Using distribution analysis for parameter selection in repstream
Curtin University, Kent Street, Perth, Western Australia 6102, Australia |
One of the most significant challenges in data clustering is the evolution of the data distributions over time. Many clustering algorithms have been introduced to deal specifically with streaming data, but common amongst them is that they require users to set input parameters. These inform the algorithm about the criteria under which data points may be clustered together. Setting the initial parameters for a clustering algorithm is itself a non-trivial task, but the evolution of the data distribution over time could mean even optimally set parameters could become non-optimal as the stream evolves. In this paper we extend the RepStream algorithm, a combination graph and density-based clustering algorithm, in a way which allows the primary input parameter, the $ K $ value, to be automatically adjusted over time. We introduce a feature called the edge distribution score which we compute for data in memory, as well as introducing an incremental method for adjusting the $ K $ parameter over time based on this score. We evaluate our methods against RepStream itself, and other contemporary stream clustering algorithms, and show how our method of automatically adjusting the $ K $ value over time leads to higher quality clustering output even when the initial parameters are set poorly.
Keywords:
Cluster analysis,
data clustering,
parameter adjustment,
graph-based clustering,
KNN graphs.
Mathematics Subject Classification:
Primary: 62H30.
Citation:
Ross Callister, Duc-Son Pham, Mihai Lazarescu. Using distribution analysis for parameter selection in repstream. Mathematical Foundations of Computing,
2019, 2
(3)
: 215-250.
doi: 10.3934/mfc.2019015
![]()
References:
| [1] |
M. R. Ackermann, M. Märtens, C. Raupach, K. Swierkot, C. Lammersen and C. Sohler, Streamkm++: A clustering algorithm for data streams, Journal of Experimental Algorithmics, 17 (2012), Article 2.4, 30 pp.
doi: 10.1145/2133803.2184450. |
| [2] |
C. Aggarwal, J. Han, J. Wang And P. Yu, A framework for projected clustering of high dimensional data streams, in Proceedings 2004 VLDB Conference, Elsevier, 2004, 852–863.
doi: 10.1016/B978-012088469-8.50075-9. |
| [3] |
C. C. Aggarwal, P. S. Yu, J. Han and J. Wang, A framework for clustering evolving data streams, in Proceedings 2003 VLDB Conference, Elsevier, 2003, 81–92.
doi: 10.1016/B978-012722442-8/50016-1. |
| [4] |
J. P. Barddal, H. M. Gomes and F. Enembreck, SNCStream: A social network-based data stream clustering algorithm, in Proceedings of the 30th Annual ACM Symposium on Applied Computing - SAC'15, SAC'15, ACM Press, New York, New York, USA, 2015, 935–940.
doi: 10.1145/2695664.2695674. |
| [5] |
V. Bhatnagar, S. Kaur and S. Chakravarthy,
Clustering data streams using grid-based synopsis, Knowledge and Information Systems, 41 (2014), 127-152.
doi: 10.1007/s10115-013-0659-1. |
| [6] |
J. A. Blackard and D. J. Dean, Comparative accuracies of artificial neural networks and discriminant analysis in predicting forest cover types from cartographic variables, Computers and Electronics in Agriculture, 24 (1999), 131–151.
doi: 10.1016/S0168-1699(99)00046-0. |
| [7] |
F. Cao, M. Estert, W. Qian and A. Zhou, Density-based clustering over an evolving data stream with noise, in Proceedings of the 2006 SIAM International Conference on Data Mining, Society for Industrial and Applied Mathematics, Philadelphia, PA, 2006, 328–339.
doi: 10.1137/1.9781611972764.29. |
| [8] |
Y. Chen and L. Tu, Density-based clustering for real-time stream data, in Proceedings of the 13th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining - KDD'07, ACM, ACM Press, New York, New York, USA, 2007, 133–142.
doi: 10.1145/1281192.1281210. |
| [9] |
A. Forestiero, C. Pizzuti and G. Spezzano,
A single pass algorithm for clustering evolving data streams based on swarm intelligence, Data Mining and Knowledge Discovery, 26 (2013), 1-26.
doi: 10.1007/s10618-011-0242-x. |
| [10] |
J. Forrest, Stream: A framework for data stream modeling in r, Bachelor Thesis, Department of Computer Science and Engineering, SMU. Google Scholar |
| [11] |
M. Hahsler and M. Bolaos, Clustering data streams based on shared density between micro-clusters, IEEE Transactions on Knowledge and Data Engineering, 28 (2016), 1449–1461, http://ieeexplore.ieee.org/document/7393836/.
doi: 10.1109/TKDE.2016.2522412. |
| [12] |
S. Hettich and S. D. Bay, The UCI KDD Archive, http://kdd.ics.uci.edu, 1999. Google Scholar |
| [13] |
A. K. Jain, M. N. Murty and P. J. Flynn,
Data clustering: A review, ACM computing surveys (CSUR), 31 (1999), 264-323.
doi: 10.1145/331499.331504. |
| [14] |
S. Kaur, V. Bhatnagar and S. Chakravarthy, Stream clustering algorithms: A primer, in Big Data in Complex Systems, Springer, 9 (2015), 105–145, http://link.springer.com/10.1007/978-3-319-11056-1.
doi: 10.1007/978-3-319-11056-1_4. |
| [15] |
H. Kremer, P. Kranen, T. Jansen, T. Seidl, A. Bifet, G. Holmes and B. Pfahringer, An effective evaluation measure for clustering on evolving data streams, in Proceedings of the 17th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, ACM, 2011, 868–876.
doi: 10.1145/2020408.2020555. |
| [16] |
S. Lühr and M. Lazarescu, Incremental clustering of dynamic data streams using connectivity based representative points, Data & Knowledge Engineering, 68 (2009), 1–27, http://linkinghub.elsevier.com/retrieve/pii/S0169023X08001092. Google Scholar |
| [17] |
J. Schneider and M. Vlachos, Fast parameterless density-based clustering via random projections, in Proceedings of the 22nd ACM International Conference on Conference on Information & Knowledge Management - CIKM'13, ACM, ACM Press, New York, New York, USA, 2013, 861–866.
doi: 10.1145/2505515.2505590. |
| [18] |
N. Wattanakitrungroj, S. Maneeroj and C. Lursinsap, Bestream: Batch capturing with elliptic function for one-pass data stream clustering, Data & Knowledge Engineering, 117 (2018), 53–70, http://www.sciencedirect.com/science/article/pii/S0169023X17301027.
doi: 10.1016/j.datak.2018.07.002. |
| [19] |
G. Widmer and M. Kubat,
Learning in the presence of concept drift and hidden contexts, Machine Learning, 23 (1996), 69-101.
doi: 10.1007/BF00116900. |
| [20] |
X. Zhang, C. Furtlehner and M. Sebag, Data streaming with affinity propagation, in Proc. Joint European Conference on Machine Learning and Knowledge Discovery in Databases, Springer, 2008, 628–643.
doi: 10.1007/978-3-540-87481-2_41. |
| [21] |
A. Zhou, F. Cao, W. Qian and C. Jin,
Tracking clusters in evolving data streams over sliding windows, Knowledge and Information Systems, 15 (2008), 181-214.
doi: 10.1007/s10115-007-0070-x. |
show all references
References:
| [1] |
M. R. Ackermann, M. Märtens, C. Raupach, K. Swierkot, C. Lammersen and C. Sohler, Streamkm++: A clustering algorithm for data streams, Journal of Experimental Algorithmics, 17 (2012), Article 2.4, 30 pp.
doi: 10.1145/2133803.2184450. |
| [2] |
C. Aggarwal, J. Han, J. Wang And P. Yu, A framework for projected clustering of high dimensional data streams, in Proceedings 2004 VLDB Conference, Elsevier, 2004, 852–863.
doi: 10.1016/B978-012088469-8.50075-9. |
| [3] |
C. C. Aggarwal, P. S. Yu, J. Han and J. Wang, A framework for clustering evolving data streams, in Proceedings 2003 VLDB Conference, Elsevier, 2003, 81–92.
doi: 10.1016/B978-012722442-8/50016-1. |
| [4] |
J. P. Barddal, H. M. Gomes and F. Enembreck, SNCStream: A social network-based data stream clustering algorithm, in Proceedings of the 30th Annual ACM Symposium on Applied Computing - SAC'15, SAC'15, ACM Press, New York, New York, USA, 2015, 935–940.
doi: 10.1145/2695664.2695674. |
| [5] |
V. Bhatnagar, S. Kaur and S. Chakravarthy,
Clustering data streams using grid-based synopsis, Knowledge and Information Systems, 41 (2014), 127-152.
doi: 10.1007/s10115-013-0659-1. |
| [6] |
J. A. Blackard and D. J. Dean, Comparative accuracies of artificial neural networks and discriminant analysis in predicting forest cover types from cartographic variables, Computers and Electronics in Agriculture, 24 (1999), 131–151.
doi: 10.1016/S0168-1699(99)00046-0. |
| [7] |
F. Cao, M. Estert, W. Qian and A. Zhou, Density-based clustering over an evolving data stream with noise, in Proceedings of the 2006 SIAM International Conference on Data Mining, Society for Industrial and Applied Mathematics, Philadelphia, PA, 2006, 328–339.
doi: 10.1137/1.9781611972764.29. |
| [8] |
Y. Chen and L. Tu, Density-based clustering for real-time stream data, in Proceedings of the 13th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining - KDD'07, ACM, ACM Press, New York, New York, USA, 2007, 133–142.
doi: 10.1145/1281192.1281210. |
| [9] |
A. Forestiero, C. Pizzuti and G. Spezzano,
A single pass algorithm for clustering evolving data streams based on swarm intelligence, Data Mining and Knowledge Discovery, 26 (2013), 1-26.
doi: 10.1007/s10618-011-0242-x. |
| [10] |
J. Forrest, Stream: A framework for data stream modeling in r, Bachelor Thesis, Department of Computer Science and Engineering, SMU. Google Scholar |
| [11] |
M. Hahsler and M. Bolaos, Clustering data streams based on shared density between micro-clusters, IEEE Transactions on Knowledge and Data Engineering, 28 (2016), 1449–1461, http://ieeexplore.ieee.org/document/7393836/.
doi: 10.1109/TKDE.2016.2522412. |
| [12] |
S. Hettich and S. D. Bay, The UCI KDD Archive, http://kdd.ics.uci.edu, 1999. Google Scholar |
| [13] |
A. K. Jain, M. N. Murty and P. J. Flynn,
Data clustering: A review, ACM computing surveys (CSUR), 31 (1999), 264-323.
doi: 10.1145/331499.331504. |
| [14] |
S. Kaur, V. Bhatnagar and S. Chakravarthy, Stream clustering algorithms: A primer, in Big Data in Complex Systems, Springer, 9 (2015), 105–145, http://link.springer.com/10.1007/978-3-319-11056-1.
doi: 10.1007/978-3-319-11056-1_4. |
| [15] |
H. Kremer, P. Kranen, T. Jansen, T. Seidl, A. Bifet, G. Holmes and B. Pfahringer, An effective evaluation measure for clustering on evolving data streams, in Proceedings of the 17th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, ACM, 2011, 868–876.
doi: 10.1145/2020408.2020555. |
| [16] |
S. Lühr and M. Lazarescu, Incremental clustering of dynamic data streams using connectivity based representative points, Data & Knowledge Engineering, 68 (2009), 1–27, http://linkinghub.elsevier.com/retrieve/pii/S0169023X08001092. Google Scholar |
| [17] |
J. Schneider and M. Vlachos, Fast parameterless density-based clustering via random projections, in Proceedings of the 22nd ACM International Conference on Conference on Information & Knowledge Management - CIKM'13, ACM, ACM Press, New York, New York, USA, 2013, 861–866.
doi: 10.1145/2505515.2505590. |
| [18] |
N. Wattanakitrungroj, S. Maneeroj and C. Lursinsap, Bestream: Batch capturing with elliptic function for one-pass data stream clustering, Data & Knowledge Engineering, 117 (2018), 53–70, http://www.sciencedirect.com/science/article/pii/S0169023X17301027.
doi: 10.1016/j.datak.2018.07.002. |
| [19] |
G. Widmer and M. Kubat,
Learning in the presence of concept drift and hidden contexts, Machine Learning, 23 (1996), 69-101.
doi: 10.1007/BF00116900. |
| [20] |
X. Zhang, C. Furtlehner and M. Sebag, Data streaming with affinity propagation, in Proc. Joint European Conference on Machine Learning and Knowledge Discovery in Databases, Springer, 2008, 628–643.
doi: 10.1007/978-3-540-87481-2_41. |
| [21] |
A. Zhou, F. Cao, W. Qian and C. Jin,
Tracking clusters in evolving data streams over sliding windows, Knowledge and Information Systems, 15 (2008), 181-214.
doi: 10.1007/s10115-007-0070-x. |
Figure 2.
The representative vertex $ R_1 $ and $ R_2 $ share a reciprocal connection at the representative level, and are also density related. The density radius of the vertices is shown as $ DR_1 $ and $ DR_2 $ respectively, which is the average distance to neighbours at the point level, multiplied by the alpha scaling factor
Figure 3.
Intra and Inter-class edges. The Edge $ E_1 $ is considered an inter-class edge as it connects two vertices $ R_1 $ and $ R_2 $ that belong to different ground-truth classes. Edge $ E_2 $ connects two vertices belonging to the same class and thus is considered an intra-class edge
Figure 4.
An illustration of relative edge lengths of nearest neighbours in the middle of a cluster versus near the edge of a cluster
Figure 5.
Different cases for the distribution of edge lengths
Figure 6.
Visualisation of the DS1 dataset
Figure 7.
Visualisation of the DS2 dataset
Figure 9.
The class presence of the classes in the SynTest dataset. A marker indicates that the class is present in the dataset during the given time window
Figure 10.
The evolution of the Closer dataset, showing slices of its 3 sections
Figure 11.
Comparative purity for Tree Cover dataset
Figure 12.
Comparative purity for Tree Cover dataset
Figure 13.
Comparative purity for KDD 99' Cup dataset
Figure 14.
Comparative purity for KDD 99' Cup dataset
Figure 15.
Comparative purity for DS1 dataset
Figure 17.
Comparative purity for DS2 dataset
Figure 18.
Comparative purity for SynTest dataset
Figure 19.
Comparative purity for Closer dataset
Figure 20.
Comparative purity for Tree Cover dataset
Figure 21.
Comparative purity for KDD 99' Cup dataset
Figure 23.
F-Measure comparison vs RepStream using optimal parameters on DS1 dataset
Figure 24.
F-Measure comparison vs RepStream using optimal parameters on DS2 dataset

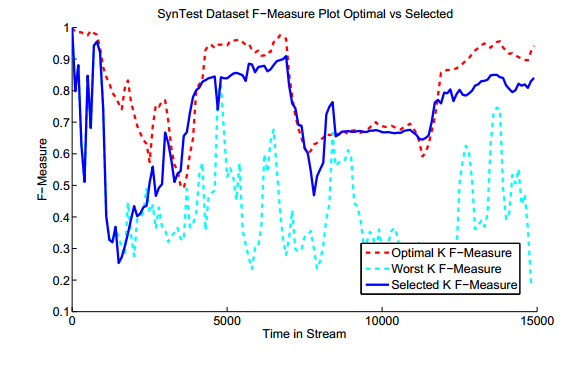

Figure 25.
F-Measure comparison vs RepStream using optimal parameters on SynTest dataset
Figure 26.
F-Measure comparison vs RepStream using optimal parameters on Closer dataset
Figure 27.
F-Measure comparison vs RepStream using optimal parameters on Tree Cover dataset
Figure 28.
F-Measure comparison vs RepStream using optimal parameters on KDD 99' Cup dataset
Table 1.
Table showing the input parameters used for each algorithm
| Algorithm name | Density Parameters | Grid Granularity | Reclustering Method | Decay Parameter | Distance Parameter | Other Parameters |
| CluStream | ||||||
| SWClustering | ||||||
| DenStream | ||||||
| HPStream | ||||||
| D-Stream | ||||||
| ExCC | Grid Granularity in all dimensions | |||||
| MR-Stream | Hierarchical | |||||
| FlockStream | ||||||
| DeBaRa | ||||||
| DBStream | ||||||
| SNCStream | ||||||
| PASCAL | Evolutionary | Evolutionary EDA hyper-parameters | ||||
| HASTREAM | Hierarchical | |||||
| BEStream | ||||||
| ADStream | ||||||
| PatchWork | ||||||
| RepStream |
| Algorithm name | Density Parameters | Grid Granularity | Reclustering Method | Decay Parameter | Distance Parameter | Other Parameters |
| CluStream | ||||||
| SWClustering | ||||||
| DenStream | ||||||
| HPStream | ||||||
| D-Stream | ||||||
| ExCC | Grid Granularity in all dimensions | |||||
| MR-Stream | Hierarchical | |||||
| FlockStream | ||||||
| DeBaRa | ||||||
| DBStream | ||||||
| SNCStream | ||||||
| PASCAL | Evolutionary | Evolutionary EDA hyper-parameters | ||||
| HASTREAM | Hierarchical | |||||
| BEStream | ||||||
| ADStream | ||||||
| PatchWork | ||||||
| RepStream |
| Dataset | Best K | Best |
Worst K | Worst |
| DS1 | 7 | 0.7208 | 18 | 0.2767 |
| DS2 | 7 | 0.6371 | 21 | 0.2594 |
| SynTest | 9 | 0.8614 | 5 | 0.5435 |
| Closer | 9 | 0.7989 | 5 | 0.4345 |
| TreeCov | 29 | 0.6108 | 5 | 0.2978 |
| KDD99 | 30 | 0.7898 | 5 | 0.2636 |
| Dataset | Best K | Best |
Worst K | Worst |
| DS1 | 7 | 0.7208 | 18 | 0.2767 |
| DS2 | 7 | 0.6371 | 21 | 0.2594 |
| SynTest | 9 | 0.8614 | 5 | 0.5435 |
| Closer | 9 | 0.7989 | 5 | 0.4345 |
| TreeCov | 29 | 0.6108 | 5 | 0.2978 |
| KDD99 | 30 | 0.7898 | 5 | 0.2636 |
Table 3.
Comparison of our dynamic $ K $ method versus RepStream with optimal and worst $ K $ values
| Dataset | Best F-Measure | Worst F-Measure | Dynamic |
| DS1 | 0.7208 | 0.2767 | 0.5153 |
| DS2 | 0.6371 | 0.2594 | 0.4137 |
| SynTest | 0.7989 | 0.5435 | 0.7091 |
| Closer | 0.8614 | 0.4345 | 0.8410 |
| TreeCov | 0.6108 | 0.2978 | 0.5920 |
| KDD99 | 0.7898 | 0.2636 | 0.7882 |
| Dataset | Best F-Measure | Worst F-Measure | Dynamic |
| DS1 | 0.7208 | 0.2767 | 0.5153 |
| DS2 | 0.6371 | 0.2594 | 0.4137 |
| SynTest | 0.7989 | 0.5435 | 0.7091 |
| Closer | 0.8614 | 0.4345 | 0.8410 |
| TreeCov | 0.6108 | 0.2978 | 0.5920 |
| KDD99 | 0.7898 | 0.2636 | 0.7882 |
| [1] |
Daniel Roggen, Martin Wirz, Gerhard Tröster, Dirk Helbing. Recognition of crowd behavior from mobile sensors with pattern analysis and graph clustering methods. Networks & Heterogeneous Media, 2011, 6 (3) : 521-544. doi: 10.3934/nhm.2011.6.521 |
| [2] |
Baolan Yuan, Wanjun Zhang, Yubo Yuan. A Max-Min clustering method for $k$-means algorithm of data clustering. Journal of Industrial & Management Optimization, 2012, 8 (3) : 565-575. doi: 10.3934/jimo.2012.8.565 |
| [3] |
Daniel Mckenzie, Steven Damelin. Power weighted shortest paths for clustering Euclidean data. Foundations of Data Science, 2019, 1 (3) : 307-327. doi: 10.3934/fods.2019014 |
| [4] |
Jinyuan Zhang, Aimin Zhou, Guixu Zhang, Hu Zhang. A clustering based mate selection for evolutionary optimization. Big Data & Information Analytics, 2017, 2 (1) : 77-85. doi: 10.3934/bdia.2017010 |
| [5] |
Gurkan Ozturk, Mehmet Tahir Ciftci. Clustering based polyhedral conic functions algorithm in classification. Journal of Industrial & Management Optimization, 2015, 11 (3) : 921-932. doi: 10.3934/jimo.2015.11.921 |
| [6] |
Jiangchuan Fan, Xinyu Guo, Jianjun Du, Weiliang Wen, Xianju Lu, Brahmani Louiza. Analysis of the clustering fusion algorithm for multi-band color image. Discrete & Continuous Dynamical Systems - S, 2019, 12 (4&5) : 1233-1249. doi: 10.3934/dcdss.2019085 |
| [7] |
Lars Eirik Danielsen. Graph-based classification of self-dual additive codes over finite fields. Advances in Mathematics of Communications, 2009, 3 (4) : 329-348. doi: 10.3934/amc.2009.3.329 |
| [8] |
Pengyu Yan, Shi Qiang Liu, Cheng-Hu Yang, Mahmoud Masoud. A comparative study on three graph-based constructive algorithms for multi-stage scheduling with blocking. Journal of Industrial & Management Optimization, 2019, 15 (1) : 221-233. doi: 10.3934/jimo.2018040 |
| [9] |
Yongbin Ou, Cun-Quan Zhang. A new multimembership clustering method. Journal of Industrial & Management Optimization, 2007, 3 (4) : 619-624. doi: 10.3934/jimo.2007.3.619 |
| [10] |
Baoli Shi, Zhi-Feng Pang, Jing Xu. Image segmentation based on the hybrid total variation model and the K-means clustering strategy. Inverse Problems & Imaging, 2016, 10 (3) : 807-828. doi: 10.3934/ipi.2016022 |
| [11] |
Xian Rong, Lichao Jiao, Xiangfei Kong, Guangpu Yuan. Mathematical model of energy conservation evaluation of passive building based on fuzzy clustering algorithm. Discrete & Continuous Dynamical Systems - S, 2018, 0 (0) : 0-0. doi: 10.3934/dcdss.2020203 |
| [12] |
Elissar Nasreddine. Two-dimensional individual clustering model. Discrete & Continuous Dynamical Systems - S, 2014, 7 (2) : 307-316. doi: 10.3934/dcdss.2014.7.307 |
| [13] |
Elissar Nasreddine. Well-posedness for a model of individual clustering. Discrete & Continuous Dynamical Systems - B, 2013, 18 (10) : 2647-2668. doi: 10.3934/dcdsb.2013.18.2647 |
| [14] |
Haixia Liu, Jian-Feng Cai, Yang Wang. Subspace clustering by (k,k)-sparse matrix factorization. Inverse Problems & Imaging, 2017, 11 (3) : 539-551. doi: 10.3934/ipi.2017025 |
| [15] |
Guojun Gan, Qiujun Lan, Shiyang Sima. Scalable clustering by truncated fuzzy $c$-means. Big Data & Information Analytics, 2016, 1 (2&3) : 247-259. doi: 10.3934/bdia.2016007 |
| [16] |
Pawan Lingras, Farhana Haider, Matt Triff. Fuzzy temporal meta-clustering of financial trading volatility patterns. Big Data & Information Analytics, 2017, 2 (5) : 1-20. doi: 10.3934/bdia.2017018 |
| [17] |
Guojun Gan, Kun Chen. A soft subspace clustering algorithm with log-transformed distances. Big Data & Information Analytics, 2016, 1 (1) : 93-109. doi: 10.3934/bdia.2016.1.93 |
| [18] |
Richard L Buckalew. Cell cycle clustering and quorum sensing in a response / signaling mediated feedback model. Discrete & Continuous Dynamical Systems - B, 2014, 19 (4) : 867-881. doi: 10.3934/dcdsb.2014.19.867 |
| [19] |
Ruiqi Yang, Dachuan Xu, Yicheng Xu, Dongmei Zhang. An adaptive probabilistic algorithm for online k-center clustering. Journal of Industrial & Management Optimization, 2019, 15 (2) : 565-576. doi: 10.3934/jimo.2018057 |
| [20] |
Hua Huang, Weiwei Wang, Chengwu Lu, Xiangchu Feng, Ruiqiang He. Side-information-induced reweighted sparse subspace clustering. Journal of Industrial & Management Optimization, 2017, 13 (5) : 0-0. doi: 10.3934/jimo.2020019 |
Impact Factor:
Tools
Metrics
Other articles
by authors
[Back to Top]
