Sliding mode preview control for discrete SIR model based on modified Euler method

Chenqi Wang; Yuan Li; Yi Zhang

doi:10.3934/mfc.2024049

Article Contents

2025, Volume 8, Issue 6: 1036-1047. Doi: 10.3934/mfc.2024049

This issue Previous Article A decision-making proposal for Pythagorean fuzzy hypersoft matrix to deal with real-life investment problems Next Article On occupation times of a spectrally negative Lévy risk process with a mixed dividend strategy

Sliding mode preview control for discrete SIR model based on modified Euler method

School of Science, Shenyang University of Technology, China

^*Corresponding author: Yuan Li
^*Corresponding author: Yuan Li

Received: October 2024

Revised: November 2024

Early access: December 9, 2024

Published online: December 9, 2024

The first author is supported by [the Young Scientists Fund of the National Natural Science Foundation (NNSF) of China under Grant 62403423].

Abstract / Introduction Full Text(HTML) Figure(5) Related Papers Cited by

Abstract

In this paper, for a class of SIR models with saturated incidence, the SIR model is discretized using the modified Euler method to form a form in which the coefficient matrix contains unknown parameters. The augmented error system method is constructed and the future information is simulated as a feed-forward and compensated into the SIR model, and the output regulation method of the linear discrete system is used to design the non-singular terminal sliding mode surface and the exponential convergence law, and the suitable performance index is given to obtain the optimal sliding mode preview controller. Finally, numerical simulation is utilized to verify the effectiveness of the theory and methodology of this paper.

Keywords:

Modified Euler method,
non-singular terminal sliding mode surface,
preview control,
optimal control,
saturated incidence.

Mathematics Subject Classification: Primary: 58F15, 58F17; Secondary: 53C35.

Citation:

Full Text(HTML)

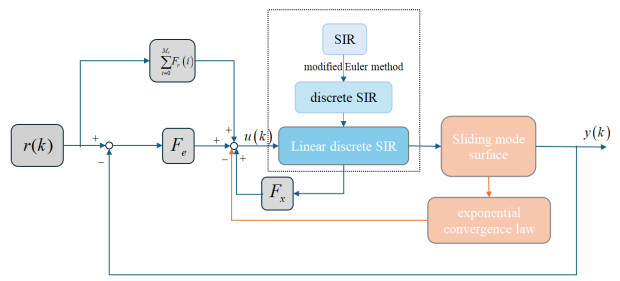

Figure 1. Schematic diagram of optimal sliding mode preview control for SIR model

Download: Full-size image PowerPoint slide

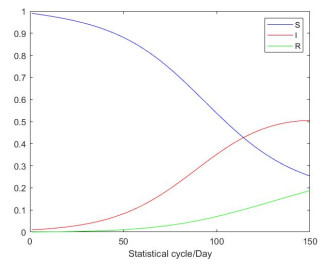

Figure 2. Trend of SIR model without control

Download: Full-size image PowerPoint slide

Figure 3. Trend of SIR model after applying control

Download: Full-size image PowerPoint slide

Figure 4. Objective function

Download: Full-size image PowerPoint slide

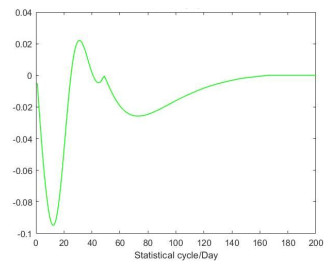

Figure 5. Tracking error

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	Y. Bao, P. Guan and X. Ge, Spacecraft information fusion foresight attitude control based on fuzzy logic, Chinese Journal of Applied Mechanics, 1 (2024), 1-7.
[2]	B. Chaihao and S. Khomrutai, Extinction and permanence of a general non-autonomous discrete-time SIRS epidemic model, AIMS Mathematics, 8 (2023), 9624-9646. doi: 10.3934/math.2023486.
[3]	R. George, N. Gul, A. Zeb, Z. Avazzadeh, S. Djilali and S. Rezapour, Bifurcations analysis of a discrete time SIR epidemic model with nonlinear incidence function, Results in Physics, 38 (2022), 105580. doi: 10.1016/j.rinp.2022.105580.
[4]	W. Kermack and A. Mckendrick, A contribution to the mathematical theory of epidemics, Mathematical Theory of Epidemics, 115A (1927), 700-721.
[5]	Y.-H. Lan, J.-Y. Wu and J.-H. She, Optimal sliding mode preview repetitive control for continuous-time nonlinear systems, International Journal of Control, 96 (2023), 2415-2424. doi: 10.1080/00207179.2022.2096120.
[6]	L. Li, Y. Liao and X. Meng, Design of preview-repetitive controller for continuous systems with uncertain parameters, Journal of Control Theory and Applications, 41 (2024), 1480-1486.
[7]	J. Li, Q. Wang and Y. Fang, Adaptive neural network-based practical predefined-time nonsingular terminal sliding mode control for upper limb rehabilitation robots, Communications in Nonlinear Science and Numerical Simulation, 136 (2024), 108085, 19 pp. doi: 10.1016/j.cnsns.2024.108085.
[8]	L. Li and X. Yu, Finite-time anticipatory tracking control for uncertain discrete-time systems, Control and Decision, 37 (2022), 753-762.
[9]	A. Suryanto and I. Darti, On the nonstandard numerical discretization of SIR epidemic model with a saturated incidence rate and vaccination, AIMS Mathematics, 6 (2020), 141-155. doi: 10.3934/math.2021010.
[10]	S. Tsuchiya, K. Egami and F. Liao, The Latest Automatic Control Technology–Digital Anticipation Control, Beijing Science and Technology Press, Beijing, 1994.
[11]	H. Wang and J. Yao, Optimal motion control of joint space for bucket water palletizing robot, Modern Manufacturing Engineering, 11 (2023), 33-39.
[12]	J. Wu, H. Xie, J. Liang and Z. Li, Preview control for cyber–physical Systems under periodic denial-of-service attacks, Mathematics, 12 (2024), 2653. doi: 10.3390/math12172653.
[13]	L. Wu and J. Sun, Optimal preview pinning control of Boolean networks, ISA Transactions, 146 (2024), 291-296. doi: 10.1016/j.isatra.2023.12.029.
[14]	W. Xie, F. Peng and G. Yan, Optimal sliding mode anticipatory repetitive control of a three-phase Z-source inverter, Journal of Electronic Measurement and Instrument, 36 (2022), 197-207.
[15]	X. Yu and L. Li, Trajectory tracking control with preview action for a class of continuous-time Lur'e-type nonlinear systems, Advances in Difference Equations, 2020 (2020), Paper No. 293, 17 pp. doi: 10.1186/s13662-020-02753-3.
[16]	X. Zhang and Y. Bo, Event-driven optimal control of discrete nonlinear systems, Journal of Shenyang Normal University (Natural Science Edition), 36 (2018), 318-323.
