Direct method to solve linear-quadratic optimal control problems

1.
Laboratory of Pure and Applied Mathematics, University of Laghouat, Bp 37G, Ghardaia road, 03000, Laghouat, Algeria
2.
Laboratory L2CSP, University of Tizi-Ouzou, 15000, Tizi-Ouzou, Algeria
3.
IRIT-ENSEEIHT, Université Fédérale Toulouse-Midi-Pyrénées, France

^* Corresponding author: m.aliane@lagh-univ.dz
^* Corresponding author: m.aliane@lagh-univ.dz

Received: April 2020

Revised: December 2020

Early access: January 2021

Published: December 2021

Abstract / Introduction Full Text(HTML) Figure(5) / Table(8) Related Papers Cited by

Abstract

In this work, we have proposed a new approach for solving the linear-quadratic optimal control problem, where the quality criterion is a quadratic function, which can be convex or non-convex. In this approach, we transform the continuous optimal control problem into a quadratic optimization problem using the Cauchy discretization technique, then we solve it with the active-set method. In order to study the efficiency and the accuracy of the proposed approach, we developed an implementation with MATLAB, and we performed numerical experiments on several convex and non-convex linear-quadratic optimal control problems. The obtained simulation results show that our method is more accurate and more efficient than the method using the classical Euler discretization technique. Furthermore, it was shown that our method fastly converges to the optimal control of the continuous problem found analytically using the Pontryagin's maximum principle.

Keywords:

Mathematics Subject Classification: Primary: 93C05; Secondary: 53C35.

Citation:

Full Text(HTML)

Figure 1. Optimal control $ t\longmapsto u(t) $ for the problem of Example 1

Download: Full-size image PowerPoint slide

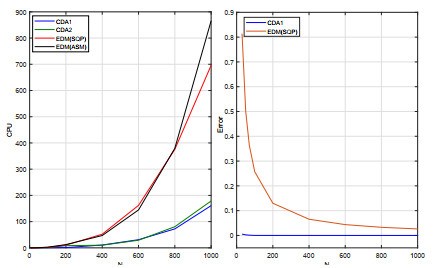

Figure 2. CPU time and Error in terms of $ N $ for Example 1

Download: Full-size image PowerPoint slide

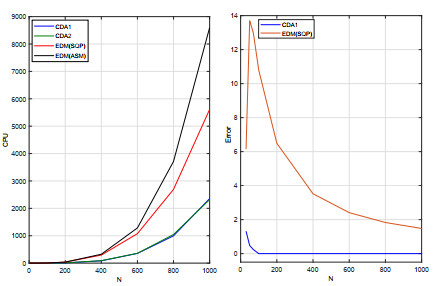

Figure 3. CPU time and Error in terms of $ N $ for Example 2

Download: Full-size image PowerPoint slide

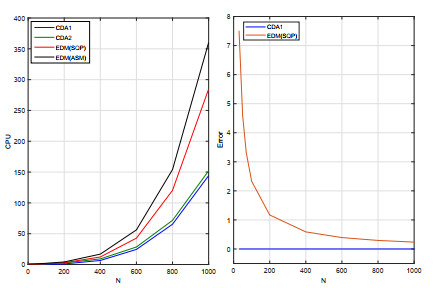

Figure 4. CPU time and Error in terms of $ N $ for Example 3

Download: Full-size image PowerPoint slide

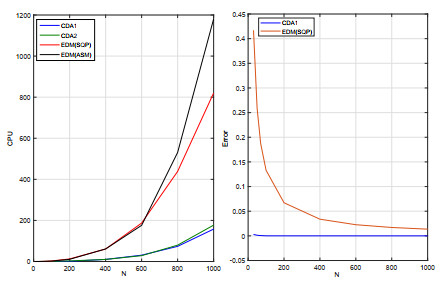

Figure 5. CPU time and Error in terms of $ N $ for Example 4

Download: Full-size image PowerPoint slide

Table 1. Numerical simulation results of EDM for Example 1

	EDM(SQP)			EDM(ASM)
N	J(u)	CPU	Error	J(u)	CPU	Error
4	0.953125	0.45	3.73E+00	0.953125	1.03	3.73E+00
10	2.588281	0.09	2.09E+00	2.588281	0.12	2.09E+00
30	3.865982	0.15	8.14E-01	3.865982	0.25	8.14E-01
50	4.176861	0.43	5.03E-01	4.176861	0.54	5.03E-01
70	4.316335	0.91	3.64E-01	4.316335	1.58	3.64E-01
100	4.422900	1.99	2.57E-01	4.422900	2.48	2.57E-01
200	4.549882	10.30	1.30E-01	4.549697	12.45	1.30E-01
400	4.614494	51.99	6.54E-02	4.614199	46.91	6.57E-02
600	4.636198	161.93	4.37E-02	4.635949	144.54	4.39E-02
800	4.647087	375.59	3.28E-02	4.646814	379.60	3.31E-02
1000	4.653632	696.03	2.63E-02	4.653362	865.84	2.65E-02

| Show Table

DownLoad: CSV

Table 2. Numerical simulation results of CDA for Example 1

	CDA1			CDA2
N	J(u)	CPU	Error	J(u)	CPU	Error
4	4.494898	0.01	1.85E-01	4.494898	0.05	1.85E-01
10	4.658000	0.01	2.19E-02	4.658000	0.07	2.19E-02
30	4.674355	0.03	5.54E-03	4.674355	0.21	5.54E-03
50	4.677464	0.09	2.43E-03	4.677464	0.45	2.43E-03
70	4.678780	0.11	1.11E-03	4.678780	0.54	1.11E-03
100	4.679761	0.25	1.30E-04	4.679761	0.81	1.30E-04
200	4.679830	0.96	6.13E-05	4.679830	8.37	6.13E-05
400	4.679865	10.73	2.67E-05	4.679865	10.08	2.67E-05
600	4.679876	31.06	1.52E-05	4.679876	29.00	1.52E-05
800	4.679882	72.20	9.43E-06	4.679882	80.56	9.43E-06
1000	4.679886	160.93	5.97E-06	4.679886	178.74	5.97E-06

| Show Table

DownLoad: CSV

Table 3. Numerical simulation results of EDM for Example 2

	EDM(SQP)			EDM(ASM)
N	J(u)	CPU	Error	J(u)	CPU	Error
4	-807.000006	0.42	6.33E+02	-807.000000	0.78	6.33E+02
10	-6.020544	0.04	1.68E+02	-6.021052	0.07	1.68E+02
30	-180.145998	0.17	6.15E+00	-180.145998	0.24	6.15E+00
50	-187.685200	0.74	1.37E+01	-187.685200	0.66	1.37E+01
70	-187.041677	1.80	1.30E+01	-187.041677	1.85	1.30E+01
100	-184.758275	5.04	1.08E+01	-184.758275	4.92	1.08E+01
200	-180.485036	37.17	6.49E+00	-180.485036	36.75	6.49E+00
400	-177.524433	293.36	3.52E+00	-177.523183	324.39	3.52E+00
600	-176.412810	1075.55	2.41E+00	-176.411448	1284.80	2.41E+00
800	-175.833379	2692.90	1.83E+00	-175.831972	3712.96	1.83E+00
1000	-175.478114	5611.01	1.48E+00	-175.477202	8598.05	1.48E+00

| Show Table

DownLoad: CSV

Table 4. Numerical simulation results of CDA for Example 2

	CDA1			CDA2
N	J(u)	CPU	Error	J(u)	CPU	Error
4	-174.000000	0.29	9.95E-13	-174.000000	0.56	0.00E+00
10	-161.832000	0.02	1.22E+01	-161.832000	0.11	1.22E+01
30	-172.676444	0.07	1.32E+00	-172.676444	0.33	1.32E+00
50	-173.524339	0.19	4.76E-01	-173.524339	0.61	4.76E-01
70	-173.757431	0.44	2.43E-01	-173.757431	0.98	2.43E-01
100	-174.000000	0.98	3.01E-12	-174.000000	1.81	5.00E-12
200	-174.000000	8.02	4.01E-12	-174.000000	10.29	6.00E-12
400	-174.000000	83.60	3.00E-11	-174.000000	90.35	9.00E-11
600	-174.000000	354.27	2.10E-11	-174.000000	359.11	6.40E-11
800	-174.000000	996.67	6.20E-11	-174.000000	1045.79	1.56E-10
1000	-174.000000	2354.52	3.01E-12	-174.000000	2320.88	4.01E-12

| Show Table

DownLoad: CSV

Table 5. Numerical simulation results of EDM for Example 3

	EDM(SQP)			EDM(ASM)
N	J(u)	CPU	Error	J(u)	CPU	Error
4	32.000000	0.45	4.20E+01	32.000000	0.85	4.20E+01
10	53.422400	0.49	2.06E+01	53.422400	0.93	2.06E+01
30	66.485116	0.54	7.51E+00	66.485116	1.02	7.51E+00
50	69.407818	0.66	4.59E+00	69.407818	1.22	4.59E+00
70	70.694043	0.88	3.31E+00	70.694043	1.51	3.31E+00
100	71.672177	1.26	2.33E+00	71.672177	2.01	2.33E+00
200	72.828072	2.84	1.17E+00	72.828072	4.14	1.17E+00
400	73.412022	12.25	5.88E-01	73.412022	16.85	5.88E-01
600	73.607566	42.80	3.92E-01	73.607566	56.17	3.92E-01
800	73.705506	120.33	2.94E-01	73.705506	154.07	2.94E-01
1000	73.764324	284.73	2.36E-01	73.764324	360.15	2.36E-01

| Show Table

DownLoad: CSV

Table 6. Numerical simulation results of CDA for Example 3

	CDA1			CDA2
N	J(u)	CPU	Error	J(u)	CPU	Error
4	74.000000	0.01	0.00E+00	74.000000	0.05	0.00E+00
10	74.000000	0.02	0.00E+00	74.000000	0.07	0.00E+00
30	74.000000	0.03	0.00E+00	74.000000	0.21	0.00E+00
50	74.000000	0.08	0.00E+00	74.000000	0.38	0.00E+00
70	74.000000	0.11	0.00E+00	74.000000	0.54	9.95E-14
100	74.000000	0.18	0.00E+00	74.000000	0.93	0.00E+00
200	74.000000	0.92	0.00E+00	74.000000	2.51	0.00E+00
400	74.000000	6.55	2.98E-13	74.000000	9.12	3.98E-13
600	74.000000	24.48	1.99E-13	74.000000	28.43	3.98E-13
800	74.000000	65.34	6.96E-13	74.000000	71.64	6.96E-13
1000	74.000000	144.16	0.00E+00	74.000000	152.09	0.00E+00

| Show Table

DownLoad: CSV

Table 7. Numerical simulation results of EDM for Example 4

	EDM(SQP)			EDM(ASM)
N	J(u)	CPU	Error	J(u)	CPU	Error
4	0.171875	0.46	1.81E+00	0.171875	1.03	1.81E+00
10	0.922969	0.07	1.06E+00	0.922969	0.08	1.06E+00
30	1.560700	0.17	4.17E-01	1.560700	0.16	4.17E-01
50	1.719317	0.60	2.59E-01	1.719317	0.53	2.59E-01
70	1.790821	1.12	1.87E-01	1.790821	1.00	1.87E-01
100	1.845588	2.58	1.33E-01	1.844967	2.06	1.33E-01
200	1.910993	12.49	6.71E-02	1.910780	10.75	6.73E-02
400	1.944331	60.91	3.38E-02	1.944171	61.13	3.39E-02
600	1.955538	187.13	2.26E-02	1.955084	176.01	2.30E-02
800	1.961162	438.55	1.70E-02	1.960852	530.81	1.73E-02
1000	1.964543	820.38	1.36E-02	1.964187	1180.43	1.39E-02

| Show Table

DownLoad: CSV

Table 8. Numerical simulation results of CDA for Example 4

	CDA1			CDA2
N	J(u)	CPU	Error	J(u)	CPU	Error
4	1.882653	0.01	9.55E-02	1.882653	0.06	9.55E-02
10	1.966800	0.01	1.13E-02	1.966800	0.07	1.13E-02
30	1.975251	0.03	2.86E-03	1.975251	0.21	2.86E-03
50	1.976858	0.08	1.25E-03	1.976858	0.36	1.25E-03
70	1.977538	0.11	5.74E-04	1.977538	0.58	5.74E-04
100	1.978046	0.23	6.72E-05	1.978046	0.80	6.72E-05
200	1.978081	1.05	3.17E-05	1.978081	2.92	3.17E-05
400	1.978099	10.23	1.38E-05	1.978099	10.02	1.38E-05
600	1.978105	30.87	7.86E-06	1.978105	28.47	7.86E-06
800	1.978108	73.76	4.88E-06	1.978108	79.62	4.88E-06
1000	1.978110	157.80	3.09E-06	1.978110	177.02	3.09E-06

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	J. Awerjcewicz, Modeling, Simulation and Control of Non-Linear Engineering Dynamical Systems, State-of-the-Art, Presperctives and Applications, Springer, Heidelberg, Germany, 2008. doi: 10.1007/978-3-319-08266-0.
[2]	M. Aliane, N. Moussouni and M. Bentobache, Optimal control of a rectilinear motion of a rocket, Statistics, Optimization & Information Computing, 8 (2020), 281-295. doi: 10.19139/soic-2310-5070-741.
[3]	M. Aliane, N. Moussouni and M. Bentobache, Non-linear optimal control of the heel angle of a rocket, The 6th International Conference on Control, Decision and Information Technologies, CODIT'19, Paris, France, (2019), 756–760. doi: 10.19139/soic-2310-5070-741.
[4]	M. Bentobache, M. Telli and A. Mokhtari, A sequential linear programming algorithm for continuous and mixed-integer non-convex quadratic programming, Optimization of Complex Systems: Theory, Models, Algorithms and Applications, WCGO 2019, Advances in Intelligent Systems and Computing, Springer, Cham, 991 (2020), 26–36.
[5]	M. O. Bibi and M. Bentobache, A hybrid direction algorithm for solving linear programs, International Journal of Computer Mathematics, 92 (2015), 201-216. doi: 10.1080/00207160.2014.890188.
[6]	L. D. Duncan, Basic Considerations in the Development of an Unguided Rocket Trajectory Simulation Model, Technical report $N^0$ 5076, Atmospheric Sciences Laboratory, United States Army Electronics Command, 1966.
[7]	A. Chinchuluun, R. Enkhbat and P. M. Pardalos, A novel approach for non-convex optimal control problems, Optimization, 58 (2009), 781-789. doi: 10.1080/02331930902943962.
[8]	R. Gabasov, F. M. Kirillova and S. V. Prischepova, Optimal Feedback Control, Springer-Verlag, London, 1995.
[9]	G. R. Rose, Numerical Methods for Solving Optimal Control Problems, Master's Thesis, University of Tennessee, Knoxville, 2015.
[10]	P. Howlett, The optimal control of a train, Annals of Operations Research, 98 (2000), 65-87. doi: 10.1023/A:1019235819716.
[11]	N. Khimoum and M. O. Bibi, Primal-dual method for solving a linear-quadratic multi-input optimal control problem, Optimization Letters, 14 (2019), 653-669. doi: 10.1007/s11590-018-1375-2.
[12]	K. Louadj, P. Spiteri, F. Demim, M. Aidene, A. Nemra and F. Messine, Application optimal control for a problem aircraft flight, Engineering Science and Technology Review, 11 (2018), 156-164.
[13]	N. Moussouni and M. Aidene, An algorithm for optimization of cereal output, Acta Applicandae Mathematicae, 11 (2011), 113-127. doi: 10.1007/s10440-011-9664-0.
[14]	N. Moussouni and M. Aidene, Optimization of cereal output in presence of locusts, An International Journal of Optimization and Control: Theories & Applications, 6 (2016), 1-10. doi: 10.11121/ijocta.01.2016.00254.
[15]	O. Oukacha, Direct Method for the Optimization of Control Problems, PhD Dissertation, University of Tizi-Ouzou, Algeria, 2016 (in French).
[16]	L. S. Pontryagin, V. G. Boltyanskii, R. V. Gamkrelidze and E. F. Mishchenko, The Mathematical Theory of Optimal Processes, Intersciences Publisher, New York, 1962.
[17]	E. Trélat, Optimal Control: Theory and Applications, Vuibert, Paris, France, 2005 (in French).
[18]	J. Zhu and R. Zeng, A mathematical formulation for optimal control of air pollution, Science in China, 46 (2003), 994-1002.
[19]	M. A. Zaitri, M. O. Bibi and M. Bentobache, A hybrid direction algorithm for solving optimal control problems, Cogent Mathematics & Statistics, 6 (2019), 1-12. doi: 10.1080/25742558.2019.1612614.
