The efficacy and generalizability of conditional GANs for posterior inference in physics-based inverse problems

Deep Ray; Harisankar Ramaswamy; Dhruv V. Patel; Assad A. Oberai

doi:10.3934/naco.2022038

Article Contents

2024, Volume 14, Issue 1: 160-189. Doi: 10.3934/naco.2022038

This issue Previous Article Efficient learning methods for large-scale optimal inversion design Next Article Group sparse Bayesian learning for data-driven discovery of explicit model forms with multiple parametric datasets

The efficacy and generalizability of conditional GANs for posterior inference in physics-based inverse problems

1.
Department of Aerospace and Mechanical Engineering, University of Southern California, Los Angeles, CA 90089, USA
2.
Department of Mechanical Engineering, Stanford University, Stanford, CA 94305, USA

^*Corresponding author: Deep Ray
^*Corresponding author: Deep Ray

The paper is handled by Andreas Mang as the guest editor.

Received: February 2022

Revised: November 2022

Early access: December 13, 2022

Published online: December 13, 2022

Abstract / Introduction Full Text(HTML) Figure(22) / Table(2) Related Papers Cited by

Abstract

In this work, we train conditional Wasserstein generative adversarial networks to effectively sample from the posterior of physics-based Bayesian inference problems. The generator is constructed using a U-Net architecture, with the latent information injected using conditional instance normalization. The former facilitates a multiscale inverse map, while the latter enables the decoupling of the latent space dimension from the dimension of the measurement, and introduces stochasticity at all scales of the U-Net. We solve PDE-based inverse problems to demonstrate the performance of our approach in quantifying the uncertainty in the inferred field. Further, we show the generator can learn inverse maps which are local in nature, which in turn promotes generalizability when testing with out-of-distribution samples.

Keywords:

Mathematics Subject Classification: Primary: 62F15, 68T07; Secondary: 65M32.

Citation:

Full Text(HTML)

Figure 1. Architecture of generator and critic used in the conditional GAN. The spatial dimension $ {N_x} = H \times W $ of the input, the channel parameter $ C $, the latent dimension $ N_z $ and the depth of generator and critic vary for each experiment

Download: Full-size image PowerPoint slide

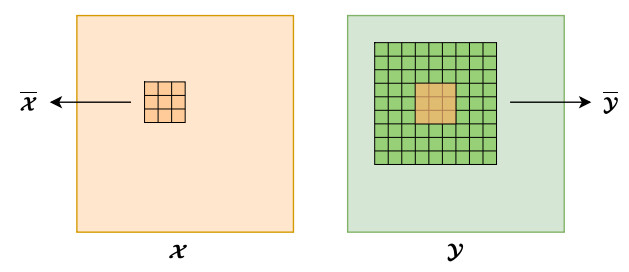

Figure 2. A schematic representation of the subsets $ \overline{\boldsymbol{\mathcal{X}}} $ and $ \overline{\boldsymbol{\mathcal{Y}}} $ in our problems

Download: Full-size image PowerPoint slide

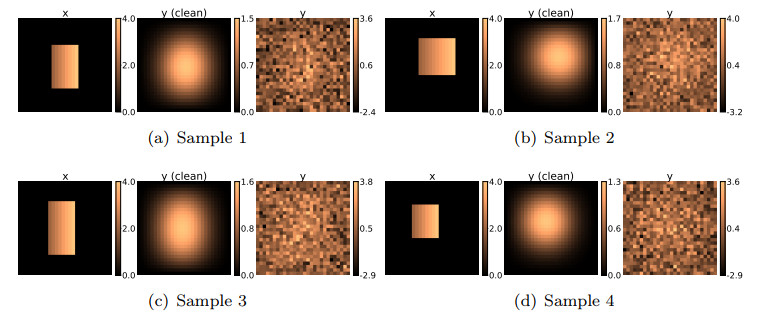

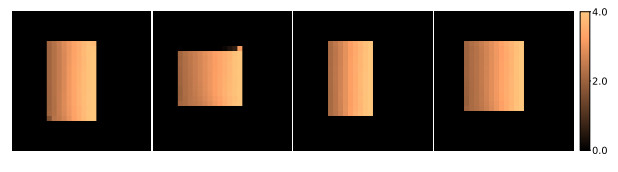

Figure 3. Samples from rectangular dataset used to train the cWGAN. The clean measurements are also shown to contextualize the amount of noise added

Download: Full-size image PowerPoint slide

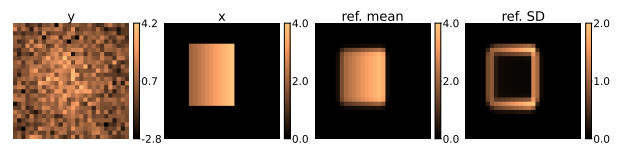

Figure 4. Test sample with reference mean and SD

Download: Full-size image PowerPoint slide

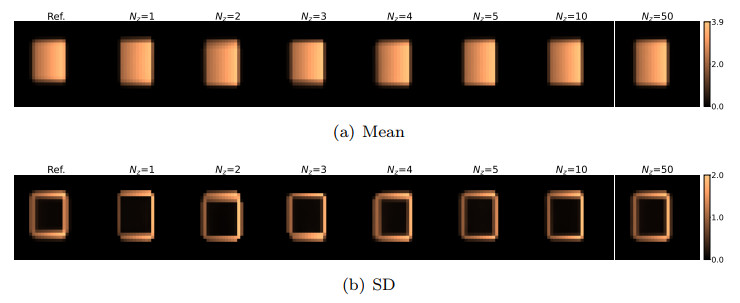

Figure 5. Mean and SD computed with 800 samples of $ z $, for cWGANs trained with varying latent space dimension $ ( {N_z}) $

Download: Full-size image PowerPoint slide

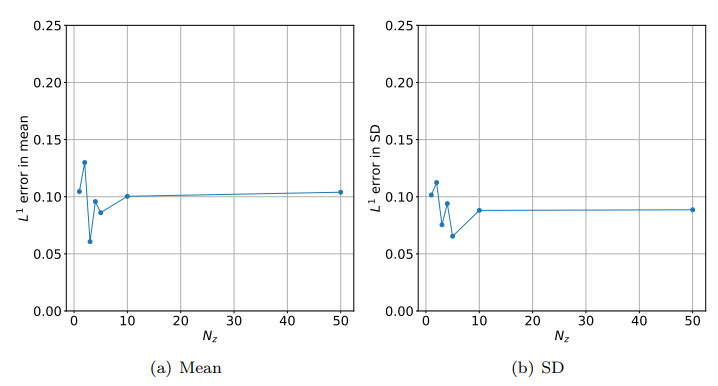

Figure 6. $ L_1 $ error in computed statistics compared to the reference statistics as a function of the number $ {N_z} $

Download: Full-size image PowerPoint slide

Figure 7. Most important samples ranked left to right using RRQR algorithm on 800 samples for $ {N_z} = 3 $

Download: Full-size image PowerPoint slide

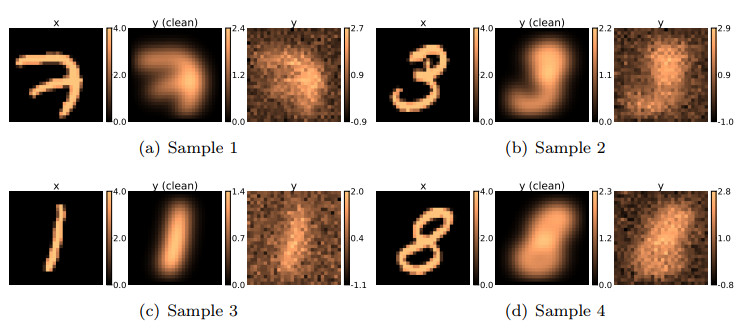

Figure 8. Samples from MNIST dataset used to train the cWGAN. The clean measurements are also shown to contextualize the amount of noise added

Download: Full-size image PowerPoint slide

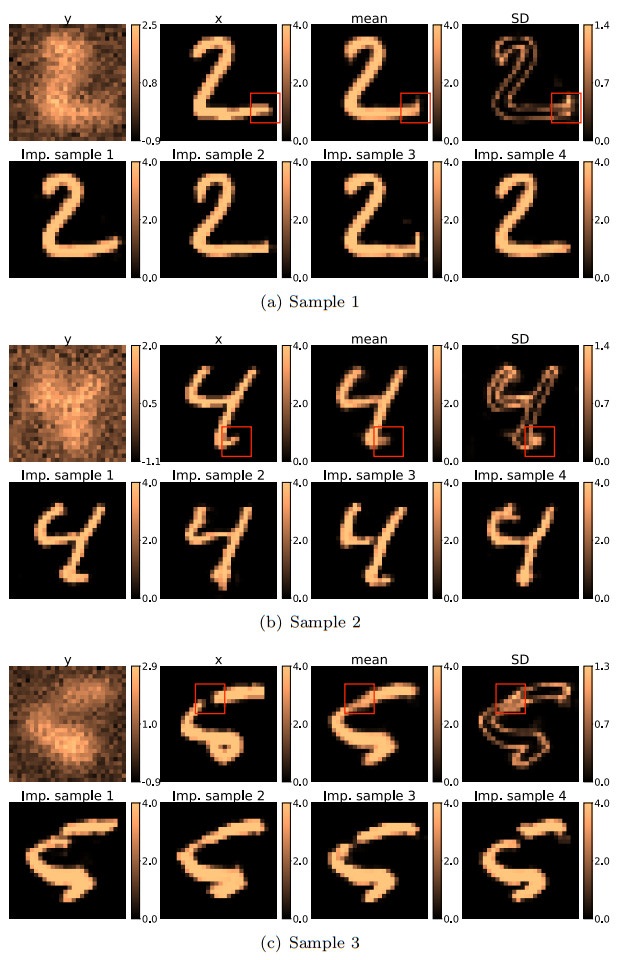

Figure 9. Inferring initial condition for test samples chosen from the same distribution as the training set (MNIST prior)

Download: Full-size image PowerPoint slide

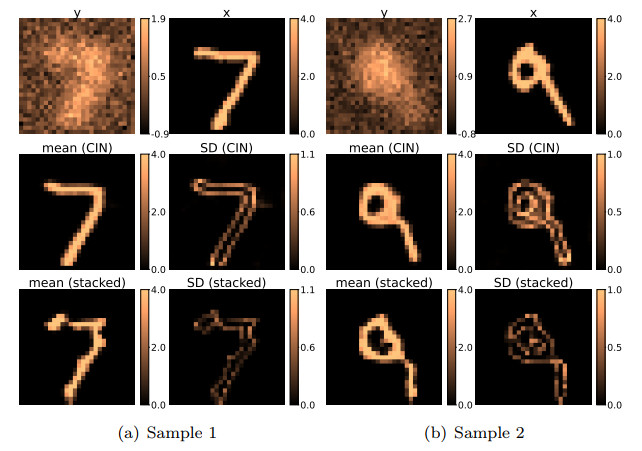

Figure 10. Comparing cWGAN and cWGAN-stacked for inferring initial condition (MNIST prior)

Download: Full-size image PowerPoint slide

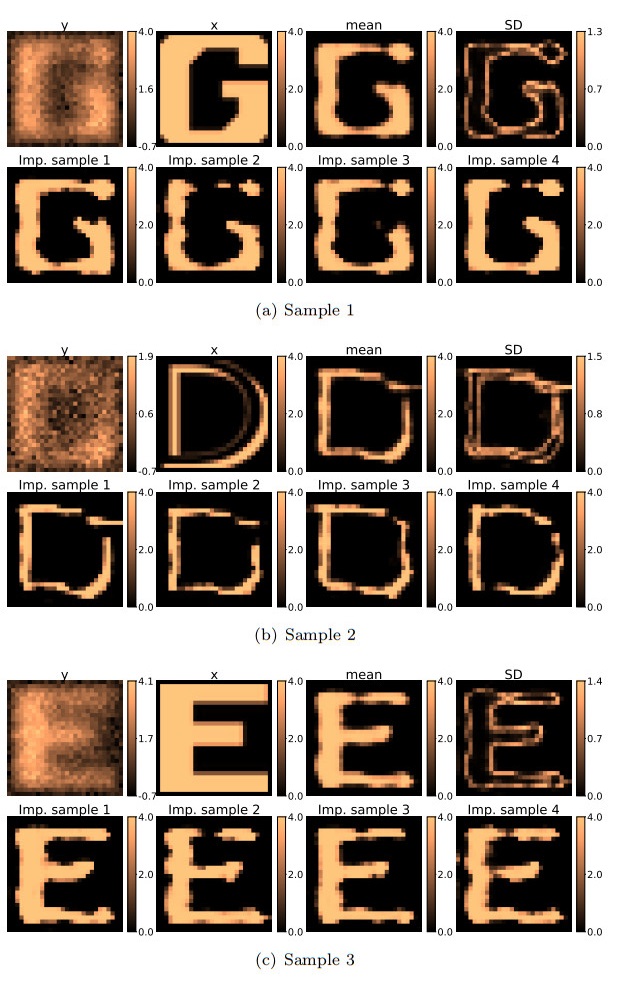

Figure 11. Inferring initial condition for OOD test samples (notMNIST prior)

Download: Full-size image PowerPoint slide

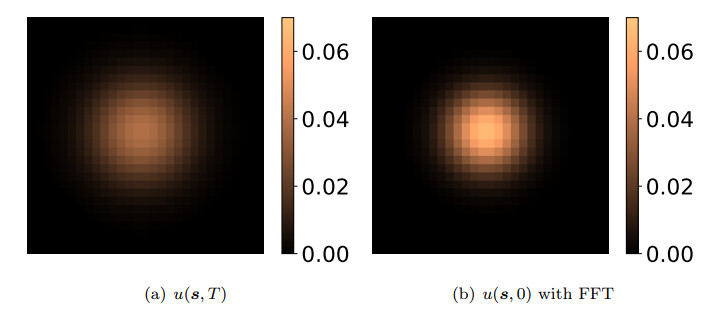

Figure 12. The profiles of $ u(T) $ and the corresponding $ u(0) $ obtained with an FFT algorithm, for $ \boldsymbol{s}^0 = (0,0) $

Download: Full-size image PowerPoint slide

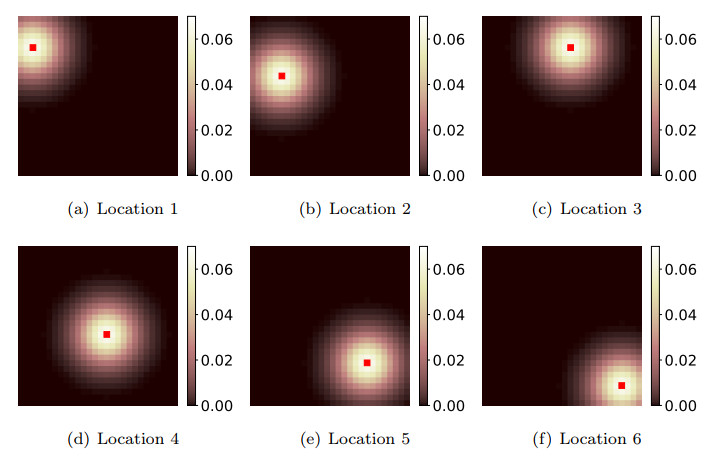

Figure 13. The value of $ u( \boldsymbol{s}^1,T) $ at select locations/components $ \boldsymbol{s}^1 $ (marked in red) as $ \boldsymbol{s}^0 $ varies in $ [0,2 \pi]^2 $

Download: Full-size image PowerPoint slide

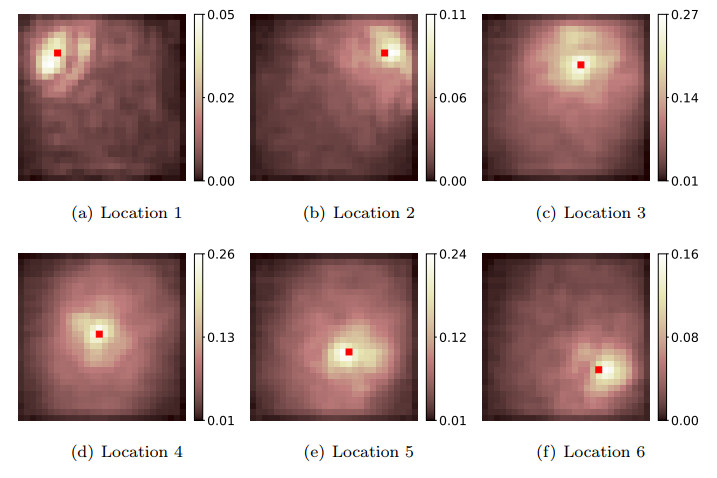

Figure 14. Average component-wise gradient of $ \boldsymbol{g} $ trained on MNIST data. The red marker in each tile denotes the component/location of $ x $ under consideration

Download: Full-size image PowerPoint slide

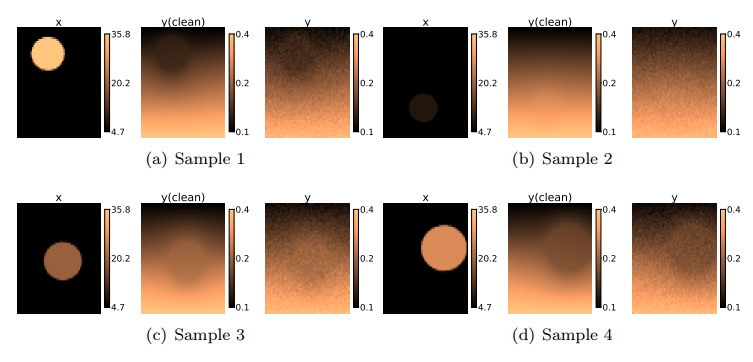

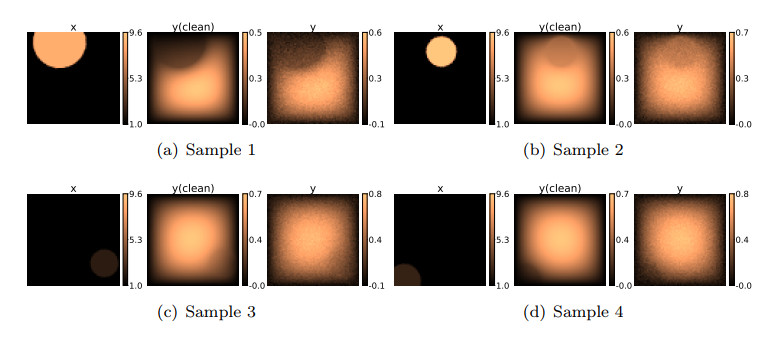

Figure 15. Samples from the dataset that was used to train the network for inferring the conductivity. Each x sample consists of a circular inclusion with a randomly chosen contrast value

Download: Full-size image PowerPoint slide

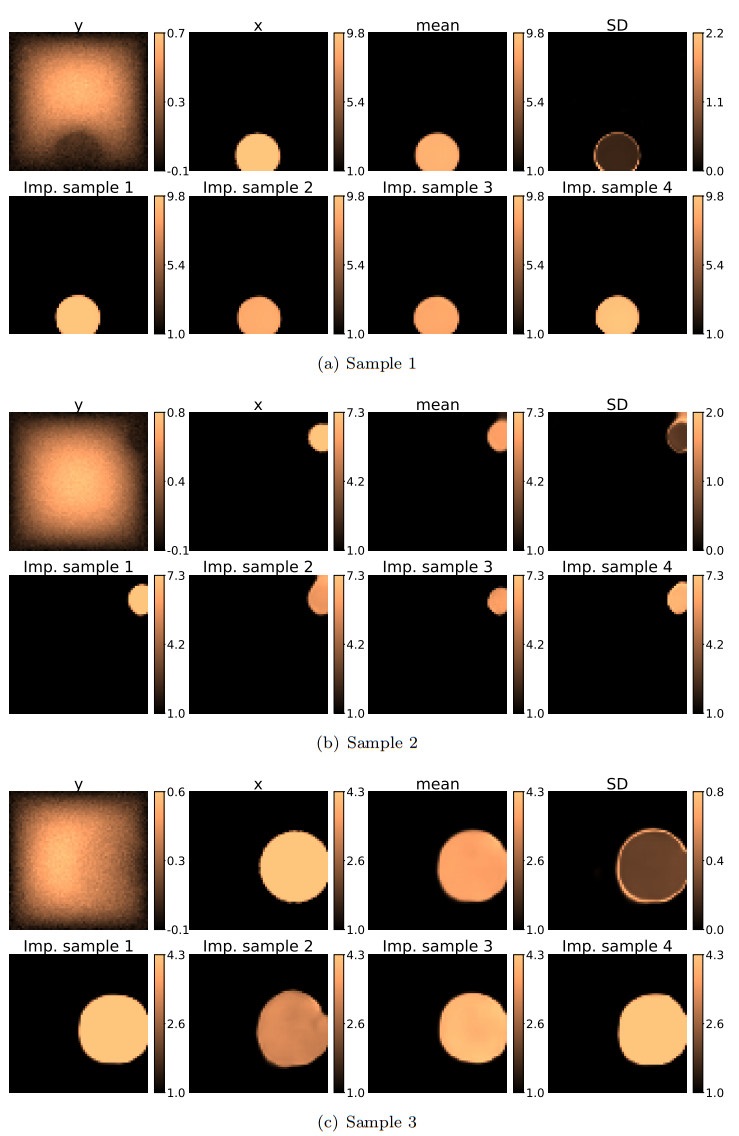

Figure 16. Inferring conductivity for test samples generated from circular priors (same distribution as the training set)

Download: Full-size image PowerPoint slide

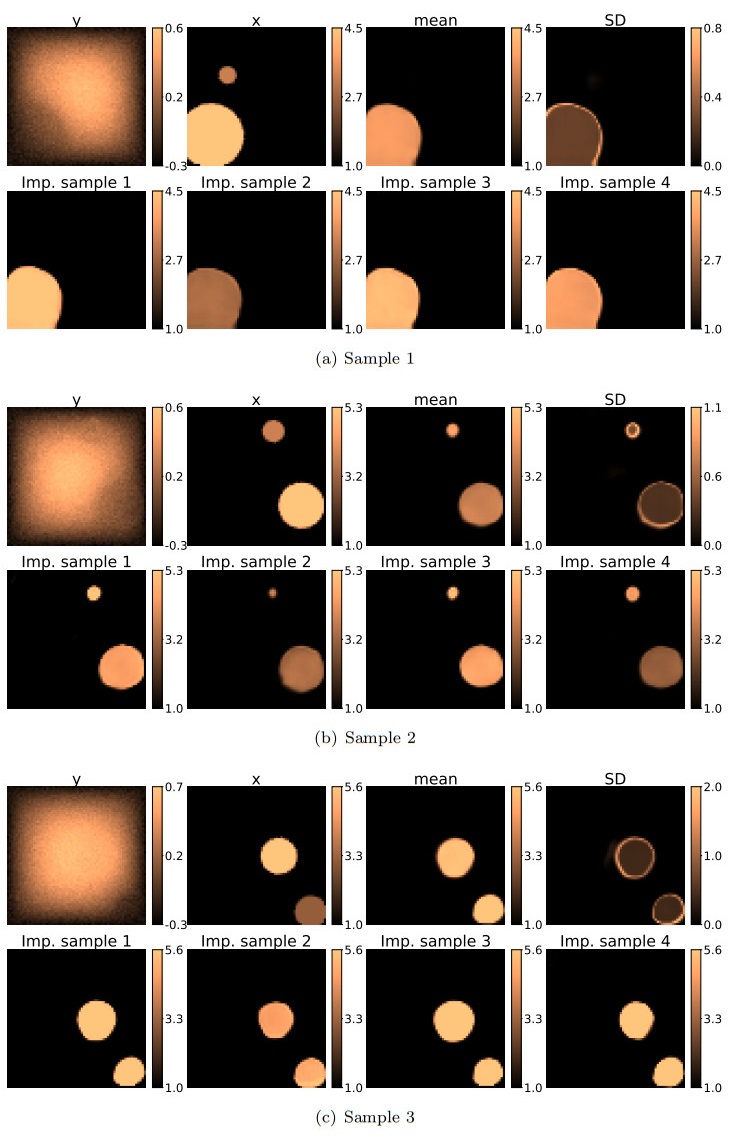

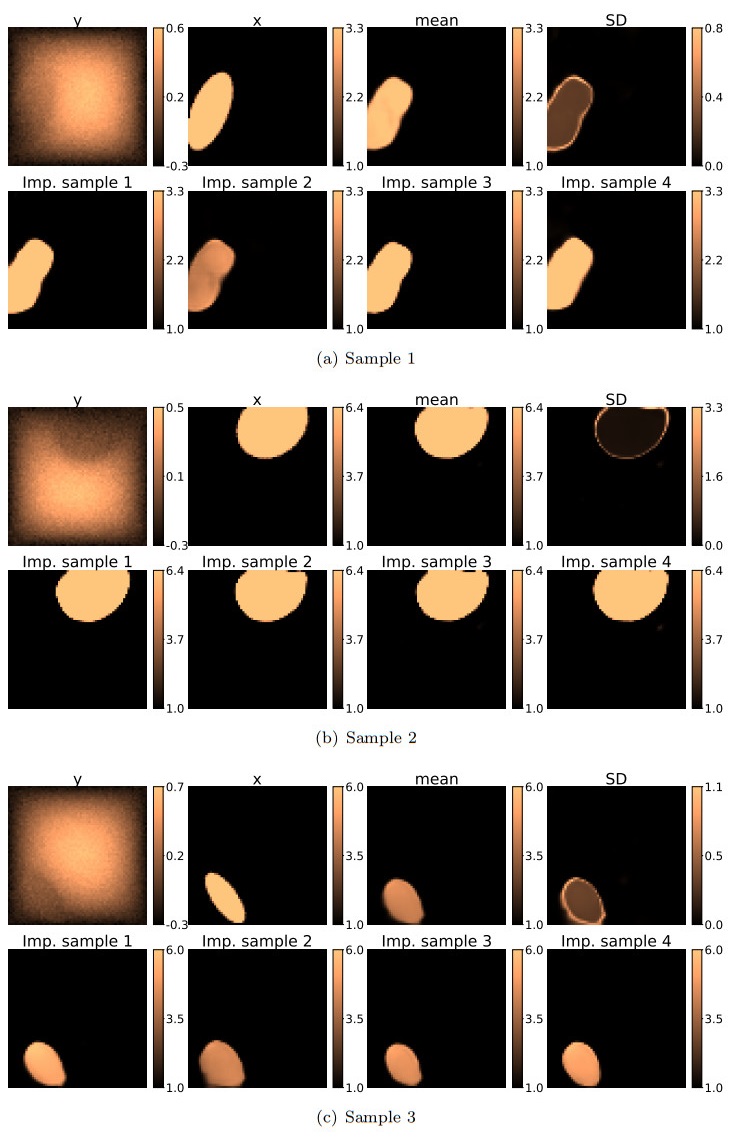

Figure 17. Inferring conductivity for OOD samples generated with elliptical priors

Download: Full-size image PowerPoint slide

Figure 18. Inferring conductivity for OOD samples involving two circles

Download: Full-size image PowerPoint slide

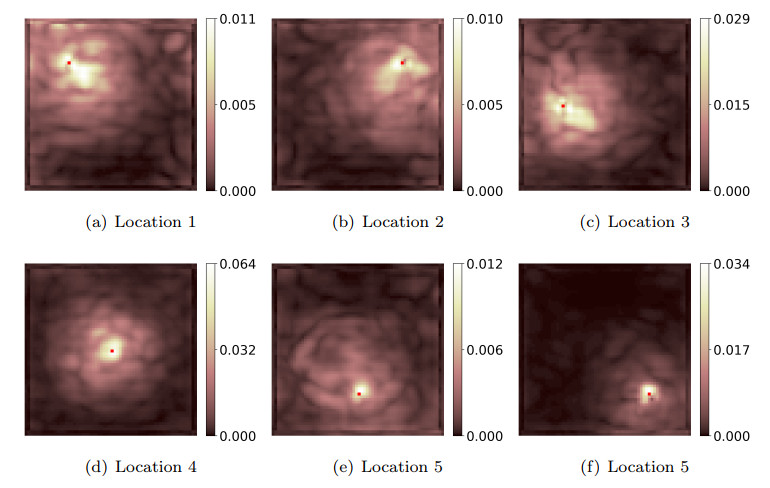

Figure 19. Average component-wise gradient data from the network used for conductivity inference. The red marker denotes the component/location (of $ x $) under consideration

Download: Full-size image PowerPoint slide

Figure 20. Samples from the dataset (circular priors) that was used to train the network for inferring shear modulus

Download: Full-size image PowerPoint slide

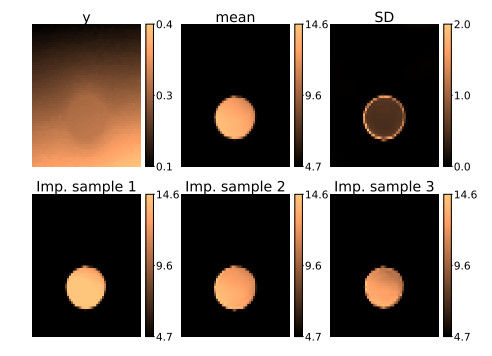

Figure 21. Inference on an experimentally measured displacement field

Download: Full-size image PowerPoint slide

Figure 22. Key components used to build the generator and critic networks

Download: Full-size image PowerPoint slide

Table 1. Dimension reduction with cGANs

Inferred field	Initial condition		Conductivity	Sheer modulus
Training Data	Rectangular	MNIST	Circles	Circles
$ N_x $	784	784	4096	3136
$ N_z$	3	100	50	50
$ \Upsilon=\left\lfloor N_x / N_z\right\rfloor $	261	7	81	62

| Show Table

DownLoad: CSV

Table 2. Hyper-parameters for cWGAN

Inferred field	Initial condition		Conductivity	Sheer modulus
Training Data	Rectangular	MNIST	Circles	Circles
Training samples	10,000	10,000	8000	8000
$ N_x $	$ 28\times28 $	$ 28\times28 $	$ 64\times64 $	$ 56\times56 $
$ N_z$	Multiple	100	50	50
Batch size	50	50	64	64
Activation param.	0.1	0.1	0.2	0.2
$ n_\text{critic}/n_\text{gen} $	4	4	5	5

| Show Table

DownLoad: CSV
