Batch sample-wise stochastic optimal control via stochastic maximum principle

Hui Sun; Feng Bao

doi:10.3934/naco.2026009

Article Contents

2026, Volume 19: 1-34. Doi: 10.3934/naco.2026009

This volume Previous Article Next Article A $ \Sigma $-shaped bifurcation curve for a class of reaction diffusion equations and an application to an ecological model

Batch sample-wise stochastic optimal control via stochastic maximum principle

Hui Sun^1, , and
Feng Bao^{1, 2,}

1.
School of Mathematics & Physics, Xi'an Jiaotong-Liverpool University, Suzhou 215123, China
2.
Department of Mathematics, Florida State University, FL 32306, USA

^*Corresponding author: Hui Sun
^*Corresponding author: Hui Sun

Received: May 4, 2025

Revised: January 19, 2026

Early access: February 3, 2026

Published online: February 3, 2026

The first author is supported by [Research Development Fund (RDF) Xi'an Jiaotong-Liverpool University (XJTLU), No.: RDF-24-02-029].

Abstract / Introduction Full Text(HTML) Figure(5) / Table(2) Related Papers Cited by

Abstract

In this work, we study the stochastic optimal control (SOC) problem mainly from the probabilistic viewpoint, i.e., via the stochastic maximum principle (SMP) [30]. We adopt the sample-wise backpropagation scheme proposed in [1] to solve the SOC problem under the strong convexity assumption. Importantly, in the stochastic gradient descent (SGD) procedure, we use batch samples with a higher-order scheme in the forward SDE to improve the convergence rate in [1] from $ \sim \mathcal{O}(\sqrt{\frac{N}{K} + \frac{1}{N}}) $ to $ \sim \mathcal{O}(\sqrt{\frac{1}{K} + \frac{1}{N^2}}) $, and note that the main source of uncertainty originates from the scheme for the simulation of the $ Z $ term in the BSDE. In the meantime, we note the SGD procedure uses only the necessary condition of the SMP, while the batch simulation of the approximating solution of BSDEs allows one to obtain a more accurate estimate of the control $ u $ that minimizes the Hamiltonian. We then propose a damped contraction algorithm to solve the SOC problem, and a proof of convergence for a special case is attained under appropriate assumptions. We then show numerical results to check the first-order convergence rate of the projection algorithm and analyze the convergence behavior of the damped contraction algorithm. We note that comparisons between the numerical results from these two algorithms (projection and contraction) show the projection approach is still favored in terms of stability and efficiency. Lastly, we briefly discuss how to incorporate the proposed scheme in solving practical problems, especially when randomized neural networks are used. We note that in this special case, the backward propagation error can be avoided, and parameter updates can be achieved via purely algebraic computation (vector algebra), which will potentially improve the efficiency of the whole training procedure. Such ideas will require further exploration, and we will leave this as our future work.

Keywords:

Mathematics Subject Classification: Primary: 60H10, 60H30, 65C20.

Citation:

Full Text(HTML)

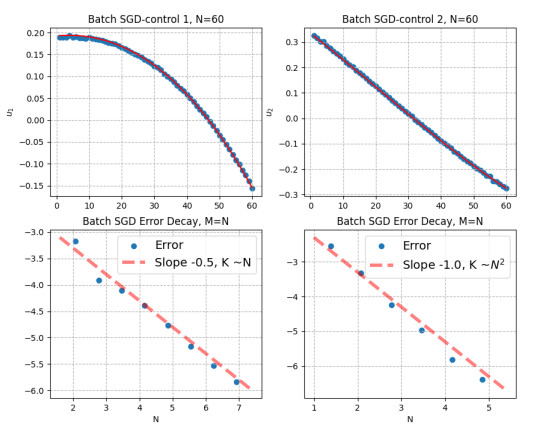

Figure 1. Top two figures: Demonstration of numerical solutions using the batch projection algorithm. Bottom two figures: demonstration of error decay by using different number of iterations for $ K $.

Download: Full-size image PowerPoint slide

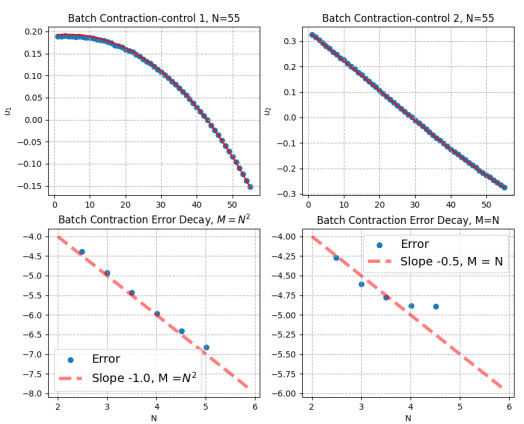

Figure 2. Top two figures: Demonstration of numerical solutions using the damped contraction algorithm. Bottom two figures: demonstration of error decay by using different number of batch size $ M $. $ x- $axis is on log scale.

Download: Full-size image PowerPoint slide

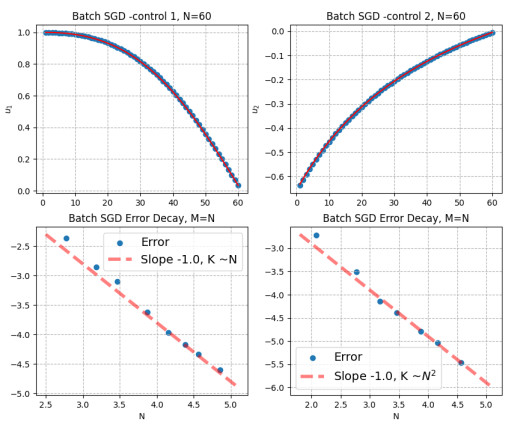

Figure 3. Top two figures: Demonstration of numerical solutions using the batch projection algorithm. Bottom two figures: demonstration of error decay by using different number of iterations for $ K $. $ x- $axis in log scale.

Download: Full-size image PowerPoint slide

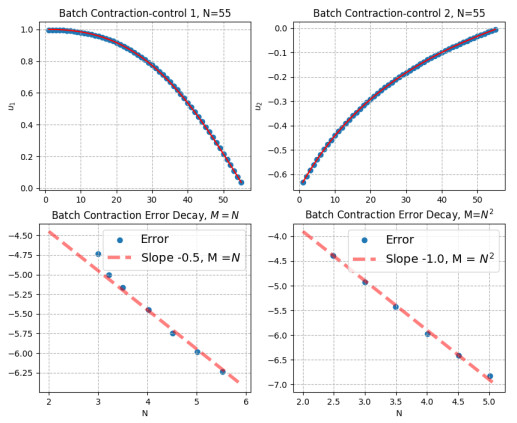

Figure 4. Top two figures: Demonstration of numerical solutions using the damped contraction algorithm. Bottom two figures: demonstration of error decay by using different batch sizes.

Download: Full-size image PowerPoint slide

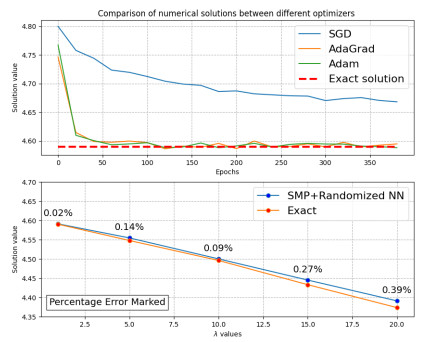

Figure 5. Top figure: Comparison between numerical solutions obtained via different optimizers. Bottom figure: Comparison between numerical and exact solutions by using the Adam optimizer under different $ \lambda $'s.

Download: Full-size image PowerPoint slide

Table 1. Example 1: Controlled diffusion, efficiency comparison.

Method	$ M $ (Batch size)	$ K $ (Iterations)	$ N $	Time (s)	Relative Error
SGD [1]	1	$ 40^3 $	40	34.1s	0.0037
Batch SGD	$ N $	$ 40^2 $	40	1.03 s	0.0033
Damped Contraction	$ N^2 $	$ 710 $	40	1.96s	0.0035

| Show Table

DownLoad: CSV

Table 2. Example 1: Controlled diffusion, efficiency comparison.

Method	$ M $ (Batch size)	$ K $ (Iterations)	$ N $	Time (s)	Relative Error
SGD	1	$ 40^3 $	40	29.14s	0.00429
Batch SGD	$ N $	$ 40^2 $	40	0.91 s	0.00426
Damped Contraction	$ N^2 $	$ 620 $	40	1.81s	0.00420

| Show Table

DownLoad: CSV
