Personalized exercise recommendation method based on causal deep learning: Experiments and implications

Suhua Wang; Zhiqiang Ma; Hongjie Ji; Tong Liu; Anqi Chen; Dawei Zhao

doi:10.3934/steme.2022011

Article Contents

2022, Volume 2, Issue 2: 157-172. Doi: 10.3934/steme.2022011 open access

This issue Previous Article Predicting how a disrupted semester during the COVID-19 pandemic impacted student learning Next Article

Personalized exercise recommendation method based on causal deep learning: Experiments and implications

1.
Department of Computer Science, Changchun Humanities and Sciences College, Changchun, 130117, China; wangsuhua@ccrw.edu.cn; mazq@nenu.edu.cn; zhaodawei@ccrw.edu.cn
2.
School of Information Science and Technology, Northeast Normal University, Changchun 130117, China; jihj328@nenu.edu.cn; liut790@nenu.edu.cn; chenaq669@nenu.edu.cn

* Correspondence: Email: zhaodawei@ccrw.edu.cn; Tel: +86-431-84536338
* Correspondence: Email: zhaodawei@ccrw.edu.cn; Tel: +86-431-84536338

Academic Editor: Jun Shen

Received: December 2021

Accepted: April 30, 2022

Published: June 2022

Abstract Full Text(HTML) Figure(5) / Table(7) Related Papers Cited by

Abstract

The COVID-19 pandemic has accelerated innovations for supporting learning and teaching online. However, online learning also means a reduction of opportunities in direct communication between teachers and students. Given the inevitable diversity in learning progress and achievements for individual online learners, it is difficult for teachers to give personalized guidance to a large number of students. The personalized guidance may cover many aspects, including recommending tailored exercises to a specific student according to the student′s knowledge gaps on a subject. In this paper, we propose a personalized exercise recommendation method named causal deep learning (CDL) based on the combination of causal inference and deep learning. Deep learning is used to train and generate initial feature representations for the students and the exercises, and intervention algorithms based on causal inference are then applied to further tune these feature representations. Afterwards, deep learning is again used to predict individual students′ score ratings on exercises, from which the Top-N ranked exercises are recommended to similar students who likely need enhancing of skills and understanding of the subject areas indicated by the chosen exercises. Experiments of CDL and four baseline methods on two real-world datasets demonstrate that CDL is superior to the existing methods in terms of capturing students′ knowledge gaps in learning and more accurately recommending appropriate exercises to individual students to help bridge their knowledge gaps.

Keywords:

Citation:

FullText(HTML)

Figure 1. Framework for causal deep learning (CDL) (Cs is the student input embedded with causal interventions; Cs is the exercise input embedded with causal interventions)

Download: Full-size image PowerPoint slide

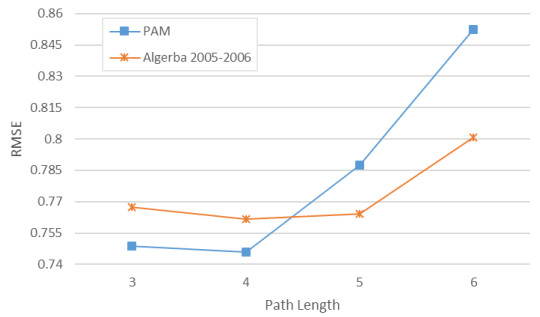

Figure 3. Influence of the length of the knowledge path

Download: Full-size image PowerPoint slide

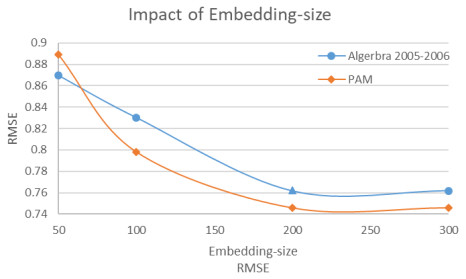

Figure 4. RMSE with different embedding sizes

Download: Full-size image PowerPoint slide

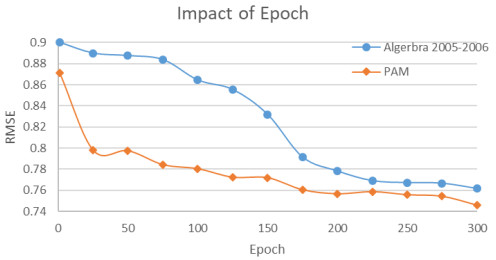

Figure 5. RMSE with different epochs

Download: Full-size image PowerPoint slide

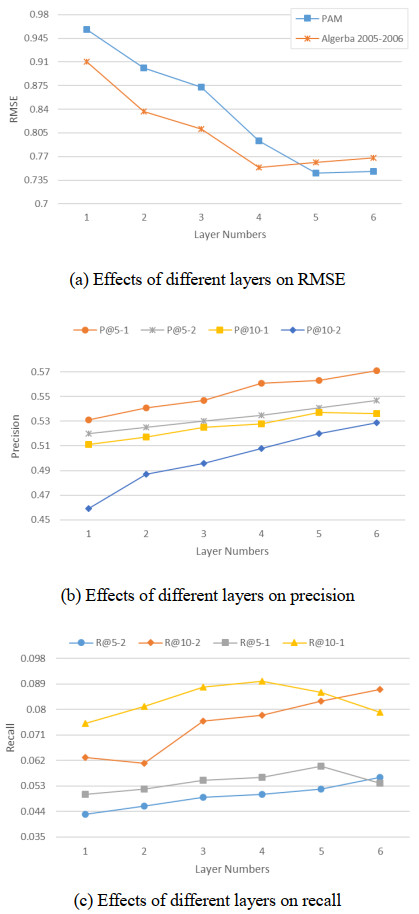

Figure 6. Impact of interaction layers

Download: Full-size image PowerPoint slide

Table 1. Exercise-knowledge matrix

Exercise	Knowledge
Exercise	k₁	k₂	k₃	k₄	k₅	k₆	k₇	k₈	k₉	k₁₀	…	k_N
E₁	1	1	0	1	0	0	0	0	0	0		0
E₂	0	1	1	1	0	0	0	0	0	0		0
…
E_i	0	0	0	0	0	0	1	1	0	1		0

| Show Table

DownLoad: CSV

Table 2. Summary of the PAM database

Types of PAM exercises
Multiple choice	Judgement	Filling the blank	Calculation
917	326	384	591

| Show Table

DownLoad: CSV

Table 3. Summary of the PAM and Algebra 2005-2006 datasets for experiments

Dataset	Number of students	Number of exercises	Knowledge concepts	Records
PAM	450	2218	368	1264
Algebra 2005-2006	300	1085	437	3000

| Show Table

DownLoad: CSV

Table 4. RMSE and comparison

Method	Algebra 2005-2006		PAM
Method	RMSE	CDL improvement	RMSE	CDL improvement
User-CF	0.8441	10.95%	0.8718	14.44%
KS-CF	0.8033	6.42%	0.7989	6.63%
DKT⁺	0.7892	4.75%	0.7602	1.88%
KGEB-CF	0.7768	3.23%	0.7633	2.28%
CDL	0.7617	-	0.7459	-
Average improvement	6.33%		6.31%

| Show Table

DownLoad: CSV

Table 5. Comparison of precision and recall on PAM

Method	PAM
Method	P@5	CDL improvement	P@10	CDL improvement	R@5	CDL improvement	R@10	CDL improvement
User-CF	0.493	15.82%	0.481	11.43%	0.049	14.29%	0.079	10.13%
KS-CF	0.514	11.09%	0.496	8.06%	0.049	14.29%	0.081	7.41%
DKT⁺	0.529	7.94%	0.497	7.85%	0.053	5.67%	0.085	2.35%
KGEB-CF	0.547	4.39%	0.512	4.69%	0.054	3.70%	0.085	2.35%
CDL	0.571	-	0.536	-	0.056	-	0.087	-
Average improvement	9.81%		8.01%		9.49%		5.56%

| Show Table

DownLoad: CSV

Table 6. Comparison of precision and recall on Algebra 2005-2006

Method	Algebra 2005-2006
Method	P@5	CDL improvement	P@10	CDL improvement	R@5	CDL improvement	R@10	CDL improvement
User-CF	0.502	8.23%	0.496	6.65%	0.048	12.50%	0.069	14.50%
KS-CF	0.518	5.60%	0.512	3.32%	0.048	12.50%	0.072	9.72%
DKT+	0.532	2.82%	0.516	2.52%	0.050	8.00%	0.077	2.78%
KGEB-CF	0.538	1.67%	0.523	1.15%	0.053	2.00%	0.074	6.76%
CDL	0.547	-	0.529	-	0.054	-	0.079	-
Average improvement	4.58%		3.41%		8.75%		8.44%

| Show Table

DownLoad: CSV

Table 7. Comparison of performances of CDL with/without causal inference

Dataset	Metric	Method
Dataset	Metric	CDL-Without-CI	CDL-CI(CDL)
PAM	P@5 $ \uparrow $	0.572	0.582
	P@10 $ \uparrow $	0.507	0.545
	R@5 $ \uparrow $	0.052	0.058
	R@10 $ \uparrow $	0.078	0.091
Algebra 2005-2006	P@5 $ \uparrow $	0.569	0.578
	P@10 $ \uparrow $	0.499	0.539
	R@5 $ \uparrow $	0.051	0.055
	R@10 $ \uparrow $	0.073	0.089

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	Vie, J. and Kashima, H., Knowledge tracing machines: Factorization machines for knowledge tracing. The Thirty-Third AAAI Conference on Artificial Intelligence, 2019, 33(01): 750–757. https://doi.org/10.1609/aaai.v33i01.3301750 doi: 10.1609/aaai.v33i01.3301750.
[2]	Walker, A., Recker, M. and Lawless, K., Collaborative information filtering: A review and an educational application. International Journal of Artificial Intelligence in Education, 2004, 14(1): 3–28.
[3]	Hsu, M., A personalized English learning recommender system for ESL students. Expert Systems with Applications, 2008, 34(1): 683–688. https://doi.org/10.1016/j.eswa.2006.10.004 doi: 10.1016/j.eswa.2006.10.004.
[4]	Milicevic, A., Vesin, B. and Ivanovic, M., E-learning personalization based on hybrid recommendation strategy and learning style identification. Computers & Education, 2011, 56(3): 885–899. https://doi.org/10.1016/j.compedu.2010.11.001 doi: 10.1016/j.compedu.2010.11.001.
[5]	Segal, A., Katzir, Z. and Shapira, B., EduRank: A collaborative filtering approach to personalization in e-learning. Proceedings of the 7th International Conference on Educational Data Mining, 2014, 68–75.
[6]	Toledo, R. and Mota, Y., An e-learning collaborative filtering approach to suggest problems to solve in programming online judges. International Journal of Distance Education Technologies, 2014, 12(2): 51–65. https://doi.org/10.4018/ijdet.2014040103 doi: 10.4018/ijdet.2014040103.
[7]	Wu, D., Lu, J. and Zhang G., A fuzzy tree matching-based personalized e-learning recommender system. IEEE Transactions on Fuzzy Systems, 2015, 23(6): 2412–2426. https://doi.org/10.1109/TFUZZ.2015.2426201 doi: 10.1109/TFUZZ.2015.2426201.
[8]	Dwivedi, P. and Bharadwaj, K., Effective trust-aware e-learning recommender system based on learning styles and knowledge levels. Journal of Educational Technology & Society, 2013, 16(4): 201–216.
[9]	Jiang, C., Feng, J. and Sun, X., Personalized exercises recommendation algorithm based on knowledge hierarchical graph, ReKHG. Computer Engineering and Applications, 2018, 54(10): 234–240.
[10]	Gong, T. and Yao, X., Deep exercise recommendation model. International Journal of Modeling and Optimization, 2019, 9(1): 18–23. https://doi.org/10.7763/IJMO.2019.V9.677 doi: 10.7763/IJMO.2019.V9.677.
[11]	Piech, C., Bassen, J. and Huang, J., Deep knowledge tracing. NIPS'15 Proceedings of the 28th International Conference on Neural Information Processing Systems, 2015, 505–513.
[12]	Zhang, L., Xiong, X. and Zhao, S., Incorporating rich features into deep knowledge tracing. Proceedings of the Fourth ACM Conference on Learning at Scale, 2017, 169–172. https://doi.org/10.1145/3051457.3053976 doi: 10.1145/3051457.3053976.
[13]	Su, Y., Liu, Q. and Liu, Q., Exercise-enhanced sequential modeling for student performance prediction. Proceedings of the 32nd AAAI Conference on Artificial Intelligence (AAAI-18), 2018, 2435–2443.
[14]	Wang, L., Angela, S. and Liu L., Deep knowledge tracing on programming exercises. Proceedings of the Fourth. ACM Conference on Learning at Scale, 2017, 201–204. https://doi.org/10.1145/3051457.3053985 doi: 10.1145/3051457.3053985.
[15]	Yeung, C. and Yeung, D., Addressing two problems in deep knowledge tracing via prediction-consistent regularization. Proceedings of the Fifth Annual ACM Conference on Learning at Scale, 2018, 41–50. https://doi.org/10.1145/3231644.3231647 doi: 10.1145/3231644.3231647.
[16]	Didelez, V. and Pigeot, I., Judea Pearl: Causality: Models, reasoning, and inference. Politische Vierteljahresschrift, 2001, 42(2): 313–315. https://doi.org/10.1007/s11615-001-0048-3 doi: 10.1007/s11615-001-0048-3.
[17]	Louizos, C., Shalit, U. and Mooij, J., Causal effect inference with deep latent-variable models. Proceedings of the 31st International Conference on Neural Information Processing Systems, 2017, 6449–6459.
[18]	Van, D., Causal reasoning and inference making in judging the importance of story statements. Child Development, 1989, 60(2): 286–297.
[19]	Joachims, T., Swaminathan, A. and De, R., Deep learning with logged bandit feedback. International Conference on Learning Representations, 2018, 1–12.
[20]	Swaminathan, A. and Joachims, T., Counterfactual risk minimization: Learning from logged bandit feedback. Proceedings of the 32nd International Conference on Machine Learning, 2015, 814–823. https://doi.org/10.1145/2740908.2742564 doi: 10.1145/2740908.2742564.
[21]	Swaminathan, A. and Joachims, T., The self-normalized estimator for counterfactual learning. Advances in Neural Information Processing Systems, 2015, 3231–3239.
[22]	Lisa, W., Angela, S., Larry. L. and Chris, P., Deep knowledge tracing on programming exercises. Proceedings of the Fourth ACM Conference on Learning, 2017, 201–204. https://doi.org/10.1145/3051457.3053985 doi: 10.1145/3051457.3053985.
[23]	Guy, S. and Asela, G., Evaluating recommendation systems. Recommender Systems Handbook, 2011, 257–297. https://doi.org/10.1007/978-0-387-85820-3_8 doi: 10.1007/978-0-387-85820-3_8.
[24]	Gang, L. and Tianyong, H., User-based question recommendation for question answering system. International Journal of Information and Education Technology, 2012, 2(3): 243–246. https://doi.org/10.7763/IJIET.2012.V2.120 doi: 10.7763/IJIET.2012.V2.120.
[25]	Shah, K., Zafar, A. and Irfan, U., Recommender systems: Issues, challenges, and research opportunities. Information science and applications (ICISA) 2016, 2016, 1179–1189. https://doi.org/10.1007/978-981-10-0557-2_112 doi: 10.1007/978-981-10-0557-2_112.
[26]	Ming, Z., De-sheng, Z., Ran, T., You-Qun, S., Xiang, Y. and Qian, W., Top-N collaborative filtering recommendation algorithm based on knowledge graph embedding. Proceedings of the 14th International Conference of the Knowledge Management in Organizations, 2019, 122–134. https://doi.org/10.1007/978-3-030-21451-7_11 doi: 10.1007/978-3-030-21451-7_11.
